The correct answer is B. Near-field communication (NFC).

According to the CompTIA A+ Core 1 220-1201 objectives under Mobile Devices and Security:

NFC is commonly used for secure access control. Many organizations implement NFC-enabled ID badges or mobile devices to unlock doors, gates, or secure areas.

The mobile device communicates over a very short range (a few centimeters) with a reader to authenticate the user.

Why the other options are incorrect:

A. Hotspot: Provides internet access, not physical building access.

C. Infrared scanner: While used in some legacy devices, it is not commonly implemented for secure mobile access.

D. Geolocation: Can provide location awareness but does not grant direct access to secure physical spaces.

The correct answer is D. Channel width.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Wireless:

Channel width refers to the size of the frequency band used for Wi-Fi communication.

Increasing channel width (e.g., from 20 MHz to 40 MHz, 80 MHz, or 160 MHz) allows more data to be transmitted at once, effectively increasing wireless throughput speed.

Why the other options are incorrect:

A. Licensed bands: Licensed spectrum is used for certain types of communication and does not directly increase Wi-Fi throughput.

B. Maximum transmission unit (MTU): MTU defines the largest packet size transmitted over a network but is not the primary factor for increasing Wi-Fi throughput.

C. Transmit power: Adjusting transmit power affects signal range and coverage but does not significantly increase throughput; it may improve connectivity but not data rates.

A VLAN (Virtual Local Area Network) is the correct solution because it logically separates devices into different broadcast domains on the same physical switching infrastructure. In CompTIA A+ Core 1 (220-1201), VLANs are described as a way to segment a network for security, performance, and management—for example, isolating departments like Accounting and Customer Service so their traffic is separated. Devices assigned to different VLANs cannot communicate directly at Layer 2; communication between VLANs requires a Layer 3 device (such as a router or a Layer 3 switch) using inter-VLAN routing and appropriate access control. This effectively prevents unnecessary broadcast traffic from crossing department boundaries and helps enforce separation policies.

A VPN is used to create an encrypted tunnel over an untrusted network (commonly for remote access or site-to-site connectivity), not for internal departmental segmentation. DNS resolves hostnames to IP addresses and does not isolate networks. DHCP automatically assigns IP configuration (IP address, gateway, DNS servers), but it does not provide segmentation by itself. Therefore, implementing VLANs is the best way to separate the two departments’ networks.

The correct answer is B. NVMe SSD.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Storage:

NVMe (Non-Volatile Memory Express) SSDs provide the fastest data access and retrieval speeds compared to other storage types, especially on laptops. NVMe SSDs use the PCIe interface, which allows significantly higher throughput and lower latency than SATA-based storage.

This improves boot times, application load times, and overall system responsiveness.

Why the other options are incorrect:

A. SATA M.2: While faster than traditional 2.5” SSDs and HDDs, SATA M.2 is limited by the SATA III interface (~600 MB/s), which is slower than NVMe SSDs (~3,000–7,000 MB/s).

C. Optical disk: Optical media (CD/DVD/Blu-ray) is extremely slow and not suitable for quick access or retrieval.

D. 7,200rpm HDD: Mechanical hard drives have the slowest access times and throughput compared to SSDs.

A router is a network device that forwards data between different networks by examining packet headers, specifically the IP address information contained in Layer 3 (Network Layer) of the OSI model. According to the CompTIA A+ Core 1 (220-1201) networking objectives, routers use routing tables and packet header analysis to determine the best path for data to travel from a source network to a destination network. When a packet arrives at a router interface, the router reads the destination IP address in the packet header, compares it against its routing table, and then forwards the packet to the appropriate next hop or network interface. This function allows routers to connect multiple networks such as LANs, WANs, and the internet.

The other options do not perform this function. A hub operates at Layer 1 (Physical Layer) and simply broadcasts incoming signals to all connected ports without inspecting any packet information. A repeater also operates at the physical layer and is used only to regenerate or amplify signals to extend network distance. An unmanaged switch operates mainly at Layer 2 (Data Link Layer) and forwards frames based on MAC addresses, not IP packet headers. Because only routers analyze packet headers and forward traffic between different networks, Router is the correct answer.

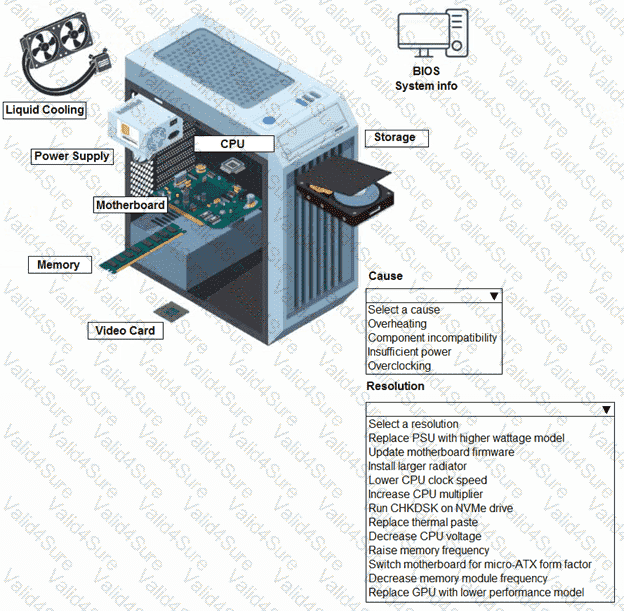

correct answer is " Overclocking " and " Reduce CPU Clock speed " CPU is at 4.5 Ghz when normal is 3.2 Ghz. Overclocking too much can cause freezes, and this is a gaming computer sothe user probably took it too far. http://blog.logicalincrements.com/2018/12/4-troubleshooting-tips-overclocking-pc/

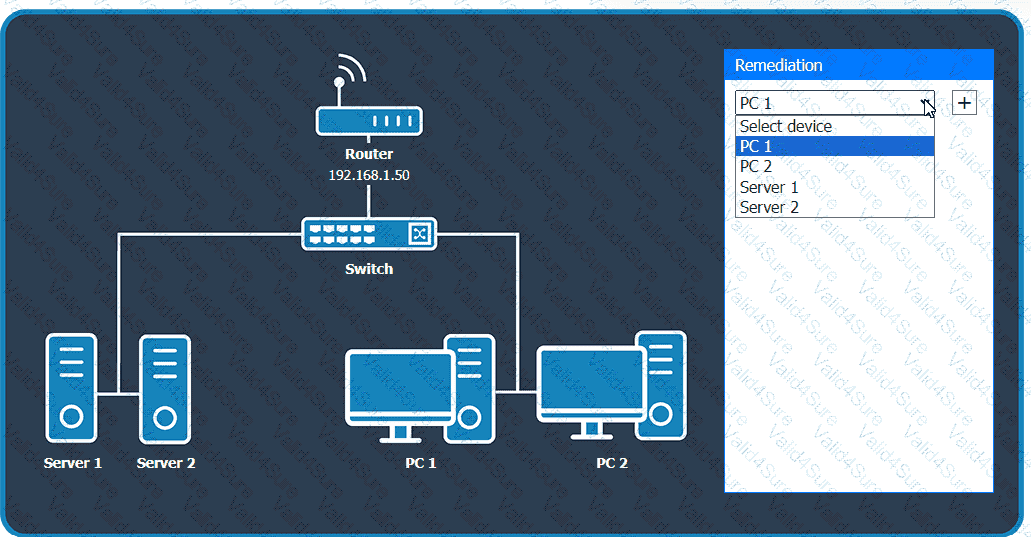

Looking at the network configurations and outputs from both PCs and servers, here are the possible issues and solutions:

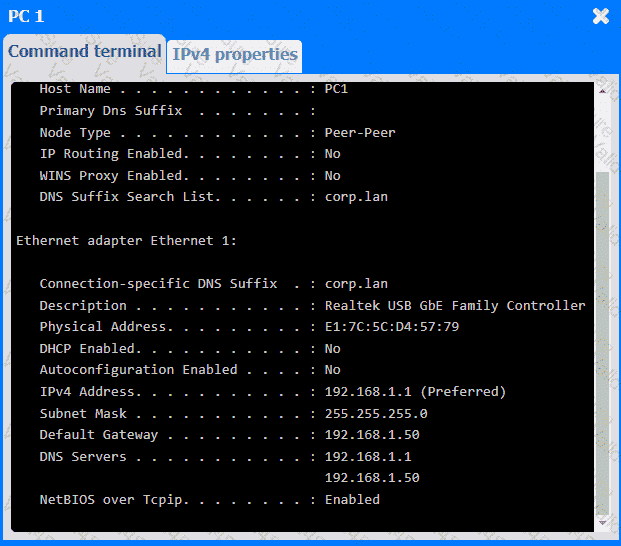

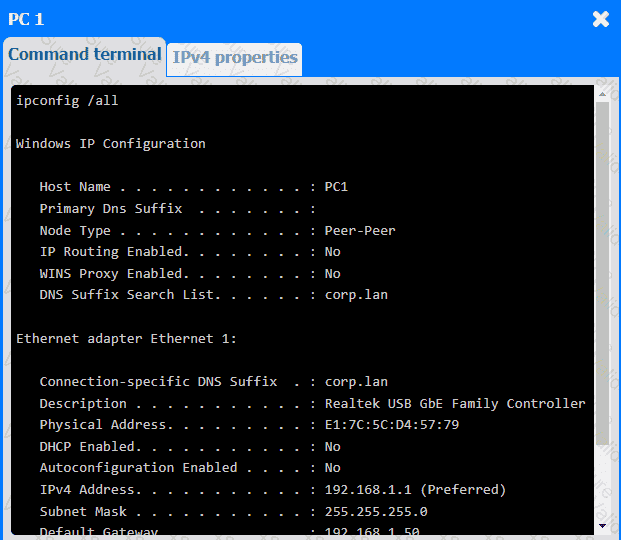

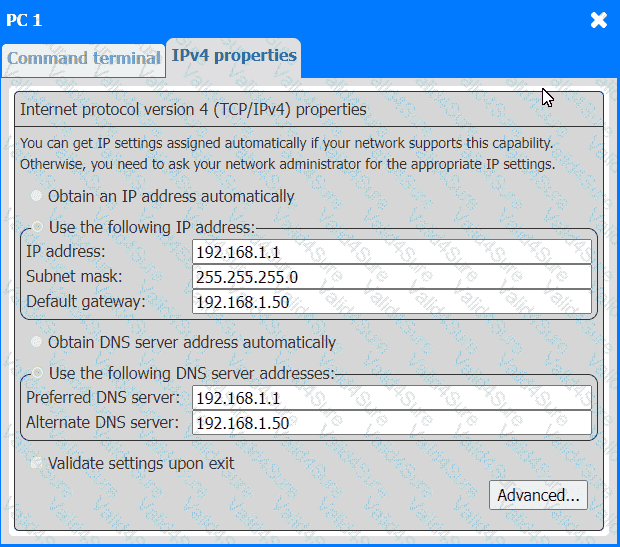

1. PC 1

Issue: The IP address for PC1 is 192.168.1.1, which conflicts with Server 1 (which also uses 192.168.1.1).

Solution: Change the IP address on PC1 to a unique one within the range, like 192.168.1.3.

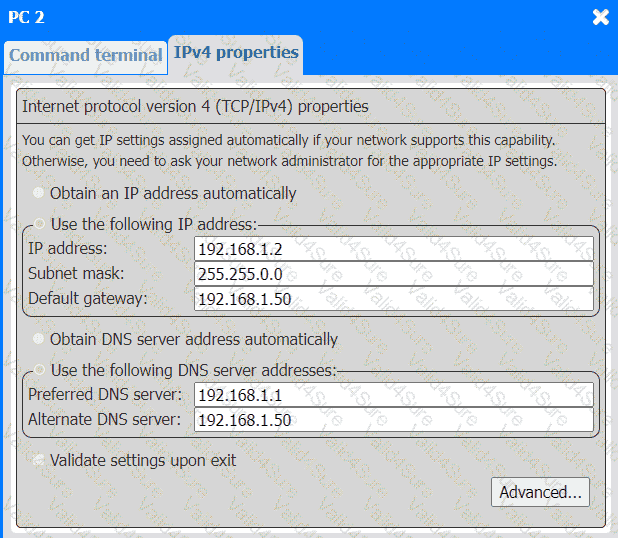

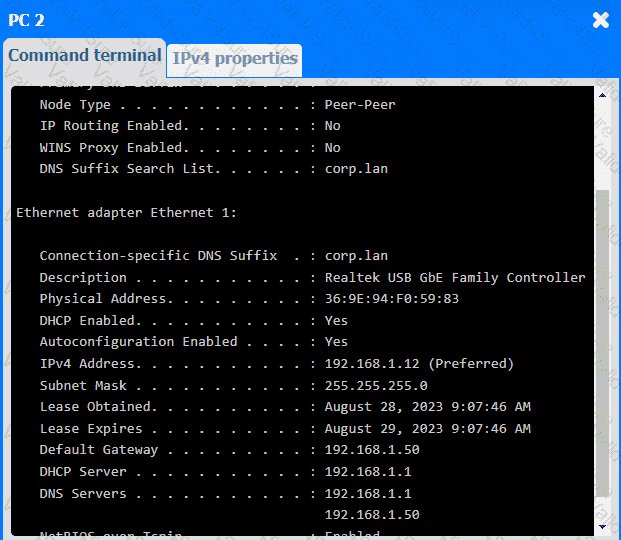

2. PC 2

Issue: PC 2 is configured with 192.168.1.2, which conflicts with Server 2 that has the same IP address.

Solution: Update the IP address on PC 2 to something unique, like 192.168.1.4.

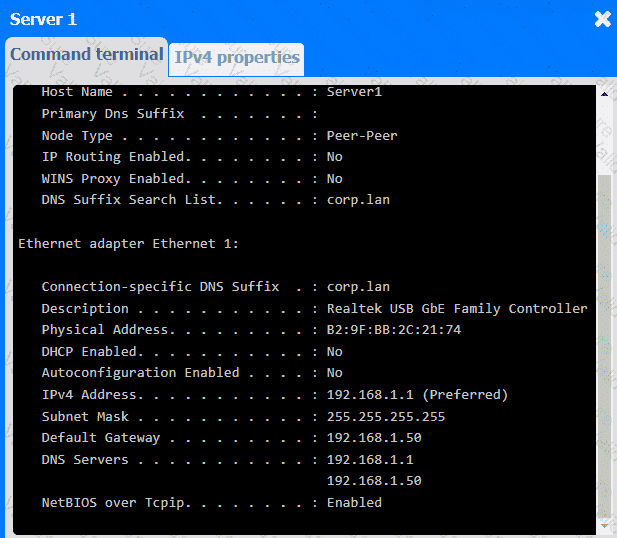

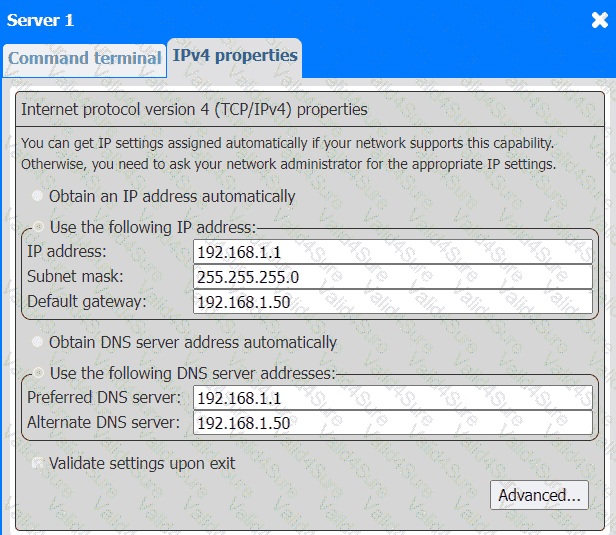

3. Server 1

Issue: The IP address for Server 1 is 192.168.1.1, which conflicts with PC1.

Solution: Since Server 1 and PC1 are using the same IP address, change one of them. For Server 1, you could change the IP address to 192.168.1.5.

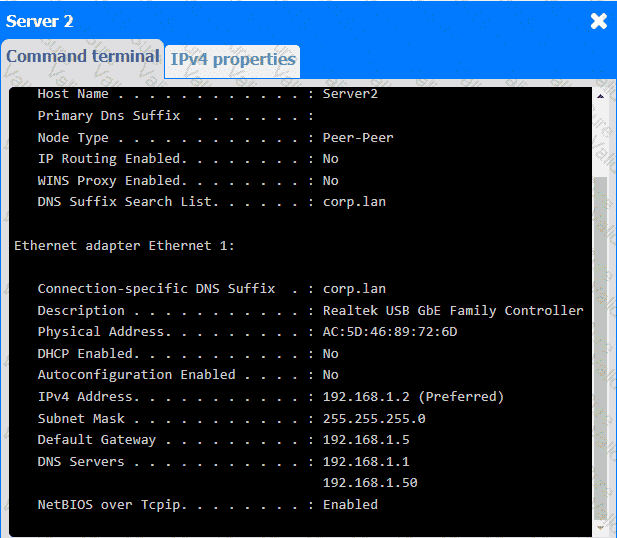

4. Server 2

Issue: Server 2 is using the IP address 192.168.1.2, which conflicts with PC2.

Solution: Update Server 2 to use a different IP address, such as 192.168.1.6.

General Remediation:

The primary problem here is overlapping IP addresses, leading to connectivity issues. Each device on the network must have a unique IP address. After making these changes, ensure that all devices can communicate properly by testing the connection between devices and verifying they can access shared resources.

The correct answer is C. Synchronized system clocks.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Server Services, NTP (Network Time Protocol) is used to synchronize the clocks of computers across a network to a common time source. This is critical for:

Ensuring accurate timestamps for logs and events.

Coordinating scheduled tasks across multiple systems.

Preventing authentication issues in environments that rely on time-based credentials (e.g., Kerberos).

Why the other options are incorrect:

A. Defined network transport protocols: NTP itself is a protocol that uses UDP, but its primary purpose is not defining transport protocols.

B. Enabled print services on the server: NTP does not relate to printing.

D. Defined server options in DHCP: NTP may be referenced by DHCP options, but the act of adding NTP to a server is focused on time synchronization, not DHCP configuration.
