350-701 Exam Dumps - Implementing and Operating Cisco Security Core Technologies (SCOR 350-701 v2.0)

Asymmetric encryption, also known as public-key cryptography, is a type of encryption that uses a pair of keys to encrypt and decrypt data. The pair of keys includes a public key, which can be shared with anyone, and a private key, which is kept secret by the owner. In asymmetric encryption, the sender uses the recipient’s public key to encrypt the data. The recipient then uses their private key to decrypt the data. This approach allows for secure communication between two parties without the need for both parties to have the same secret key. RSA is one of the most commonly used asymmetric encryption algorithms. It is based on the mathematical problem of factoring large numbers, which is believed to be hard to solve. RSA stands for Rivest-Shamir-Adleman, the names of the three inventors of the algorithm. RSA can be used for both encryption and digital signatures. To generate an RSA key pair, the following steps are performed:

Choose two large prime numbers, p and q, and compute their product, n = pq. This is called the modulus.

Choose a small number, e, that is relatively prime to (p-1)(q-1). This is called the public exponent.

Compute a number, d, that satisfies the equation ed ≡ 1 (mod (p-1)(q-1)). This is called the private exponent.

The public key is (n, e) and the private key is (n, d).

To encrypt a message, m, with the public key (n, e), the following formula is used:

c = m^e mod n

To decrypt a ciphertext, c, with the private key (n, d), the following formula is used:

m = c^d mod n

References :=

[Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0], Module 3: VPN Technologies, Lesson 3.1: Site-to-Site VPNs, Topic 3.1.2: IPsec VPNs

What is Asymmetric Encryption? - GeeksforGeeks

What is asymmetric encryption? | Asymmetric vs. symmetric … - Cloudflare

The cause of this issue is that NTP authentication is not enabled on the router. The commands shown in the exhibit only define the authentication key and mark it as trusted, but they do not enable NTP authentication globally or on a per-peer basis. To enable NTP authentication globally, the command ntp authenticate must be used. To enable NTP authentication on a per-peer basis, the command ntp server ip-address key key-id or ntp peer ip-address key key-id must be used, where key-id is the same as the one defined by the ntp authentication-key command. Without enabling NTP authentication, any device can synchronize time with this router, regardless of whether it has the same authentication key or not.

The other options are incorrect because:

The key was configured in plain text, but this is not the cause of the issue. Although it is recommended to use the ntp authentication-key key-id md5 key [encrypted] command to encrypt the key, using plain text does not prevent NTP authentication from working, as long as the same key is configured on both the router and the peer.

The hashing algorithm that was used was MD5, which is supported by NTP. MD5 is the default algorithm for NTP authentication and it can be used with any key length from 1 to 16 characters. Other algorithms, such as SHA and SHA1, are also supported by NTP if the OpenSSL library is installed, but they are not required for NTP authentication to work.

The router was not rebooted after the NTP configuration updated, but this is not necessary for NTP authentication to take effect. NTP authentication is applied immediately after the configuration commands are entered, and no reboot is required.

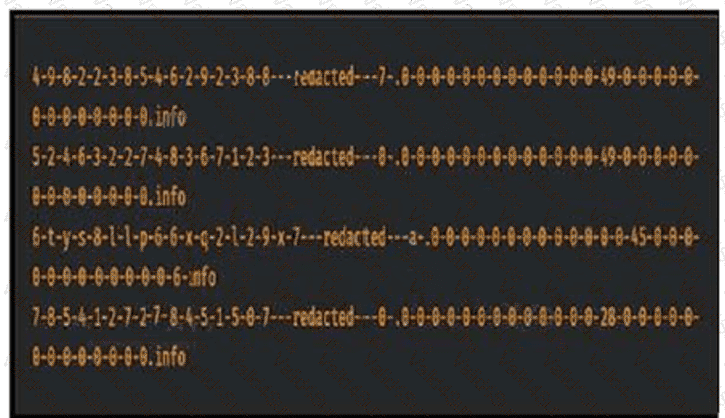

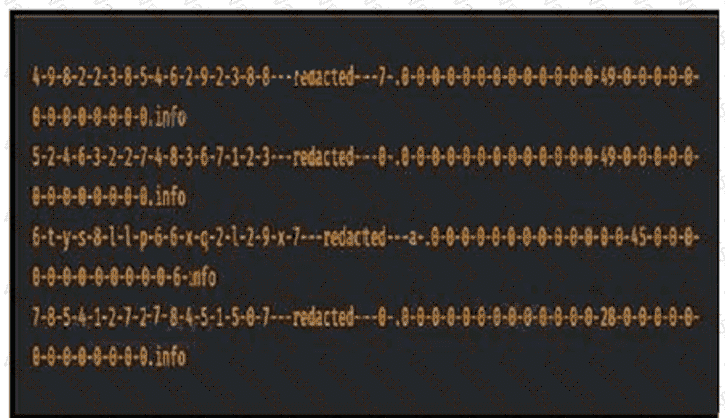

The W32/AutoRun worm is a type of malware that spreads through removable drives, such as USB flash drives, and modifies the autorun.inf file to execute itself when the drive is inserted. The worm also attempts to connect to a remote server and download additional malicious files. One of the features of this worm is that it generates random domain names based on the current date and time, and sends DNS requests to these domains. This is a technique to evade detection and analysis, as well as to communicate with the command and control server. The DNS requests generated by the worm have a distinctive pattern, such as the length of the domain name, the number of subdomains, and the use of redacted characters. By comparing these features to the expected behavior of normal DNS requests, security analysts can identify the presence of the worm and block its traffic. References :=

Some possible references are:

W32/AutoRun worm

DNS requests malicious attack

Four major DNS attack types and how to mitigate them

Explanation

SNMP polling can often be in the order of 5-10 minutes, CLIs are unstructured and prone to change which can often break scripts.

The traditional use of the pull model, where the client requests data from the network does not scale when what you want is near real-time data.

Moreover, in some use cases, there is the need to be notified only when some data changes, like interfaces status, protocol neighbors change etc.

Model-Driven Telemetry is a new approach for network monitoring in which data is streamed from network devices continuously using a push model and provides near real-time access to operational statistics. Referfence: https://developer.cisco.com/docs/ios-xe/#!streaming-telemetry-quick-start-guide/streaming telemetry

Cisco FMC is the centralized management solution for Cisco FTD appliances. It provides configuration, monitoring, analysis, and reporting capabilities for FTD devices. Cisco FMC can also manage Cisco ASAs that have been converted to FTD devices. Cisco FMC can be deployed as a physical or virtual appliance, or as a cloud service (CDO). However, since the organization does not have a local VM, CDO is not an option. Cisco FDM is the on-box management solution for FTD devices, which does not support centralized management or ASA migration. CSM is the legacy management solution for Cisco ASAs, which does not support FTD devices. References :=

Some possible references are:

Cisco Firepower Management Center Configuration Guide, Version 6.7

Install and Upgrade FTD on Firepower Appliances

Firepower Threat Defense simplifies application security

Explanation

In this IaaS model, cloud providers offer resources to users/machines that include computers as virtual

machines, raw (block) storage, firewalls, load balancers, and network devices.

Note: Cloud access security broker (CASB) provides visibility and compliance checks, protects data against misuse and exfiltration, and provides threat protections against malware such as ransomware.

accomplish the task is to install and configure the Cisco DUO Authentication Proxy and configure the identity source sequence within Cisco ISE. This will allow the engineer to integrate Cisco ISE with Cisco DUO for TACACS+ device administration using Active Directory as the primary authentication source and Cisco DUO as the secondary authentication source for multi-factor authentication (MFA). The steps to configure this solution are as follows12:

Install and configure the Cisco DUO Authentication Proxy on a Windows or Linux machine. The proxy will act as a RADIUS server that communicates with Cisco ISE and a RADIUS client that communicates with Cisco DUO cloud. The proxy will also connect to Active Directory for the primary authentication of the users.

Configure the proxy by editing the authproxy.cfg file. The file should include the following sections:

[ad_client]: This section defines the connection parameters to Active Directory, such as the host, service_account_username, service_account_password, and search_dn.

[radius_server_auto]: This section defines the RADIUS server parameters for the proxy, such as the ikey, skey, api_host, radius_ip_1, radius_secret_1, and client parameters. The ikey, skey, and api_host are obtained from the Cisco DUO web portal when creating a RADIUS application. The radius_ip_1 and radius_secret_1 are the IP address and shared secret of the Cisco ISE node that will send authentication requests to the proxy. The client parameter specifies the authentication method for Cisco DUO, such as auto, push, phone, or passcode.

[main]: This section defines the global settings for the proxy, such as the debug, log_max_size, and log_max_files parameters.

Restart the proxy service after saving the authproxy.cfg file.

Configure Cisco ISE as a TACACS+ server and add the proxy as an external RADIUS server. The steps are as follows:

Navigate to Administration > System > Deployment and enable the Device Administration Service on the appropriate node.

Navigate to Work Centers > Device Administration > Network Resources and add the network devices that will use TACACS+ for device administration. Specify the device name, IP address, device type, and shared secret.

Navigate to Work Centers > Device Administration > Network Access and add the proxy as an external RADIUS server. Specify the server name, IP address, port, shared secret, and timeout. Optionally, enable the Continue for additional authorization policy option to allow Cisco ISE to perform authorization based on the user’s Active Directory attributes after successful authentication by Cisco DUO.

Navigate to Work Centers > Device Administration > Policy Elements > Results > TACACS Profiles and create a TACACS profile for device administration. Specify the profile name, type, and custom attributes, such as the shell:roles and shell:priv-lvl attributes.

Navigate to Work Centers > Device Administration > Policy Sets and create a policy set for device administration. Specify the policy set name, conditions, and results. The conditions can be based on the device type, the protocol, or the identity source sequence. The results can be the TACACS profile and the external RADIUS server (the proxy).

Configure the network devices to use TACACS+ for device administration and specify Cisco ISE as the TACACS+ server and the proxy as the RADIUS server. The configuration commands may vary depending on the device type and model, but the general syntax is as follows:

aaa new-model

aaa authentication login default group tacacs+ local

aaa authorization exec default group tacacs+ local

aaa accounting exec default start-stop group tacacs+

tacacs server ISE

address ipv4 < ISE IP address >

key < ISE shared secret >

radius server DUO

address ipv4 < proxy IP address > auth-port < proxy port >

key < proxy shared secret >

Test the solution by logging into the network devices using Active Directory credentials. The user should receive a Cisco DUO prompt for the second factor authentication, such as a push notification, a phone call, or a passcode. After approving the second factor authentication, the user should be granted access to the device with the appropriate privileges based on the TACACS profile and the Active Directory attributes.

References := 1: Duo MFA Integration with ISE for TACACS+ Device Administration with Microsoft Active Directory Users - Cisco Community 2: Protecting Access to Network devices with ISE TACACS+ and DUO MFA - Cisco Community

Explanation

Explanation

Telemetry – Information and/or data that provides awareness and visibility into what is occurring on the network

at any given time from networking devices, appliances, applications or servers in which the core function of the

device is not to generate security alerts designed to detect unwanted or malicious activity from computer

networks.
