When a printout is being cut off, CompTIA A+ Core 1 (220-1201) troubleshooting emphasizes checking the simplest, most likely configuration mismatch first—the printer’s paper size/source settings. Even if the user physically loaded the correct paper, the print job can still be formatted incorrectly if the printer driver, application, or printer itself is set to use a different paper size or a different tray. If the printer thinks it is using a smaller paper size (or a tray configured for smaller paper), it may clip the printable area and truncate the image at the edges.

Changing tray settings (paper size and paper source) aligns the printer’s configuration with the actual media installed, which is a standard first-step for issues related to formatting, clipping, and page boundaries. Image quality (DPI) affects sharpness, not cropping. File type rarely causes consistent edge cutoff compared with page setup mismatches. Adjusting image size could work as a workaround, but CompTIA best practice is to correct the paper/tray and page setup settings first so all prints format properly without editing the document each time.

To ensure seamless connectivity during (and after) migrating an application server, the best DNS approach in CompTIA A+ Core 1 (220-1201) terms is to use a CNAME (Canonical Name) record, which creates an alias from one hostname to another. Instead of users connecting directly to a server’s changing hostname, they connect to a consistent service name (for example, app.company.com). That name can be configured as a CNAME pointing to the current host (such as server1.company.com). When the application is moved to a new server, the technician updates what the alias ultimately resolves to (or updates the target host’s A/AAAA record), and clients continue using the same familiar application URL/name—minimizing disruption and avoiding the need to reconfigure endpoints across devices.

The other record types are not designed for this purpose. TXT records store text-based information (often verification or policy data). SPF and DKIM are email authentication-related mechanisms (typically implemented via TXT records) used to validate authorized mail senders and message integrity—not application server migration. Because the goal is maintaining a stable name for a service while the underlying host changes, CNAME is the correct record type.

solution as

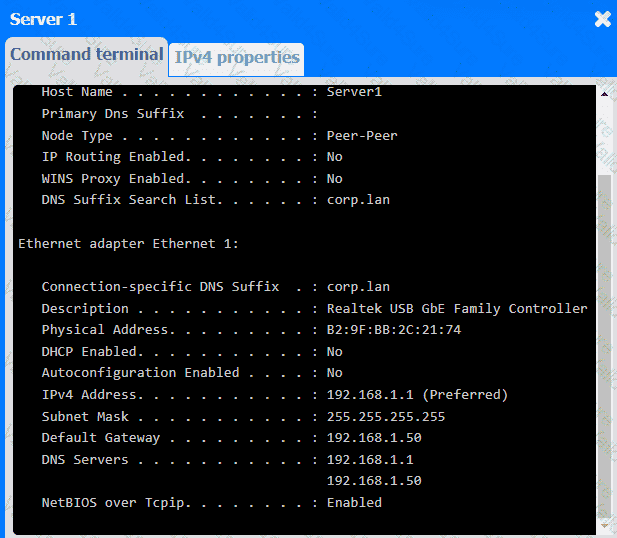

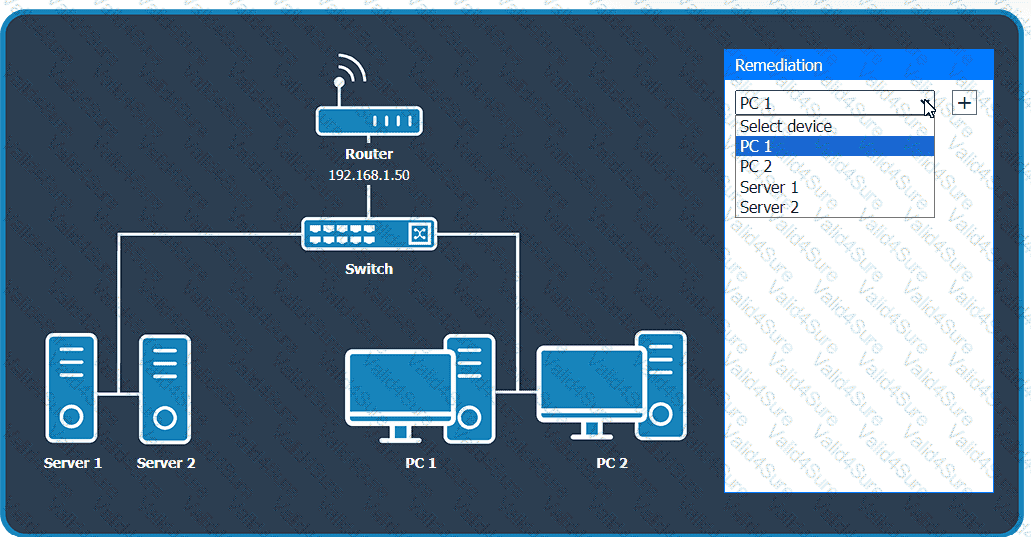

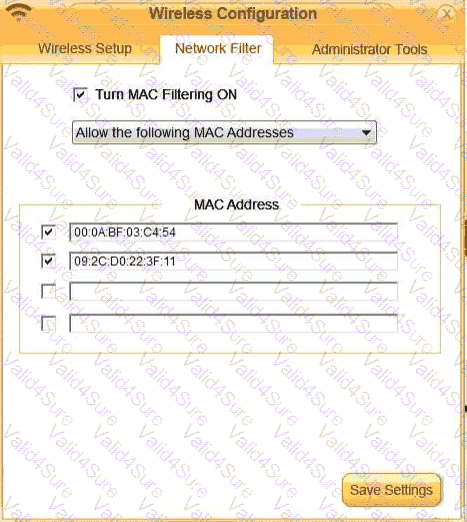

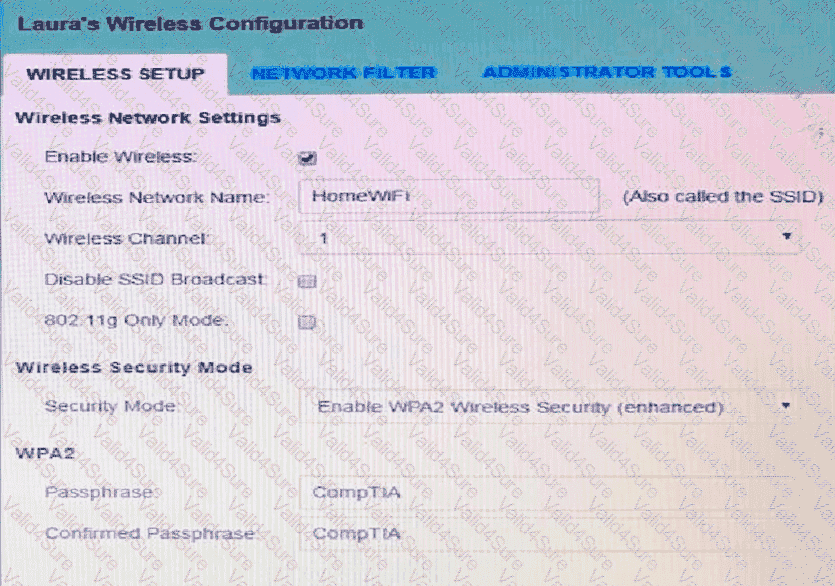

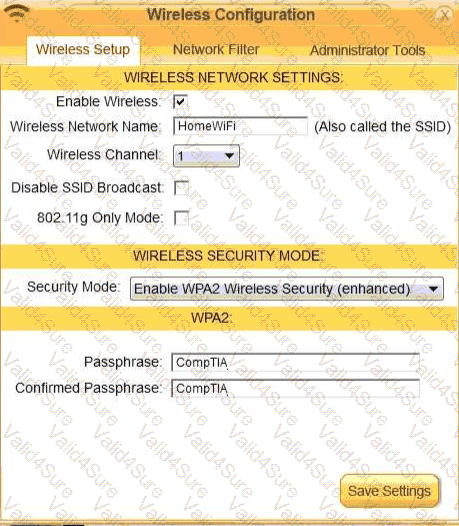

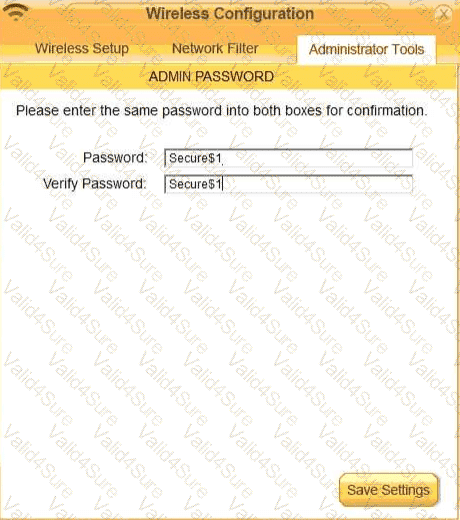

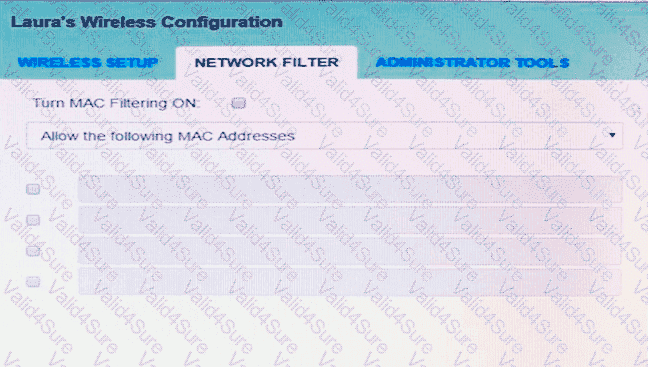

A screenshot of a network settings AI-generated content may be incorrect.

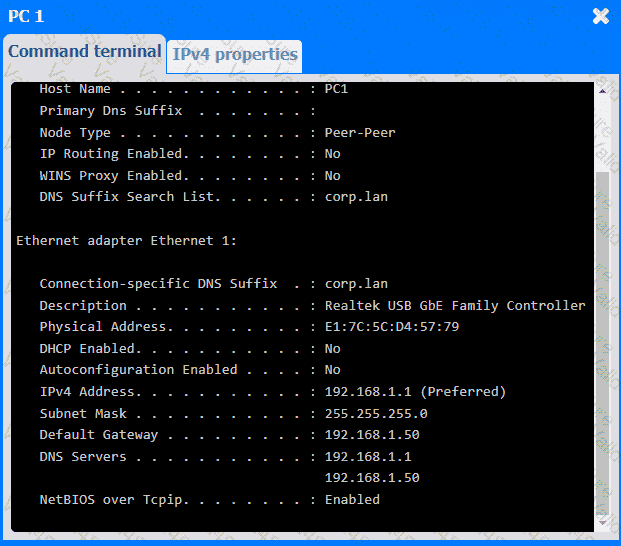

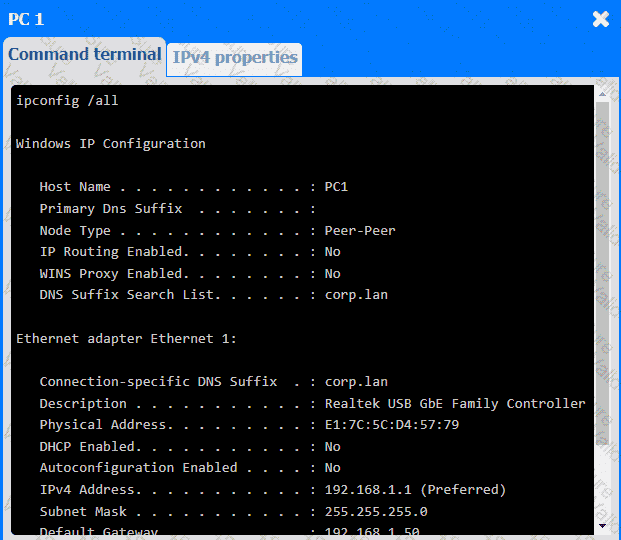

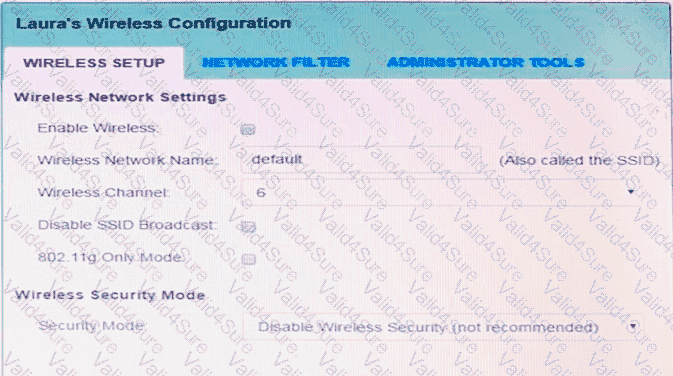

A screenshot of a computer AI-generated content may be incorrect.

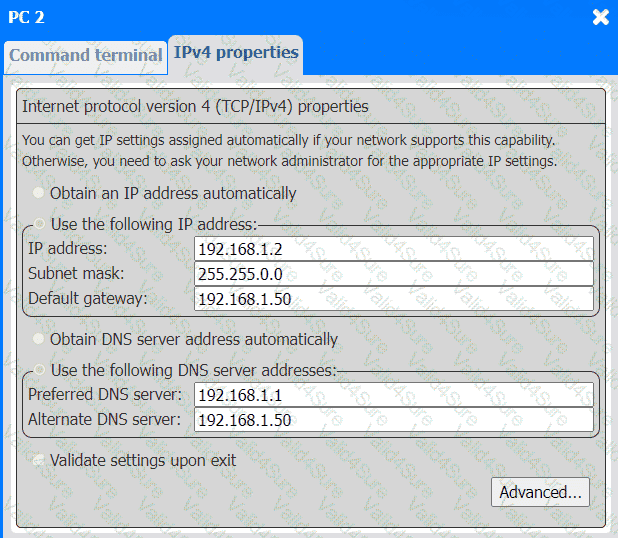

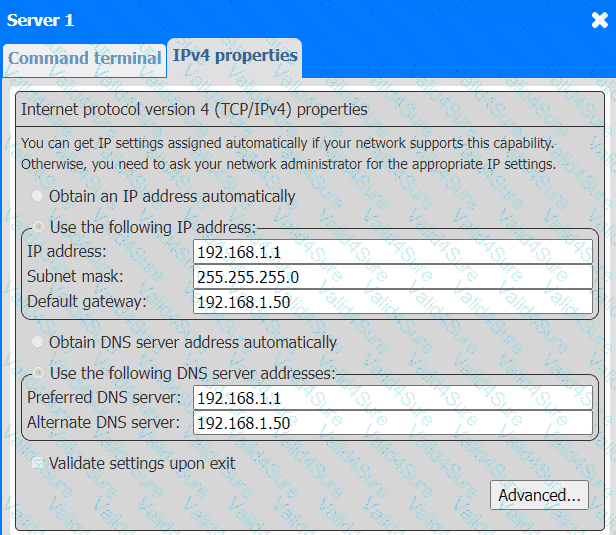

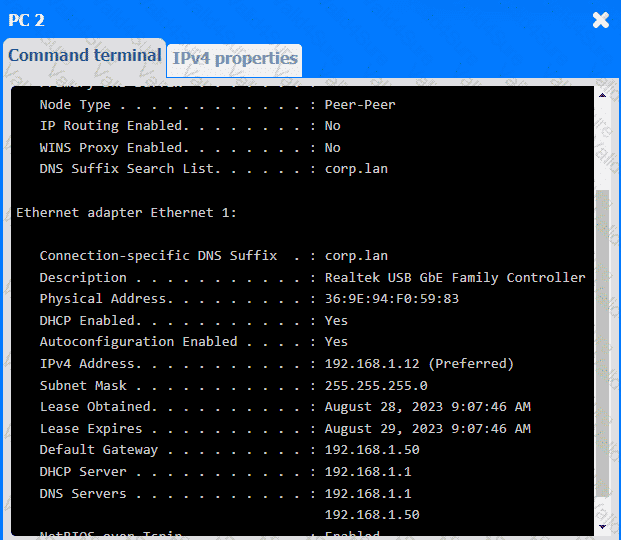

A screenshot of a computer AI-generated content may be incorrect.

A router is a network device that forwards data between different networks by examining packet headers, specifically the IP address information contained in Layer 3 (Network Layer) of the OSI model. According to the CompTIA A+ Core 1 (220-1201) networking objectives, routers use routing tables and packet header analysis to determine the best path for data to travel from a source network to a destination network. When a packet arrives at a router interface, the router reads the destination IP address in the packet header, compares it against its routing table, and then forwards the packet to the appropriate next hop or network interface. This function allows routers to connect multiple networks such as LANs, WANs, and the internet.

The other options do not perform this function. A hub operates at Layer 1 (Physical Layer) and simply broadcasts incoming signals to all connected ports without inspecting any packet information. A repeater also operates at the physical layer and is used only to regenerate or amplify signals to extend network distance. An unmanaged switch operates mainly at Layer 2 (Data Link Layer) and forwards frames based on MAC addresses, not IP packet headers. Because only routers analyze packet headers and forward traffic between different networks, Router is the correct answer.

A VLAN (Virtual Local Area Network) is the correct solution because it logically separates devices into different broadcast domains on the same physical switching infrastructure. In CompTIA A+ Core 1 (220-1201), VLANs are described as a way to segment a network for security, performance, and management—for example, isolating departments like Accounting and Customer Service so their traffic is separated. Devices assigned to different VLANs cannot communicate directly at Layer 2; communication between VLANs requires a Layer 3 device (such as a router or a Layer 3 switch) using inter-VLAN routing and appropriate access control. This effectively prevents unnecessary broadcast traffic from crossing department boundaries and helps enforce separation policies.

A VPN is used to create an encrypted tunnel over an untrusted network (commonly for remote access or site-to-site connectivity), not for internal departmental segmentation. DNS resolves hostnames to IP addresses and does not isolate networks. DHCP automatically assigns IP configuration (IP address, gateway, DNS servers), but it does not provide segmentation by itself. Therefore, implementing VLANs is the best way to separate the two departments’ networks.

Because the smudges are not in the original document, CompTIA A+ troubleshooting logic indicates the problem is occurring inside the print process, not in the application or file. For laser printers, smudging commonly points to an issue with the imaging components—especially the drum/photoconductor unit (and sometimes the fuser). A+ Core 1 (220-1201) printer troubleshooting emphasizes starting with the most likely, easiest-to-verify causes before replacing parts. Inspecting the drum is a diagnostic step that can reveal visible defects such as scratches, toner buildup, contamination, or worn surfaces that cause toner to transfer incorrectly, leading to streaks or smears on output.

Replacing the toner (D) is a corrective action and may be unnecessary if the drum is damaged. Changing paper type (A) can help with some issues (like poor fusing or humidity-related problems), but it’s less directly tied to consistent smudges caused by the imaging process. Firmware updates (C) are rarely the first step for print-quality defects; they’re more relevant to compatibility, bugs, or feature issues—not physical smearing. Therefore, inspecting the printer drum first best matches A+ methodology and common laser printer failure points.

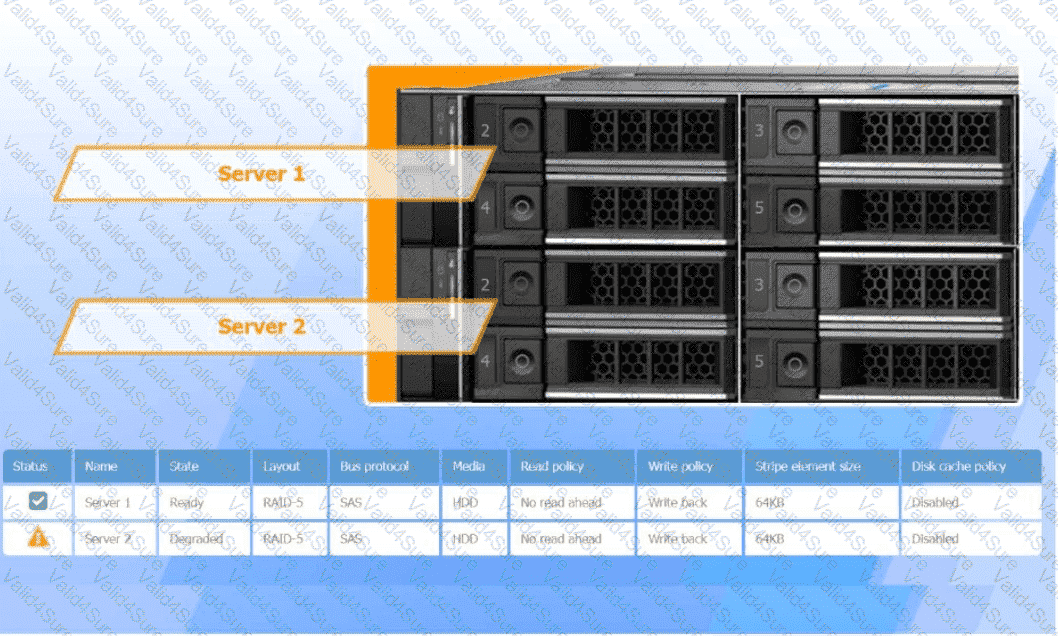

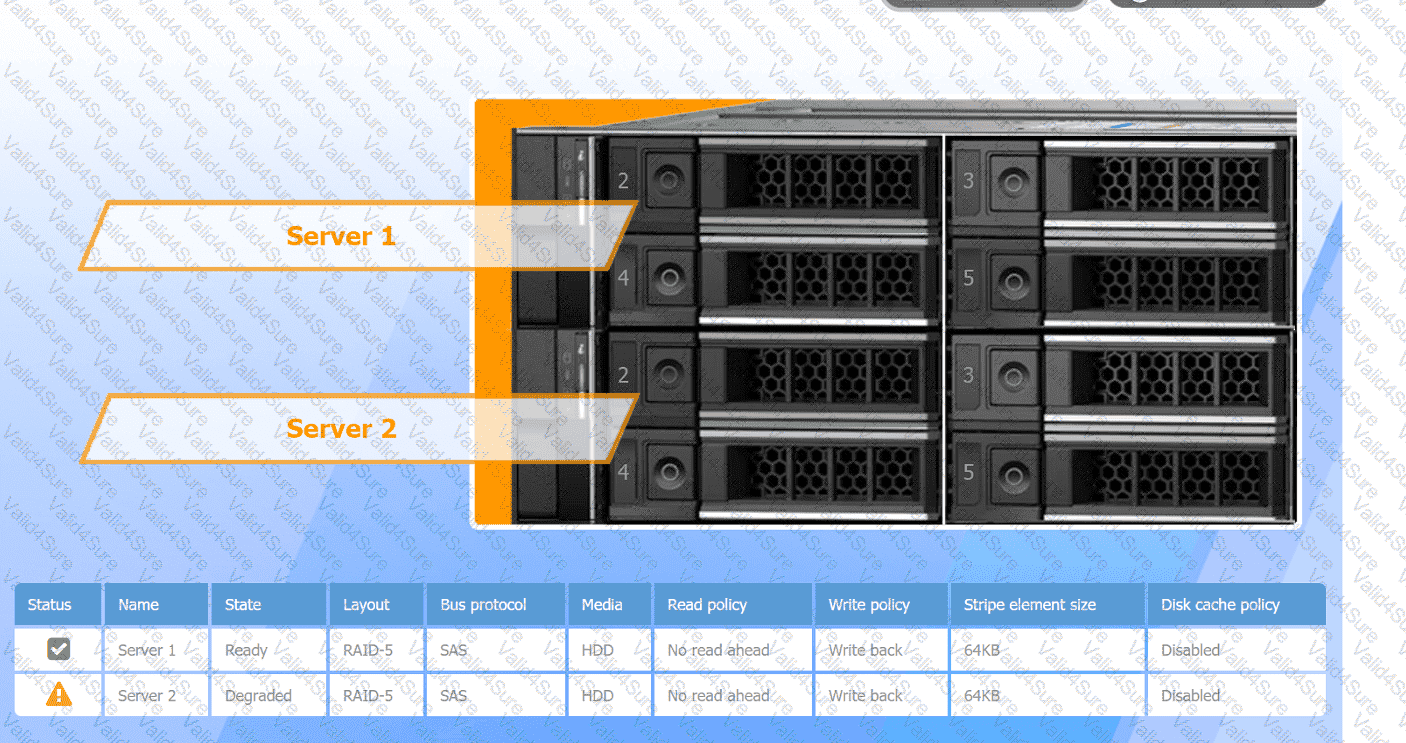

The degraded status on Server 2 indicates a RAID-5 issue, typically due to a failed or failing drive. In RAID-5 configurations, when one drive fails, the system can still operate but with reduced performance as parity data is used to rebuild missing data on-the-fly.

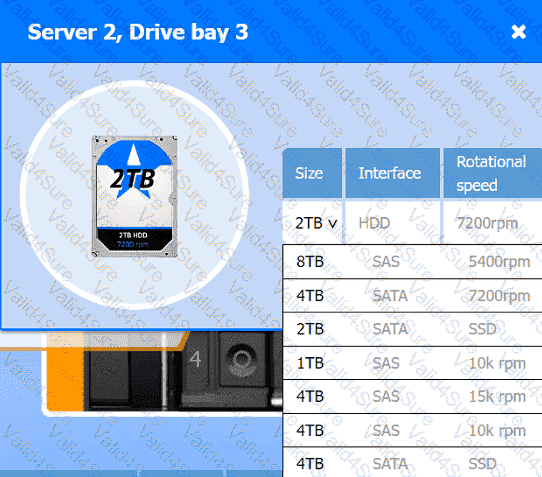

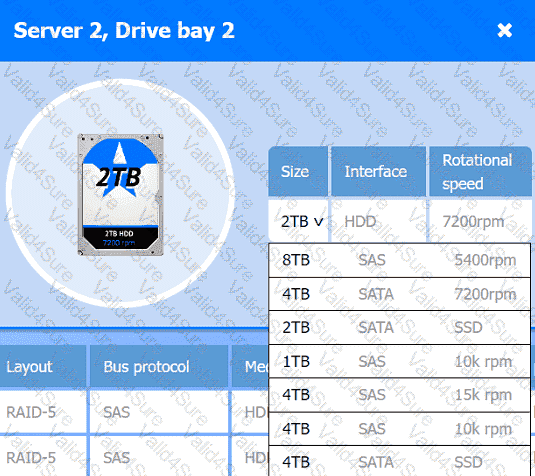

Recommended Replacement Drive:

To minimize performance degradation, the replacement drive should be:

SAS HDD with the same specifications (64KB stripe size, no read-ahead, and write-back policy).

Matching the configuration exactly ensures seamless integration and optimizes recovery speed in the RAID-5 array.

In RAID-5, degraded performance is expected when one drive fails, as parity data needs to rebuild missing information during each read/write process. Replacing the failed drive restores the RAID array to optimal status, reducing the load on existing drives and returning the system to normal read/write performance. The write-back policy and disabled disk cache settings are designed to reduce latency and increase efficiency, essential for handling real-time applications.

A user reports poor performance on the

application server.

INSTRUCTIONS

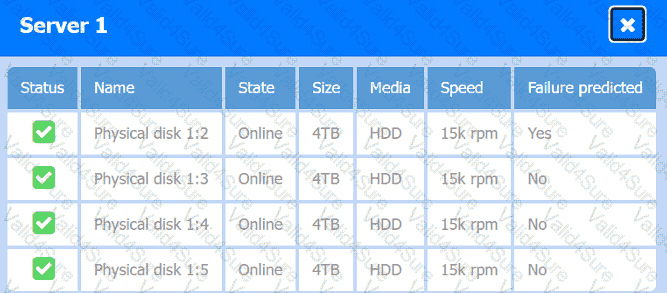

Click on Server 1 and Server 2 and review

the information presented in each chart to

determine which drives need to be replaced.

Select the appropriate replacement drive

that should be used, for the least

performance degradation to the server.

A computer server with many black and silver parts AI-generated content may be incorrect.A computer server with many black boxes Description automatically generated with medium confidence

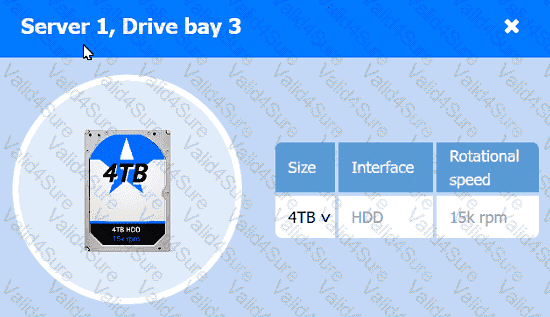

A screen shot of a computer AI-generated content may be incorrect.A screen shot of a computer Description automatically generated

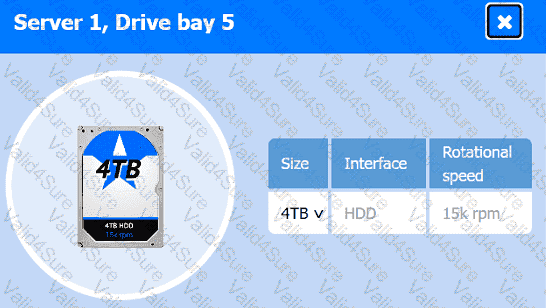

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated

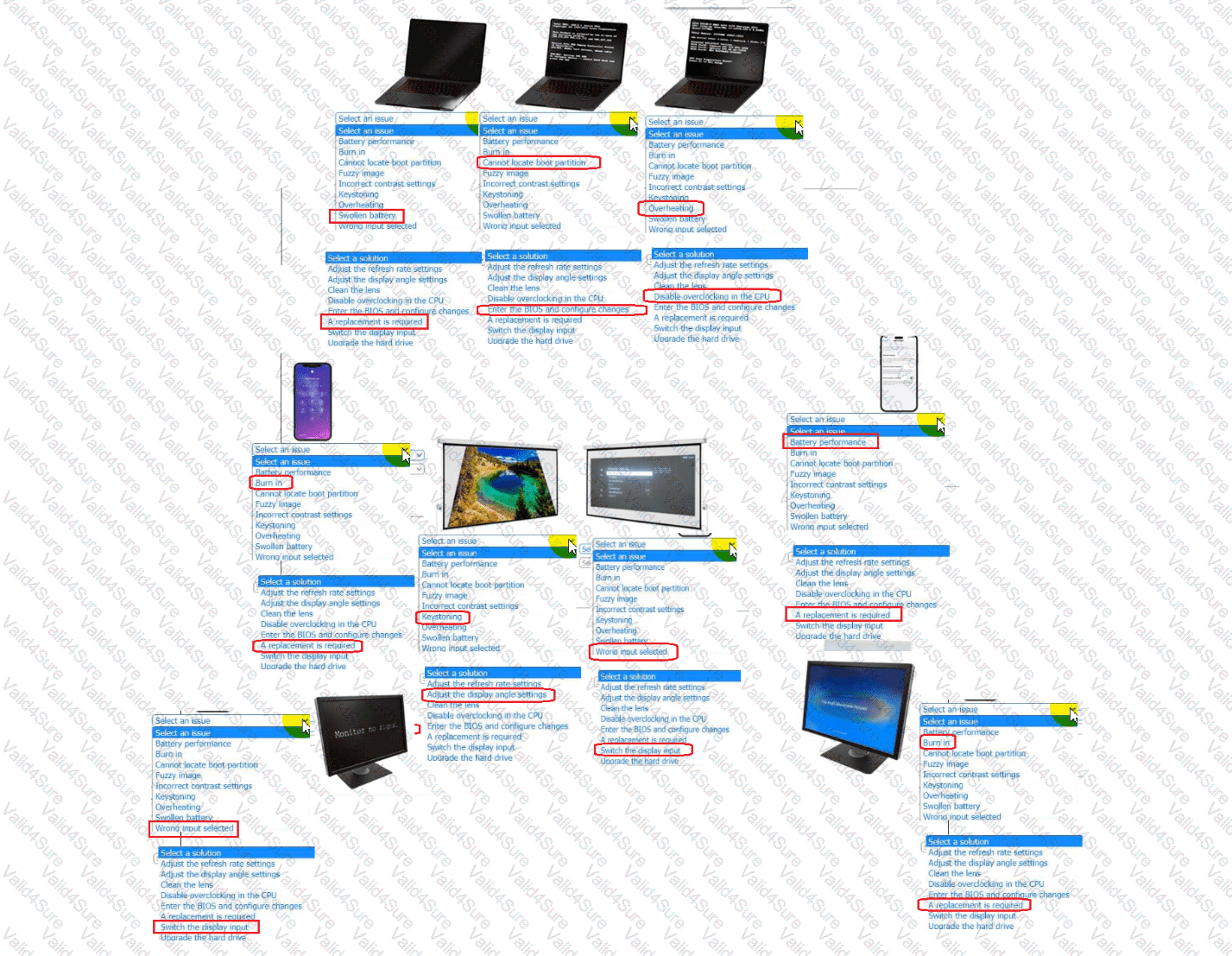

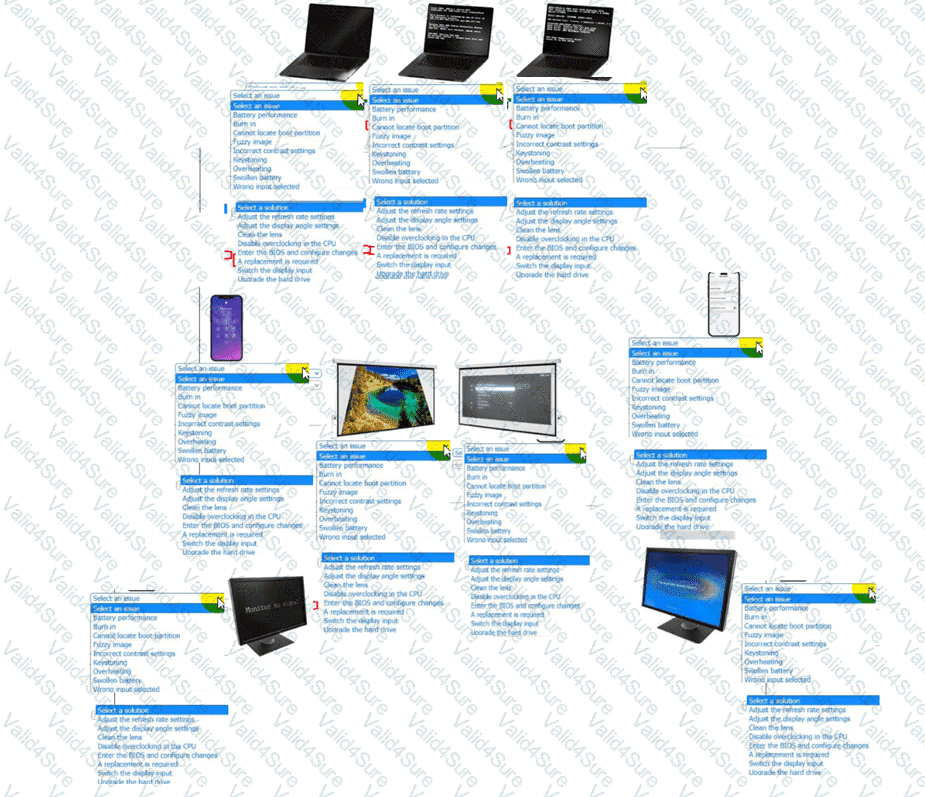

Answer of both steps below.

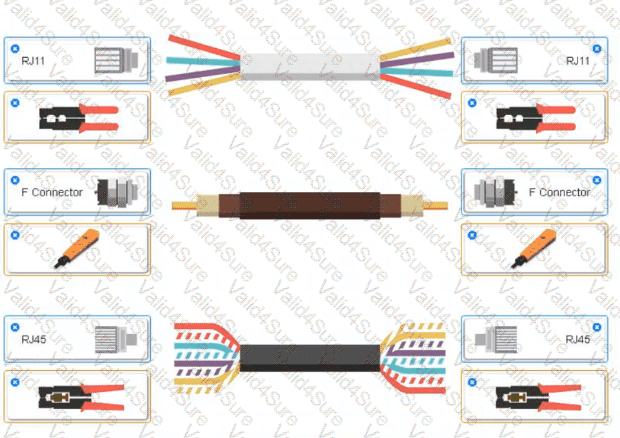

A group of wires with different colors AI-generated content may be incorrect.

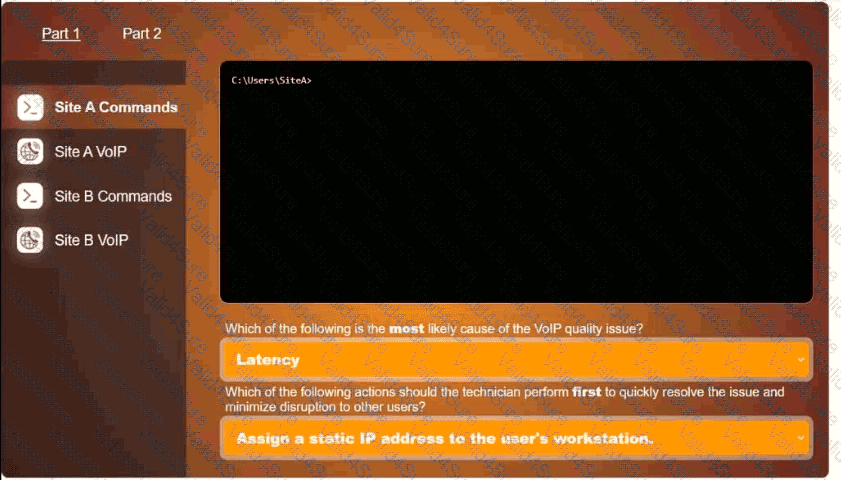

A screenshot of a computer AI-generated content may be incorrect.
