Comprehensive and Detailed In-Depth Explanation:

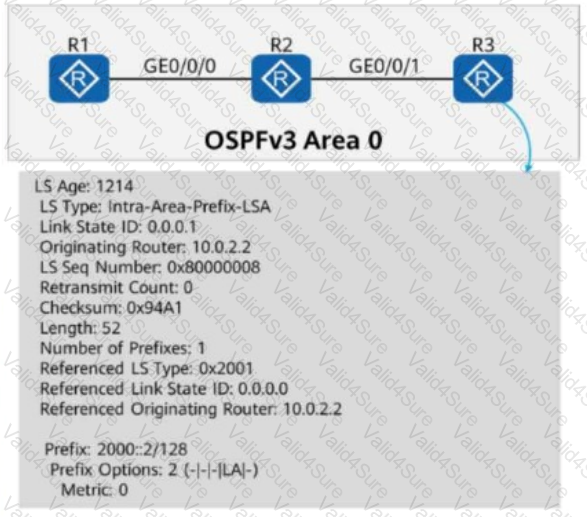

Understanding the LSA Table in the Figure

The LSA Type displayed in the LSDB of R3 is an Intra-Area-Prefix-LSA (Type 9), with the following attributes:

LS Type: Intra-Area-Prefix-LSA (Type 9)

Link State ID: 0.0.0.1

Originating Router: 10.0.2.2 (R2)

Referenced LSA Type: 0x2001 (Router-LSA, Type 1)

Referenced Link State ID: 0.0.0.0

Referenced Originating Router: 10.0.2.2 (R2)

Prefix: 2000:2::/128

Analysis of the Statement

What is an Intra-Area-Prefix-LSA (Type 9)?

Used in OSPFv3 to advertise IPv6 prefixes associated with a Router-LSA (Type 1) or Network-LSA (Type 2).

Each router generates its own Router-LSA (Type 1) and references it in an Intra-Area-Prefix-LSA (Type 9).

How does this apply to R3's LSDB?

The LSA is generated by R2 (10.0.2.2), meaning R2 originated the prefix advertisement.

The referenced LSA is a Router-LSA, indicating that the IPv6 prefix is associated with R2's router advertisement.

Since R3 sees this LSA in its LSDB, it means R2 has advertised its IPv6 prefix (2000:2::/128) into the OSPFv3 domain.

✅ Since the LSA describes an IPv6 prefix associated with R2’s Router-LSA, the statement is TRUE.

Final Conclusion:

✅ The LSA is generated by R2 and describes the IPv6 prefix associated with the Router-LSA.✅ Thus, the correct answer is: A. TRUE.

Comprehensive and Detailed In-Depth Explanation:

1. Understanding OSPFv3 and DR/BDR Election

In OSPFv3, on broadcast and non-broadcast networks, routers elect a Designated Router (DR) and a Backup Designated Router (BDR) to reduce LSA flooding.

The DR is responsible for generating Network LSAs (Type 2 LSAs) for the subnet.

The BDR takes over if the DR fails.

Other routers (DROther) only form adjacencies with the DR and BDR but still receive LSAs.

2. Understanding the LSA Output in the Figure

The LSA shown in the figure is a Type 1 (Router LSA).

The originating router is R2 (Router ID: 10.0.2.2).

The LSA lists two "Transit Network" links connected to R2.

The Neighbor Router IDs listed are 10.0.1.1 (R1) and 10.0.2.2 (R2).

3. Why the Statement is FALSE

A transit network (broadcast network) should have only ONE DR.

R1 and R2 both being DRs is incorrect, as only one DR per subnet should exist.

The presence of two "Transit Network" entries in the LSA suggests that there are two separate OSPF broadcast networks, each with its own DR.

This means R1 and R2 are each DRs on separate networks, but not both DRs on the same network.

Final Answer:

Answer: B (FALSE)

HCIP-Datacom-Advanced Routing & Switching Technology References:

OSPFv3 DR/BDR Election Process

OSPFv3 LSA Types and Their Roles

OSPFv3 Network Topology and LSA Interpretation

Comprehensive and Detailed In-Depth Explanation:

Understanding the Spanning Tree Protocol (STP) and Root Bridge Selection

Spanning Tree Protocol (STP) is used to prevent loops in a Layer 2 network by electing a Root Bridge and determining a loop-free topology.

The Root Bridge is elected based on the lowest Bridge ID (BID), which consists of:

Priority Value (Lower is preferred, default is 32768).

MAC Address (Lower MAC wins in case of a tie).

The optimal forwarding path is chosen based on cost, which is usually determined by the link bandwidth.

Why the Path is Not Optimal?

The network engineer states that all links have the same cost, meaning that the STP Root Bridge election determines the topology rather than cost differences.

The fact that the path between PC1 and PC2 is suboptimal suggests that the Root Bridge may not be ideally placed.

Determining the Likely Root Bridge:

The Root Bridge is the switch with the lowest BID (priority + MAC).

All switches calculate the shortest path to the Root Bridge and place ports in either Forwarding or Blocking mode.

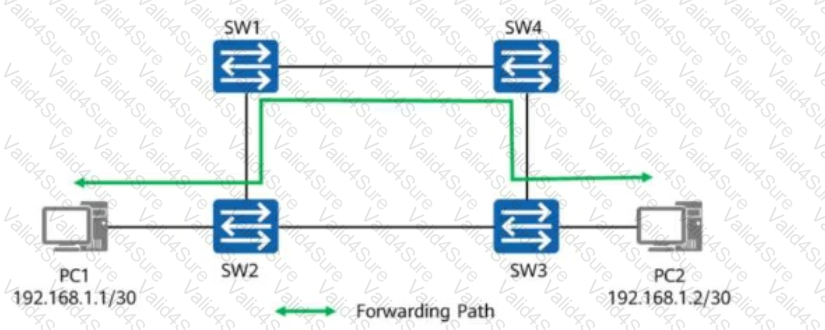

From the diagram, the traffic is flowing through SW2 → SW4 → SW3 instead of directly via SW2 → SW3.

This suggests that the Root Bridge is likely SW1 or SW4 because:

Root Bridges do not block any ports.

If SW1 or SW4 is the Root Bridge, the spanning tree topology might force the path to take a longer route.

Key Takeaways:

Root Bridge selection influences the entire Layer 2 forwarding path.

The lowest Bridge ID (priority + MAC) determines the Root Bridge.

If a suboptimal path is taken, the Root Bridge is likely placed in a location that forces certain links to block.

In this scenario, SW1 or SW4 is the most probable Root Bridge, forcing traffic through an unintended path.
