Comprehensive and Detailed In-Depth Explanation:

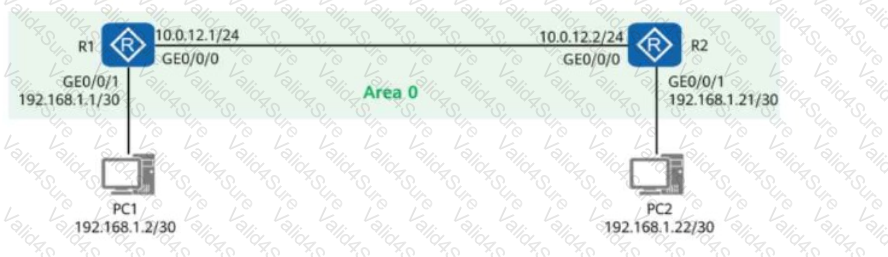

1. Understanding the Network Topology

R1 and R2 are OSPF-enabled routers connected via the 10.0.12.0/24 subnet (Area 0).

PC1 (192.168.1.2/30) is connected to R1 via GE0/0/1.

PC2 (192.168.1.22/30) is connected to R2 via GE0/0/1.

OSPF ensures that R1 and R2 know about each other's directly connected networks.

2. Analyzing Connectivity

Can R1 ping 192.168.1.22 (PC2)?

Yes, if routing is properly configured.

OSPF ensures that R1 learns about 192.168.1.22 from R2.

Since R1 has a route to 192.168.1.22 via R2, it can ping PC2 successfully.

✅ Option A is correct.

Can R1 ping 192.168.1.21 (R2's interface)?

Yes, since R1 and R2 are OSPF neighbors.

R1 learns 192.168.1.21 via OSPF and can reach it directly.

✅ Option B is correct.

Can R2 ping 192.168.1.2 (PC1)?

Yes, since OSPF ensures that R2 learns about 192.168.1.2 from R1.

Since R2 has a route to 192.168.1.2 via R1, it can ping PC1 successfully.

✅ Option C is correct.

Can PC1 and PC2 ping each other?

Yes, if default gateways and routing are configured correctly.

If R1 and R2 can ping each other and forward packets, PC1 and PC2 should be able to communicate.

❌ Option D is incorrect because PC1 and PC2 should be able to ping each other.

Final Answer:

✅ A, B, and C are correct.

HCIP-Datacom-Advanced Routing & Switching Technology References:

OSPF Inter-Router Communication and Route Advertisement

Default Gateway and Routing in Multi-Router Networks

Troubleshooting End-to-End Connectivity in Routed Networks

Comprehensive and Detailed In-Depth Explanation:

Network migration requires detailed planning to prevent service disruptions and rollback failures.

Potential issues due to poor preparation:✅ A. No network cable tester available → Hard to diagnose whether the issue is hardware or cable-related.✅ B. No backup of configuration files → If migration fails, services cannot be restored quickly.✅ C. No spare hardware available → Hardware failures may cause long service downtimes.✅ D. Engineers arriving late → Delays may lead to extended service downtime or missed migration windows.

📖 Reference: HCIP-Datacom Advanced Routing & Switching Technology – Migration Best Practices

Comprehensive and Detailed In-Depth Explanation:

Key OSPF Concepts to Consider:

Area 1 is an NSSA (Not-So-Stubby Area):

NSSAs allow external routes but advertise them as Type-7 LSAs.

The ABR (R2) converts these Type-7 LSAs into Type-5 LSAs for the backbone (Area 0).

Area 2 is a Stub Area:

Stub areas do not allow external routes (Type-5 LSAs).

This means that R5 (inside Area 2) will NOT receive external routes like 10.0.4.4/32 or 10.0.4.0/24.

Effect of asbr-summary 10.0.4.0 255.255.255.0 on R1 and R3:

This command ensures that R1 and R3 will see a summarized route 10.0.4.0/24 instead of specific /32 routes.

Routing Table Analysis:

R1 (ABR for NSSA, with ASBR summary configured)

Connected to Area 1 (NSSA) and Area 0 (Backbone)

Since asbr-summary 10.0.4.0 255.255.255.0 is configured on R1, it contains both 10.0.4.4/32 (from R4) and the summarized 10.0.4.0/24.

✅ Matches Option 4: The routing table contains both 10.0.4.4/32 and 10.0.4.0/24.

R5 (Inside Area 2 - Stub Area)

Stub areas do not receive external routes (Type-5 LSAs).

Since R5 is inside a stub area, it does not contain 10.0.4.4/32 or 10.0.4.0/24.

✅ Matches Option 3: The routing table does not contain 10.0.4.4/32 or 10.0.4.0/24.

R2 (ABR between NSSA and Backbone, but no ASBR summary configured)

R2 converts Type-7 LSAs from R4 into Type-5 LSAs and advertises them into Area 0.

Since no ASBR summary is configured on R2, it only sees the specific external route 10.0.4.4/32 but not the summarized 10.0.4.0/24.

✅ Matches Option 1: The routing table contains 10.0.4.4/32 only.

R3 (Another ABR with ASBR summary configured)

R3 has asbr-summary 10.0.4.0 255.255.255.0 configured, which means it will summarize the external routes.

Instead of 10.0.4.4/32, R3 will only have the summarized 10.0.4.0/24 route.

✅ Matches Option 2: The routing table contains 10.0.4.0/24 only.

References:

HCIP-Datacom-Advanced Routing & Switching Technology V1.0 – OSPF Areas (Stub, NSSA, and Backbone)

OSPF External Route Advertisement and Summarization

OSPF NSSA Behavior and Type-7 to Type-5 Conversion

Comprehensive and Detailed In-Depth Explanation:

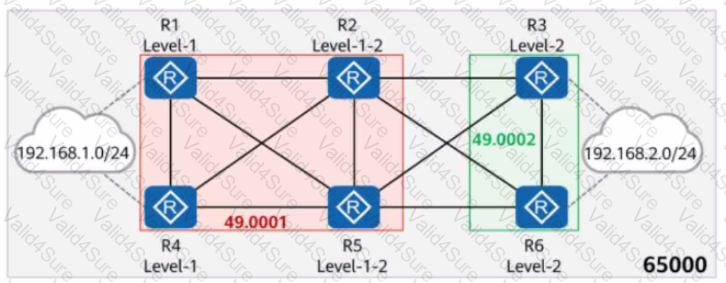

Understanding the BGP and IS-IS Network Topology in the Question:

IS-IS Areas:

Area 49.0001 (Level-1 IS-IS): Contains R1, R2, R4, R5.

Area 49.0002 (Level-2 IS-IS): Contains R3, R6.

R2 acts as an ABR (Area Border Router) and redistributes routes between Level-1 and Level-2 using import-route isis level-2 into level-1.

BGP Route Reflection & Peering:

R2 and R5 are Route Reflectors (RRs).

iBGP peering is established among all routers (R1, R2, R3, R4, R5, R6).

R1 and R4 import 192.168.1.0/24 into BGP, meaning this prefix will be advertised to all iBGP peers.

R3 and R6 import 192.168.2.0/24 into BGP, meaning this prefix will also be advertised to all iBGP peers.

Route Distribution Analysis:

A. The route 192.168.2.0/24 in the routing table of R4 has two next hops. ✅ (Correct)

R3 and R6 import 192.168.2.0/24 into BGP.

R2 and R5 (Route Reflectors) learn this route and reflect it to their clients (R1, R3, R4, R6).

R4 receives two valid paths to 192.168.2.0/24 via R2 and R5 (both iBGP peers).

Since both routes have the same BGP attributes and cost, they are installed as equal-cost paths in R4's routing table.

✅ Statement A is correct: The routing table of R4 has two next hops for 192.168.2.0/24.

B. The routing table of R1 contains two equal-cost default routes. ❌ (Incorrect)

In an IS-IS Level-1-2 setup, default routes are usually provided to Level-1 routers from an ABR (like R2).

However, the question does not mention that R1 is receiving two default routes or that it is in an equal-cost multipath (ECMP) scenario.

R1 may have only one default route, depending on route preference and cost.

❌ Statement B is incorrect: The routing table of R1 does not necessarily contain two equal-cost default routes.

C. The routing table of R4 contains two equal-cost default routes. ❌ (Incorrect)

Similar to R1, R4 is also a Level-1 router in IS-IS.

If R4 were receiving default routes from multiple ABRs (R2 and R5), then it could have equal-cost paths.

However, there is no indication that R4 is receiving two default routes in this scenario.

❌ Statement C is incorrect: The routing table of R4 does not necessarily contain two equal-cost default routes.

D. The routing table of R1 contains the route 192.168.2.0/24. ✅ (Correct)

R3 and R6 import 192.168.2.0/24 into BGP.

R2 and R5 (Route Reflectors) reflect this route to their iBGP peers, including R1.

Since R1 is an iBGP client of R2 and R5, it will receive 192.168.2.0/24 and install it in its routing table.

✅ Statement D is correct: The routing table of R1 contains the route 192.168.2.0/24.

Final Conclusion:

✅ A. The route 192.168.2.0/24 in the routing table of R4 has two next hops.❌ B. The routing table of R1 does not necessarily contain two equal-cost default routes.❌ C. The routing table of R4 does not necessarily contain two equal-cost default routes.✅ D. The routing table of R1 contains the route 192.168.2.0/24.

Thus, the correct answers are: A, D.

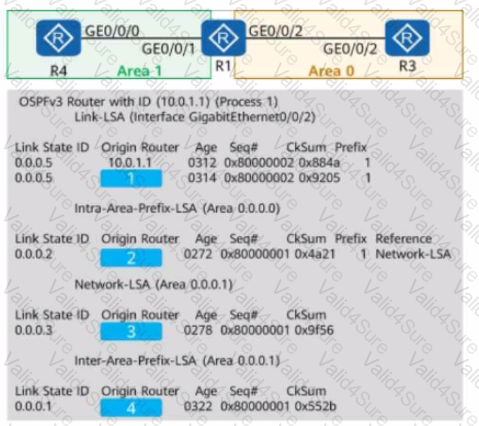

LSAs and Their Origin Router Associations:

Link-LSA: Origin Router = 10.0.1.1

Intra-Area-Prefix-LSA: Origin Router = 10.0.4.4

Network-LSA: Origin Router = 10.0.3.3

Inter-Area-Prefix-LSA: Origin Router = 10.0.1.1

Comprehensive and Detailed In-Depth Explanation:

1. Understanding MPLS Label Stack and the S (Bottom of Stack) Bit

MPLS (Multiprotocol Label Switching) packets can have multiple labels stacked on top of each other.

Each label has the following fields:

Label (20 bits): Identifies the forwarding path.

EXP (3 bits): Used for QoS/priority marking.

TTL (8 bits): Time-to-live, similar to IP TTL.

S (1 bit): Bottom of Stack (BoS) indicator:

S = 0: This is not the last label in the stack.

S = 1: This is the last label in the stack, meaning the next header is the IP header.

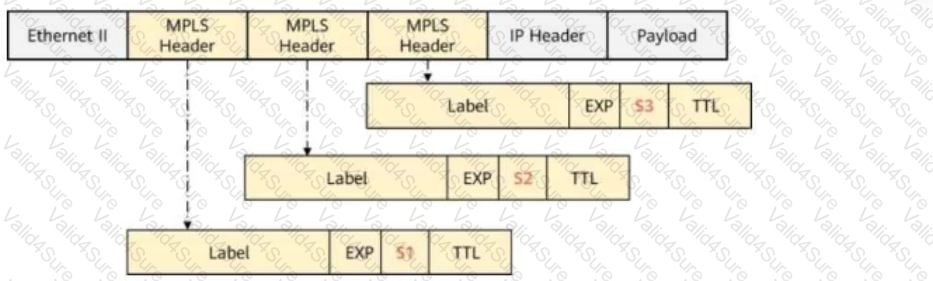

2. Analyzing the MPLS Packet Structure in the Figure

The diagram shows three MPLS headers (labels).

The last MPLS header before the IP header must have S = 1, indicating the bottom of the stack.

All other MPLS headers above it must have S = 0, meaning they are part of the stacked labels.

3. Evaluating the Answer Choices

Option

S1

S2

S3

Correct?

Reasoning

A

3

2

1

❌ Incorrect

S field cannot have values greater than 1.

B

2

1

0

❌ Incorrect

S field must be 0 for non-bottom labels.

C

1

1

0

❌ Incorrect

There should be only one label with S = 1 (BoS).

D

0

0

1

✅ Correct

Only the last label should have S = 1.

✅ Correct Answer: D. S1 = 0, S2 = 0, S3 = 1

Final Conclusion:

Only the last MPLS label (closest to the IP header) should have S = 1.

All previous MPLS labels should have S = 0.

Thus, the correct answer is: D. S1 = 0, S2 = 0, S3 = 1
