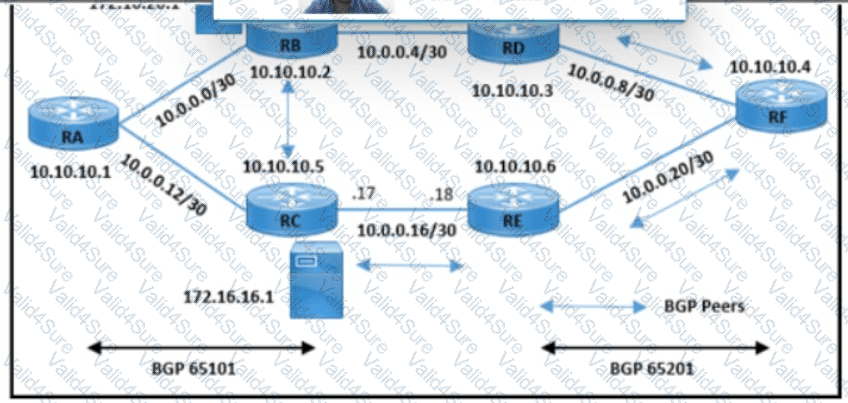

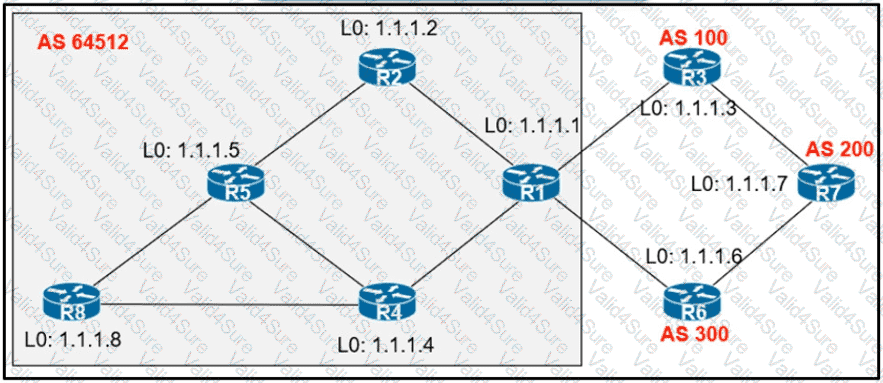

MPLS Layer-3 VPNs provide IP connectivity among CE sites* MPLS VPNs enable full-mesh, hub-andspoke, and hybrid IP connectivity* CE sites connect to the MPLS network via IP peering across PE-CE links* MPLS Layer-3 VPNs are implemented via VRFs on PE edge nodes* VRFs providing customer routing and forwarding segmentation* BGP used for signaling customer VPN (VPNv4) routes between PE nodes* To ensure traffic separation, customer traffic is encapsulated in an additional VPN label when forwarded in MPLS network* Key applications are layer-3 business VPN services, enterprise network segmentation, and segmented layer-3 Data Center access

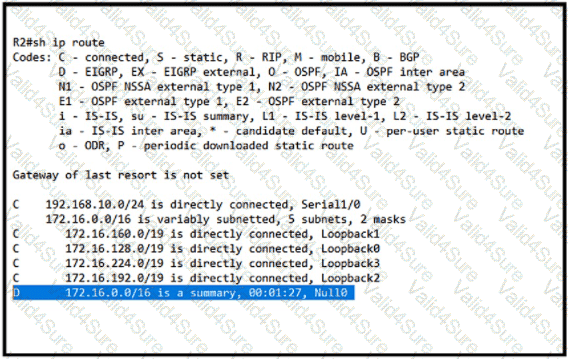

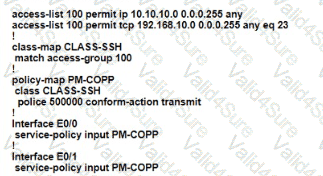

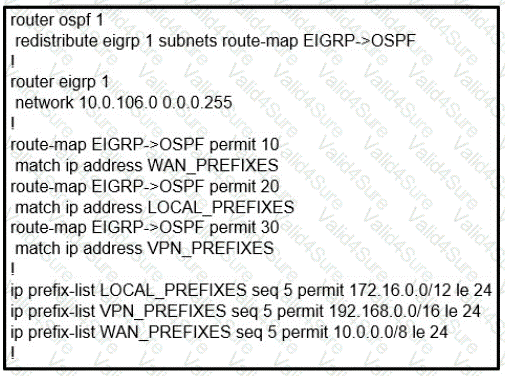

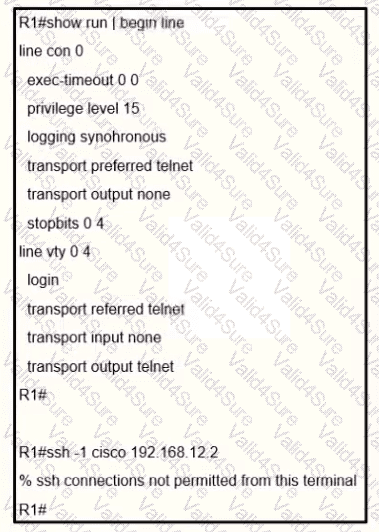

From the exhibit we see there are two flow monitors: the first one “FLOW-MONITOR-1” has been configured correctly but the second one “v4_r1” was left empty andinterface E0/0.1 is using it. So the remote server does not receive any NetFlow data.

Desired Min TX Interval: This is the minimum interval, in microseconds, that the local system would like to use when transmitting BFD Control packets, less any jitterapplied. The value zero is reserved.

Required Min Echo RX Interval: This is the minimum interval, in microseconds, between received BFD Echo packets that this system is capable of supporting, less anyjitter applied by the sender. If this value is zero, the transmitting system does not support the receipt of BFD Echo packets.

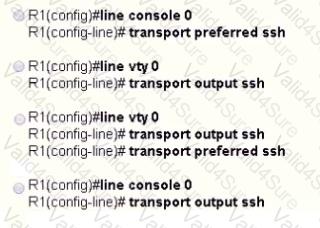

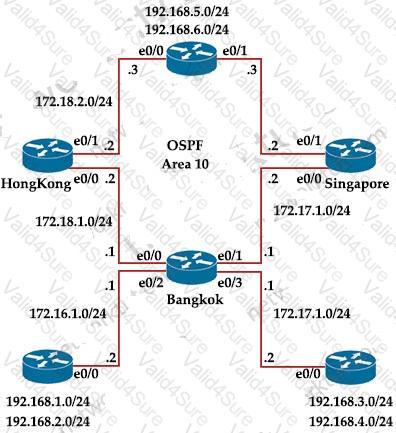

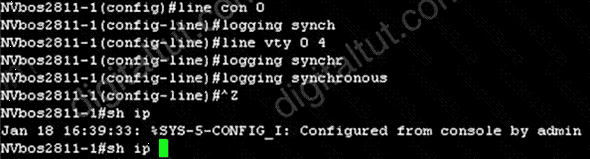

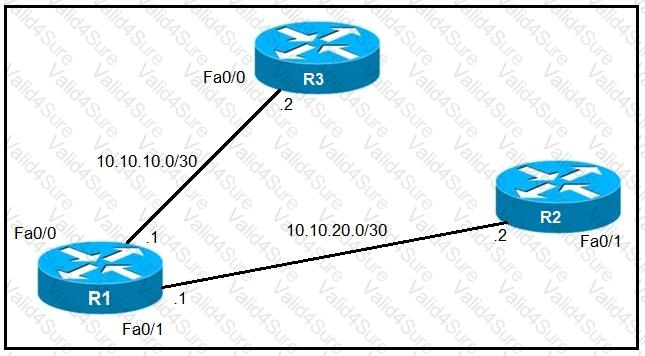

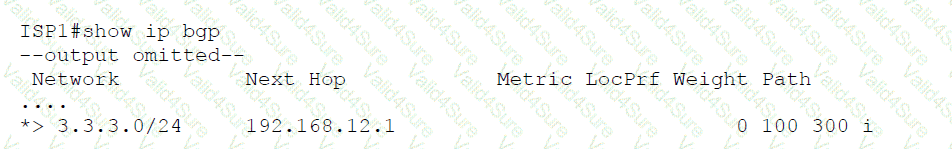

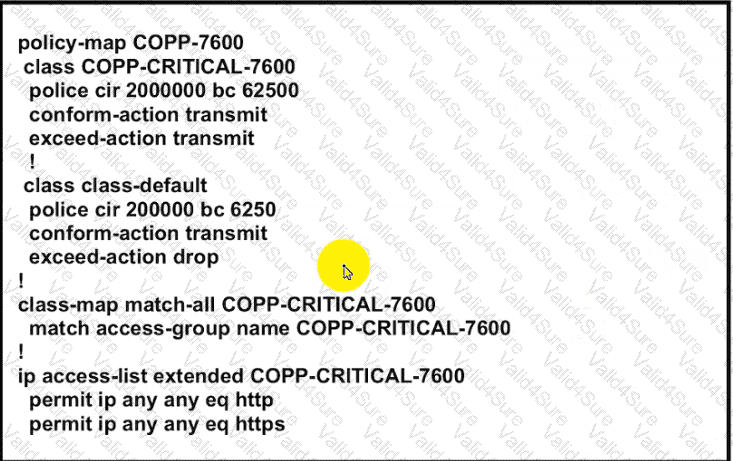

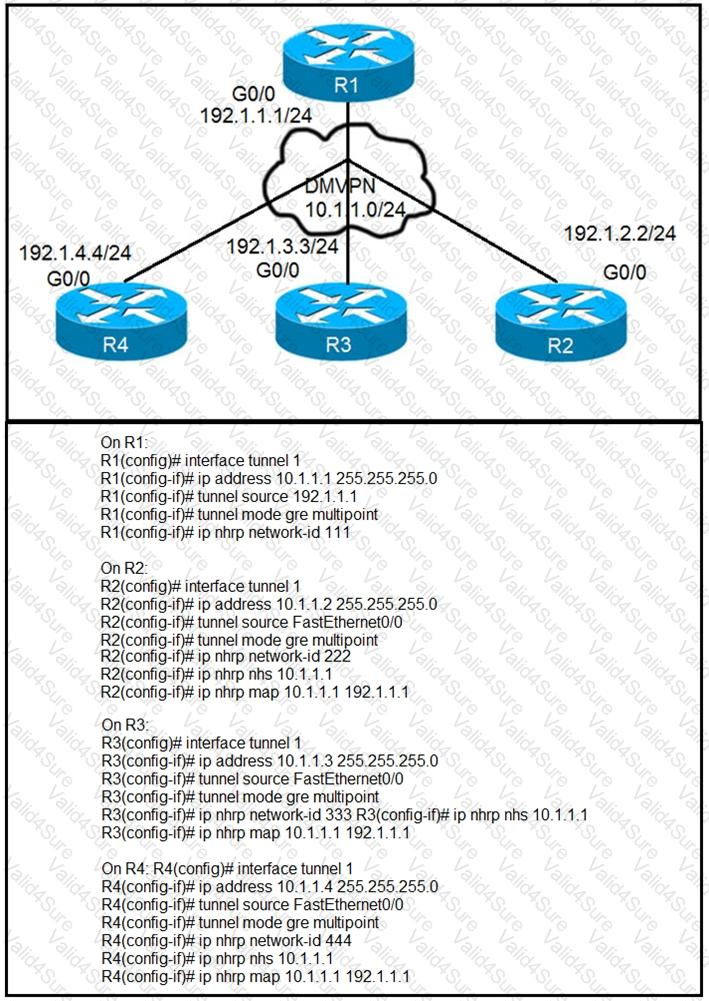

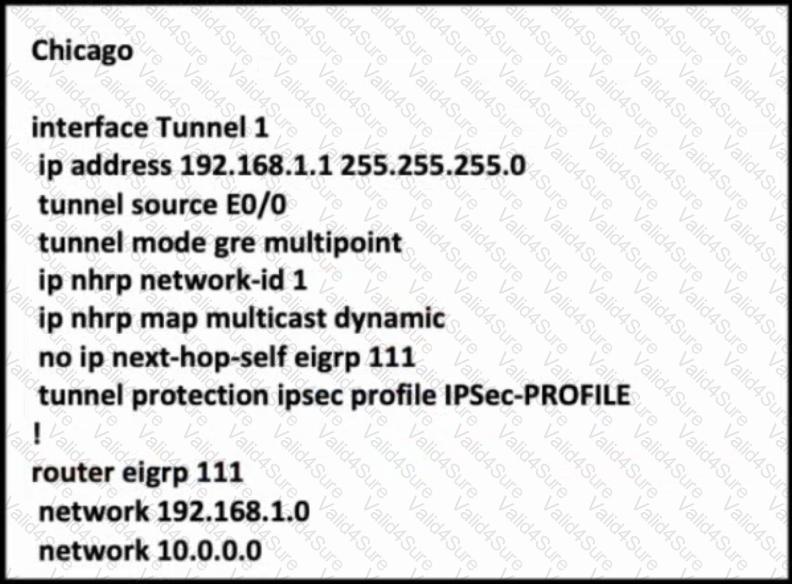

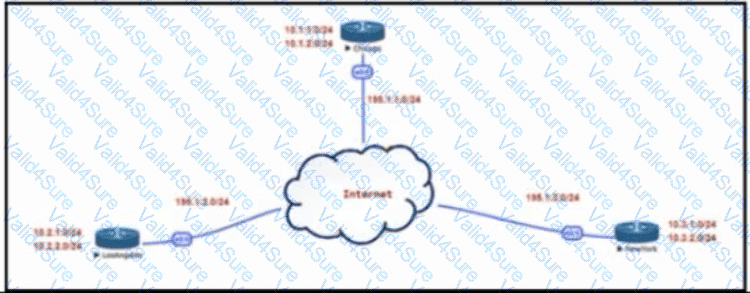

To configure Spoke to Spoke communication we can configure DMVPN Phase II or Phase III. But in Phase II, the first few packets would go through Hub. In order tototally ignore the hub, we have to use DMVPN Phase III:

DMVPN Phase III is same as Phase 2 but removes some restrictions and complexities of Phase 2. Also allows greater variety of DMVPN network designs we use:+ ip nhrp redirect in hub: tells the initiator spoke to look for a better path to the destination spoke than through the Hub. Upon receiving the NHRP redirect message thespokes communicate with each other over the hub and they have their NHRP replies for the NHRP Resolution Requests that they sent out.+ ip nhrp shortcut in spokes: overwrite the CEF table on the spoke. It basically overrides the next-hop value for a remote spoke network from the default initial hubtunnel IP address to the NHRP resolved remote spoke tunnel IP address)
