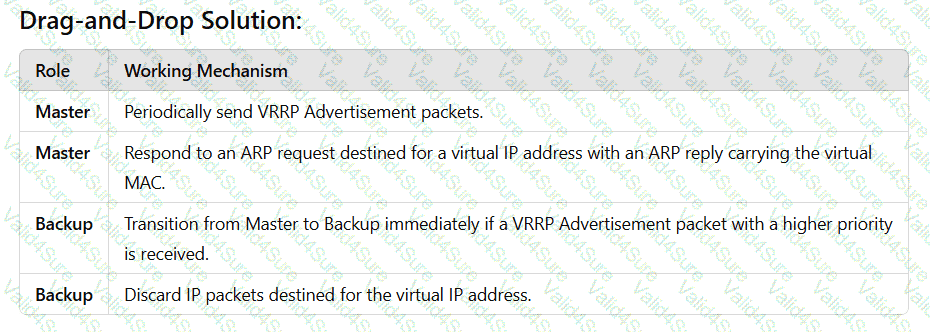

Explanation of VRRP Roles and Their Functions:

InVRRP (Virtual Router Redundancy Protocol), devices are assigned roles as eitherMasterorBackupafter an election process. Each role has specific responsibilities to ensure the availability of the virtual IP address.

Matching Roles and Mechanisms:

Master:

Periodically send VRRP Advertisement packets.

The Master device sends advertisement packets to inform Backup devices that it is active.

Respond to an ARP request destined for a virtual IP address with an ARP reply carrying the virtual MAC address.

The Master device is responsible for responding to ARP requests for the virtual IP and forwarding traffic for it.

Backup:

Transition from Master to Backup immediately if a VRRP Advertisement packet with a higher priority is received.

A Backup device becomes Master only if the current Master stops sending advertisement packets or has a lower priority.

Discard IP packets destined for the virtual IP address.

Backup devices do not process traffic for the virtual IP address unless they become the Master.

ï‚· Understanding BGP Route Summarization:

In Border Gateway Protocol (BGP),route summarizationis a technique used to aggregate multiple specific prefixes into a broader summary prefix. This reduces the size of routing tables and improves routing efficiency.

Summarization helps to hide unnecessary details from other parts of the network while still maintaining connectivity.

HCIP-Datacom-Core Technology Training Material (BGP Route Summarization)​​.

ï‚· Suppressing Specific Routes:

When summarizing routes, thesuppress-spec-map keywordis used to suppress specific prefixes so that only the summarized route is advertised.

The suppressed routes are not advertised to BGP peers; instead, only the summary route is propagated.

In the given topology, the route from R4 to 10.0.2.2/32 traverses R3, which performs route leaking from Level-2 to Level-1. The cost is calculated as follows: R4 to R3 (40) + R3 to R2 (10) + R2 to the destination (30), resulting in a total cost of 80 ​.

Option B isfalse. By default, when the aggregate command is usedwithout any options, BGP generates asummary route, andsuppresses the specific routesthat fall under that summary. To advertise both specific and summary routes, you mustexplicitly configurethe detail-suppressed option to control whether specifics are suppressed or not.

Explanation of the other options:

Ais correct: When suppress-policy is specified, only specific routes matching the policy are advertised; others are suppressed.

Cis correct: The summary automatic command causes summarization based on classful boundaries, which is a legacy behavior.

Dis correct: With detail-suppressed, only the summary route is advertised, not specific prefixes.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“The aggregate command suppresses specific routes by default unless explicitly configured otherwise. Use of suppress-policy or detail-suppressed allows control over which routes are advertised.”

(Chapter: BGP Advanced Features – Section: Route Aggregation)

ï‚· GRE Characteristics

GRE doesnotinherently support encryption or authentication. It is a tunneling protocol for encapsulating packets, and data security features must be implemented using other protocols such as IPsec.

Other correct attributes of GRE include:

B.Supports multicast transmission.

C.Acts as a Layer 3 VPN encapsulation technology.

D.Can work with VPN protocols like IPsec for better security.

ï‚· HCIP-Datacom-Core Reference

GRE features and limitations are discussed in VPN encapsulation technology chapters​​.

RPF (Reverse Path Forwarding) checks are used to prevent multicast loops. An RPF check uses theunicast routing table(ormulticast static routes, if configured) to determine the correct incoming interface for a multicast packet.

Multicast protocols like PIM use the RPF mechanism, and the unicast routing table is the primary reference.

Multicast dynamic routing protocolsdo not maintain their own separate tablesfor RPF by default.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“RPF checks are performed using the unicast routing table or multicast static routes. The interface through which the multicast source is reachable is considered valid for RPF.”

(Chapter: Multicast – Section: RPF Principle)

Thedefault Hello intervalon an OSPF P2P (Point-to-Point) or Broadcast network is10 seconds, and thedefault Dead intervalis40 seconds.

The Dead interval is the time a router waits without receiving a Hello packet from a neighbor before declaring it down.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“For broadcast and P2P network types, the default Hello interval is 10 seconds and the Dead interval is 40 seconds.”

(Chapter: OSPF Interface Types – Section: OSPF Timers)

OSPF supports both area-level and interface-level authentication. When both are configured, interface authentication takes precedence over area authentication. This hierarchy ensures that specific interface-level configurations override the broader area-level settings when applicable ​.
