The issue of Router 1 failing to establish an OSPF peering with Router 2, and the increase in CPU and memory usage can be attributed to a mismatch in MTU (Maximum Transmission Unit) sizes. In OSPF, for a successful adjacency to be formed, the MTU size on the interfaces that are trying to form this adjacency must match. In this case, changing the MTU to 1524 on Router 1 will make it compatible with Router 2, allowing OSPF peering to be established and customer traffic to pass through successfully.References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - Cisco

When there is an LSP breakage during the testing of MPLS OAM ping capabilities, the ingress MPLS router does not receive any reply because MPLS OAM ping is used to verify connectivity over Label Switched Paths (LSPs), and if an LSP is broken, the echo request will not reach the egress router, resulting in no echo reply being sent back.

https://www.cisco.com/c/en/us/support/docs/multiprotocol-label-switching-mpls/mpls/215215-segment-routing -overview-and-migration-g.html

 The error message “%CLNS-4-AUTH_FAIL: ISIS: LAN LIIH authentication failed” indicates that there is an authentication failure in the IS-IS routing protocol between routers R1 and R2. In the exhibit, it can be observed that R2 has a state of “UP” for its IS-IS neighbor relationship, while R1 is in “INIT” state. This discrepancy in states indicates an issue with the establishment of the neighbor relationship, which can be attributed to an authentication failure at both Level 1 and Level 2 PDUs as indicated by option B.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) official guide or documentation available on Cisco’s official website.

The term ‘ImpNull’ in the CLI output indicates that Label 0, also known as the “Implicit Null” label, is used for the prefix displayed. This label instructs the penultimate router in an MPLS network to pop the label before forwarding the packet to the ultimate hop, which is the egress router. Therefore, Label 0 will not be part of the MPLS label stack for packets destined for 192.168.10.10 (Option A). This process is known as Penultimate Hop Popping (PHP) and is used to optimize the forwarding process by reducing one level of lookup at the egress router (Option D).

References: For more detailed information, please refer to the MPLS section in the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course materials.

The full separation model for Internet access and MPLS L3VPN services is chosen to enable EGP (Exterior Gateway Protocol) and IGP (Interior Gateway Protocol) to operate independently. In this model, the internet access and MPLS L3VPN services are fully separated, ensuring that the two networks do not interfere with each other’s operation. This separation enhances network security, performance, and manageability. References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide

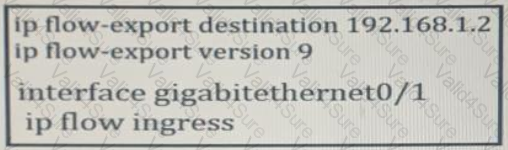

The configuration shown in the exhibit enables IP flow information collection on the interface gigabitethernet0/1. This setup is used for network traffic analysis, and when applied, it provides data that includes the source interface of the traffic for traceback analysis. This is useful for identifying the origin of traffic, which can be critical in situations such as security incidents or network troubleshooting.

References: The details for this configuration can be found in the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course materials, which serve as a comprehensive guide for understanding and applying Cisco service provider technologies.
