350-501 Exam Dumps - Implementing and Operating Cisco Service Provider Network Core Technologies (350-501 SPCOR)

In the given scenario, the goal is to restrict users on the network between R1 and R2 from accessing the external network through R5, while still allowing them access to all resources within the administrative domain. The correct approach is to configure an Access Control List (ACL) that permits traffic to all internal networks and denies traffic to any external address. This ACL should be applied to the R2 interface that connects to R1 in the ingress direction. By doing so, traffic originating from users between R1 and R2 destined for external networks will be blocked, while internal traffic will be allowed.

PCE – 1,2,5

PCC- 3,4

 The control plane protocol used between Cisco SD-WAN routers and vSmart controllers is the Overlay Management Protocol (OMP). OMP is a proprietary protocol of Cisco SD-WAN that facilitates the exchange of routing, policy, and management information across the network. It operates within the secure environment provided by the Datagram Transport Layer Security (DTLS) or Transport Layer Security (TLS) control connection, ensuring that the communication between the routers and controllers is encrypted and authenticated1.

References := Cisco 300-415: Cisco SD-WAN vSmart-WAN Edge Router Control Plane Protocol

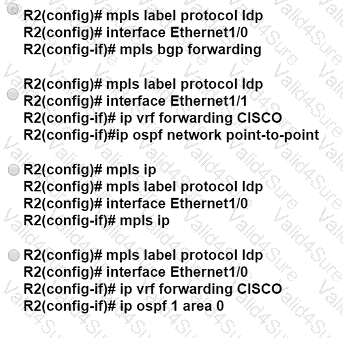

 To establish MPLS LDP sessions between two routers, both routers must be configured to support MPLS on the interfaces that connect them. The configuration shown for R2 includes enabling MPLS label protocol LDP and configuring interfaces Ethernet1/0 and Ethernet1/1. However, to complete the MPLS LDP session setup, R2 also needs to have MPLS enabled on the interface toward R1. This is done by entering the interface configuration mode for the relevant interface and using the mpls ip command. This command enables MPLS forwarding for IP packets on the interface, which is necessary for LDP to advertise and map labels to the IP routes.

References := The answer is based on the concepts covered in the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course,

To secure REST APIs, a network administrator should ensure that user sessions are authenticated and that the appropriate privilege level is provided for each user. This means that each API request should come with authentication credentials, and the server should validate these credentials for every request. This approach helps to maintain the stateless nature of REST APIs and ensures that only authorized users can access or modify resources. References: Best practices for securing REST APIs include using HTTPS, token-based authentication, and proper validation of input parameters to prevent common security vulnerabilities.

 OSPFv3 is designed to support both IPv4 and IPv6. The message “IPv6 routing not enabled” indicates that IPv6 has not been configured on the router, but this does not prevent OSPFv3 from running for IPv4. The OSPFv3 configuration for IPv4 will still function on the interface FastEthernet0/0 as intended.
