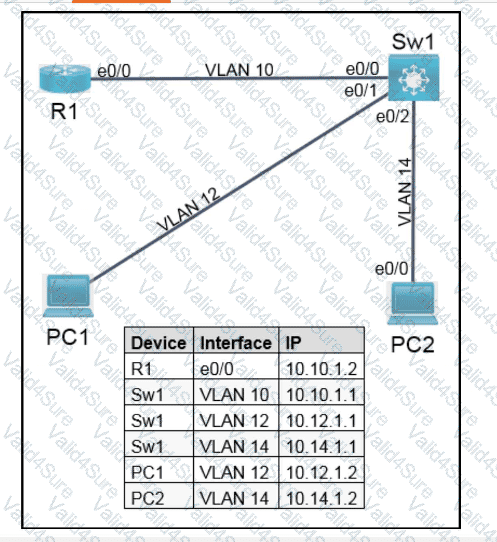

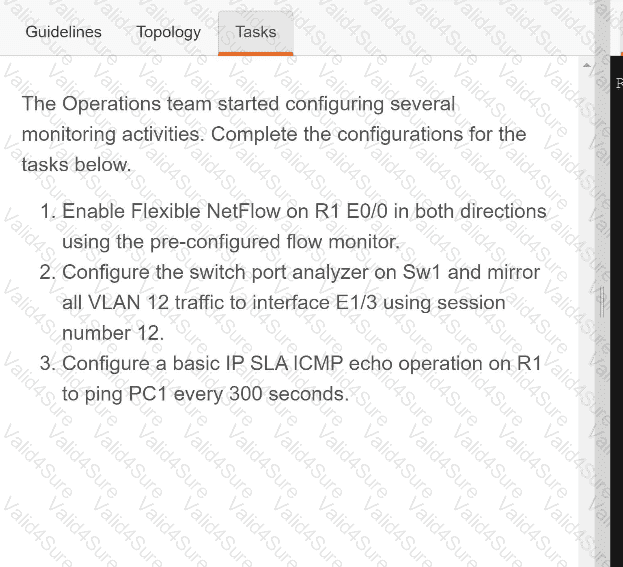

Solution:

R1

Config t

Int et0/0

Ip flow monitor Monitor-R1Flow input

Ip flow monitor Monitor-R1Flow output

Exit

Ip sla 1

Icmp-echo 10.12.1.2

Freq 300

Ip sla schedule 1 life foreve start-time now

Sw1

Config t

Monitor session 12 source vlan 12

Monitor session 12 destination interface et1/3

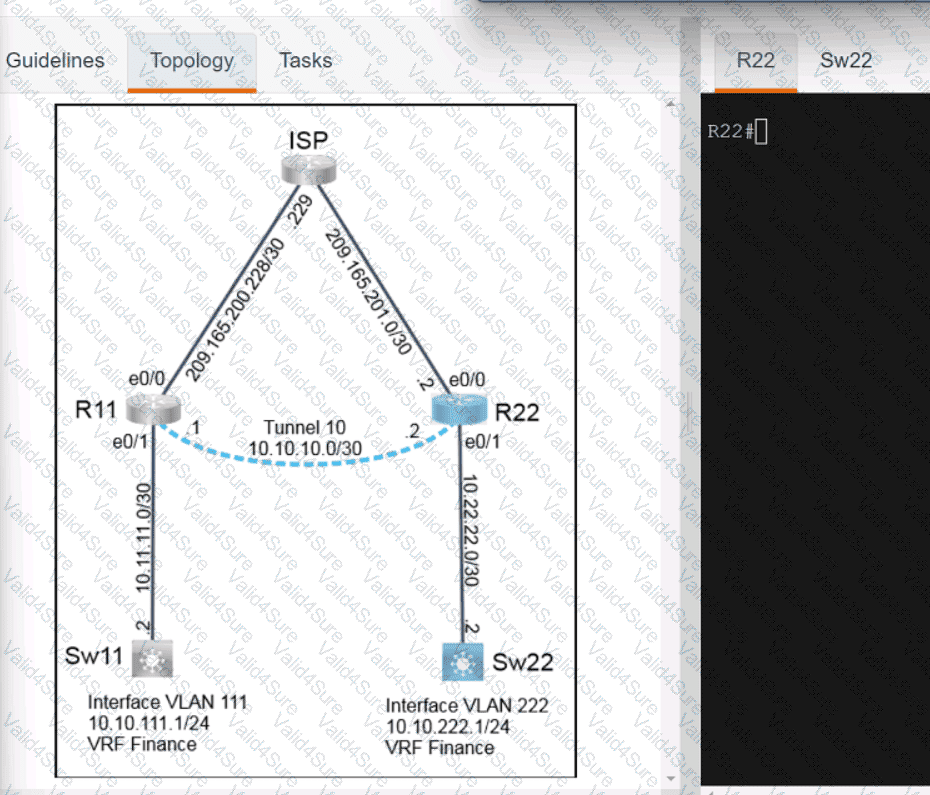

Solution:

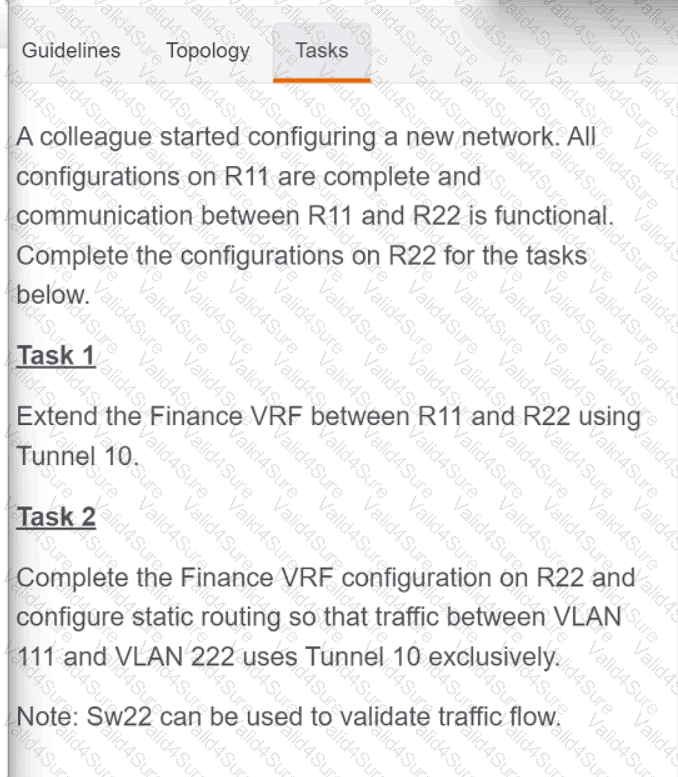

R22

int tun0

vrf forwarding FINANCE

ip add 10.10.10.2 255.255.255.0

tunn source e0/0

tunnel dest 209.165.200.230

no shut

ip route vrf FINANCE 10.10.111.0 255.255.255.0 tunn0

int et0/1

vrf forwarding FINANCE

ip address 10.22.22.1 255.255.255.252

wr

Verification:-

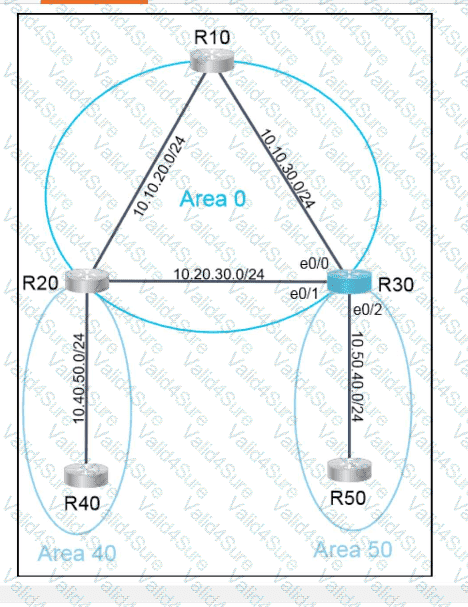

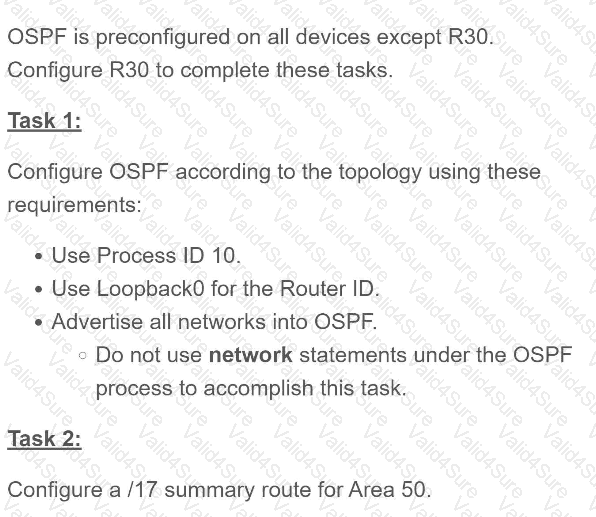

Solution:

R30

Config t

router ospf 10

router-id 10.0.1.30

int ran lo0 , e0/0-1

ip ospf 10 a 0

exit

int et0/2

ip ospf 10 a 50

exit

router ospf 10

area 50 range 10.10.0.0 255.255.128.0

area 50 range 10.50.0.0 255.255.128.0

end

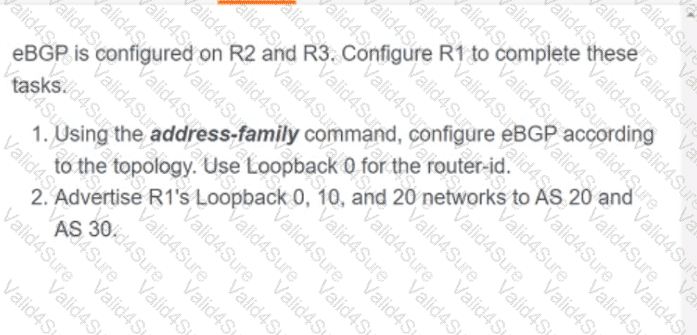

Solution:

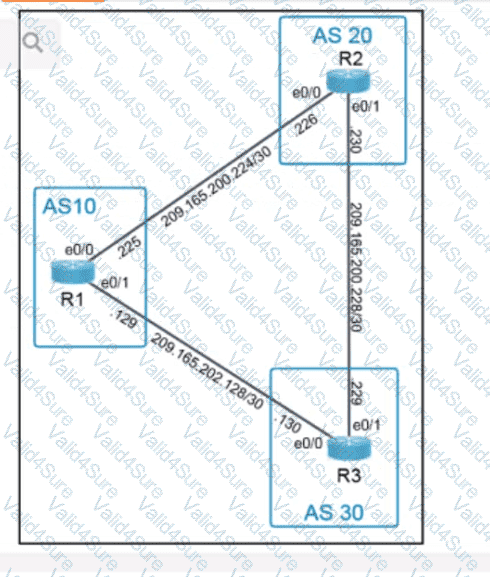

router bgp 10

bgp router-id 10.1.1.111

no bgp defa ipv4-unicast

nei 209.165.200.226 remote-as 20

nei 209.165.202.130 remote-as 30

address-family ipv4

neigh 209.165.200.226 activate

neigh 209.165.202.130 activate

network 10.1.1.10 mask 255.255.255.255

network 209.165.201.10 mask 255.255.255.255

network 209.165.201.20 mask 255.255.255.255

wr

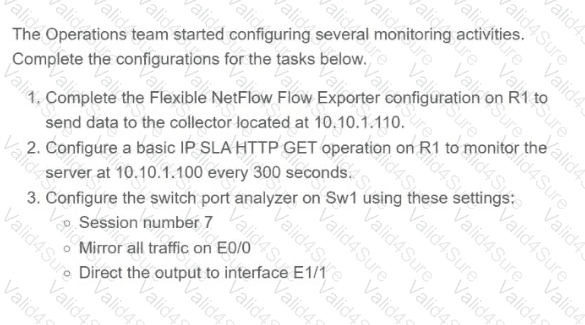

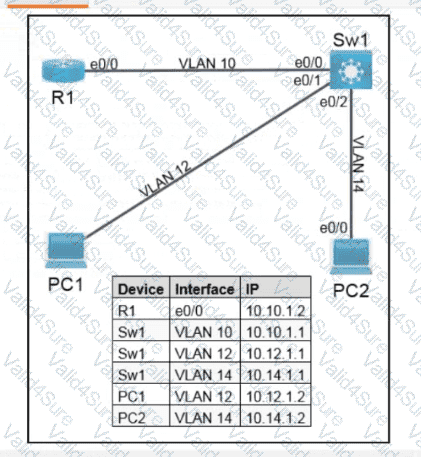

Solution:

R1

Config t

Flow exporter Export-NetFlowENCOR

destination 10.10.1.110

transport udp 2055

exit

flow moni Monitor-NetFlowENCOR

exit

ip sla 1

http gethttp://10.10.1.100

frequ 300

exit

ip sla schedule 1 life forever start-time now

wr

SW1

Config t

Monitor session 7 source interface e0/0

Monitor session 7 destination interface e1/1

End

Wr
