Question # 89

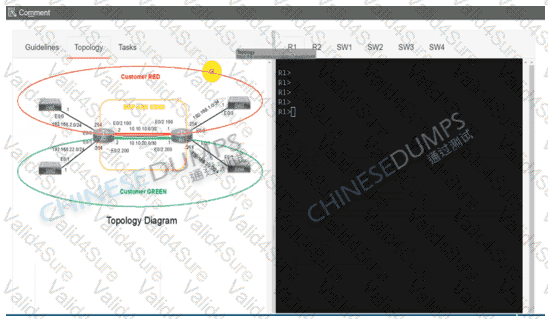

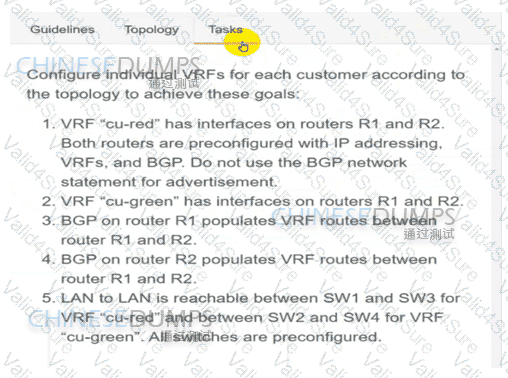

Configure individual VRFs for each customer according to the topology to achieve these goals :

SW1

SW2

SW3

Full Access

Answer:

Explanation:

Solution:

Use cu-red under interfaces facing SW1 & SW3:

On R1:

interface Ethernet0/0

ip vrf forwarding cu-red

ip address 192.168.1.254 255.255.255.0

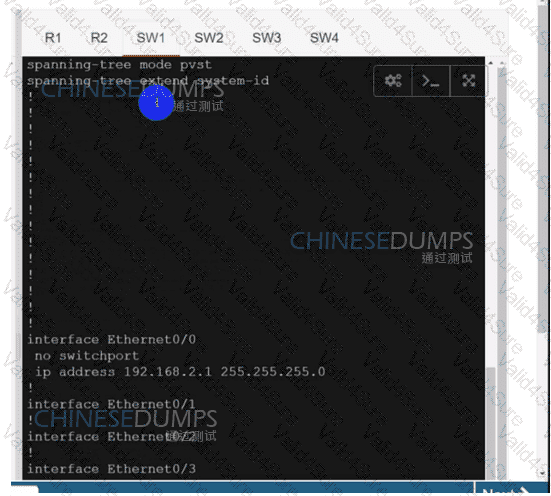

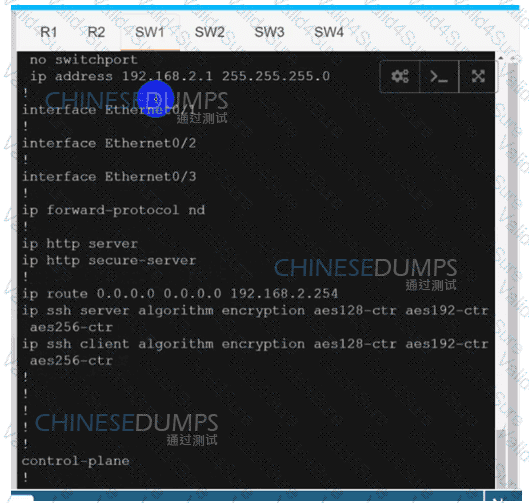

Check reachability to SW1:

R1#ping vrf cu-red 192.168.1.1

Type escape sequence to abort.

Sending 5, 100-byte ICMP Echos to 192.168.2.1, timeout is 2 seconds:

!!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms

On R2:

interface Ethernet0/0

ip vrf forwarding cu-red

ip address 192.168.2.254 255.255.255.0

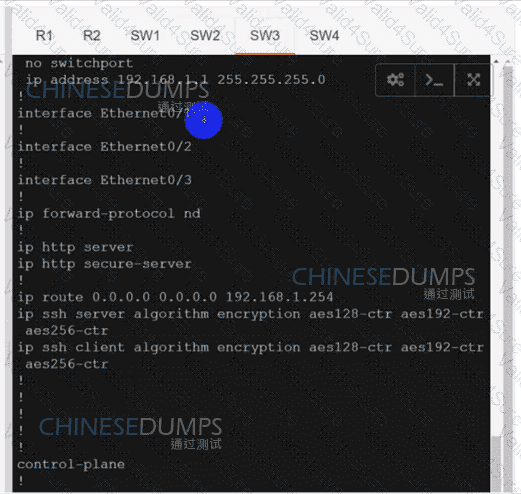

Check reachability to SW3:

R2#ping vrf cu-red 192.168.2.1

Type escape sequence to abort.

Sending 5, 100-byte ICMP Echos to 192.168.1.1, timeout is 2 seconds:

!!!!!

Use vrf cu-green for SW2 & SW4:

On R1:

interface Ethernet0/1

ip vrf forwarding cu-green

ip address 192.168.20.254 255.255.255.0

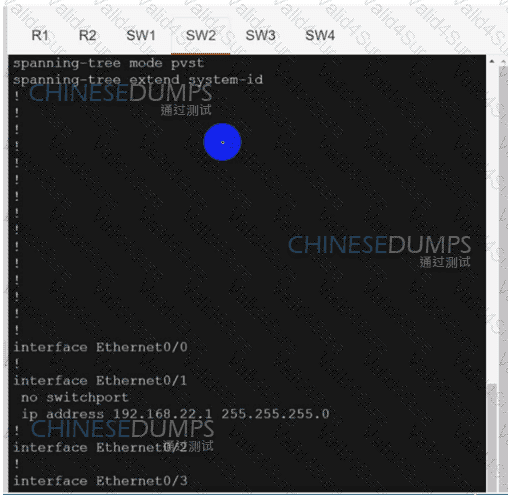

Test reachability to SW2:

R1#ping vrf cu-green 192.168.20.1

Type escape sequence to abort.

Sending 5, 100-byte ICMP Echos to 192.168.22.1, timeout is 2 seconds:

!!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms

On R2:

interface Ethernet0/1

ip vrf forwarding cu-green

ip address 192.168.22.254 255.255.255.0

Test reachability to SW4:

R2#ping vrf cu-green 192.168.22.1

Type escape sequence to abort.

Sending 5, 100-byte ICMP Echos to 192.168.20.1, timeout is 2 seconds:

!!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms

On R1:

interface Ethernet0/2.100

mpls ip

interface Ethernet0/2.200

mpls ip

Configure BGP:

router bgp 65000

neighbor 10.10.10.2 remote-as 65000

neighbor 10.10.20.2 remote-as 65000

address-family vpnv4

neighbor 10.10.10.2 activate

neighbor 10.10.20.2 activate

exit-address-family

address-family ipv4 vrf cu-green

redistribute connected

exit-address-family

address-family ipv4 vrf cu-red

redistribute connected

exit-address-family

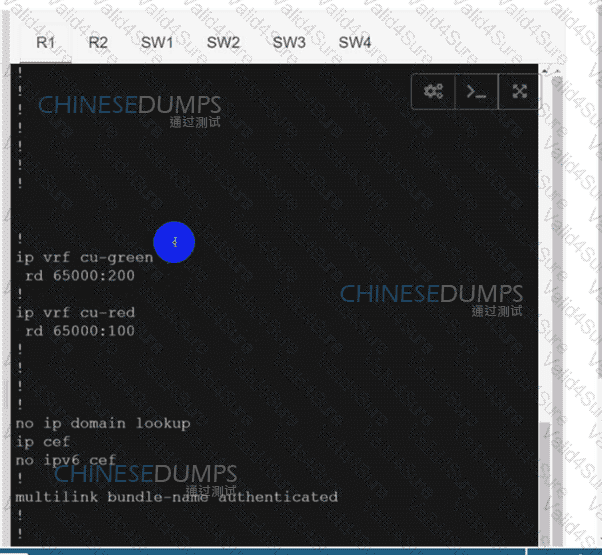

R1(config)#ip vrf cu-red

R1(config-vrf)#route-target both 65000:100

R1(config)#ip vrf cu-green

R1(config-vrf)#route-target both 65000:200

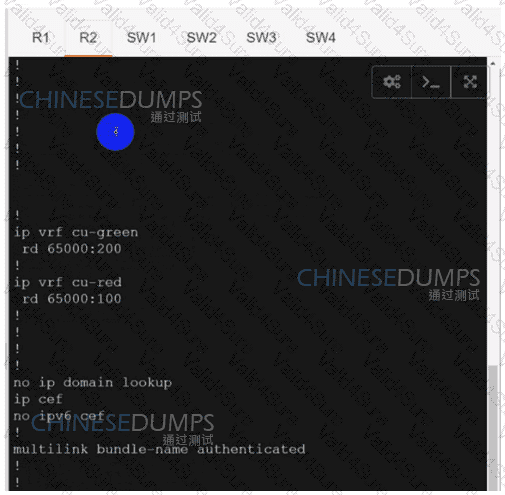

On R2:

interface Ethernet0/2.100

mpls ip

interface Ethernet0/2.200

mpls ip

router bgp 65000

neighbor 10.10.10.1 remote-as 65000

neighbor 10.10.20.1 remote-as 65000

address-family vpnv4

neighbor 10.10.10.1 activate

neighbor 10.10.20.1 activate

exit-address-family

address-family ipv4 vrf cu-green

redistribute connected

exit-address-family

address-family ipv4 vrf cu-red

redistribute connected

exit-address-family

R2(config)#ip vrf cu-red

R2(config-vrf)#route-target both 65000:100

R2(config)#ip vrf cu-green

R2(config-vrf)#route-target both 65000:200

Verification:

From SW1 to SW3:

SW1#ping 192.168.1.1

Type escape sequence to abort.

Sending 5, 100-byte ICMP Echos to 192.168.1.1, timeout is 2 seconds:

!!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms

But canâ€™t Reach SW2 or SW4 in VRF cu-green:

SW1#ping 192.168.22.1

Type escape sequence to abort.

Sending 5, 100-byte ICMP Echos to 192.168.22.1, timeout is 2 seconds:

U.U.U

Success rate is 0 percent (0/5)

SW1#ping 192.168.20.1

Type escape sequence to abort.

Sending 5, 100-byte ICMP Echos to 192.168.20.1, timeout is 2 seconds:

U.U.U

Success rate is 0 percent (0/5)

Same Test for SW2:

From SW2 to SW4:

SW2#ping 192.168.20.1

Type escape sequence to abort.

Sending 5, 100-byte ICMP Echos to 192.168.20.1, timeout is 2 seconds:

!!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms

But canâ€™t Reach SW3 or SW1 in VRF cu-red:

SW2#ping 192.168.1.1

Type escape sequence to abort.

Sending 5, 100-byte ICMP Echos to 192.168.1.1, timeout is 2 seconds:

U.U.U

Success rate is 0 percent (0/5)

SW2#ping 192.168.2.1

Type escape sequence to abort.

Sending 5, 100-byte ICMP Echos to 192.168.2.1, timeout is 2 seconds:

U.U.U

Success rate is 0 percent (0/5)

Both R1 & R2 has separate tables for VRFs cu-red and cu-green.

Question # 90

Refer to the exhibit.

A NOC team receives a ticket that data traffic from RA to RF is not forwarded when the link between the RC-RE path goes down. All routers learn loopback IP through the IGP protocol. Which configuration resolves?

RD(config)#router bgp B5201RD(config-router)# neighbor 10.10.10.2 update-source loopback 0

RD(config-router)# neighbor bgp 65101RB(config-router)# neighbor 10.10.10.3 ebgp-multihop 3

RB(config)# router bgp 65101RB(config)#neighbor 10.10.10.3 update-source loopback 0

RD(config)# router bgp 65201RDI(config-router)# neighbor 10.10.10.2 ebgp-multihop 3

Full Access

Question # 91

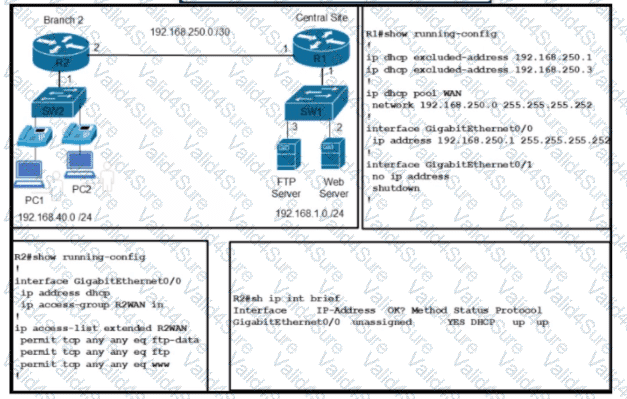

Refer to the exhibit. Which configuration is required for R2 to get the IP address from the DHCP server?

ip access-list extended R2WANpermit tcp any any eq 68

ip access-list extended R2WANpermit udp any any eq 68

ip access-list extended R2WANpermit udp any any eq 67

interface GigabitEthernet0/0ip access-group R2WAN out

Full Access

Question # 92

:586

While BGP internet routes are redistributed to a lower class of router via RIP. packets are being dropped and routes are failing to be distributed in RIP. Which action resolves the issue?

Use OSPF instead of RIP to accept all BGP routes.

Use the input-queue command to prevent the loss of packets.

Use WFQ in the output queue of the high-performance router.

Use RIP V2 to be able to use classless networks from BGP

Full Access

Question # 93

How is VPN routing information distributed in an MPLS network?

The top level of the customer data packet directs it to the correct CE device

It is established using VPN IPsec peers.

It is controlled using of VPN target communities.

It is controlled through the use of RD.

Full Access

Question # 94

The network administrator configured CoPP so that all SNMP traffic from Cisco Prime located at 192.168.1.11 toward the router CPU is limited to 1000 kbps. Any traffic that exceeds this limit must be dropped.

access-list 100 permit udp any any eq 161

class-map CM-SNMP

match access-group 100

policy-map PM-COPP

class CM-SNMP

police 1000 conform-action transmit

control-plane

service-policy input PM-COPP

The network administrator is not getting the desired result for the SNMP traffic and SNMP traffic is getting dropped frequently. Which set of configurations resolves the issue?

no access-list 100access-list 100 permit tcp host 192.168.1.11 any eq 161

no access-list 100access-list 100 permit udp host 192.168.1.11 any eq 161!policy-map PM-COPPclass CM-SNMPno police 1000 conform-action transmitpolice 1000000 conform-action transmit!control-planeno service-policy input PM-COPP!interface E 0/0service-policy input PM-COPP!interface E 0/1service-policy input PM-COPP

no access-list 100access-list 100 permit udp host 192.168.1.11 any eq 161!policy-map PM-COPPclass CM-SNMPno police 1000 conform-action transmitpolice 1000000 conform-action transmit

policy-map PM-COPPclass CM-SNMPno police 1000 conform-action transmitpolice 1000000 conform-action transmit

Full Access
