200-301 Exam Dumps - Implementing and Administering Cisco Solutions (200-301 CCNA) v1.1

Use B for this item. IPv4 hosts use DHCP to obtain dynamically assigned IP addressing information. The DHCP process supplies an IP address, subnet mask, default gateway, DNS server, and lease information without manual host configuration. In Cisco CCNA 200-301 v1.1, IP Services questions frequently test the practical boundary between similar features: what the feature does, where it is configured, and what problem it is meant to solve. ARP resolves IP addresses to MAC addresses, DNS resolves names, and CDP discovers Cisco neighbors. A clean way to validate the answer is to map the wording of the scenario to the actual device function. If the feature supplies addressing, forwarding, authentication, trunking, route selection, or controller communication, the answer must match that function exactly rather than a nearby protocol name.

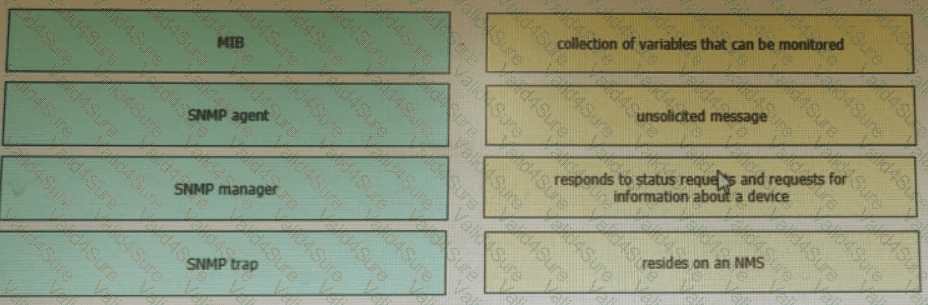

SNMP uses a manager-agent model. The SNMP manager, usually a network management system, polls devices or receives notifications. The SNMP agent runs on the managed device and exposes operational data. The Management Information Base is the structured database of managed objects, and object identifiers identify specific variables inside that hierarchy. Traps or informs are unsolicited notifications sent from the agent to the manager when configured events occur. Cisco CCNA 200-301 v1.1 IP Services includes SNMP because engineers use it for monitoring, inventory, alerting, and operational visibility. In drag-and-drop form, match each component to its role: manager equals monitoring system, agent equals device-side SNMP process, MIB equals object database, OID equals individual object path, and trap/inform equals notification. That mapping is the stable way to solve the item regardless of the exact wording in the left column.

On an 802.1Q trunk, the native VLAN is the VLAN whose traffic is sent untagged. If the administrator wants VLAN 67 to be untagged while all other VLANs remain tagged, the trunk native VLAN must be changed to 67. The correct command is switchport trunk native vlan 67. Setting switchport access vlan 67 would affect an access port, not trunk tagging behavior. switchport trunk allowed vlan 67 would restrict which VLANs are permitted over the trunk rather than making VLAN 67 untagged. A private VLAN association command is unrelated to 802.1Q trunk native VLAN handling. Cisco CCNA 200-301 v1.1 Network Access expects engineers to understand the difference between access VLANs, allowed VLAN lists, and native VLANs. The native VLAN must match on both sides of the trunk to avoid VLAN leakage and inconsistent forwarding. Here the requirement is explicitly about untagged trunk traffic, so D is the only precise command.

Answer A is the technically correct selection. A DHCP relay agent forwards DHCP broadcasts across routed boundaries. Because routers do not normally forward broadcasts, the relay receives DHCPDISCOVER from the client subnet and unicasts it to the configured DHCP server. This aligns with Cisco CCNA 200-301 v1.1 because the exam blueprint requires engineers to recognize operational behaviour from configuration symptoms and topology requirements. A DHCP pool makes the router a server, DHCP binding records leases, and DHCP snooping is a switch security feature. Treat the distractors carefully: most are real Cisco terms, but they solve a different problem or operate at a different layer. The selected answer is the one that would be used by an engineer on the device or in the design to produce the outcome stated in the question.

For a small office/home office, broadband cable is the most realistic WAN access technology in the answer set. SOHO designs prioritize cost, availability, ease of installation, and adequate Internet access for a small number of users. Broadband cable and similar consumer or business broadband services fit that model. Frame Relay and ISDN are legacy WAN technologies and are not preferred for a modern SOHO architecture. A dedicated leased line can work, but it is expensive and excessive for most small office requirements. Cisco CCNA 200-301 v1.1 includes SOHO, WAN, and cloud/on-premises topology recognition under Network Fundamentals. The exam is testing design fit, not theoretical maximum control. Broadband access gives the site shared Internet connectivity without the cost and provisioning burden of carrier private circuits. The preferred WAN access technology for this use case is broadband cable access.

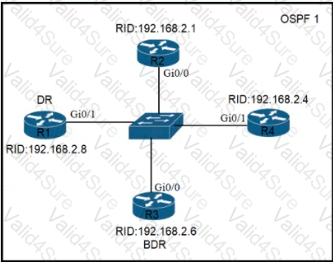

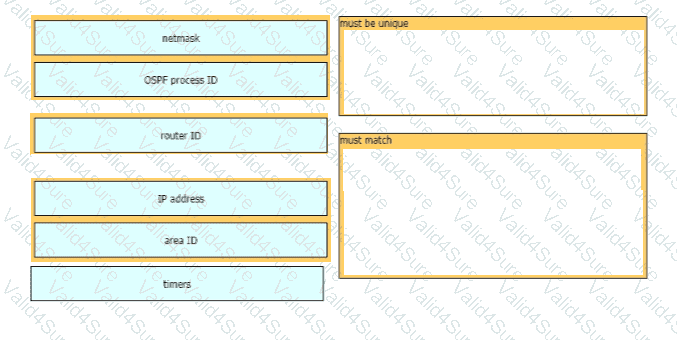

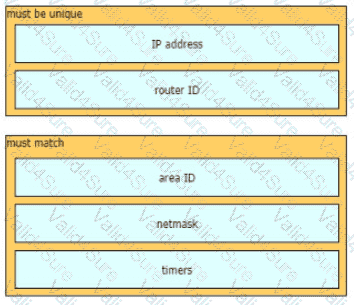

OSPFv2 neighbors do not form just because two routers can ping each other. Several parameters must agree before adjacency can progress. The interfaces must be in the same IP subnet and OSPF area. Hello and dead intervals must match. Authentication, if configured, must match. Stub-area flags must match, and MTU mismatches can prevent database exchange from completing. Router IDs must be unique, but they do not have to match. OSPF process IDs are locally significant on Cisco IOS, so the process number can differ between neighbors. Network type also matters because it affects DR/BDR election and adjacency behavior. Cisco CCNA v1.1 IP Connectivity includes single-area OSPFv2 configuration and neighbor adjacency requirements. The point of the drag-and-drop is to separate mandatory matching values from values that are local-only or simply need uniqueness. A clean OSPF adjacency requires matching operational parameters on the shared link, not identical router configuration everywhere.

FF00::/8 is the IPv6 multicast address block. A multicast address identifies a group of interfaces, and packets sent to that address are delivered to members of the group rather than to one single interface. This is the IPv6 replacement for many IPv4 broadcast-style functions; IPv6 does not use broadcast addresses. 2000::/3 is global unicast address space, used for publicly routable IPv6 addresses. FC00::/7 is unique local address space, roughly comparable in purpose to private IPv4 for internal communication. FE80::/10 is link-local address space, used only on the local link for neighbor discovery and routing-protocol operations. Cisco CCNA v1.1 Network Fundamentals requires recognition of IPv6 address categories by prefix. The easiest way to remember this one is that FF in IPv6 signals multicast. If the question says one packet is intended for a group rather than one destination, choose the multicast block, FF00::/8.

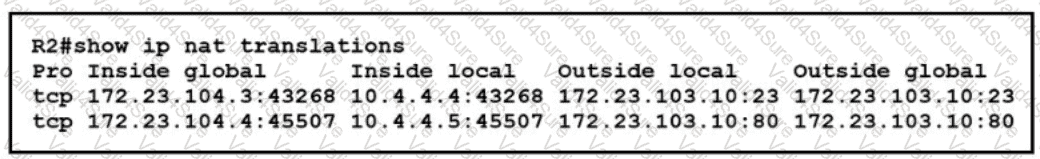

In a NAT translation table, the source address seen after inside-to-outside translation is the inside global address. The inside local address is the private address assigned to the internal host. The inside global address is the translated address that represents that internal host to the outside network. In the exhibit-based answer set, 172.23.104.4 is the address used as the translated source, so D is correct. This question is easy to miss if NAT terms are treated as labels instead of traffic direction. For outbound traffic, NAT changes the source from the inside local value to the inside global value. For return traffic, NAT reverses the operation and maps the destination back to the inside local host. Cisco CCNA v1.1 IP Services includes NAT concepts and configuration, so candidates must know inside local, inside global, outside local, and outside global. The tested idea is not merely public versus private; it is which translated field is used as the packet source.
