All physical cabling is in place. Router R4 and PCI are fully configured and
inaccessible. R4's WAN interfaces use .4 in the last octet for each subnet.
Configurations should ensure that connectivity is established end-to-end.
1 . Configure static routing to ensure RI prefers the path through R2 to
reach only PCI on R4's LAN
2. Configure static routing that ensures traffic sourced from RI will take
an alternate path through R3 to PCI in the event of an outage along
the primary path
3. Configure default routes on RI and R3 to the Internet using the least number of hops

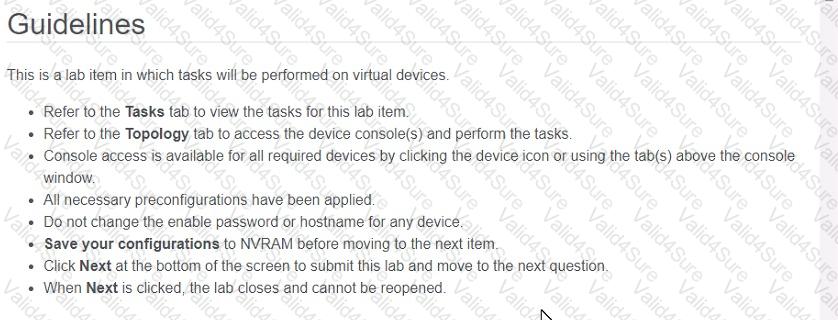

Guidelines
This is a lab item in which tasks will be performed on virtual devices.
• Refer to the Tasks tab to view the tasks for this lab item.

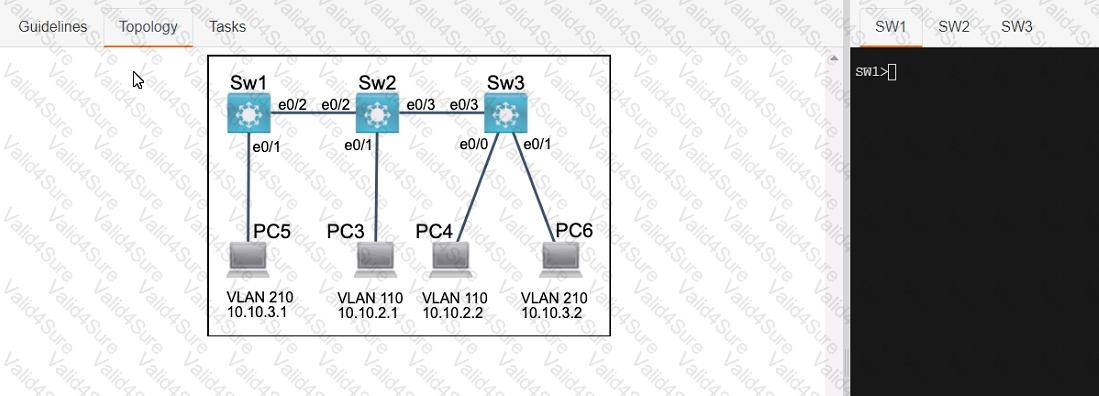

• Refer to the Topology tab to access the device console(s) and perform the tasks.
• Console access is available for all required devices by clicking the device icon or using
the tab(s) above the console window.
• All necessary preconfigurations have been applied.
• Do not change the enable password or hostname for any device.
• Save your configurations to NVRAM before moving to the next item.
• Click Next at the bottom of the screen to submit this lab and move to the next question.
• When Next is clicked, the lab closes and cannot be reopened.
IP connectivity and OSPF are preconfigured on all devices where necessary. Do not make any changes to the IP addressing or OSPF. The company policy uses connected interfaces and next hops when configuring static routes except for load balancing or redundancy without floating static. Connectivity must be established between subnet 172.20.20.128/25 on the Internet and the LAN at 192.168.0.0/24 connected to SW1:
1. Configure reachability to the switch SW1 LAN subnet in router R2.
2. Configure default reachability to the Internet subnet in router R1.
3. Configure a single static route in router R2 to reach to the Internet subnet considering both redundant links between routers R1 and R2. A default route is NOT allowed in router R2.
4. Configure a static route in router R1 toward the switch SW1 LAN subnet where the primary link must be through Ethernet0/1. and the backup link must be through Ethernet0/2 using a floating route. Use the minimal administrative distance value when required.
Connectivity between four routers has been established. IP connectivity must be configured in the order presented to complete the implementation. No dynamic routing protocols are included.
1. Configure static routing using host routes to establish connectivity from router R3 to the router R1 Loopback address using the source IP of 209.165.200.230.
2. Configure an IPv4 default route on router R2 destined for router R4.
3. Configure an IPv6 default router on router R2 destined for router R4.
Connectivity between three routers has been established, and IP services must be configured jn the order presented to complete the implementation Tasks assigned include configuration of NAT, NTP, DHCP, and SSH services.
1. All traffic sent from R3 to the R1 Loopback address must be configured for NAT on R2. All source addresses must be translated from R3 to the IP address of Ethernet0/0 on R2, while using only a standard access list named NAT To verify, a ping must be successful to the R1 Loopback address sourced from R3. Do not use NVI NAT configuration.
2. Configure R1 as an NTP server and R2 as a client, not as a peer, using the IP address of the R1 Ethernet0/2 interface. Set the clock on the NTP server for midnight on January 1, 2019.
3. Configure R1 as a DHCP server for the network 10.1.3.0/24 in a pool named TEST. Using a single command, exclude addresses 1-10 from the range. Interface Ethernet0/2 on R3 must be issued the IP address of 10.1.3.11 via DHCP.
4. Configure SSH connectivity from R1 to R3, while excluding access via other remote connection protocols. Access for user root and password Cisco must be set on router R3 using RSA and 1024 bits. Verify connectivity using an SSH session from router R1 using a destination address of 10.1.3.11. Do NOT modify console access or line numbers to accomplish this task.
Refer to the exhibit.
What is the subnet mask of the route to the 10.10.13.160 prefix?
Refer to the exhibit.
What must be configured to enable 802.11w on the WLAN?
Refer to the exhibit.
A network engineer is updating the configuration on router R1 to connect a new branch office to the company network R2 has been configured correctly. Which command must the engineer configure so that devices at the new site communicate with the main office?
What is a function of the core and distribution layers in a collapsed-core architecture?
The address block 192 168 32 0/24 must be subnetted into smaller networks The engineer must meet these requirements
• Create 8 new subnets
• Each subnet must accommodate 30 hosts
• Interface VLAN 10 must use the last usable IP in the first new subnet
• A Layer 3 interface is used
Which configuration must be applied to the interface?
A)
B)
C)
D)
Refer to the exhibit.
When router R1 is sending traffic to IP address 10.56.192 1, which interface or next hop address does it use to route the packet?
Refer to the exhibit.
What is the next step to complete the implementation for the partial NAT configuration shown?
What should a network administrator consider when deciding to implement automation?
Refer to the exhibit.
What does the host do when using the IPv4 Preferred function?
Drag and drop the Wi-Fi terms from the left onto the descriptions on the right.
Refer to the exhibit.
What is the prefix length for the route that router1 will use to reach host A?
Refer to the exhibit.
What is represented beginning with line 1 and ending with line 5?
Refer to the exhibit.
Which interface is chosen to forward traffic to the host at 192.168.0.55?
It work security team noticed that an increasing number of employees are becoming victims of phishing attacks. Which security program should be implemented to mitigate the problem?
An engineer has configured the domain name, user name, and password on the local router. What is the next step to complete the configuration tor a Secure Shell access RSA key?
Refer to the exhibit.
A network engineer must provide configured IP addressing details to investigate a firewall rule Issue. Which subnet and mask Identify what is configured on the en0 interface?
An engineer is configuring router R1 with an IPv6 static route for prefix 2019:C15C:0CAF:E001::/64. The next hop must be 2019:C15C:0CAF:E002::1 The route must be reachable via the R1 Gigabit 0/0 interface. Which command configures the designated route?
Which cable type must be used to interconnect one switch using 1000 BASE-SX GBiC modules and another switch using 1000 BASE-SX SFP modules?
Refer to the exhibit.
Which configuration establishes a Layer 2 LACP EtherChannel when applied to both switches?
Drag and drop the AAA features from the left onto the corresponding AAA security services on the right. Not all options are used.
Drag and drop the statement about AAA services from the left to the corresponding AAA services on the right.
Refer to the exhibit An IPv6 address must be obtained automatically on the LAN interface on R1 Which command must be implemented to accomplish the task?
Refer to the exhibit.
What are the two steps an engineer must take to provide the highest encryption and authentication using domain credentials from LDAP?
Refer to the exhibit.
Rooter R1 is added to the network and configured with tie 10 0 0 64/26 and 10.0.20.0/24 subnets However traffic destined for the LAN on R3 is not access. Which command when executed on R1 defines a tunic route to reach the R3 LAN?
A)
B)
C)
Refer to Exhibit.
Rotor to the exhibit. The IP address configurations must be completed on the DC-1 and HQ-1 routers based on these requirements:
DC-1 Gi1/0 must be the last usable address on a /30
DC-1 Gi1/1 must be the first usable address on a /29
DC-1 Gi1/2 must be the last usable address on a /28
HQ-1 Gil/3 must be the last usable address on a /29
Drag and drop the commands from the left onto the destination interfaces on the right. Not all commands are used
Refer to the exhibit.
Which set of commands must be applied to the two switches to configure an LACP Layer 2 EtherChannel?
A)
B)
C)
D)
Which Cisco proprietary protocol ensures traffic recovers immediately, transparently, and automatically when edge devices or access circuits fail?
Drag and drop the AAA lerms from the left onto the descriptions on the right.

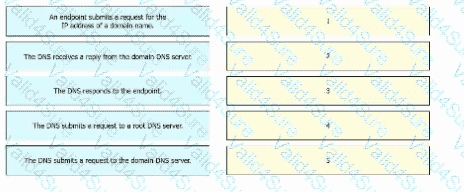

Drag and drop the steps in a standard DNS lookup operation from the left into the order on the right.
Refer to the exhibit.
SW_1 and SW_12 represent two companies that are merging. They use separate network vendors. The VLANs on both Sides have been migrated to share IP subnets. Which command sequence must be issued on both sides to join the two companies and pass all VLANs between the companies?
Drag and drop the characteristic from the left onto the IPv6 address type on the right.
What is the temporary state that switch ports always enter immediately after the boot process when Rapid PVST+ is used?
A switch is a forwarding a frame out of an interfaces except the interface that received the frame. What is the technical term for this process?
Which interface enables communication between a program on the controller and a program on the networking devices?
Refer to the exhibit.
All interfaces are configured with duplex auto and ip ospf network broadcast. Which configuration allows routers R14 and R86 to form an OSPFv2 adjacency and act as a central point for exchanging OSPF information between routers?
What is the function of "off-the-shell" switches in a controller-based network?
Which two protocols are used by an administrator for authentication and configuration on access points?
Refer to the exhibit.
A packet sourced from 172.18.33.2 is destined for 172.18.32.38. Where does the router forward the packet?
Which interface or port on the WLC is the default for in-band device administration and communications between the controller and access points?
A WLC sends alarms about a rogue AP, and the network administrator verifies that the alarms are caused by a legitimate autonomous AP.
A Cisco engineer is configuring a factory-default router with these three passwords:
• The user EXEC password for console access is p4ssw0rd1
• The user EXEC password for Telnet access is s3cr3t2
• The password for privileged EXEC mode is pnv4t3p4ss Which command sequence must the engineer configured
A)
B)
C)
D)
Drag and drop the statements about networking from me left onto the corresponding networking types on the right
Refer to the exhibit. An engineer must configure a static network route between two networks so that host A communicates with host B. Drag and drop the commands from the left onto the routers where they must be configured on the right. Not all commands are used.
Refer to the exhibit.
A packet sourced from 10.10.10.32 is destined for the internet.
Refer to the exhibit.
Packets received by the router from BGP enter via a serial interface at 209 165 201 1 Each route is present within the routing table Which interface is used to forward traffic with a destination IP of 10.1.1.19?
Refer to the exhibit.
How should the configuration be updated to allow PC1 and PC2 access to the Internet?
Refer to the exhibit.
A company is configuring a failover plan and must implement the default routes in such a way that a floating static route will assume traffic forwarding when the primary link goes down. Which primary route configuration must be used?
An engineer is configuring remote access to a router from IP subnet 10.139.58.0/28. The domain name, crypto keys, and SSH have been configured. Which configuration enables the traffic on the destination router?
A)
B)
C)
D)
Refer to the exhibit.
What is a reason for poor performance on the network interface?
Refer to the exhibit.
An engineer built a new L2 LACP EtherChannel between SW1 and SW2 and executed these show commands to verify the work. Which additional task allows the two switches to establish an LACP port channel?
Which interface mode must be configured to connect the lightweight APs in a centralized architecture?
Which WLC management connection type is vulnerable to man-in-the-middle attacks?
Refer to the exhibit.
Web traffic is coming in from the WAN interface. Which route takes precedence when the router is processing traffic destined for the LAN network at 10 0.10.0/24?
Refer to the exhibit.
The following must be considered:
• SW1 is fully configured for all traffic
• The SW4 and SW9 links to SW1 have been configured
• The SW4 interface Gi0/1 and Gi0/0 on SW9 have been configured
• The remaining switches have had all VLANs adde d to their VLAN database
Which configuration establishes a successful ping from PC2 to PC7 without interruption to traffic flow between other PCs?
A)
B)
C)
D)
Which PoE mode enables powered-device detection and guarantees power when the device is detected?
A network engineer is configuring a switch so that it is remotely reachable via SSH. The engineer has already configured the host name on the router. Which additional command must the engineer configure before entering the command to generate the RSA key?
A network engineer must configure two new subnets using the address block 10 70 128 0/19 to meet these requirements:
• The first subnet must support 24 hosts
• The second subnet must support 472 hosts
• Both subnets must use the longest subnet mask possible from the address block
Which two configurations must be used to configure the new subnets and meet a requirement to use the first available address in each subnet for the router interfaces? (Choose two )
Which QoS per-hop behavior changes the value of the ToS field in the IPv4 packet header?
Refer to the exhibit.
The router has been configured with a supernet to accommodate the requirement for 380 users on a subnet The requirement already considers 30% future growth. Which configuration verifies the IP subnet on router R4?
A)
B)
C)
D)
Drag and drop the threat-mitigation techniques from the left onto the types of threat or attack they mitigate on the right.
Refer to the exhibit.
Users need to connect to the wireless network with IEEE 802. 11r-compatible devices. The connection must be maintained as users travel between floors or to other areas in the building What must be the configuration of the connection?
Refer to the exhibit.
Users on existing VLAN 100 can reach sites on the Internet. Which action must the administrator take to establish connectivity to the Internet for users in VLAN 200?
Refer to the exhibit.
Routers R1 and R3 have the default configuration The router R2 priority is set to 99 Which commands on R3 configure it as the DR in the 10.0 4.0/24 network?
Refer to the exhibit.
A network engineer must update the configuration on Switch2 so that it sends LLDP packets every minute and the information sent via LLDP is refreshed every 3 minutes Which configuration must the engineer apply?
A)
B)
C)
D)
Refer to the exhibit.
All VLANs are present in the VLAN database. Which command sequence must be applied to complete the configuration?
Refer to the exhibit.
Which two commands must be added to update the configuration of router R1 so that it accepts only encrypted connections? (Choose two )
A Cisco engineer must configure a single switch interface to meet these requirements
• accept untagged frames and place them in VLAN 20
• accept tagged frames in VLAN 30 when CDP detects a Cisco IP phone
Which command set must the engineer apply?
A)
B)
C)
D)
Refer to the exhibit.
Site A was recently connected to site B over a new single-mode fiber path. Users at site A report Intermittent connectivity Issues with applications hosted at site B. What is the reason for the problem?
Which type of network attack overwhelms the target server by sending multiple packets to a port until the half-open TCP resources of the target are exhausted?
Which QoS traffic handling technique retains excess packets in a queue and reschedules these packets for later transmission when the configured maximum bandwidth has been surpassed?
Refer to the exhibit.
An engineer is configuring a new router on the network and applied this configuration. Which additional configuration allows the PC to obtain its IP address from a DHCP server?
Refer to the exhibit.
Which configuration allows routers R14 and R86 to form an OSPFv2 adjacency while acting as a central point for exchanging OSPF information between routers?
A)
B)
C)
D)
Which action implements physical access control as part of the security program of an organization?
Refer to the exhibit.
An engineer assumes a configuration task from a peer Router A must establish an OSPF neighbor relationship with neighbor 172 1 1 1 The output displays the status of the adjacency after 2 hours. What is the next step in the configuration process for the routers to establish an adjacency?

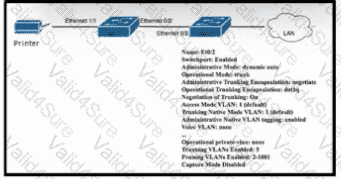

Refer to the exhibit.
An engineer is asked to insert the new VLAN into the existing trunk without modifying anything previously configured Which command accomplishes this task?
Drag and drop the Rapid PVST+ forwarding slate actions from the loft to the right. Not all actions are used.
Drag and drop the characteristics of networking from the left onto the networking types on the right.
Refer to the exhibit.
Switch A is newly configured. All VLANs are present in the VLAN database. The IP phone and PC A on Gi0/1 must be configured for the appropriate VLANs to establish connectivity between the PCs. Which command set fulfills the requirement?
A)
B)
C)
D)
An engineer must configure traffic for a VLAN that is untagged by the switch as it crosses a trunk link. Which command should be used?
A wireless administrator has configured a WLAN; however, the clients need access to a less congested 5-GHz network for their voice quality. What action must be taken to meet the requirement?
OSPF must be configured between routers R1 and R2. Which OSPF configuration must be applied to router R1 to avoid a DR/BDR election?
What makes Cisco DNA Center different from traditional network management applications and their management of networks?
A network administrator must to configure SSH for remote access to router R1 The requirement is to use a public and private key pair to encrypt management traffic to and from the connecting client.
Which configuration, when applied, meets the requirements?
Refer to the exhibit.
To which device does Router1 send packets that are destined to host 10.10.13.165?
Refer to me exhibit.
Which action is taken by the router when a packet is sourced from 10.10.10.2 and destined for 10.10.10.16?
Which action must be taken to assign a global unicast IPv6 address on an interface that is derived from the MAC address of that interface?
Refer to the exhibit.
For security reasons, automatic neighbor discovery must be disabled on the R5 Gi0/1 interface. These tasks must be completed:
• Disable all neighbor discovery methods on R5 interface GiO/1.
• Permit neighbor discovery on R5 interface GiO/2.
• Verify there are no dynamically learned neighbors on R5 interface Gi0/1.
• Display the IP address of R6*s interface Gi0/2.
Which configuration must be used?
Refer to the exhibit.
The entire contents of the MAC address table are shown. Sales-4 sends a data frame to Sales-1.
What does the switch do as it receives the frame from Sales-4?
Refer to the exhibit.
A network administrator has been tasked with securing VTY access to a router. Which access-list entry accomplishes this task?
Which mode must be set for APs to communicate to a Wireless LAN Controller using the Control and Provisioning of Wireless Access Points (CAPWAP) protocol?
R1 has learned route 192.168.12.0/24 via IS-IS. OSPF, RIP. and Internal EIGRP Under normal operating conditions, which routing protocol is installed in the routing table?
A user configured OSPF in a single area between two routers A serial interface connecting R1 and R2 is running encapsulation PPP By default which OSPF network type is seen on this interface when the user types show ip ospf interface on R1 or R2?
Which two primary drivers support the need for network automation? (Choose two.)
Refer to the exhibit.
Router R2 is configured with multiple routes to reach network 10 1.1 0/24 from router R1. What protocol is chosen by router R2 to reach the destination network 10.1 1 0/24?
A device detects two stations transmitting frames at the same time. This condition occurs after the first 64 bytes of the frame is received interface counter increments?
Which unified access point mode continues to serve wireless clients after losing connectivity to the Cisco Wireless LAN Controller?
Refer to the exhibit.
The nip server 192.168.0.3 command has been configured on router 1 to make it an NTP client of router 2. Which command must be configured on router 2 so that it operates in server-only mode and relies only on its internal clock?
A network administrator needs to aggregate 4 ports into a single logical link which must negotiate layer 2 connectivity to ports on another switch. What must be configured when using active mode on both sides of the connection?
Refer to the exhibit.
Which command configures a floating static route to provide a backup to the primary link?
An organization secures its network with multi-factor authentication using an authenticator app on employee smartphone. How is the application secured in the case of a user’s smartphone being lost or stolen?

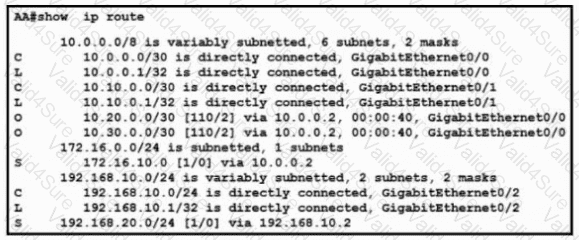

Refer to the exhibit.
Which route type is configured to reach the internet?
Refer to the exhibit.
What action establishes the OSPF neighbor relationship without forming an adjacency?
Refer to the exhibit.
A packet is being sent across router R1 to host 172.16.0.14. What is the destination route for the packet?
Which design element is a best practice when deploying an 802.11b wireless infrastructure?
Refer to the exhibit.
Router R1 Fa0/0 is unable ping router R3 Fa0/1.
Which action must be taken in router R1 to help resolve the configuration issue?
Refer to the exhibit.
The default-information originate command is configured under the R1 OSPF configuration After testing workstations on VLAN 20 at Site B cannot reach a DNS server on the Internet Which action corrects the configuration issue?
What benefit does controller-based networking provide versus traditional networking?
Refer to the exhibit.
A packet is being sent across router R1 to host 172.163.3.14. To which destination does the router send the packet?
An engineer must configure an OSPF neighbor relationship between router R1 and R3 The authentication configuration has been configured and the connecting interfaces are in the same 192.168 1.0/30 sublet. What are the next two steps to complete the configuration? (Choose two.)
Refer to the exhibit.
The New York router is configured with static routes pointing to the Atlanta and Washington sites. Which two tasks must be performed so that the Serial0/0/0 interfaces on the Atlanta and Washington routers can reach one another?
(Choose two.)
Refer to the exhibit.
Only four switches are participating in the VLAN spanning-tree process.
Branch-1 priority 614440
Branch-2: priority 39082416
Branch-3: priority 0
Branch-4: root primary
Which switch becomes the permanent root bridge for VLAN 5?
Which IPv6 address type provides communication between subnets and is unable to route on the Internet?
Drag the descriptions of device management from the left onto the types of device management on the right.
Where is the interface between the control plane and data plane within the software-defined architecture?
Router A learns the same route from two different neighbors, one of the neighbor routers is an OSPF neighbor and the other is an EIGRP neighbor. What is the administrative distance of the route that will be installed in the routing table?
When a site-to-site VPN is used, which protocol is responsible for the transport of user data?
A Cisco IP phone receive untagged data traffic from an attached PC. Which action is taken by the phone?
Refer to the exhibit.
If configuring a static default route on the router with the ip route 0.0.0.0 0.0.0.0 10.13.0.1 120 command how does the router respond?
Which configuration management mechanism uses TCP port 22 by default when communicating with managed nodes?
Refer to the exhibit.
The show ip ospf interface command has been executed on R1 How is OSPF configured?
Refer to the exhibit.
Which two prefixes are included in this routing table entry? (Choose two.)
Two switches are connected and using Cisco Dynamic Trunking Protocol SW1 is set to Dynamic Desirable
What is the result of this configuration?
Which technology is used to improve web traffic performance by proxy caching?
Drag and drop the DNS lookup components from the left onto the functions on the right.
Which technology allows for multiple operating systems to be run on a single host computer?
Refer to the exhibit. All routers in the network are configured R2 must be the DR. After the engineer connected the devices, R1 was elected as the DR. Which command sequence must be configure on R2 to Be elected as the DR in the network?
What mechanism carries multicast traffic between remote sites and supports encryption?
Refer to the exhibit.

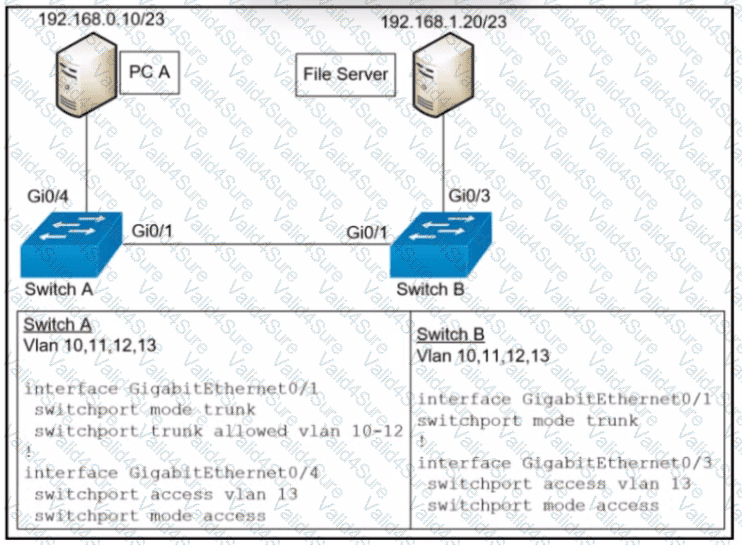

A network engineer must configured communication between PC A and the File Server. To prevent interruption for any other communications, which command must be configured?
Drag and drop the 802.11 wireless standards from the left onto the matching statements on the right
Which type of wireless encryption is used for WPA2 in preshared key mode?
Several new coverage cells are required to improve the Wi-Fi network of an organization. Which two standard designs are recommended? (choose two.)
When implementing a router as a DHCP server, which two features must be configured'? (Choose two)
Which security program element involves installing badge readers on data-center doors to allow workers to enter and exit based on their job roles?
Refer to the exhibit Routers R1 and R2 have been configured with their respective LAN interfaces The two circuits are operational and reachable across WAN Which command set establishes failover redundancy if the primary circuit goes down?
Which command prevents passwords from being stored in the configuration as plain text on a router or switch?
Which IPv6 address block sends packets to a group address rather than a single address?
A network engineer must back up 20 network router configurations globally within a customer environment. Which protocol allows the engineer to perform this function using the Cisco IOS MIB?
Refer to the exhibit.
Host A sent a data frame destined for host D
What does the switch do when it receives the frame from host A?
Refer to the exhibit.
The DHCP server and clients are connected to the same switch. What is the next step to complete the DHCP configuration to allow clients on VLAN 1 to receive addresses from the DHCP server?
R1 as an NTP server must have:
• NTP authentication enabled
• NTP packets sourced from Interface loopback 0
• NTP stratum 2
• NTP packets only permitted to client IP 209.165 200 225
How should R1 be configured?
A)
B)
C)
D)
Refer to the exhibit.
Traffic that is flowing over interface TenGigabitEthernet0/0 experiences slow transfer speeds. What is the reason for the issue?
Which characteristic differentiates the concept of authentication from authorization and accounting?
Refer to the exhibit.
Which route must be configured on R1 so that OSPF routing is used when OSPF is up. but the server is still reachable when OSPF goes down?
Refer to the exhibit.
Which configuration enables DHCP addressing for hosts connected to interface FastEthernetO/1 on router R4?

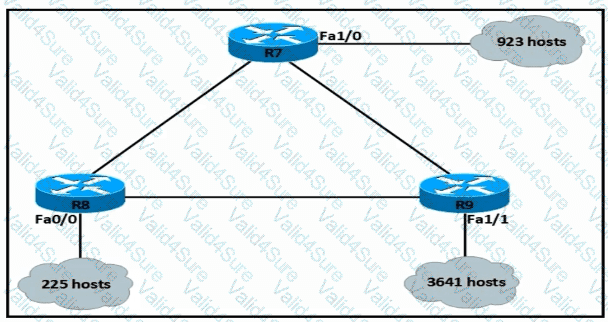

Refer to the exhibit.
An IP subnet must be configured on each router that provides enough addresses for the number of assigned hosts and anticipates no more than 10% growth for now hosts. Which configuration script must be used?
A)
B)
C)
D)
Refer to the exhibit.
A static route must be configured on R14 to forward traffic for the 172 21 34 0/25 network that resides on R86 Which command must be used to fulfill the request?
What is the default behavior of a Layer 2 switch when a frame with an unknown destination MAC address is received?
Which two components are needed to create an Ansible script that configures a VLAN on a switch? (Choose two.)
Refer to the exhibit.
which path is used by the router for internet traffic ?
How will Link Aggregation be Implemented on a Cisco Wireless LAN Controller?
Drag and drop the IPv6 address type characteristics from the left to the right.

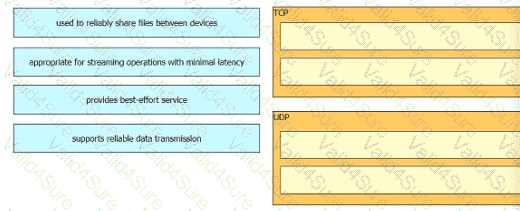

What is the difference regarding reliability and communication type between TCP and UDP?
Refer to the exhibit.
Which configuration on RTR-1 denies SSH access from PC-1 to any RTR-1 interface and allows all other traffic?

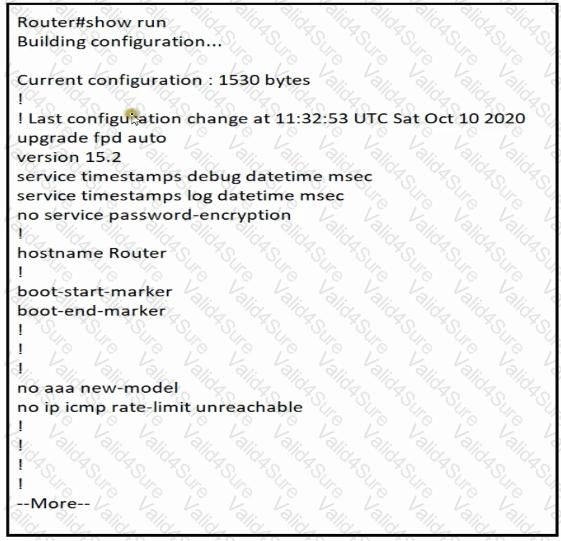

Refer to the exhibit.
Which password must an engineer use to enter the enable mode?
Which attribute does a router use to select the best path when two or more different routes to the same destination exist from two different routing protocols.
Drag and drop the AAA functions from the left onto the correct AAA services on the right
An engineer must configure Interswitch VLAN communication between a Cisco switch and a third-party switch. Which action should be taken?
When using Rapid PVST+, which command guarantees the switch is always the root bridge for VLAN 200?
Drag and drop the characteristics of network architectures from the left onto the type of architecture on the right.
What are two roles of the Dynamic Host Configuration Protocol (DHCP)? (Choose two)
Which function is performed by the collapsed core layer in a two-tier architecture?
After installing a new Cisco ISE server, which task must the engineer perform on the Cisco WLC to connect wireless clients on a specific VLAN based on their credentials?

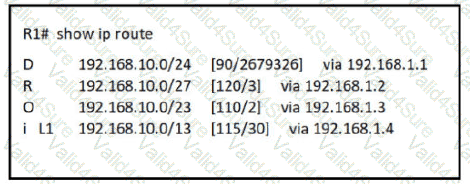

Refer to the exhibit.
A router reserved these five routes from different routing information sources.
Which two routes does the router install in its routing table? (Choose two)
What are two benefits of controller-based networking compared to traditional networking?
Which mode allows access points to be managed by Cisco Wireless LAN Controllers?
Refer to the exhibit.
An engineer configured NAT translations and has verified that the configuration is correct.
Which IP address is the source IP?
Refer to the exhibit.
An engineer is configuring an EtherChannel using LACP between Switches 1 and 2 Which configuration must be applied so that only Switch 1 sends LACP initiation packets?
Drag and drop the facts about wireless architectures from the left onto the types of access point on the right. Not all options are used.
Configure IPv4 and IPv6 connectivity between two routers. For IPv4, use a /28 network from the 192.168.1.0/24 private range. For IPv6, use the first /64 subnet from the 2001:0db8:aaaa::/48 subnet.
1. Using Ethernet0/1 on routers R1 and R2, configure the next usable/28 from the 192.168.1.0/24 range. The network 192.168.1.0/28 is unavailable.
2. For the IPv4 /28 subnet, router R1 must be configured with the first usable host address.
3. For the IPv4 /28 subnet, router R2 must be configured with the last usable host address.
4. For the IPv6 /64 subnet, configure the routers with the IP addressing provided from the topology.
5. A ping must work between the routers on the IPv4 and IPv6 address ranges.
IP connectivity between the three routers is configured. OSPF adjacencies must be established.
1. Configure R1 and R2 Router IDs using the interface IP addresses from the link that is shared between them.
2. Configure the R2 links with a max value facing R1 and R3. R2 must become the DR. R1 and R3 links facing R2 must remain with the default OSPF configuration for DR election. Verify the configuration after clearing the OSPF process.
3. Using a host wildcard mask, configure all three routers to advertise their respective Loopback1 networks.
4. Configure the link between R1 and R3 to disable their ability to add other OSPF routers.
All physical cabling between the two switches is installed. Configure the network connectivity between the switches using the designated VLANs and interfaces.
1. Configure VLAN 100 named Compute and VLAN 200 named Telephony where required for each task.
2. Configure Ethernet0/1 on SW2 to use the existing VLAN named Available.
3. Configure the connection between the switches using access ports.
4. Configure Ethernet0/1 on SW1 using data and voice VLANs.
5. Configure Ethemet0/1 on SW2 so that the Cisco proprietary neighbor discovery protocol is turned off for the designated interface only.
Physical connectivity is implemented between the two Layer 2 switches, and the network connectivity between them must be configured
1. Configure an LACP EtherChannel and number it as 1; configure it between switches SW1 and SVV2 using interfaces Ethernet0/0 and Ethernet0/1 on both sides. The LACP mode must match on both ends
2 Configure the EtherChannel as a trunk link.
3. Configure the trunk link with 802.1 q tags.
4. Configure the native VLAN of the EtherChannel as VLAN 15.
