Question # 185

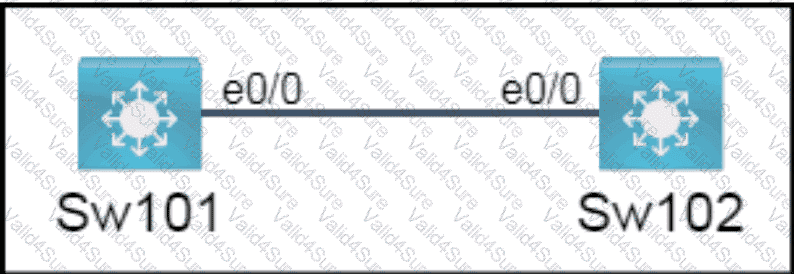

All physical cabling is in place. A company plans to deploy 32 new sites.

The sites will utilize both IPv4 and IPv6 networks.

1 . Subnet 172.25.0.0/16 to meet the subnet requirements and maximize

the number of hosts

Using the second subnet

â€¢ Assign the first usable IP address to e0/0 on Sw1O1

â€¢ Assign the last usable IP address to e0/0 on Sw102

2. Subnet to meet the subnet requirements and maximize

the number of hosts

c Using the second subnet

â€¢ Assign an IPv6 GUA using a unique 64-Bit interface identifier

on e0/0 on Sw101

â€¢ Assign an IPv6 GUA using a unique 64-Bit interface identifier

on eO/O on swi02

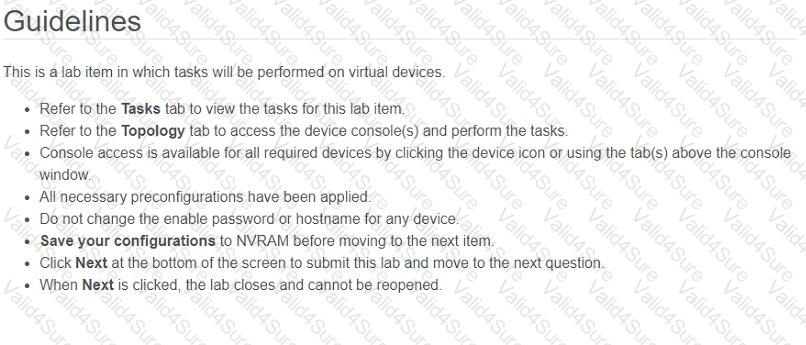

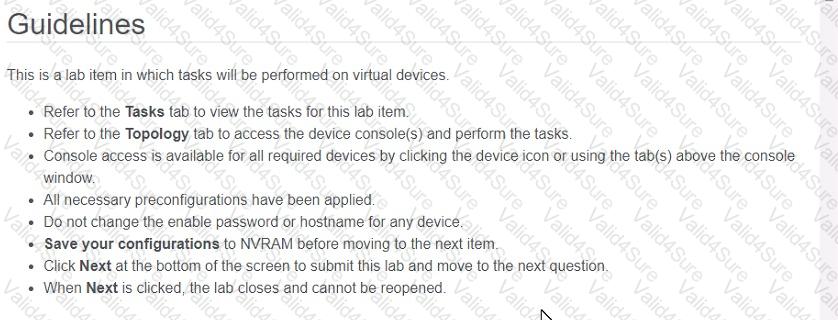

Guidelines

This is a lab item in which tasks will be performed on virtual devices.

â€¢ Refer to the Tasks tab to view the tasks for this lab item.

â€¢ Refer to the Topology tab to access the device console(s) and perform the tasks.

â€¢ Console access is available for all required devices by clicking the device icon or using

the tab(s) above the console window.

â€¢ All necessary preconfigurations have been applied.

â€¢ Do not change the enable password or hostname for any device.

â€¢ Save your configurations to NVRAM before moving to the next item.

â€¢ Click Next at the bottom of the screen to submit this lab and move to the next question.

â€¢ When Next is clicked, the lab closes and cannot be reopened.

Full Access

Answer:

Explanation:

To subnet 172.25.0.0/16 to meet the subnet requirements and maximize the number of hosts, you need to determine how many bits you need to borrow from the host portion of the address to create enough subnets for 32 sites. Since 32 is 2^5, you need to borrow 5 bits, which means your new subnet mask will be /21 or 255.255.248.0. To find the second subnet, you need to add the value of the fifth bit (32) to the third octet of the network address (0), which gives you 172.25.32.0/21 as the second subnet. The first usable IP address in this subnet is 172.25.32.1, and the last usable IP address is 172.25.39.254.

To assign the first usable IP address to e0/0 on Sw101, you need to enter the following commands on the device console:

Sw101#configure terminal Sw101(config)#interface e0/0 Sw101(config-if)#ip address 172.25.32.1 255.255.248.0 Sw101(config-if)#no shutdown Sw101(config-if)#end

To assign the last usable IP address to e0/0 on Sw102, you need to enter the following commands on the device console:

Sw102#configure terminal Sw102(config)#interface e0/0 Sw102(config-if)#ip address 172.25.39.254 255.255.248.0 Sw102(config-if)#no shutdown Sw102(config-if)#end

To subnet an IPv6 GUA to meet the subnet requirements and maximize the number of hosts, you need to determine how many bits you need to borrow from the interface identifier portion of the address to create enough subnets for 32 sites. Since 32 is 2^5, you need to borrow 5 bits, which means your new prefix length will be /69 or ffff:ffff:ffff:fff8::/69 (assuming that your IPv6 GUA has a /64 prefix by default). To find the second subnet, you need to add the value of the fifth bit (32) to the fourth hextet of the network address (0000), which gives you xxxx:xxxx:xxxx:0020::/69 as the second subnet (where xxxx:xxxx:xxxx is your IPv6 GUA prefix). The first and last IPv6 addresses in this subnet are xxxx:xxxx:xxxx:0020::1 and xxxx:xxxx:xxxx:0027:ffff:ffff:ffff:fffe respectively.

To assign an IPv6 GUA using a unique 64-bit interface identifier on e0/0 on Sw101, you need to enter the following commands on the device console (assuming that your IPv6 GUA prefix is 2001:db8::/64):

Sw101#configure terminal Sw101(config)#interface e0/0 Sw101(config-if)#ipv6 address 2001:db8::20::1/69 Sw101(config-if)#no shutdown Sw101(config-if)#end

To assign an IPv6 GUA using a unique 64-bit interface identifier on e0/0 on Sw102, you need to enter the following commands on the device console (assuming that your IPv6 GUA prefix is 2001:db8::/64):

Sw102#configure terminal Sw102(config)#interface e0/0 Sw102(config-if)#ipv6 address 2001:db8::27::fffe/69 Sw102(config-if)#no shutdown Sw102(config-if)#end

Question # 186

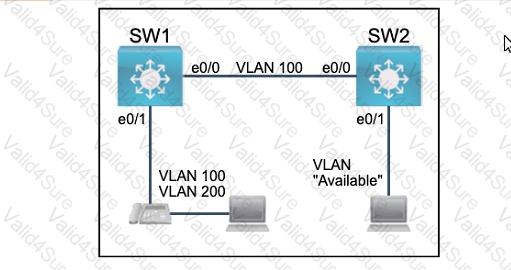

All physical cabling between the two switches is installed. Configure the network connectivity between the switches using the designated VLANs and interfaces.

1. Configure VLAN 100 named Compute and VLAN 200 named Telephony where required for each task.

2. Configure Ethernet0/1 on SW2 to use the existing VLAN named Available.

3. Configure the connection between the switches using access ports.

4. Configure Ethernet0/1 on SW1 using data and voice VLANs.

5. Configure Ethemet0/1 on SW2 so that the Cisco proprietary neighbor discovery protocol is turned off for the designated interface only.

Full Access

Question # 187

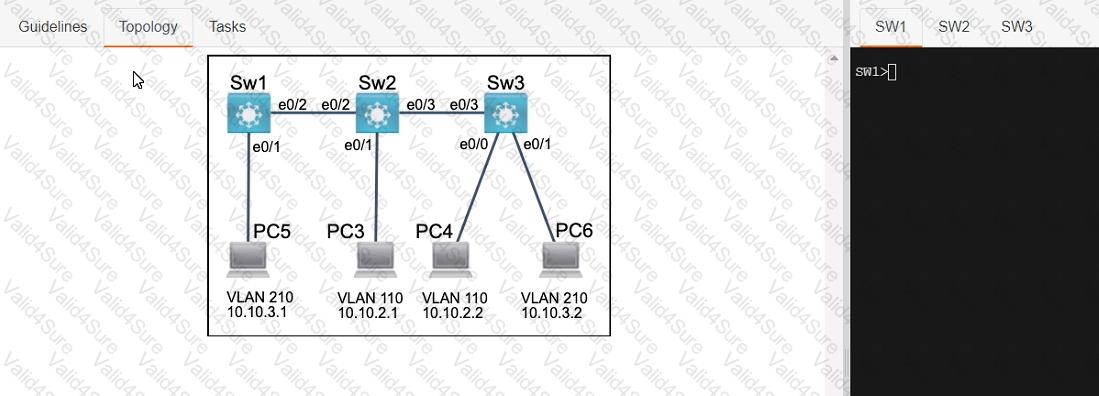

Three switches must be configured for Layer 2 connectivity. The company requires only the designated VLANs to be configured on their respective switches and permitted accross any links between switches for security purposes. Do not modify or delete VTP configurations.

The network needs two user-defined VLANs configured:

VLAN 110: MARKETING

VLAN 210: FINANCE

1. Configure the VLANs on the designated switches and assign them as access ports to the interfaces connected to the PCs.

2. Configure the e0/2 interfaces on Sw1 and Sw2 as 802.1q trunks with only the required VLANs permitted.

3. Configure the e0/3 interfaces on Sw2 and Sw3 as 802.1q trunks with only the required VLANs permitted.

Full Access

Question # 188

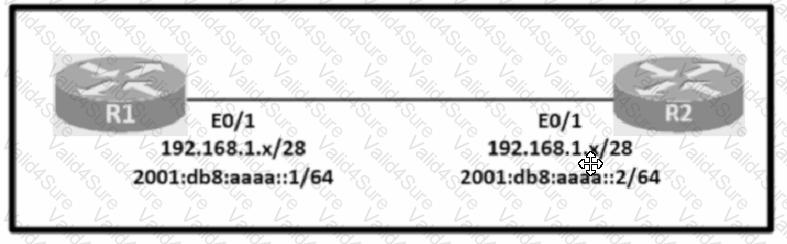

Configure IPv4 and IPv6 connectivity between two routers. For IPv4, use a /28 network from the 192.168.1.0/24 private range. For IPv6, use the first /64 subnet from the 2001:0db8:aaaa::/48 subnet.

1. Using Ethernet0/1 on routers R1 and R2, configure the next usable/28 from the 192.168.1.0/24 range. The network 192.168.1.0/28 is unavailable.

2. For the IPv4 /28 subnet, router R1 must be configured with the first usable host address.

3. For the IPv4 /28 subnet, router R2 must be configured with the last usable host address.

4. For the IPv6 /64 subnet, configure the routers with the IP addressing provided from the topology.

5. A ping must work between the routers on the IPv4 and IPv6 address ranges.

Full Access

Question # 189

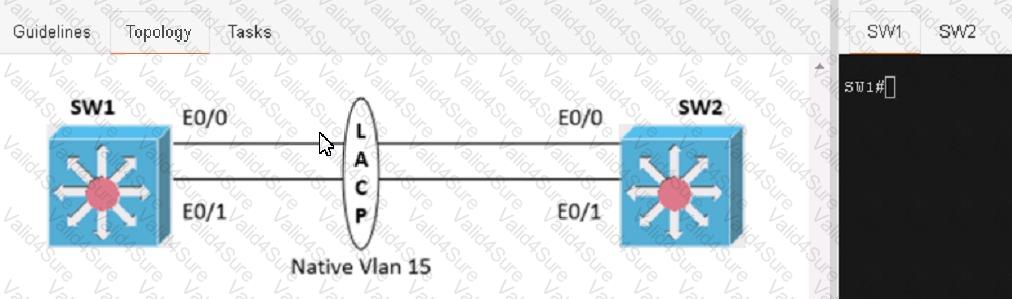

Physical connectivity is implemented between the two Layer 2 switches, and the network connectivity between them must be configured

1. Configure an LACP EtherChannel and number it as 1; configure it between switches SW1 and SVV2 using interfaces Ethernet0/0 and Ethernet0/1 on both sides. The LACP mode must match on both ends

2 Configure the EtherChannel as a trunk link.

3. Configure the trunk link with 802.1 q tags.

4. Configure the native VLAN of the EtherChannel as VLAN 15.

Full Access

Question # 190

Physical connectivity is implemented between the two Layer 2 switches,

and the network connectivity between them must be configured.

I . Configure an LACP EtherChanneI and number it as 44; configure it

between switches SWI and SW2 using interfaces EthernetO/O and

Ethernet0/1 on both sides. The LACP mode must match on both ends.

2. Configure the EtherChanneI as a trunk link.

3. Configure the trunk link with 802. Iq tags.

4. Configure VLAN ' MONITORING ' as the untagged VLAN of the

EtherChannel.

==================

Guidelines

This is a lab item in which tasks will be performed on virtual devices.

â€¢ Refer to the Tasks tab to view the tasks for this lab item.

â€¢ Refer to the Topology tab to access the device console(s) and perform the tasks.

â€¢ Console access is available for all required devices by clicking the device icon or using

the tab(s) above the console window.

â€¢ All necessary preconfigurations have been applied.

â€¢ Do not change the enable password or hostname for any device.

â€¢ Save your configurations to NVRAM before moving to the next item.

â€¢ Click Next at the bottom of the screen to submit this lab and move to the next question.

â€¢ When Next is clicked, the lab closes and cannot be reopened.

Full Access

Answer:

Explanation:

To configure an LACP EtherChannel and number it as 44, configure it between switches SW1 and SW2 using interfaces Ethernet0/0 and Ethernet0/1 on both sides, configure the EtherChannel as a trunk link, configure the trunk link with 802.1q tags, and configure VLAN â€˜MONITORINGâ€™ as the untagged VLAN of the EtherChannel, you need to follow these steps:

On both SW1 and SW2, enter the global configuration mode by using the configure terminal command.

On both SW1 and SW2, select the two interfaces that will form the EtherChannel by using the interface range ethernet 0/0 - 1 command. This will enter the interface range configuration mode.

On both SW1 and SW2, set the protocol to LACP by using the channel-protocol lacp command.

On both SW1 and SW2, assign the interfaces to an EtherChannel group number 44 by using the channel-group 44 mode active command. This will create a logical interface named Port-channel44 and set the LACP mode to active on both ends. The LACP mode must match on both ends for the EtherChannel to form.

On both SW1 and SW2, exit the interface range configuration mode by using the exit command.

On both SW1 and SW2, enter the Port-channel interface configuration mode by using the interface port-channel 44 command.

On both SW1 and SW2, configure the Port-channel interface as a trunk link by using the switchport mode trunk command.

On both SW1 and SW2, configure the Port-channel interface to use 802.1q tags for VLAN identification by using the switchport trunk encapsulation dot1q command.

On both SW1 and SW2, configure VLAN â€˜MONITORINGâ€™ as the untagged VLAN of the Port-channel interface by using the switchport trunk native vlan MONITORING command.

On both SW1 and SW2, exit the Port-channel interface configuration mode by using the exit command.

On both SW1 and SW2, save the configuration to NVRAM by using the copy running-config startup-config command.

Question # 191

IP connectivity and OSPF are preconfigured on all devices where necessary. Do not make any changes to the IP addressing or OSPF. The company policy uses connected interfaces and next hops when configuring static routes except for load balancing or redundancy without floating static. Connectivity must be established between subnet 172.20.20.128/25 on the Internet and the LAN at 192.168.0.0/24 connected to SW1:

1. Configure reachability to the switch SW1 LAN subnet in router R2.

2. Configure default reachability to the Internet subnet in router R1.

3. Configure a single static route in router R2 to reach to the Internet subnet considering both redundant links between routers R1 and R2. A default route is NOT allowed in router R2.

4. Configure a static route in router R1 toward the switch SW1 LAN subnet where the primary link must be through Ethernet0/1. and the backup link must be through Ethernet0/2 using a floating route. Use the minimal administrative distance value when required.

Full Access

Question # 192

Connectivity between four routers has been established. IP connectivity must be configured in the order presented to complete the implementation. No dynamic routing protocols are included.

1. Configure static routing using host routes to establish connectivity from router R3 to the router R1 Loopback address using the source IP of 209.165.200.230.

2. Configure an IPv4 default route on router R2 destined for router R4.

3. Configure an IPv6 default router on router R2 destined for router R4.
