200-301 Exam Dumps - Implementing and Administering Cisco Solutions (200-301 CCNA) v1.1

Use A for this item. IPv6 compression removes leading zeros in each hextet and compresses one longest contiguous run of zero hextets with double colon. The address 2001:0db8:0000:0000:0700:0003:400F:572B becomes 2001:db8::700:3:400F:572B. In Cisco CCNA 200-301 v1.1, Network Fundamentals questions frequently test the practical boundary between similar features: what the feature does, where it is configured, and what problem it is meant to solve. The double colon cannot be used twice, and nonzero hextets such as 400F cannot be shortened to 4F. A clean way to validate the answer is to map the wording of the scenario to the actual device function. If the feature supplies addressing, forwarding, authentication, trunking, route selection, or controller communication, the answer must match that function exactly rather than a nearby protocol name.

Cisco DNA Center is more extensible than traditional device-by-device campus management because it exposes APIs and integration points. REST APIs allow external applications and automation systems to interact with Cisco DNA Center programmatically instead of relying only on manual GUI or CLI workflows. SDKs extend the platform model by helping integrate third-party network devices and applications where supported. This is fundamentally different from logging into each switch with SSH and pasting commands. Adapters that support every IOS family are not the central extensibility answer, and customized product versions by enterprise size are not what the question asks. Modular design may describe software architecture generally, but the explicit extensibility capabilities tested by Cisco are APIs, adapters, and SDKs. Cisco CCNA v1.1 Automation and Programmability includes controller-based networking, REST APIs, and Cisco DNA Center. The exam logic is direct: extensibility means outside systems can interact with and build on the controller platform. REST APIs and third-party SDK support provide that ability.

OpenFlow and NETCONF are southbound interfaces because they are used between a controller or automation system and network devices. Southbound APIs carry instructions toward the infrastructure: switches, routers, and other forwarding devices. OpenFlow is the classic SDN example because it lets a controller influence forwarding behavior in network devices. NETCONF is also a southbound management protocol; it uses structured XML-based remote procedure calls to retrieve or modify device configuration and operational data. Thrift and CORBA are general distributed-computing technologies, not the CCNA-standard southbound networking answers here, and DSC is not a normal Cisco SDN southbound API in this context. Cisco CCNA v1.1 automation objectives expect the candidate to separate northbound and southbound communication. Northbound APIs face applications and orchestration systems. Southbound APIs face the managed network devices. Because both OpenFlow and NETCONF operate on the controller-to-device side, A and B are the correct selections.

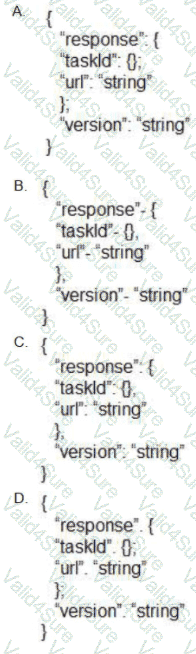

JSON represents data as structured name/value pairs, arrays, objects, strings, numbers, Booleans, and null values. In the exhibit, Option C is the output that follows JSON syntax: field names are enclosed in double quotes, values appear after colons, and objects or arrays are delimited with braces or brackets. XML would use opening and closing tags. YAML normally relies on indentation and key-value formatting without the same heavy brace structure. Plain text or CLI output does not follow a strict object model. Cisco CCNA v1.1 Automation and Programmability includes recognizing data formats used with APIs and automation tools. That is the practical reason JSON appears so often in controller-based networking and REST APIs: it is compact, structured, and easy for software to parse. The key exam check is visual. If you see quoted keys, colons, braces, brackets, and comma-separated values arranged as objects or arrays, you are looking at JSON.

When two routing protocols advertise a route to the same destination, the router first compares administrative distance. Administrative distance is Cisco IOS’s trust value for the source of routing information. A lower AD is preferred over a higher AD, so an EIGRP internal route with AD 90 is preferred over an OSPF route with AD 110, and both are preferred over a RIP route with AD 120. Metrics are compared only among routes learned from the same routing protocol, not across different protocols. Hop count is a specific metric used by RIP, and DUAL is the algorithm used by EIGRP, not the cross-protocol decision mechanism. This is a core CCNA 200-301 v1.1 IP Connectivity rule: longest prefix match chooses the most specific route first, and administrative distance decides between different routing information sources for the same prefix. Therefore the verified answer is C. Reference: Cisco IOS route selection and administrative distance behavior.

A notice-level syslog message is severity level 5. It reports normal but significant conditions, such as operational state changes that an engineer should know about even when the device is not in a critical failure state. An interface line changing status is a standard example of a significant network event: it can affect reachability, routing adjacencies, and user traffic, but it is not necessarily a severity 0 emergency or severity 1 alert. Cisco CCNA 200-301 v1.1 includes syslog under IP Services because engineers must understand logging destinations and severity levels. A TCP connection teardown or ICMP connection being built is not the typical Cisco device notice-level management event tested here. A certificate expiration may be security-related and can be logged at various severities depending on platform and feature. The simple exam mapping is that notice means noteworthy state change. An interface line status change fits that definition, so C is the best answer.

restricts unauthorized users from viewing clear-text passwords in the running configuration. Automation questions require separating controller roles, API direction, data formats, HTTP behavior, and configuration-management tooling. Cisco CCNA 200-301 v1.1 includes this topic under Security Fundamentals, so the answer must be validated against normal Cisco device behavior and the operational wording of the scenario. The key is not simply recognizing a familiar acronym; it is identifying what the feature does, where it is configured, and what result it produces. The incorrect options mix northbound and southbound communication, confuse data serialization with transport, or describe traditional device-by-device management. In a real network, selecting the wrong option would either leave the feature nonfunctional, create a forwarding or security gap, or send troubleshooting in the wrong direction. The selected answer is the only one that matches the stated requirement and the way Cisco switching, routing, services, security, wireless, or automation functions are expected to operate. This is why the verified answer remains the best technical choice for the question.

The highest up/up physical interface IP address is selected as the router ID.. OSPF behavior is controlled by interface state, area, timers, network type, cost, priority, router ID, and neighbor/adjacency rules. Cisco CCNA 200-301 v1.1 includes this under IP Connectivity, where the exam expects engineers to recognize the device behavior that actually produces the required outcome. The question is best solved by reading the operational clue rather than choosing a familiar acronym. The distractors confuse OSPF with unrelated metrics, local-only process values, or parameters that do not satisfy the adjacency or route-selection requirement. In a production network, the wrong choice would normally create an outage, leave a management or security gap, or send troubleshooting toward the wrong subsystem. The selected answer is the one that matches the control-plane, data-plane, wireless, security, services, or automation mechanism described in the question. That is why it remains the verified answer for this item.
