Comprehensive and Detailed Explanation From Exact Extract:

In pulsed-wave transducers, the thickness of the piezoelectric element primarily determines the fundamental operating frequency. Thinner elements produce higher frequencies, while thicker elements produce lower frequencies.

According to sonography instrumentation reference:

“The operating frequency of a pulsed-wave transducer is primarily determined by the thickness of the piezoelectric crystal. Thinner crystals vibrate at higher frequencies.”

Therefore, the correct answer is A: Element thickness.

—

—

Axial resolution refers to the ability of an ultrasound system to distinguish between two structures that are close to each other along the path of the ultrasound beam. It is primarily determined by the spatial pulse length, which is the product of the wavelength and the number of cycles in a pulse. Shorter wavelengths result in shorter spatial pulse lengths, thereby improving axial resolution. This is because shorter wavelengths (which correspond to higher frequencies) allow for better differentiation between closely spaced structures along the beam's axis.

American Registry for Diagnostic Medical Sonography (ARDMS). Sonography Principles and Instrumentation (SPI) Examination Review Guide.

During 3-D volume acquisition in ultrasound, the quality of the images is most dependent on the number of slices acquired. This is because the more slices (or planes) that are captured, the more detailed and accurate the reconstruction of the 3-D volume will be. This allows for better spatial resolution and more precise visualization of anatomical structures. Other factors, such as power output, rendering methods, and speed of post-processing, also affect image quality but are secondary to the number of slices in terms of fundamental image acquisition quality.

Attenuation in ultrasound is directly proportional to the path length. If the path length is doubled, the amount of attenuation is also doubled. Attenuation refers to the reduction in the amplitude and intensity of the ultrasound wave as it travels through tissue, primarily due to absorption, reflection, and scattering. The relationship is linear, so doubling the distance the sound wave travels will result in twice the amount of attenuation.

ARDMS Sonography Principles and Instrumentation guidelines

Kremkau, F. W. (2015). Diagnostic Ultrasound: Principles and Instruments. Elsevier.

Changing the displayed depth control directly affects the pulse repetition frequency (PRF). When the depth setting is increased, the ultrasound system needs more time to send and receive echoes from deeper structures, resulting in a lower PRF. Conversely, decreasing the depth allows for a higher PRF since the time required for the sound waves to travel to and from the structures is shorter. PRF is crucial for determining the maximum detectable velocity in Doppler ultrasound without aliasing.References:

ARDMS Sonography Principles and Instrumentation guidelines

"Understanding Ultrasound Physics" by Sidney K. Edelman

Comprehensive and Detailed Explanation From Exact Extract:

Mechanical Index (MI) estimates the likelihood of non-thermal bioeffects such as cavitation (formation of microbubbles).

Principles and Instrumentation state:

"Mechanical Index reflects the risk of cavitation. Higher MI values increase cavitation potential."

Attenuation coefficient (A) refers to energy loss.

Thermal index (C) reflects potential heating.

Frame rate (D) relates to temporal resolution.

Therefore, the correct answer is B: Mechanical index.

—

QUESTION NO42

Which target group is used to evaluate transverse distance measurement accuracy in this tissue-mimicking phantom image?

A ultrasound image of a baby Description automatically generated with medium confidence

A. A

B. B

C. C

D. D

Answer: C

Comprehensive and Detailed Explanation From Exact Extract:

In a tissue-mimicking phantom, the group of targets aligned side-by-side (horizontally) is used to evaluate transverse (lateral) distance measurement accuracy. In the image, target group C (in red) represents the lateral spacing targets.

Principles and Instrumentation state:

"Transverse distance accuracy is evaluated using laterally spaced targets in the phantom to verify correct lateral measurement calibration."

Group A (top) is typically for near field assessment.

Group B may be for axial resolution or cyst evaluation.

Group D (deep) may assess depth calibration or sensitivity.

Therefore, the correct answer is C: C.

—

Incorrect color Doppler gain settings can cause the artifact known as bleed or blossoming. When the color Doppler gain is set too high, it can cause the color signal to "bleed" outside the actual boundaries of the blood vessel, leading to an overestimation of the area of flow. This artifact makes it appear as though the blood flow extends beyond the true vessel walls, which can obscure the accurate interpretation of the Doppler image.

References

ARDMS Sonography Principles and Instrumentation (SPI) Exam Study Guide

"Diagnostic Ultrasound: Principles and Instruments" by Frederick W. Kremkau

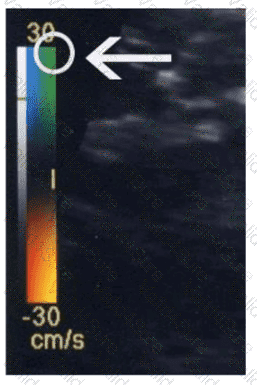

In a variance mode color map, the upper right side typically indicates higher velocity and turbulent flow with a positive Doppler shift. Variance mode maps are designed to display not only the mean velocity and direction of blood flow but also the presence of turbulence. The color green is often used in the upper right quadrant to represent areas of turbulence with positive Doppler shifts, which occur when the blood flow is moving towards the transducer at higher velocities and with increased chaotic motion.References:

ARDMS Sonography Principles and Instrumentation guidelines

"Diagnostic Ultrasound: Physics and Equipment" by Peter Hoskins, Kevin Martin, Abigail Thrush
