N10-009 Exam Dumps - CompTIA Network+ Certification Exam

To support at least 260 hosts, you need at least 512 total IP addresses (accounting for network/broadcast overhead).

/23 (255.255.254.0) gives 510 usable IPs, ideal for 260 devices with minimal waste.

/24 (255.255.255.0) gives only 254 usable — not enough.

/22 (1022 usable) and /21 (2046 usable) would work but result in significant address waste.

📘 Reference:

CompTIA Network+ N10-009 Official Objectives: 2.1 – Given a scenario, configure and apply IP addressing schemes.

In a mesh topology, every node is directly connected to every other node. This provides high redundancy and reliability, as there are multiple paths for data to travel between nodes. This topology is often used in networks where high availability is crucial.References: CompTIA Network+ study materials.

When traffic moves laterally between VMs within the same network or subnet, it is known as east-west traffic. This contrasts with north-south traffic, which refers to communication between internal and external networks.

Breakdown of Options:

A. East-west – Correct answer. This refers to traffic between internal servers or VMs, which is a common security concern.

B. Point-to-point – Point-to-point describes a direct connection between two devices, but does not specifically define lateral movement.

C. Horizontal-scaling – This refers to adding more instances or nodes in cloud computing, unrelated to traffic flow.

D. Hub-and-spoke – This network topology describes a centralized design, not lateral traffic.

IPSec (Internet Protocol Security) is the best choice for secure communication over the internet, as it provides encryption, authentication, and data integrity. It is widely used in VPNs and site-to-site secure tunnels.

Breakdown of Options:

A. DCI (Data Center Interconnect) – A general term for linking data centers, but it doesn’t specify a secure tunneling protocol.

B. GRE (Generic Routing Encapsulation) – Encapsulates traffic but lacks encryption, making it less secure than IPSec.

C. VXLAN (Virtual Extensible LAN) – Used for Layer 2 network overlays, not for securing communication over the internet.

D. IPSec – ✅ Correct answer. Provides encryption, authentication, and integrity for data over the internet.

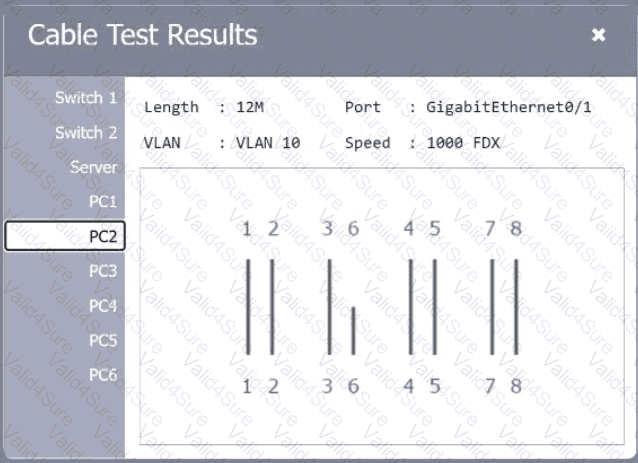

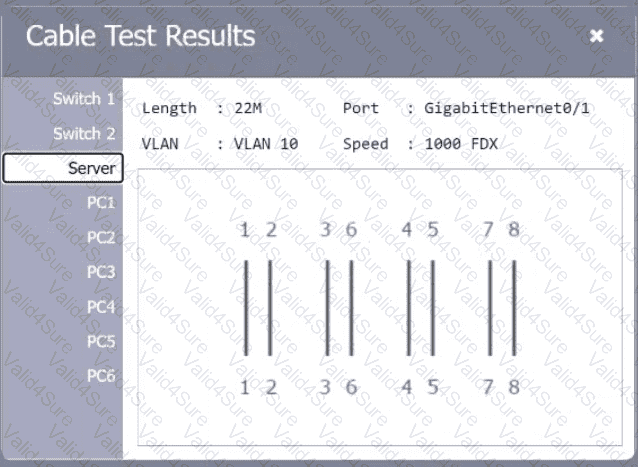

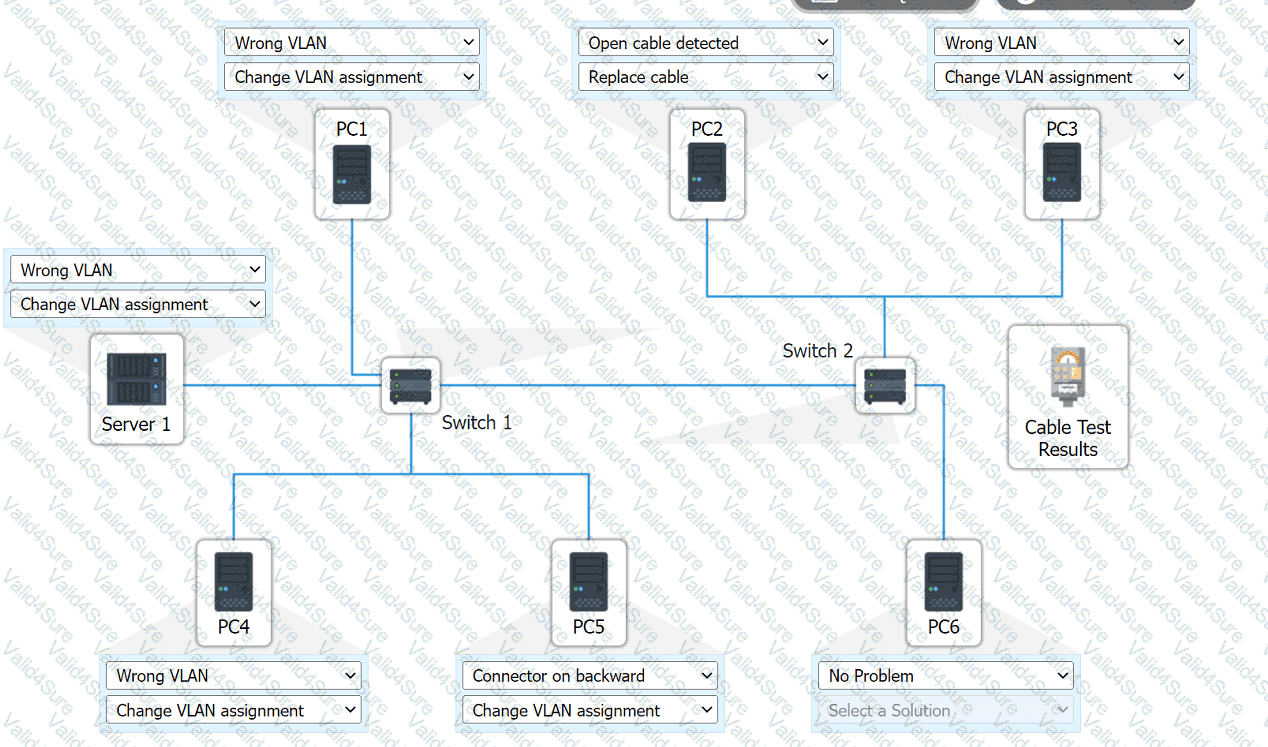

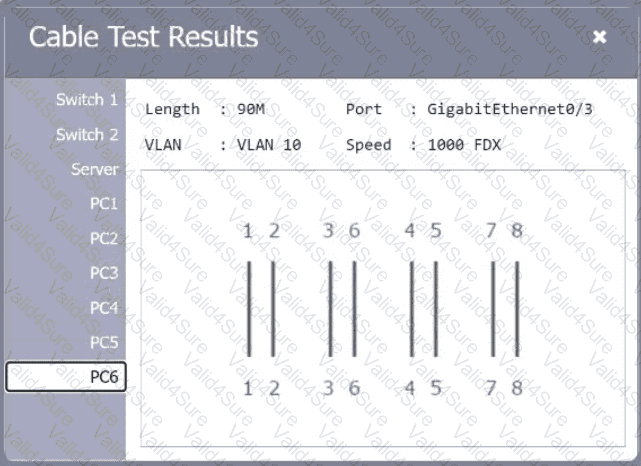

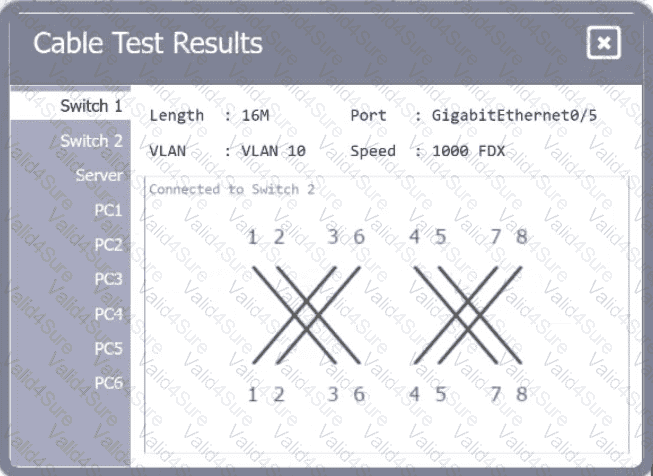

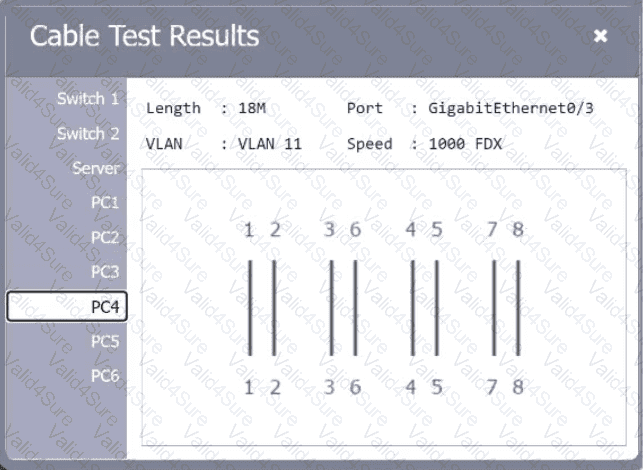

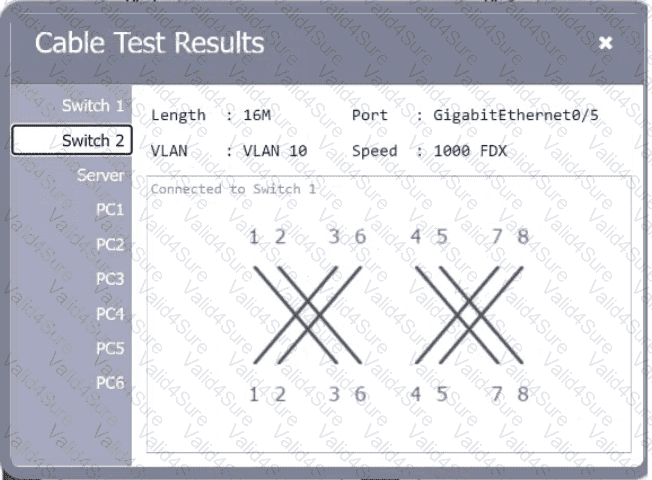

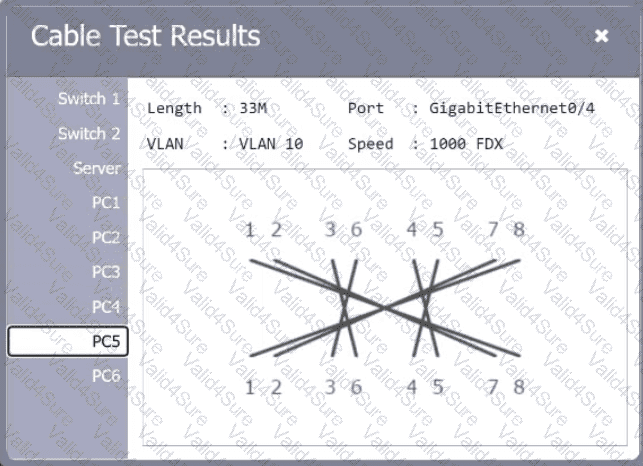

•Cable termination issues (e.g., improper crimping, loose connectors) can cause connectivity failures.

•Power budget (A) applies to PoE devices, not general cabling issues.

•Device requirements (B) relate to software/hardware compatibility, not wiring faults.

•Port status (C) would help if the issue was switch-related, but since moving devices didn’t help, it’s likely a cabling issue.

📖 Reference: CompTIA Network+ N10-009 Official Documentation – Cabling & Physical Layer Troubleshooting.

The correct answer is Network bandwidth and utilization because latency issues with a SaaS (Software as a Service) application are most commonly related to network performance constraints, not local server hardware or virtualization settings. According to CompTIA Network+ (N10-009) troubleshooting objectives, technicians should evaluate bandwidth capacity, throughput, congestion, packet loss, and overall utilization when diagnosing performance issues affecting cloud-based applications.

Since SaaS applications are hosted externally by a service provider, the organization typically does not control the underlying server hardware or virtual machine configurations (Options A and D). Therefore, adjusting internal server specifications would not resolve user-side latency.

Option B, data-at-rest encryption, applies to stored data security and does not impact real-time application responsiveness.

High network utilization, insufficient bandwidth, QoS misconfiguration, or WAN congestion can significantly increase latency. Technicians should review network monitoring tools, check interface statistics, analyze traffic patterns, and verify Quality of Service (QoS) policies to ensure SaaS traffic is prioritized appropriately.

Thus, optimizing bandwidth and reducing network congestion is the most appropriate corrective action.

LDAP over SSL (LDAPS) uses port 636 to provide secure, encrypted authentication for directory services.

Breakdown of Options:

A. SMTP (Simple Mail Transfer Protocol) – Uses port 25, not 636.

B. Syslog – Uses port 514 (UDP), not 636.

C. TFTP (Trivial File Transfer Protocol) – Uses port 69 (UDP), not 636.

D. LDAPS (Lightweight Directory Access Protocol Secure) – ✅ Correct answer. Uses port 636 for secure directory authentication.

The correct answer is STP (Shielded Twisted Pair). According to the CompTIA Network+ N10-009 objectives, environments with high levels of electromagnetic interference (EMI)—such as industrial warehouses with heavy machinery, motors, and electrical equipment—require additional protection at the physical layer to maintain signal integrity.

STP cabling includes shielding around the twisted copper pairs that helps block external electromagnetic signals from interfering with data transmission. This shielding significantly reduces crosstalk and EMI, making STP far more suitable than UTP (Unshielded Twisted Pair) in electrically noisy environments. UTP lacks this shielding and is more prone to signal degradation under such conditions.

While fiber-optic cabling (multimode or single-mode) is completely immune to EMI, it is typically not used to directly connect wireless APs in most enterprise deployments. Wireless access points commonly rely on copper Ethernet connections to support Power over Ethernet (PoE), which supplies both data and electrical power over the same cable. Fiber does not natively support PoE, making it impractical for directly powering APs without additional equipment.

The Network+ objectives emphasize selecting appropriate cabling based on environmental factors and operational requirements. In this scenario, STP provides the optimal balance of EMI resistance, Ethernet compatibility, and PoE support, making it the best choice for connecting APs in an industrial warehouse.
