On the first exhibit, the layout should be as follows

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

Exhibit 2 as follows

Access Point Name AP2

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

Exhibit 3 as follows

Access Point Name AP3

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

Using Pre-Shared Key (PSK) authentication means that all users share the same Wi-Fi password, making it difficult to identify individual users when security incidents occur.

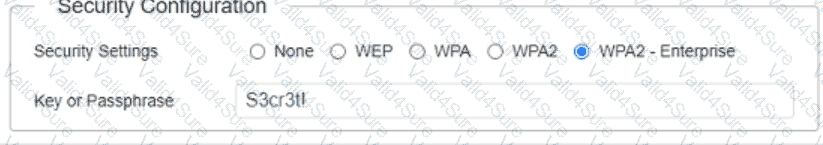

Migrating to WPA2-Enterprise (or WPA3-Enterprise) replaces PSK authentication with individual user credentials using 802.1X authentication and a RADIUS server. This allows the organization to:

Track and log specific user activity

Enforce per-user authentication policies

Improve network security

Breakdown of Options:

A. Restrict users to the 5GHz frequency – Improves performance but does not enhance user tracking or security.

B. Upgrade to a mesh network – A mesh network improves coverage, not security tracking.

C. Migrate from PSK to Enterprise – ✅ Correct answer. WPA2-Enterprise or WPA3-Enterprise uses individual user authentication, allowing per-user tracking.

D. Implement WPA2 encryption – WPA2 is already widely used; it does not resolve the tracking issue.

On Core-SW01, the ports are configured with LACP (mode active) for link aggregation. On Core-SW02, the ports are configured as independent trunks, not as part of an LACP group. Because of this mismatch, LACP cannot form the bundle, and the aggregated ports on SW01 will go into a suspended state.

A. CRC errors suggest cabling or signal integrity issues, not config mismatch.

B. Error disabled occurs when a violation (like BPDU guard or port security) disables the port, not LACP mismatch.

C. Administratively down indicates a shutdown command, not the case here.

References (CompTIA Network+ N10-009):

Domain: Network Troubleshooting — Port-channel/LACP configuration issues, interface states.

An evil twin attack sets up a rogue AP with the same SSID as a legitimate wireless network, tricking users into connecting. Once connected, the attacker can intercept traffic or harvest credentials.

B. Describes ARP spoofing.

C. Describes MAC spoofing.

D. Describes on-path attacks, which may follow, but the evil twin method begins with SSID impersonation.

References (CompTIA Network+ N10-009):

Domain: Network Security — Wireless threats, rogue APs, evil twin.

To prioritize traffic and utilize a constrained link more effectively, the engineer should implement QoS (Quality of Service) . QoS is a set of mechanisms that classifies and marks traffic (for example, voice, video, business-critical apps) and then applies queuing and scheduling behaviors to ensure important traffic receives preferential treatment during congestion. Network+ objectives commonly connect QoS to supporting real-time applications (VoIP/video) by reducing latency, jitter, and packet loss, while preventing less critical traffic (bulk transfers, updates) from consuming all available bandwidth. Techniques can include traffic classification , DSCP marking , priority queuing , and traffic shaping/policing .

A CDN improves content delivery by caching closer to users, but it doesn’t provide link-level prioritization for all traffic types. A VPN provides secure tunneling/encryption, not prioritization. TTL (Time To Live) is an IP header value used to prevent routing loops by limiting packet lifespan; it does not manage bandwidth or prioritize flows. QoS is the standard solution when the goal is to control how bandwidth is allocated under load and to ensure critical services remain performant.

===========

The correct answer is Power redundancy because the devices in the rack are equipped with dual power supplies, which are specifically designed to support redundant power sources. According to CompTIA Network+ (N10-009) objectives under high availability and physical infrastructure concepts, redundancy is a key strategy to eliminate single points of failure.

If only one PDU (Power Distribution Unit) is installed, both power supplies from each device may ultimately rely on the same power source. This creates a single point of failure—if the PDU fails or loses upstream power, all connected equipment will shut down despite having dual power supplies.

By installing a second PDU connected to a separate power circuit (and ideally a separate UPS or power feed), each power supply in the servers and switches can connect to different PDUs. If one PDU fails, the other continues delivering power, ensuring uninterrupted operation.

Option B (Failed PSU monitoring) is not the primary reason for adding another PDU. Option C (Surge protection) can be provided by a single PDU. Option D (Electricity conservation) is unrelated to redundancy design.

Therefore, adding a second PDU provides true power redundancy.

Inconsistent arrival of RTP (Real-Time Protocol) packets indicates jitter or latency variation. A protocol analyzer (packet sniffer, e.g., Wireshark) can capture and analyze RTP streams, showing delay, jitter, and packet loss statistics.

A. Toner and probe locates cable runs, not packet analysis.

C. Cable tester checks wiring faults, not packet timing.

D. Spectrum reader is for identifying wireless interference, not analyzing RTP traffic.

References (CompTIA Network+ N10-009):

Domain: Network Troubleshooting — Protocol analyzers, VoIP troubleshooting, jitter analysis.
