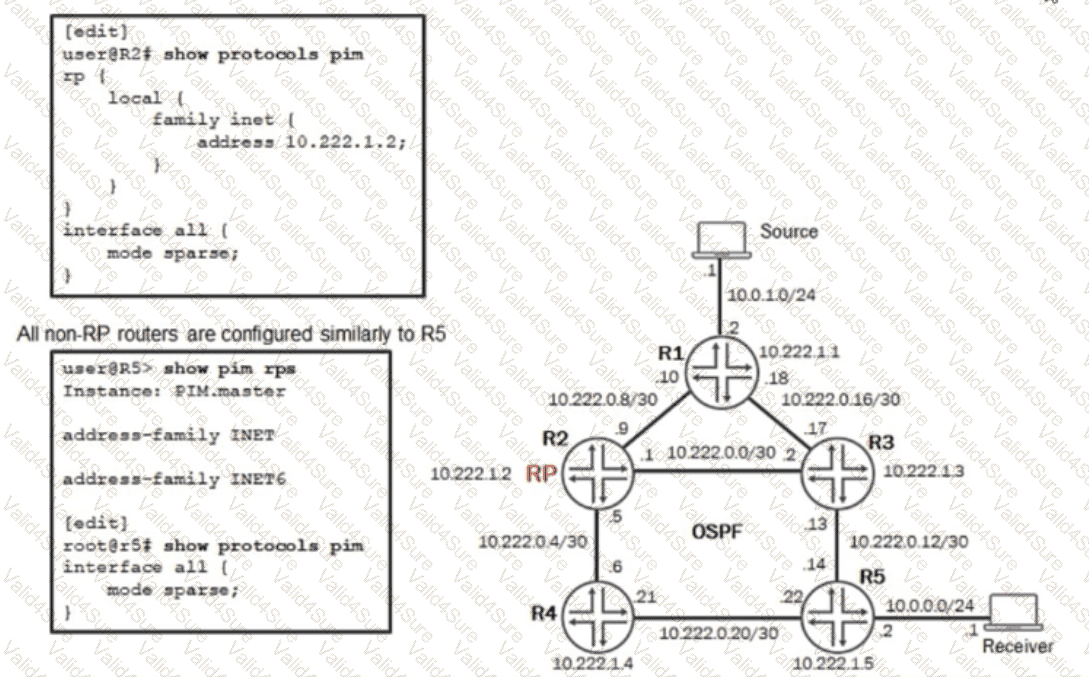

The exhibit shows a multicast network running PIM Sparse Mode where R2 is configured as a local Rendezvous Point (RP). However, the non-RP routers (like R5) show no learned RP in their show pim rps output. To resolve this using standard protocols for dynamic RP discovery, you must implement a mechanism that automates the distribution of RP information across the PIM domain.

Bootstrap Router (BSR) (Option B): BSR is the industry-standard (RFC 5059) mechanism for dynamically electing an RP and distributing that information throughout a PIM-SM domain.

It uses two roles: Candidate-RPs (C-RPs), which announce their desire to be an RP, and Candidate-BSRs (C-BSRs), which collect these announcements and flood them to all other routers in the network via PIM bootstrap messages.

BSR is a "standard protocol" as it is part of the PIMv2 specification. Once configured on R2 (as C-RP) and potentially R1 or R2 (as C-BSR), all other routers will dynamically learn that R2 is the RP for the specified group ranges.

Auto-RP (Option D): While this also provides dynamic RP discovery, it is a proprietary Cisco protocol. Although Junos supports it for interoperability, the question specifically asks for "standard protocols only," making BSR the preferred choice.

MSDP (Option A): Multicast Source Discovery Protocol (MSDP) is used to share information about active sources between different PIM domains or for Anycast-RP. It does not handle the initial discovery of an RP within a single domain for standard PIM-SM operations.

Anycast RP (Option C): This is a technique used for RP redundancy and load balancing. While it can use BSR or MSDP for synchronization, it is a design architecture rather than a standalone "standard protocol" for the basic dynamic discovery of an RP in the manner requested here.

Configuration Example for BSR in Junos OS 24.4: To enable this, you would add the following to the RP (R2):

set protocols pim rp bootstrap-discovery

set protocols pim rp candidate-rp 10.222.1.2 group-ranges 224.0.0.0/4

set protocols pim rp candidate-bsr 10.222.1.2

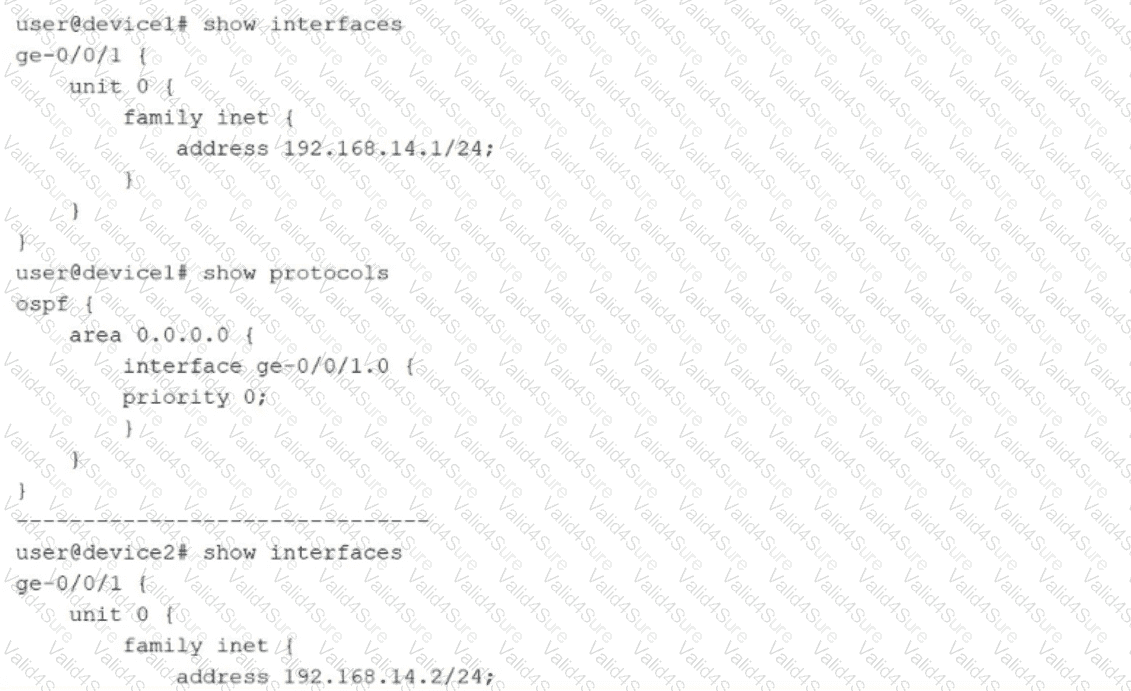

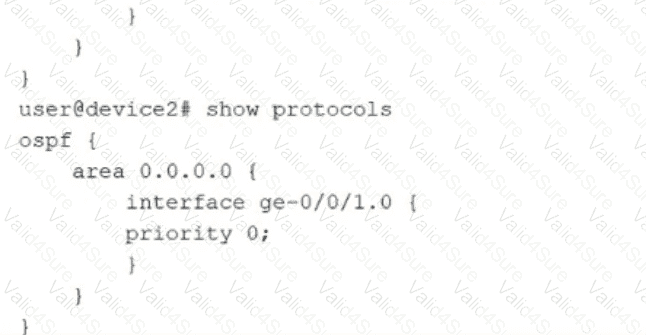

OSPFv2 (IPv4) and OSPFv3 (IPv6) share many fundamental concepts, such as the SPF algorithm and the use of areas, but they have distinct differences in how they handle prefix information and LSA headers in Junos OS.

Backbone Requirement (Option C): Both OSPFv2 and OSPFv3 utilize a hierarchical structure. In both versions, all areas must connect to a central Area 0 (the backbone) to allow for inter-area routing. If an area is not physically connected to Area 0, a virtual link must be established.

Flooding Scope (Option D): One of the significant architectural changes in OSPFv3 is the inclusion of the flooding scope directly into the LSA header. In OSPFv3, the LS Type field is expanded to 16 bits, where the top three bits define the flooding scope (e.g., Link-local, Area, or AS scope). This allows routers to understand how far an LSA should be propagated without needing to understand the specific LSA type itself.

LSA Prefix Information (Option A): This statement is misleading. In OSPFv2, Router and Network LSAs (Type 1 and 2) carry both topology and prefix information. However, a key design goal of OSPFv3 was to separate topology from prefix information. In OSPFv3, Type 1 and 2 LSAs only describe the topology, while prefixes are carried in new LSA types: Intra-Area-Prefix-LSAs (Type 9) and Link-LSAs (Type 8).

Processing (Option B): OSPFv2 is processed "per-subnet" because it forms adjacencies based on IPv4 subnets. OSPFv3 is processed "per-link", meaning it forms adjacencies between interfaces on the same physical link regardless of whether they share a common IPv6 prefix.

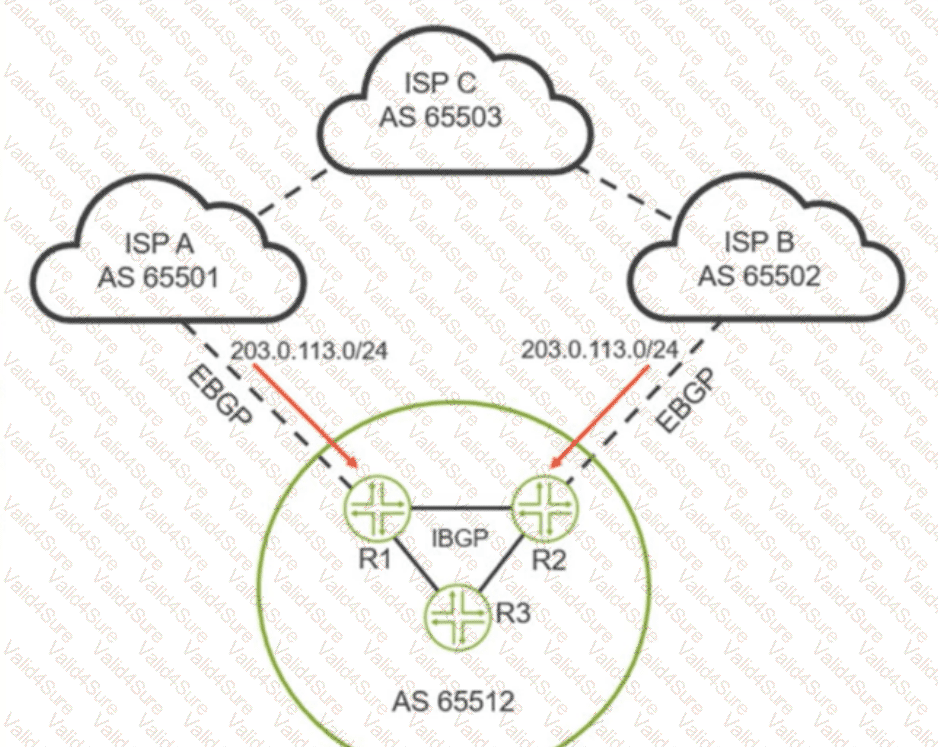

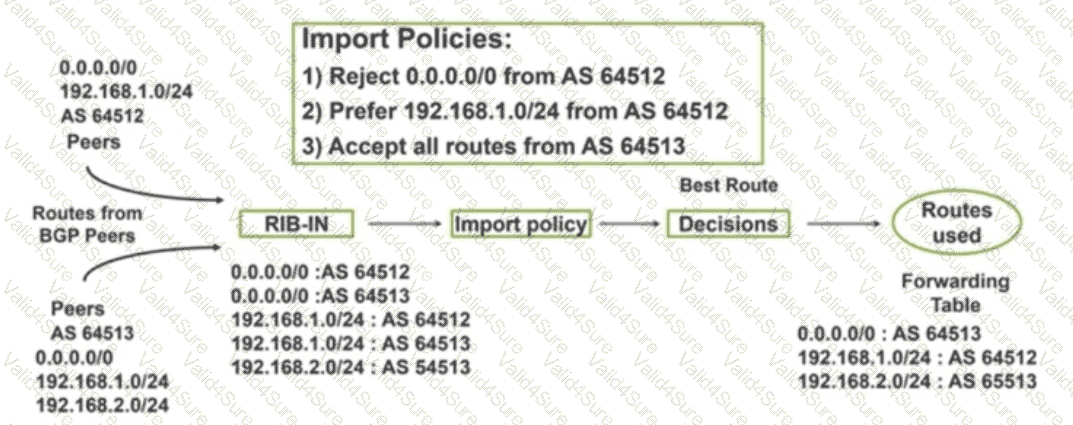

The exhibit illustrates an Autonomous System (AS 65512) receiving the same prefix ($203.0.113.0/24$) from two different neighbors, ISP A and ISP B. To influence outbound traffic from AS 65512 so that ISP A is preferred, you must manipulate the BGP Local Preference attribute.BGP Path Selection and Local Preference: Local preference is the first attribute evaluated by BGP after checking if the next hop is reachable. A higher local preference value is always preferred over a lower one. The default value in Junos OS is 100.Applying the Preference (Option B): By applying an import policy on router R1 to set a local preference higher than 100 (e.g., 200) for routes from ISP A, R1, R2, and R3 will all prefer the path through R1 to reach ISP A.Applying the Preference (Option C): Alternatively, you can achieve the same result by applying an import policy on R2 to set a local preference lower than 100 (e.g., 50) for routes from ISP B. Since the routes from R1 remain at the default of 100, the path through ISP A (100) will be preferred over ISP B (50).Why A and D are incorrect: Setting a lower preference for ISP A (Option A) or a higher preference for ISP B (Option D) would result in ISP B being preferred for outbound traffic, which is the opposite of the requirement.

In an EVPN-VXLAN architecture, the interaction between the control plane (EVPN) and the data plane (VXLAN) is defined by specific functional components:

VTEP (VXLAN Tunnel End Point): These are the entities responsible for the encapsulation and de-encapsulation of Layer 2 Ethernet frames into Layer 3 UDP/IP packets. A VTEP can be a physical switch (like a QFX or EX series) or a software-based entity. When traffic enters the fabric, the ingress VTEP wraps it in a VXLAN header; the egress VTEP removes this header before delivering it to the destination host. (Option B)

VNI (Virtual Network Identifier): The VNI is a 24-bit field in the VXLAN header that allows for up to 16 million unique identifiers. It is used to identify specific broadcast domains (or VLANs) within the overlay network. Each VNI effectively represents a virtualized Layer 2 segment that is stretched across the Layer 3 underlay. (Option D)

Incorrect statements: Option A is incorrect because VNIs are identifiers, not the "engine" that performs encapsulation—that is the VTEP's job. Option C is incorrect because VTEPs identify the endpoints of a tunnel, not the individual broadcast domains themselves.

In PIM Sparse Mode (PIM-SM), the Rendezvous Point (RP) is the cornerstone of the multicast distribution model.

The Meeting Point (Option A): The RP serves as a central clearinghouse where multicast sources and receivers meet.

When a source starts transmitting, the first-hop router encapsulates the data and sends it to the RP via a PIM Register message.

When a receiver wants to join a group, its last-hop router sends a (*,G) PIM Join request toward the RP.

The RP then manages the distribution from the source to the receivers until a Shortest Path Tree (SPT) can be established directly between them.

Incorrect Statements: Option B is incorrect because PIM Dense Mode does not use an RP; it uses a "flood and prune" mechanism. Option C is incorrect because the RP only forwards traffic to interfaces that have explicitly requested it via Join messages, which is what makes it "sparse". Option D is incorrect because SSM (Source-Specific Multicast) specifically avoids using an RP by having receivers join a known source directly.
