When integrating a QFX Series switch into an EVPN-VXLAN IP fabric, specific BGP and EVPN hierarchy configurations are required to establish the control and data planes:

EVPN Encapsulation (Option A): In Junos OS, the encapsulation vxlan statement must be explicitly configured under the protocols evpn hierarchy. This defines that the EVPN control plane will use VXLAN as the data plane encapsulation method rather than MPLS.

BGP Address Family (Option C): EVPN uses Multiprotocol BGP (MP-BGP) to distribute reachability information. For the control plane to function, you must enable the EVPN signaling address family under the BGP protocol using the command set protocols bgp group < name > family evpn signaling.

Incorrect Options: Option B is incorrect because family vpls is used for traditional VPLS signaled by BGP, not for EVPN-VXLAN. Option D is incorrect because while the loopback interface must be reachable, it is typically advertised via an IGP (like OSPF or IS-IS) to provide the underlay connectivity that BGP then rides upon; BGP itself does not " advertise " the loopback to establish the initial peerings.

In an EVPN-VXLAN architecture, the network is divided into two distinct planes: the Underlay and the Overlay.

Underlay (IP Fabric): The underlay ' s only job is to provide IP reachability between the loopback addresses of all VTEPs (Virtual Tunnel Endpoints). This is typically achieved using OSPF, IS-IS, or EBGP.

Overlay (EVPN Control Plane): The overlay is responsible for carrying Layer 2 MAC and Layer 3 IP reachability information between switches. EVPN signaling is the standard mechanism for this task.

Protocol Choice (Option D): EVPN uses MP-BGP (Multiprotocol BGP) as its control plane protocol. On Juniper EX Series and QFX Series switches, the most scalable and recommended design for the overlay is EBGP (External BGP).

In a 3-stage or 5-stage Clos architecture, EBGP is used in the overlay to exchange EVPN routes (Route Types 1-5) between Leaf and Spine switches.

EBGP simplifies configuration by avoiding the need for Route Reflectors (required for IBGP) and provides better control over route propagation through BGP community and policy management.

Incorrect Options:

Options A and B refer to the underlay protocols. While they provide the path for the VXLAN tunnels, they do not handle the EVPN signaling itself.

Option C (MPLS) is a different transport technology. While EVPN can run over MPLS (EVPN-MPLS), campus designs on EX series devices specifically use VXLAN as the data plane, making EBGP the standard signaling protocol for the EVPN-VXLAN overlay.

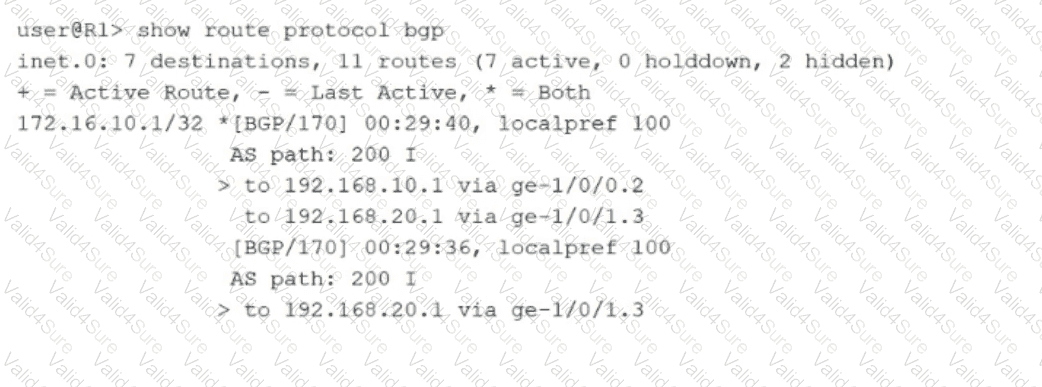

The exhibit shows the output of the command show route protocol bgp on router R1 for the prefix 172.16.10.1/32. To determine the correct characteristics of this route, we analyze the specific BGP attributes and next-hop information provided in the routing table entry:

Multipath Parameter (Option B): The routing table shows two distinct paths for the prefix 172.16.10.1/32. The first path has two next hops (192.168.10.1 and 192.168.20.1) and is marked with the plus symbol (+) and the asterisk (*), indicating it is both an active and the best route. The presence of multiple next hops being used simultaneously for a single BGP path is a clear indication that the multipath parameter is enabled in the BGP configuration. In Junos OS, BGP multipath allows the installation of multiple equal-cost BGP paths into the forwarding table to facilitate load balancing.

Available Next Hops (Option C): The output explicitly lists two functional next hops for the active path: 192.168.10.1 via ge-1/0/0.2 and 192.168.20.1 via ge-1/0/1.3. Both show an outgoing interface, confirming that this route has two next hops available for traffic forwarding.

IBGP vs. EBGP (Option A): The BGP routes shown have an AS path of 200 I. This indicates the routes were learned from an external Autonomous System (AS 200). Furthermore, the protocol preference is 170. In Junos OS, the default preference for External BGP (EBGP) is 170, whereas the default preference for Internal BGP (IBGP) is 200. Therefore, this configuration is for EBGP, not IBGP.

Hidden Next Hops (Option D): The summary line at the top of the exhibit mentions that there are " 2 hidden " routes in the inet.0 table. However, these hidden routes are not the next hops for the 172.16.10.1/32 prefix. A hidden route is a prefix that was rejected by policy or has an unreachable next hop; it is not a " hidden next hop " belonging to an active route.

To simplify VLAN management and automate the creation and pruning of VLANs across a network, Juniper utilizes the Multiple VLAN Registration Protocol (MVRP).

MVRP on Trunk Interfaces (Option C): MVRP is the IEEE 802.1ak standard that replaces the older, proprietary GVRP. It is designed to run on trunk interfaces between switches.

Dynamic Creation: When a VLAN is added to one switch, MVRP advertises its existence to neighboring switches. If those switches need to reach that VLAN, they can dynamically create it in their database.

Pruning: If a switch no longer has any active ports or downstream neighbors interested in a specific VLAN, it stops advertising that VLAN on its trunks. This " prunes " the VLAN traffic from those links, saving bandwidth.

Incorrect Options: Option A and B are incorrect because GVRP is legacy and no longer the recommended protocol for modern Junos deployments. Option D is incorrect because MVRP is meant for inter-switch trunk links to manage the fabric, not for edge access ports where VLAN membership is usually static.

In a standard campus deployment on Juniper EX Series switches involving VoIP phones and 802.1X authentication, understanding the default behavior of Junos OS 24.4 is critical:

Voice VLAN (Option A): By default, an access port belongs to a single VLAN (the native or data VLAN). For an IP phone to operate correctly on the same physical port as a PC, a Voice VLAN must be explicitly configured and associated with the interface. This allows the switch to segregate voice traffic (usually tagged) from data traffic (untagged).

802.1X Configuration (Option D): Access ports do not have 802.1X authentication enabled by default. To enforce network access control for the client PCs, you must manually enable and configure the dot1x protocol on all relevant interfaces.

PoE Default (Option B): On EX Series switches that support PoE (like P or MP models), PoE is enabled by default on all PoE-capable ports. Therefore, additional configuration is generally not required unless you need to change power priorities or management modes.

LLDP Default (Option C): Standard LLDP is typically enabled by default in the factory configuration of most EX Series switches to facilitate neighbor discovery. While LLDP-MED is used for VoIP, the core requirement for " deploying " the described environment highlights the manual steps of VLAN and security setup rather than protocol discovery which often runs out-of-the-box.
