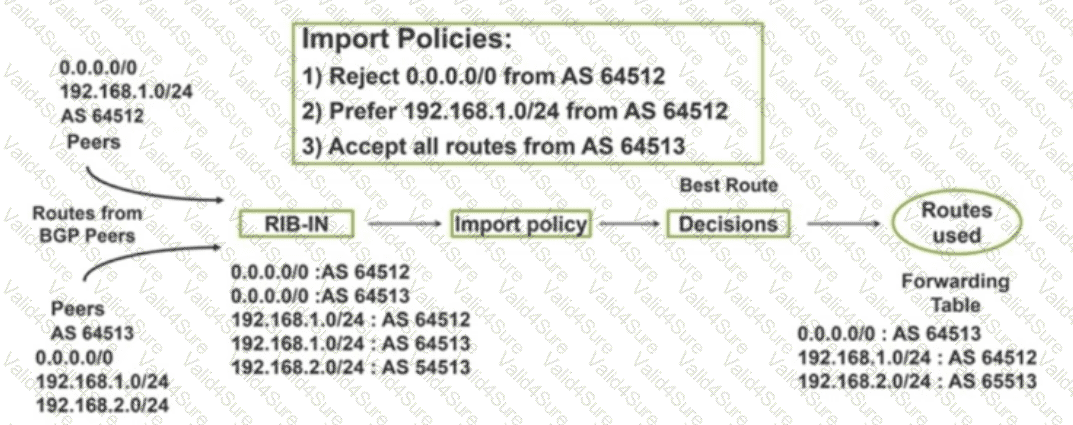

The exhibit shows a BGP routing process where an Import Policy is being applied to routes received in the RIB-IN. Specifically, Policy 1 states: "Reject 0.0.0.0/0 from AS 64512."

In Junos OS, when a routing policy rejects a route, that route is not placed in the main routing table (inet.0) for active use. Instead, it becomes a hidden route. To verify that a specific peer is actually sending a route that is subsequently being rejected by your policy, you must use specific diagnostic commands:

Understanding "Hidden" Routes: When a BGP route is received but fails to meet policy requirements (or has an unreachable next-hop), Junos keeps it in the BGP RIB-IN but marks it as "hidden." It will not appear in a standard show route command.

Command Logic (Option D): The command show route receive-protocol bgp hidden allows an administrator to view all routes received from a specific neighbor, including those that were rejected by import policies.

show route receive-protocol bgp : Shows only the routes that passed the import policy and were accepted into the table. Since the 0.0.0.0/0 route from AS 64512 is explicitly rejected in the exhibit, it would not show up here.

Adding the hidden keyword is the essential step to see the rejected default route and verify that AS 64512 is indeed sending it before the policy drops it.

Other Options:

Option A is incorrect because it only shows accepted routes.

Option B and C are used to filter the existing active routing table based on gateway or next-hop attributes, but they cannot show routes that have been rejected and excluded from that table.

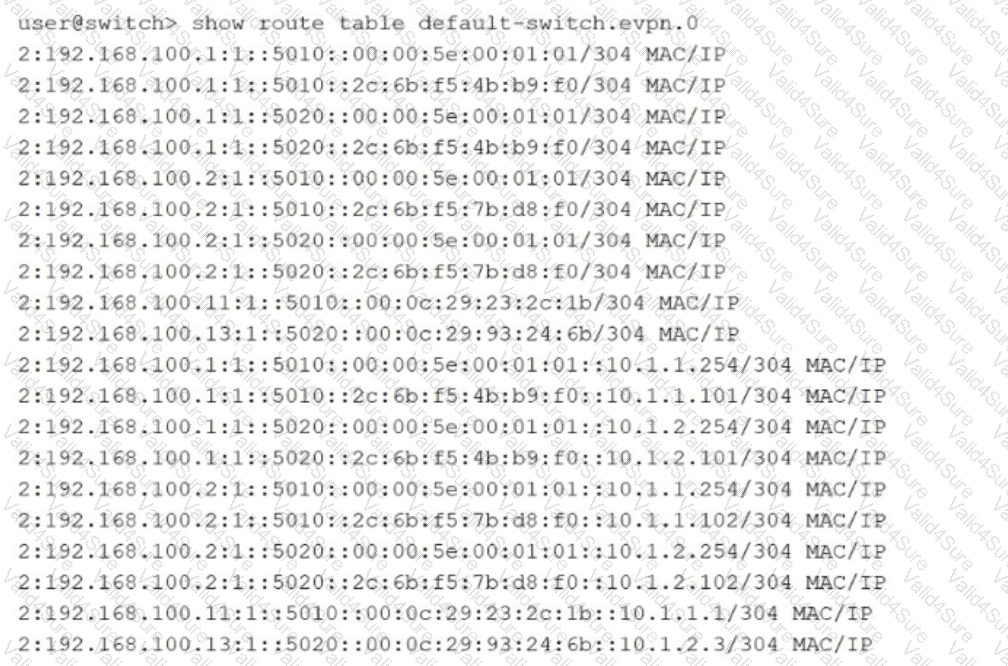

The exhibit displays the default-switch.evpn.0 routing table, which is used on Juniper leaf devices to store EVPN Type 2 (MAC/IP) routes.

Route Distinguisher (Option C): In EVPN, the Route Distinguisher (RD) is an 8-byte prefix added to a route to make it unique within the BGP control plane. The RD format in the exhibit is :.

For example, the prefix 2:192.168.100.1:1::5010::... indicates an EVPN Type 2 route (2:) where 192.168.100.1:1 is the Route Distinguisher.

This RD identifies the specific routing instance on the originating VTEP that advertised the MAC/IP address.

Option A is incorrect: The RD 192.168.100.2:1 does not necessarily mean the host device has that IP; it means the originating switch has that router ID/IP used for its RD.

Option B is incorrect: While the RD often incorporates the router ID, the RD itself is the full string (e.g., 192.168.100.1:1), which is distinct from the raw Router ID used in the BGP summary.

Option D is incorrect: Looking at the entries for 10.1.1.1 and 10.1.2.3, they are associated with different identifiers in the RD strings (5010 and 5020 respectively), which typically map to different VNIs or bridge domains.

In Junos OS, a physical or logical interface is typically associated with a single OSPF area. However, there are specific design requirements—such as migrating an interface from one area to another without downtime or creating specific transit topologies—where an interface needs to exist in two areas simultaneously.

Multi-area Adjacency (Option B): The secondary command under the OSPF interface hierarchy allows an interface to be part of a secondary area in addition to its primary area.

Protocol Behavior: When an interface is configured as secondary, the router sends and receives OSPF Hello packets for both the primary and secondary areas on that single link. This allows the router to form adjacencies with neighbors in both areas over the same physical connection.

Use Case: This is frequently used in hub-and-spoke topologies or during network restructuring to ensure reachability is maintained while changing area boundaries. It effectively allows a "logical" split of the interface at the OSPF protocol level.
