In Junos OS, the Routing Engine (RE) performs a validation check on every entry in the Routing Information Base (RIB). For a static route to be considered valid and transition to an active state in the inet.0 table, its designated next hop must be resolvable . A next-hop address is resolvable only if the router has an existing route (typically a directly connected route) to that specific IP address.

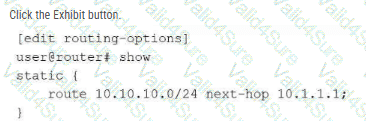

According to the exhibit, the static route for 10.10.10.0/24 has been configured with a next hop of 10.1.1.1 . However, the scenario states that the actual gateway router is located at 10.10.1.1 . If the local interface (ge-0/0/1) is configured with an IP in the 10.10.1.0/x subnet, the router will have a direct route to 10.10.1.1, but it will likely have no path to the 10.1.1.1 address provided in the exhibit.

Because the router cannot resolve the next hop 10.1.1.1 , the static route is placed in an " inactive " or " hidden " state. It will not be installed in the forwarding table pushed to the Packet Forwarding Engine (PFE), and standard show route commands will not display it unless specific flags like hidden or all are used. This logic ensures that the router does not attempt to forward packets into a " black hole " where the gateway is logically unreachable. To fix this, the administrator must modify the configuration to point to the correct, reachable next-hop address of 10.10.1.1.

The relationship between the routing table (Routing Information Base or RIB) and the forwarding table (Forwarding Information Base or FIB) is the cornerstone of the Junos OS architectural separation between the control and data planes. The routing table resides in the control plane on the Routing Engine (RE). Its primary role is to aggregate all reachability information from every configured protocol and select the best route for each destination prefix based on criteria like preference and metrics.

Once the Routing Engine has identified the single " active " best path for a destination, it distills this complex routing data into a simplified, streamlined version called the forwarding table . The forwarding table contains only the essential information needed to move a packet: the destination prefix, the egress interface, and the Layer 2 next-hop MAC address. The RE then " pushes " this forwarding table to the Packet Forwarding Engine (PFE) in the data plane. By having the PFE use a table built from the routing table , Junos ensures that transit traffic can be processed at wire speed without the overhead of complex routing logic. This one-way flow—from the comprehensive RIB on the RE to the optimized FIB on the PFE—allows the device to maintain high performance even while routing protocols are recalculating or the management plane is under heavy load.

The load command in Junos OS provides several operational methods for importing configuration data into the candidate buffer. When an administrator needs to perform a " clean slate " update—where the objective is to completely replace the existing candidate configuration with a new hierarchical file—the override option is the correct tool. Unlike load merge, which blends new data with the existing configuration, or load replace, which only updates specifically tagged sections, load override discards every statement currently in the candidate configuration and substitutes it entirely with the new content.

Using the terminal keyword in conjunction with override allows the architect to paste a large hierarchical configuration directly into the Command Line Interface (CLI). This is the most efficient method for applying validated templates, restoring full system backups, or migrating configurations between devices without having to manually delete existing parameters. After the data is pasted and the process is finalized (typically with a Ctrl+D sequence), the Junos OS kernel validates the new candidate configuration against the device ' s hardware and software capabilities. To make these changes active and operational, a subsequent commit command must be executed. This comprehensive replacement mechanism ensures configuration integrity by eliminating any potential remnants of previous, unwanted settings that might conflict with the new deployment.

The Junos Command Line Interface (CLI) is strictly partitioned into operational and configuration modes to maintain a clear boundary between monitoring and administrative changes. Operational mode, identified by the > prompt, is designed for executing commands that monitor device status, troubleshoot network connectivity, and manage the physical system state. One typical administrative task performed here is clearing log files (using the clear log command) to free up storage space or reset diagnostic data during troubleshooting.

Additionally, high-level system requests that do not alter the persistent configuration database, such as rebooting the hardware, are executed in operational mode. The request system reboot command allows the administrator to gracefully restart the device after a software update or as part of a maintenance cycle. In contrast, actions such as configuring routing protocols or committing changes require transitioning to configuration mode (the # prompt). Committing a configuration is the specific act of moving changes from the candidate database to the active database, which is a logic-altering event strictly reserved for configuration mode. Therefore, operational mode remains the dedicated environment for real-time observation and system-level requests that ensure the device operates correctly within its existing parameters. Reference: User Interfaces, CLI Modes, Operational Mode Commands.

==========

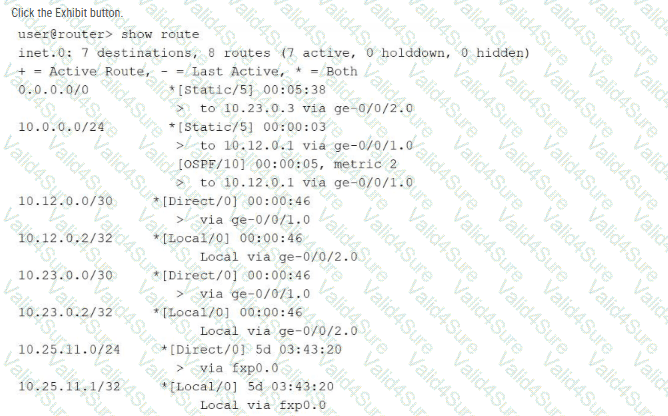

Analyzing the provided exhibit of the inet.0 routing table reveals that the destination network 10.0.0.0/24 currently has two viable paths: a static route with a preference of 5 and an OSPF route with a preference of 10. Both routes are configured to use 10.12.0.1 via the ge-0/0/1.0 interface as their primary next hop. The static route is currently marked with an asterisk (*), indicating it is the active path chosen by the Routing Engine due to its lower preference value.

In the event that the ge-0/0/1 interface transitions to a " down " state, the physical layer failure triggers the immediate invalidation of all routes associated with that link. Consequently, both the specific static and OSPF routes for the 10.0.0.0/24 prefix are purged from the active forwarding table. The Routing Engine must then perform a re-evaluation of the routing table to identify the next best match for any traffic destined for that range. Since there are no other more specific or equally specific routes available for the 10.0.0.0/24 network, the router falls back to the default route (0.0.0.0/0) . As shown in the exhibit, the default route points to the next-hop address 10.23.0.3 via interface ge-0/0/2.0 . Therefore, if the primary interface fails, traffic will be redirected through this secondary gateway.
