JN0-106 Exam Dumps - Junos - Associate (JNCIA-Junos) Junos OS 21.2

When a Junos device is initialized with its factory default configuration, it essentially exists in a " blank slate " state with minimal operational parameters. The most critical security requirement imposed by Junos OS during this initial setup phase is the mandatory configuration of a root-level password. Specifically, the root-authentication object must be defined within the [edit system] hierarchy before the system will allow the candidate configuration to be successfully committed for the first time.

This is a built-in safety mechanism designed to prevent the device from being deployed in an insecure state with an empty administrative password. If an administrator attempts to execute a commit command without having set the root password, the Junos OS parser will return an error and fail the commit process. While setting a host name or configuring management interfaces are best practices for operational readiness, they are not strictly required by the Junos commit-check logic. Only the root-authentication (typically a plain-text password or an encrypted string) is a hard prerequisite to transition the device from the factory-default state to an active, running configuration. Reference: Configuration Basics, Initial Configuration, Security Requirements.

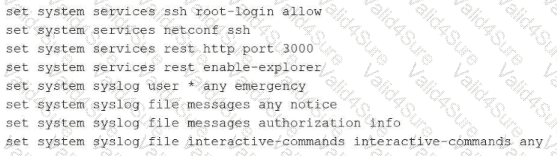

The exhibit illustrates a Junos configuration rendered as a sequence of flat, executable lines that each begin with the set keyword. This is commonly referred to as the " set format. " By default, Junos OS displays the configuration in a hierarchical, brace-delimited format (often called " staza " or " curly brace " format). While the default format is excellent for visualizing the structural relationship between different configuration objects, the set format is often preferred for documentation, scripting, or copying specific configuration snippets between different devices.

To produce the output seen in the exhibit, an administrator must append the pipe filter | display set to the show configuration command. This filter instructs the CLI parser to flatten the hierarchical structure and prepend the necessary context to every individual leaf statement. These lines are highly functional because they can be pasted directly into the CLI of another device while in configuration mode to recreate the exact settings. In contrast, display inheritance is used to reveal hidden settings applied via configuration groups, and display detail provides additional technical metadata about the objects. Neither of those options would transform the output into the discrete set command lines shown in the exhibit. Understanding how to toggle between these display formats is a fundamental skill for any architect managing Junos infrastructures through the Command Line Interface.

The architecture of Junos OS is designed with a strict functional separation between the control plane and the data plane. The Routing Engine (RE) maintains the master Routing Information Base (RIB), which acts as a comprehensive database storing all potential paths learned from various routing protocols, static configurations, and direct connections. However, to achieve wire-speed performance, the device does not consult the RIB for every packet. Instead, the RE identifies the " active " or best routes for each destination based on route preference and metrics.

Once these active routes are selected, the RE distills them into a streamlined Forwarding Information Base (FIB), commonly referred to as the forwarding table, and pushes this table to the Packet Forwarding Engine (PFE). The main function of the forwarding table is to provide a high-speed, local lookup mechanism that allows the PFE to forward transit traffic across the switch fabric with minimal latency. This table contains only the specific exit interface and Layer 2 next-hop information required for packet delivery. By isolating the PFE from the overhead of complex routing protocol state machines and all inactive redundant paths, Junos OS ensures that forwarding performance remains consistent even during control plane re-convergence. Reference: Junos OS Fundamentals, Control Plane and Forwarding Plane functions.

==========

The exhibit illustrates the use of the apply-path feature within a prefix list configuration. In Junos OS, apply-path is a dynamic configuration utility that allows a prefix list to be automatically populated with values derived from other parts of the configuration—in this case, all IPv4 addresses assigned to interfaces with the xe-* prefix. This is particularly useful for building automated firewall filters or routing policies that stay updated as interfaces are added or modified.

When viewing the standard configuration using show configuration, the CLI only displays the literal apply-path statement. To verify the actual list of IP addresses that the system has inherited and populated into the DIRECT-IP list, the administrator must use the | display inheritance pipe filter. This command instructs the Junos OS parser to expand all inherited values and dynamic paths, showing the effective configuration as it is seen by the Packet Forwarding Engine. Based on the exhibit, this would reveal the subnets associated with xe-0/1/0, xe-0/1/1, and xe-0/1/2, while ignoring ge-0/0/0 because it does not match the xe-* wildcard. This verification is a critical troubleshooting step before applying such a prefix list to a transit firewall filter like Export-Direct.

Comprehensive and Detailed 150 to 250 words of Explanation From: In a routed environment like the one shown in the exhibit, traffic forwarding involves a constant interaction between Layer 3 (Network) and Layer 2 (Data Link) addressing. When User A generates a packet destined for User B, the source and destination IP addresses remain static throughout the entire journey across the network (assuming no Network Address Translation is performed). However, the Layer 2 Ethernet headers must be rewritten at every hop because MAC addresses have only local significance on a physical segment.

As Router R1 receives the packet from User A, it performs a lookup in its Forwarding Information Base (FIB) and identifies that the path to User B requires forwarding the packet to Router R2. R1 decapsulates the incoming frame, stripping away the original Ethernet header that contained User A ' s source MAC and R1 ' s own destination MAC. To forward the packet to the next hop, R1 creates a new Ethernet header. The source MAC address becomes the MAC address of R1’s egress interface, and the destination MAC address is replaced with the MAC address of Router R2 . R1 cannot use User B ' s MAC address at this point because User B is not on a directly connected segment. This hop-by-hop MAC address replacement is essential for the Packet Forwarding Engine to successfully deliver the frame to the next Layer 3 device in the path. Reference: Networking Fundamentals, Packet Forwarding, Layer 2 and Layer 3 Addressing.

The exhibit illustrates the configuration of a firewall filter named mgmt_fill and its subsequent application to an interface. The first true statement is that the filter is applied to a physical interface . The configuration shows the filter attached to me0 , which in Junos nomenclature represents the Management Ethernet port—a dedicated physical port for out-of-band management traffic. This is separate from logical or virtual interfaces, as me0 provides the physical link for administrative access.

The second true statement is that the filter evaluates SSH packets egressing from the management interface . In the provided snippet, term t1 specifically matches the destination-port ssh , and the filter is applied to the interface unit. When a filter is applied to an interface, it can monitor traffic entering or leaving the device. Furthermore, the filter utilizes a count action (count c1), which is a non-terminating action used to provide telemetry on specific traffic types passing through that physical port. There is no mention of a syslog or log action in the configuration, meaning that while packets are counted, they are not being written to the system log files. This configuration is a standard method for hardening the management plane and tracking administrative session activity on the Routing Engine. Reference: Routing Policy and Firewall Filters, Firewall Filter Actions, Management Interfaces.

==========

When you initially unbox and power on a Juniper MX Series router, it loads a factory-default configuration . Unlike some consumer-grade or lower-end enterprise switches that might have all ports active in a default VLAN, high-performance routers like the MX Series prioritize security and intentionality. In the factory-default state, the transit interfaces are not configured .

While the physical hardware interfaces (such as ge-0/0/0 or xe-0/1/0) are detected by the Junos kernel, they lack any logical unit or protocol family definitions (like family inet or family inet6). Without a logical unit—even a simple unit 0—the Packet Forwarding Engine (PFE) will not accept or forward any traffic arriving on those ports. Furthermore, as discussed in previous questions, the device is essentially in a " locked " state; you cannot even commit new changes to enable these interfaces until you have defined a root-authentication password. This " blank slate " approach ensures that no traffic accidentally flows through a newly installed provider-edge device until an architect has explicitly defined the routing policies, firewall filters, and interface parameters required for the specific network environment. To begin passing traffic, you must manually define the logical units and assign the appropriate IP addresses or switching parameters to each interface.

When a Junos device is initialized for the first time or after a factory reset, it operates with a " factory-default " configuration. This configuration contains the minimum settings necessary for the device to boot, but it lacks essential security parameters. The Junos OS kernel enforces a strict security mechanism that prevents any administrator from successfully executing a commit command until a root-level password has been defined.

Specifically, the root-authentication object must be configured under the [edit system] hierarchy. This requirement ensures that no Junos device is deployed into a production environment with an open, unauthenticated root account. If an administrator attempts to commit changes without this setting, the configuration parser will return a " missing mandatory statement " error and the commit process will fail. While other settings—such as a system hostname, management IP address (on the fxp0 or me0 interfaces), or logical interface configurations—are critical for operational readiness, they are not strictly enforced by the system validation logic for the initial activation. Only the root-authentication (which can be a plain-text password or an encrypted key) is a hard prerequisite for transitioning the device from a default state to an active, running configuration.
