In Junos OS, routing information is meticulously organized into separate databases known as routing tables, each identified by a specific name corresponding to an address family and its intended operational purpose. The master routing table for IPv4 unicast information is inet.0 . For the IPv6 address family, Junos OS utilizes inet6.0 as the default master routing table for all unicast reachability information. This table stores all IPv6 prefixes learned from directly connected interfaces, static configurations, and dynamic routing protocols such as OSPFv3, IS-IS, or BGP.

It is a core architectural principle in Junos to isolate these families to ensure management clarity and prevent address space collisions. While the system utilizes other specialized tables for specific functions—such as inet.3 for MPLS path information or inet.1 for multicast forwarding caches— inet6.0 remains the primary repository for IPv6-based forwarding decisions. When a Junos device receives an IPv6 packet, the Packet Forwarding Engine (PFE) performs a lookup against the entries derived from this table to determine the appropriate egress interface and next-hop address. Understanding this default table structure is essential for network architects when troubleshooting dual-stack environments or configuring protocol-specific import and export policies.

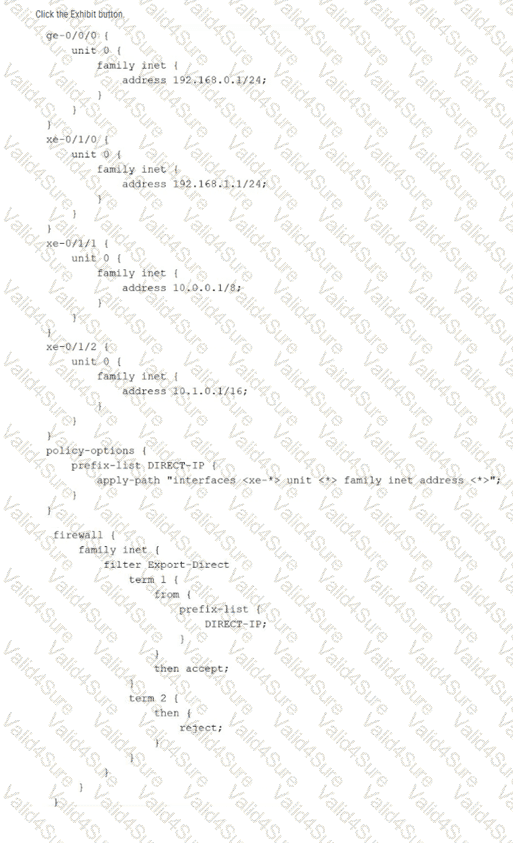

The exhibit illustrates the use of the apply-path feature within a prefix list configuration. In Junos OS, apply-path is a dynamic configuration utility that allows a prefix list to be automatically populated with values derived from other parts of the configuration—in this case, all IPv4 addresses assigned to interfaces with the xe-* prefix. This is particularly useful for building automated firewall filters or routing policies that stay updated as interfaces are added or modified.

When viewing the standard configuration using show configuration, the CLI only displays the literal apply-path statement. To verify the actual list of IP addresses that the system has inherited and populated into the DIRECT-IP list, the administrator must use the | display inheritance pipe filter. This command instructs the Junos OS parser to expand all inherited values and dynamic paths, showing the effective configuration as it is seen by the Packet Forwarding Engine. Based on the exhibit, this would reveal the subnets associated with xe-0/1/0, xe-0/1/1, and xe-0/1/2, while ignoring ge-0/0/0 because it does not match the xe-* wildcard. This verification is a critical troubleshooting step before applying such a prefix list to a transit firewall filter like Export-Direct.

The Packet Forwarding Engine (PFE) represents the data plane of a Junos device, responsible for the high-speed processing and movement of packets through the system. Its primary role is to forward transit traffic—data that enters one interface and exits another—at wire speed using specialized hardware such as Application-Specific Integrated Circuits (ASICs). To accomplish this, the PFE utilizes a local copy of the Forwarding Information Base (FIB) provided by the Routing Engine, ensuring that forwarding decisions are made locally without requiring the main CPU ' s intervention for every packet.

In addition to pure forwarding, the PFE is the functional component that implements and executes firewall filters and policing. Because firewall filters must be applied to transit traffic at line rate to prevent bottlenecks, the PFE evaluates incoming and outgoing packets against configured filter terms in hardware. This ensures that security policies and traffic shaping are applied with minimal latency. It is critical to note that the PFE does not maintain the master routing table (RIB) or perform route selection; those " intelligent " control plane functions are strictly the domain of the Routing Engine. By offloading the repetitive tasks of packet inspection and hardware forwarding to the PFE, Junos OS maintains consistent performance even under heavy traffic loads or complex security configurations. Reference: Junos OS Fundamentals, Packet Forwarding Engine Architecture.

==========

In the Junos OS architecture, interfaces are strictly divided into physical and logical components. The physical interface represents the actual hardware port (e.g., ge-0/0/0), while logical units (e.g., ge-0/0/0.0) define the protocol-specific parameters and logical segmentation required for traffic processing. A fundamental characteristic of this model is that a single physical interface can host multiple logical units. This is a mandatory requirement for technologies such as 802.1Q VLAN tagging, where each logical unit corresponds to a different VLAN ID on the same physical link, allowing for efficient micro-segmentation of traffic.

Furthermore, Junos OS allows logical units to have multiple IP addresses assigned to them within the same address family or across different families (such as inet and inet6). This flexibility enables a single logical interface to reside on multiple subnets simultaneously, which is essential for complex routing scenarios, multi-homing, or transitional dual-stack environments. It is a common misconception that logical units are reserved for management; in reality, every physical interface must have at least one logical unit (typically unit 0) configured for the device to process any transit or local traffic. Understanding the hierarchical relationship between the physical port and its logical subdivisions is critical for successful interface management and protocol deployment on Junos platforms. Reference: Junos OS Fundamentals, Interface Naming and Hierarchy.

==========

The network topology illustrates two distinct IP subnets, 10.1.1.0/24 and 10.1.2.0/24 , separated by a Layer 3 router. For hosts on the first subnet to communicate with the server on the second subnet, an intermediary device must perform inter-subnet routing. The router acts as the exit point for each local segment, utilizing its interfaces assigned with the .254 host address as the logical path to external networks.

The fundamental requirement for this communication is the configuration of a default gateway on all end-nodes. When the users (on 10.1.1.0/24 ) attempt to send data to the server (on 10.1.2.0/24 ), their local TCP/IP stack recognizes the destination is not on the local wire. Without a defined default gateway, the hosts would simply drop the traffic as unroutable. By setting the default gateway to 10.1.1.254 for users and 10.1.2.254 for the server, the hosts are instructed to forward all off-net traffic to the router. The router then consults its routing table—which contains these directly connected routes—and forwards the packets to the appropriate egress interface. While VLAN tagging or routing protocols could exist in more complex environments, the primary necessity for basic reachability between these two specific segments is a correctly configured gateway on the terminal devices. Reference: Networking Fundamentals, IP Routing Basics, Default Gateway Configuration.

==========
