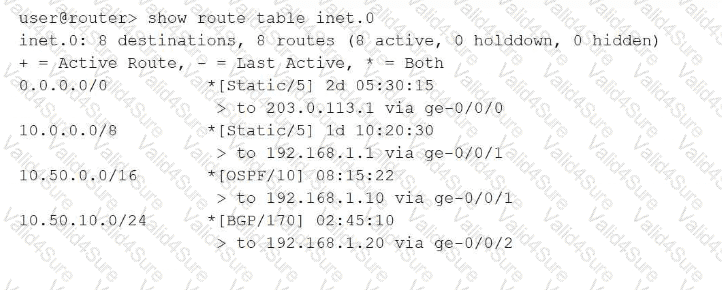

To effectively troubleshoot packet forwarding in a Junos environment, an architect must distinguish between the control plane ' s Routing Information Base (RIB) and the data plane ' s Forwarding Information Base (FIB). While the command show route displays the RIB (the master routing table maintained by the Routing Engine), it does not necessarily reflect the actual instructions being executed by the hardware. The definitive command for viewing the data plane ' s active path selection is show route forwarding-table.

Executing this command reveals the contents of the FIB as it has been pushed from the Routing Engine to the Packet Forwarding Engine (PFE). The output provides critical diagnostic data, including the destination prefix, the specific next-hop IP address, the interface through which the packet will egress, and the type of route (such as unicast or broadcast). This is the " ground truth " for packet movement; if a route exists in the RIB but is missing from the forwarding table, it indicates a failure in the communication between the RE and PFE. Utilizing this command is the primary method for identifying black holes, incorrect next-hop resolution, or issues with hardware-level filter applications that might be impacting transit traffic flow at wire speed.

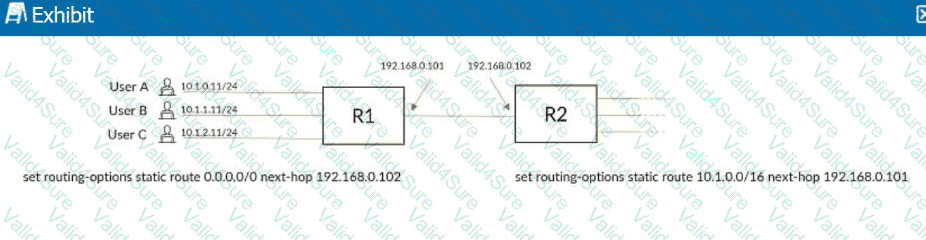

The configuration exhibit demonstrates a classic scenario where mismatched static routing leads to a routing loop . Router R1 is configured with a default route ( 0.0.0.0/0 ) pointing to R2 as its next hop. Conversely, R2 is configured with a broad static route for 10.1.0.0/16 pointing back to R1 .

If a user sends a packet to an unassigned IP address such as 10.1.99.1 , the following sequence occurs:

R1 receives the packet and consults its routing table. Finding no specific match for the 10.1.99.1 host, it uses the default route and forwards the packet to R2 .

R2 receives the packet and identifies that 10.1.99.1 falls within its defined static route for 10.1.0.0/16 .

Following its configuration, R2 forwards the packet back to R1 . This process repeats indefinitely—or until the packet ' s Time to Live (TTL) reaches zero—because the broad summary on R2 encompasses addresses that R1 does not actually have a local path for. This illustrates the critical importance of ensuring that summary routes or default routes do not overlap in a way that creates circular forwarding paths for non-existent destinations. Reference: Routing Fundamentals, Static Route Configuration, Routing Loops and TTL.

==========

The Routing Engine (RE) functions as the centralized processor and administrative core of any Junos OS-based platform. Its primary responsibility involves the execution and maintenance of the control plane, which includes running all active routing protocols such as OSPF, BGP, and IS-IS. Through these protocols, the RE exchanges topology information with neighboring routers, builds the Routing Information Base (RIB), and calculates the optimal paths for traffic. Once these paths are determined, the RE distributes the resulting Forwarding Information Base (FIB) to the Packet Forwarding Engine (PFE) for hardware-level execution.

In addition to its protocol duties, the Routing Engine manages the device configuration and the overall system environment. This includes providing the user interface (CLI or J-Web), managing the candidate and active configuration databases, and handling the commit process. While the PFE is specifically designed to forward transit traffic and evaluate that traffic against firewall filters at line rate, the RE focuses on the higher-level logic and management tasks. This architectural separation ensures that management functions—such as a complex configuration commit or a protocol re-convergence event—do not degrade the performance of the data plane, allowing the device to continue forwarding user traffic without interruption. Reference: Junos OS Fundamentals, Routing Engine Functions, Management and Control Planes.

==========

The Junos OS Command Line Interface (CLI) utilizes an advanced command-line editing environment influenced by standard Emacs and Unix terminal behaviors. One of the most critical features for operational efficiency is the command history buffer. This buffer automatically records a sequence of previously executed commands, allowing administrators to recall, modify, and re-execute them without manual re-entry.

The navigation of this history buffer is strictly chronological and operates as a stack. When the up arrow key is pressed once, the CLI retrieves the most recent command that was successfully entered—in this scenario, show chassis errors fpc-slot 0. Pressing the up arrow key a second time moves the cursor one step further back into the history stack to the command that preceded the most recent one. Following the provided sequence, the command executed prior to the " errors " check was show chassis fpc detail. Consequently, the second press of the up arrow key will display show chassis fpc detail at the prompt. This mechanism is essential for architects during intensive troubleshooting sessions, enabling them to cycle through relevant diagnostic commands rapidly while maintaining focus on the hardware output rather than syntax repetition. Reference: User Interfaces, CLI Editing Features, Command History.

==========

In the Junos OS architecture, the configuration environment is strictly bifurcated to ensure system stability and integrity. The candidate configuration is a specific database that serves as a staging area, storing all proposed changes made by an administrator during a configuration session before they are finalized. Unlike other network operating systems where changes might take effect immediately upon entry, Junos utilizes this " sandbox " approach where modifications reside only in the candidate database until a commit command is explicitly executed.

Once the commit process is initiated, the Junos OS kernel validates the candidate configuration for syntax errors and logical consistency. If the validation check is successful, the candidate configuration is promoted and becomes the active configuration—the operational state currently running on the device hardware. This separation allows multiple administrators to work on complex changes without impacting live transit traffic or device stability prematurely. If a mistake is identified during the editing process, the candidate configuration can be easily discarded or compared against the active state to identify discrepancies. This workflow is a cornerstone of Junos OS, facilitating a " check-before-apply " methodology that is essential for carrier-grade reliability and minimizing the risk of accidental outages during critical maintenance windows. Reference: Junos OS Fundamentals, Configuration Databases, Candidate vs. Active.

==========

In the Junos architecture, exception traffic consists of packets that cannot be handled by the Packet Forwarding Engine (PFE) alone and must be punted to the Routing Engine (RE) for specialized processing.

The first category of exception traffic is management/protocol traffic destined for the local device . For instance, SSH traffic to the local Junos OS device is an exception because the RE must terminate the TCP connection, authenticate the user, and present the CLI. Other examples include SNMP polls, BGP updates, and OSPF Hellos.

The second category involves packets with specific IP options or headers that require RE intervention. An IP packet with the Router Alert option (typically used by protocols like RSVP or IGMP) explicitly tells every router in the path, " Hey, stop and look at my payload. " Because the PFE is optimized for high-speed forwarding and not for interpreting complex options, it sends these packets to the RE. Conversely, traffic destined for a remote internet server (transit traffic) or packets with CoS bits (which are processed in hardware by the PFE) do not hit the RE. Exception traffic is strictly policed by the " internal link " rate limiters to ensure the RE is never overwhelmed by a flood of packets requiring software-based processing.

Class of Service (CoS) is a fundamental suite of features in Junos OS designed to manage traffic patterns during periods of network congestion. Rather than treating all packets equally, CoS allows the Packet Forwarding Engine (PFE) to differentiate between various types of traffic—such as latency-sensitive Voice over IP (VoIP), critical routing protocol updates, and standard " best-effort " internet traffic—and prioritize them accordingly. When egress interface buffers become saturated, the CoS mechanism uses defined schedulers and queues to ensure that high-priority packets are transmitted first, while less critical traffic may be delayed or dropped.

It is important to distinguish CoS from security or addressing functions. CoS does not provide encryption services (which is the role of IPsec or MACsec), nor does it manage IP address allocation or VLAN segmentation. Instead, it focuses entirely on the intelligent allocation of bandwidth and buffer resources. By implementing CoS, network architects can guarantee a specific level of performance for mission-critical applications, effectively minimizing jitter and packet loss for the most important data streams. This deterministic behavior is vital for modern converged networks where multiple traffic types compete for limited hardware resources across the switch fabric or WAN links. Reference: Junos OS Fundamentals, Class of Service (CoS) Overview.

==========

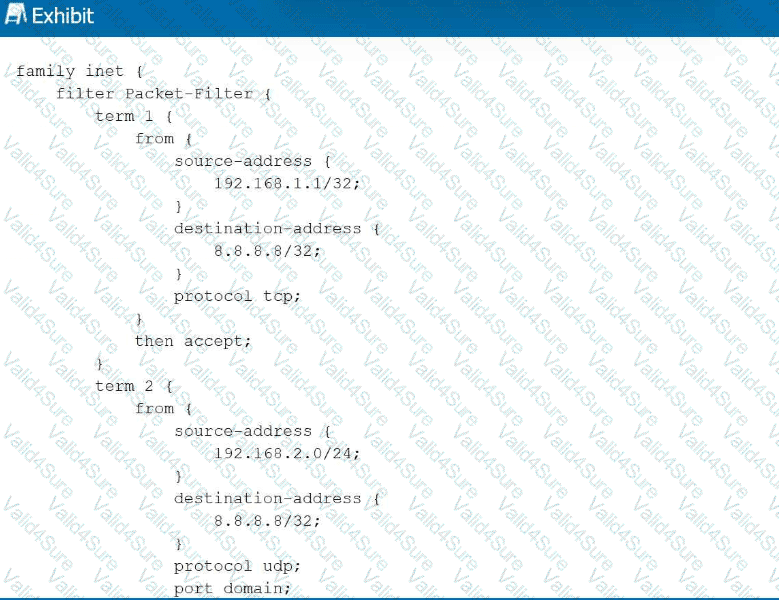

In Junos OS, firewall filters are constructed using terms that specify match criteria (the from statement) and actions to be taken (the then statement). When a packet enters an interface where this filter is applied, the Packet Forwarding Engine (PFE) evaluates it against the defined terms. In this exhibit, the term limit-icmp targets packets sourced from the 172.25.11.0/24 network that specifically use the ICMP protocol.

When a packet meets both criteria, the actions defined in the then block are triggered:

count count-icmp; : This is a non-terminating action . It instructs the system to increment a specific software counter named count-icmp. This allows administrators to monitor exactly how many packets are hitting this specific term using the show firewall command.

discard; : This is a terminating action . It immediately stops any further evaluation of the packet and drops it. A key characteristic of the discard action in Junos is that it is a " silent " drop; the router simply deletes the packet from its buffer without notifying the sender.

Option D is incorrect because returning an ICMP destination unreachable message is the specific behavior of the reject action, not the discard action. Option C is incorrect because discard explicitly prevents the packet from being forwarded. Understanding the distinction between silent discards and active rejections is essential for architects when designing security policies that balance stealth with network transparency.
