OSPF route summarization is a critical technique for managing the size of the Link State Database (LSDB) and the routing table by consolidating multiple specific routes into a single aggregate advertisement.

Summarization Point: In OSPF, inter-area summarization (consolidating Type 1 and Type 2 LSAs into a single Type 3 Summary LSA) can only be performed on an Area Border Router (ABR) .

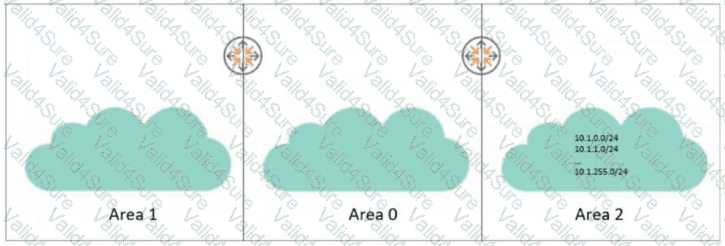

Configuring the Area of Origin: A fundamental rule of OSPF summarization is that the range command must be applied to the Area where the specific routes originate . In the exhibit, the /24 subnets (10.1.0.0/24 through 10.1.255.0/24) are located in Area 2 . Therefore, the ABR must be configured under area 2.

AOS-CX Syntax: On HPE Aruba Networking CX switches, the command to summarize internal routes is area < AREA-ID > range < IP-ADDR/MASK > type inter-area.

The type inter-area keyword specifies that the ABR should take the internal routes from the specified area and advertise them as an Inter-Area (Type 3) summary to other connected areas (like the Backbone Area 0).

Analyzing the Options:

Option A and D: These are incorrect because they apply the range to Area 0 . This would only work if the routes originated in Area 0 and you wanted to summarize them for Area 2.

Option B: This is incorrect because summary-only is not the standard keyword for OSPF summarization in the AOS-CX CLI. While similar concepts exist in other protocols (like BGP) or other vendors, AOS-CX uses type inter-area to define the summary behavior.

Option C (Correct): It correctly identifies Area 2 as the source and uses the proper AOS-CX syntax to generate a 10.1.0.0/16 summary route, which covers the entire 10.1.x.x range shown in the exhibit.

When enabling ARP protection, it is best practice to wait at least a week after enabling DHCP snooping before enabling ARP protection in a live network. This allows the DHCP snooping binding table to stabilize, ensuring ARP protection has accurate IP-MAC bindings, reducing false positives.

Immediate ARP protection may cause legitimate traffic to be dropped.

Lease times and DHCP server utilization are less critical.

This staged approach minimizes disruption.

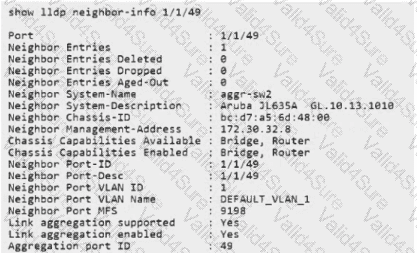

The Link Layer Discovery Protocol (LLDP) is used by Aruba switches to share identity and capability information with neighbors. By default, AOS-CX switches often advertise the IP address of the dedicated Out-of-Band (OOB) management port.

The Management-Address TLV: Neighbors use the " Management Address " Type-Length-Value (TLV) to know which IP they should use to manage the remote device (e.g., for SSH or Web UI access).

Changing the Source: In some designs, you want the switch to be managed through an " In-Band " VLAN interface rather than the physical management port.

AOS-CX Command Syntax: To specify which local interface ' s IP should be placed into the LLDP advertisement, AOS-CX uses the global command:

lldp management-ipv4-address vlan < VLAN-ID >

This tells the LLDP process: " Look at the IP assigned to SVI 5, and use that as our management identity in all LLDP frames sent out of all ports. "

Evaluating the Options:

Option D (Correct): Matches the specific AOS-CX syntax for selecting a VLAN-based management address.

Option B: This syntax is more common in the legacy AOS-S (ProCurve) software, whereas CX uses the management-ipv4-address keyword to distinguish between address families.

Option A: While intuitive, LLDP management address selection is a global process control in AOS-CX, not an interface-level trigger on the SVI itself.

Option C: While you can manually set the address using lldp management-address < IP > , there is no standalone lldp configuration context in the AOS-CX CLI.

Dynamic ARP Protection (DAP) is a security feature used to intercept and validate ARP packets in a network to prevent " man-in-the-middle " attacks like ARP spoofing.

Validation Source: For the switch to know if an ARP packet is legitimate, it must check the sender ' s IP and MAC address against a trusted database.

Dynamic vs. Static: * In most modern environments, the switch builds this database automatically by using DHCP Snooping . When a client gets an IP from a DHCP server, the switch records the binding.

Static Environments (The Solution): If you have servers or devices with static IP addresses (no DHCP server), DHCP snooping will have no record of them. To prevent these legitimate devices from being blocked by ARP protection, you must manually configure Static IP-to-MAC bindings .

Why Option D is Correct: It correctly identifies that the feature is flexible enough to support non-DHCP environments through manual configuration.

Why others are incorrect: * Option A: While highly recommended, a DHCP server is not strictly required because of the static binding fallback.

Option C: Simply enabling the features isn ' t enough; you must also consider untrusted vs. trusted ports. Furthermore, " full information " is a bit of an overstatement, as static devices still need manual intervention.

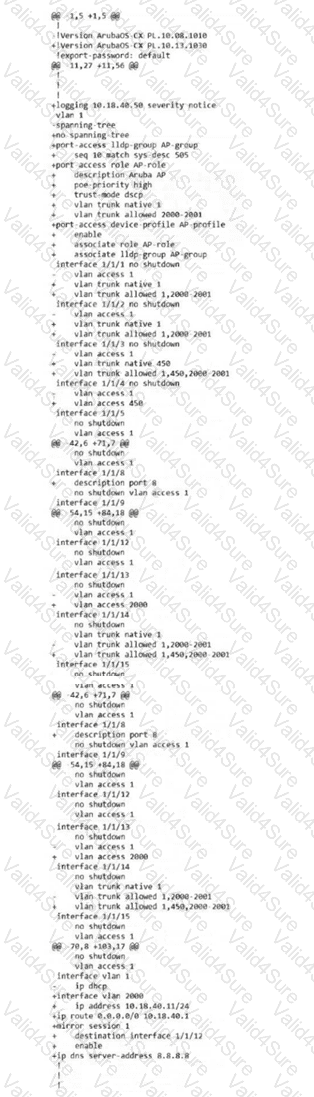

The output shown in the exhibit is a unified diff (indicated by the + and - signs and the @@ headers), which is the standard format AOS-CX uses to display differences between two configuration states.

AOS-CX Checkpoints: ArubaOS-CX switches use " checkpoints " to save snapshots of the configuration. These can be created manually by a user or automatically by the system (e.g., when a configuration change is pushed from Central or NetEdit).

The checkpoint diff Command: The command checkpoint diff < NAME1 > < NAME2 > is used to perform a line-by-line comparison. One of these names can be the running-config .

Lines with a -: These are present in the first configuration (the older checkpoint) but missing in the second (the newer config).

Lines with a +: These are present in the second configuration but were not in the first.

Analyzing the Exhibit: The output shows a comparison between a switch running version 10.08.1010 (the - line) and version 10.13.1030 (the + line), along with several configuration changes like adding an lldp-group, a port-access role, and IP addressing on vlan 2000.

Differentiating Command Syntax: * In the AOS-CX CLI, checkpoint diff is an " action " command used specifically for this analytical comparison.

While many diagnostic commands start with show, the diff utility is executed directly as checkpoint diff.

Terms like " saved-config revisions " are not standard AOS-CX terminology; the system uses " checkpoints " exclusively for this purpose.

In a Virtual Switching Framework (VSF) stack, high availability and control plane redundancy depend on the designation of specific roles among the stack members.

Conductor and Secondary Roles:

Conductor: The " brain " of the stack that manages the control plane and synchronization. By default, the first switch configured (Member 1) becomes the Conductor.

Secondary: This is the " Standby Conductor. " It maintains a synchronized state of the management and control planes. If the Conductor fails, the Secondary immediately takes over the Conductor role to keep the stack operational.

Analyzing the Exhibit:

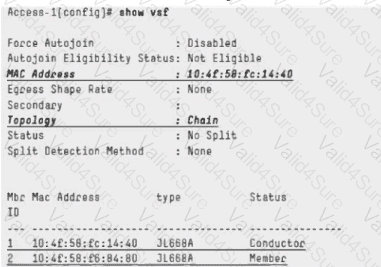

Looking at the output of show vsf, the Secondary field is currently empty (blank).

While Member 2 is seen as a " Member, " it has not been officially promoted to the Secondary role.

In the current state, if Member 1 (the Conductor) fails, there is no designated standby to take over. The stack would lose its control plane, and Member 2 would not be able to function as a standalone manager for the stack configuration.

The Solution: To ensure the stack survives a failure of either member, you must explicitly configure a secondary member. On a 2-member 6300 stack, the command vsf secondary-member 2 is used to designate Member 2 as the standby. This populates the " Secondary " field seen in the exhibit and enables redundancy.

Evaluating Other Options:

Option A: Split-detection is a separate mechanism used to prevent " split-brain " scenarios (where both members think they are the conductor after a link failure), but it requires a secondary member to be defined first to even function as a redundant pair.

Option B: Auto-stacking is a deployment method used to automatically number and link members during initial setup; it does not configure high-availability roles.

Option D: There is no command vsf conductor-member 2. The conductor role is assigned dynamically or via the secondary role promotion.

After enabling ARP protection, many users lose network access because ARP protection relies on DHCP snooping to build IP-to-MAC binding tables. Without DHCP snooping enabled and correctly configured, ARP inspection cannot verify ARP packets, causing legitimate traffic to be dropped.

Enabling DHCP snooping allows ARP inspection to validate ARP requests and responses.

Other options like dynamic IP lockdown, IGMP snooping, or DHCP reservations are unrelated or secondary.
