300-815 Exam Dumps - Implementing Cisco Advanced Call Control and Mobility Services (CLACCM)

An SRST site must use pickup functionality on the Chicago remote site to allow the users to take incoming calls. The pickup command is configured under the call-manager-fallback section on the SRST router What are two results of that configuration? (Choose two.)

Refer to the exhibit.

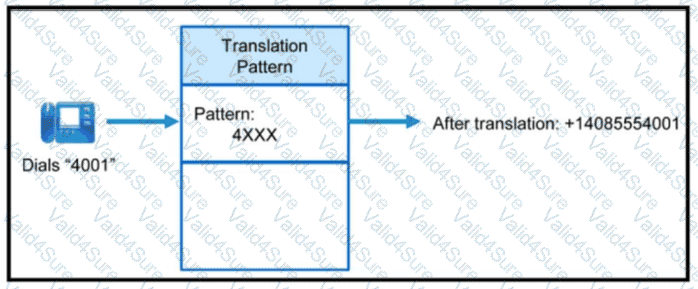

A company needs to ensure that all calls are normalized to ♦ E164 format. Which configuration will ensure that the resulting digit string ♦14085554001 is created and will be routed to the E.164 routing schema?

Refer to the exhibit.

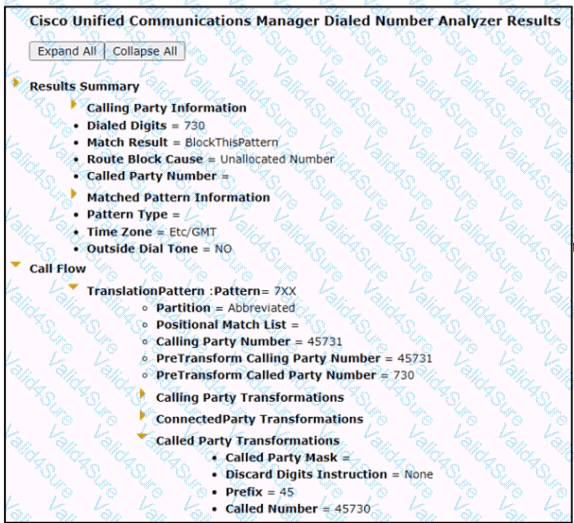

A user cannot call number 730. which Is an abbreviated number for 45730. The engineer recently configured a translation pattern In Cisco UCM. The newly configured translation pattern of 7XX prefixes the digits 45. The engineer uses DNA to troubleshoot the issue. What is the reason for this problem?

An administrator is troubleshooting call failures on an H.323 gateway via the CLI. To see signaling for media and call setup, which debug must the Administrator turn on?

An administrator is working on an issue between the customer s Cisco Unified Border Element and the service provider. The provider only wants to see mid-call signaling from the Cisco Unified Border Element for fax calls. Which command must be configured on Cisco Unified Border Element?

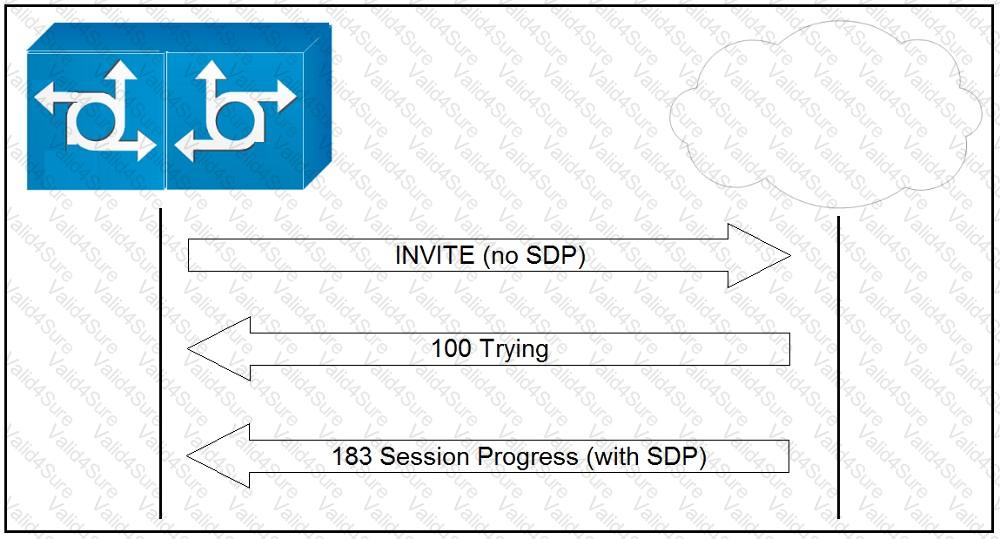

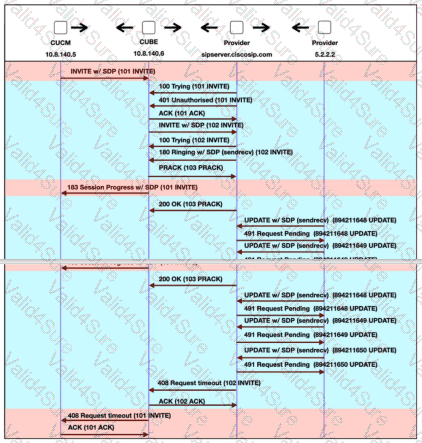

A company is experiencing an issue where calls from the Cisco UCM via Cisco Unified Border Element to the ITSP fail with a “500 server internal error” right after a 183 session in progress is sent back from the ITSP. What must be enabled to resolve the issue?

A solution for a large company is being reconfigured to optimize for cost saving. The company has an extensive global QoS-enabled network with enough bandwidth to create a converged network. Local calls are relatively inexpensive in countries the company have operations, but long distance and international calls are expensive.

Which type of configuration supported by Cisco UCM would help optimize cost control for this company?

An administrator discovers that employees are making unauthorized long-distance and international calls from logged-off Extension Mobility phones when the authorized users are away from their desks Which two configurations should the administrator configure in the Cisco UCM to avoid this issue? (Choose two.)
