300-815 Exam Dumps - Implementing Cisco Advanced Call Control and Mobility Services (CLACCM)

Refer to the exhibit.

An administrator is troubleshooting a problem in which some outbound calls from an internal network to the Internet telephony service provider are not getting connected, but some others connect successfully. The firewall team found that some call attempts on port 5060 came from an unrecognized IP that has not been defined in the firewall rule. What should the administrator configure in the Cisco Unified Border Element to fix this issue?

Users in a small location report that audio calls work Tine, but only one video call works before the next one gets a busy signal. Three video conference rooms were recently installed by a third party. The audio and video devices are Cisco endpoints. The site uses video and audio calls, and a network investigation does not show saturation on the link The site is configured with QoS and CoS. All devices are registered on the headquarters Cisco UCM duster. What is the cause of this problem?

Where on Cisco Unified Communications Manager do you configure the standard local route group for a group of devices?

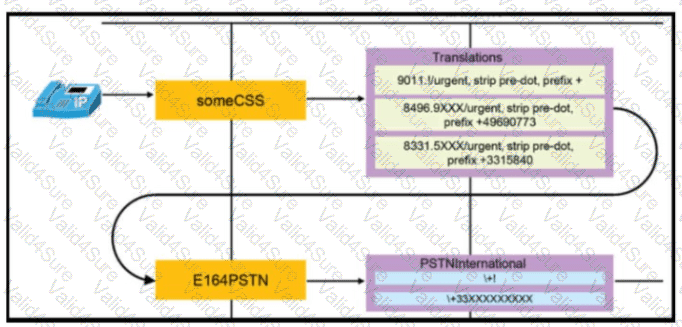

Refer to the exhibit.

A user dials 84969010 and observes that the call is not routed immediately. The administrator notices that after matching the fixed-length translation pattern, the call hits the \+! pattern and waits for interdigit timeout What should be configured to ensure that the call routes out immediately?

An administrator troubleshoots call failure in a new deployment and finds that the SIP INVITE messages sent to the service provider contain a diversion header with the user's 4-digit directory number. These 4-digit directory numbers range from 1000 to 9999. The service provider is rejecting the calls because it requires that the diversion header contain 10 digits. Which command on the Cisco Unified Border Element resolves this issue for all users?

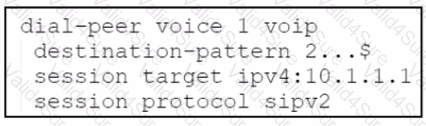

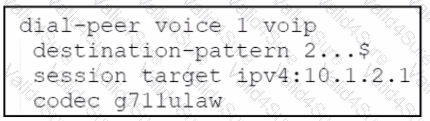

A)

B)

C)

D)

How does an engineer globalize routing for ingress calls coming from the PSTN to internal DNs?

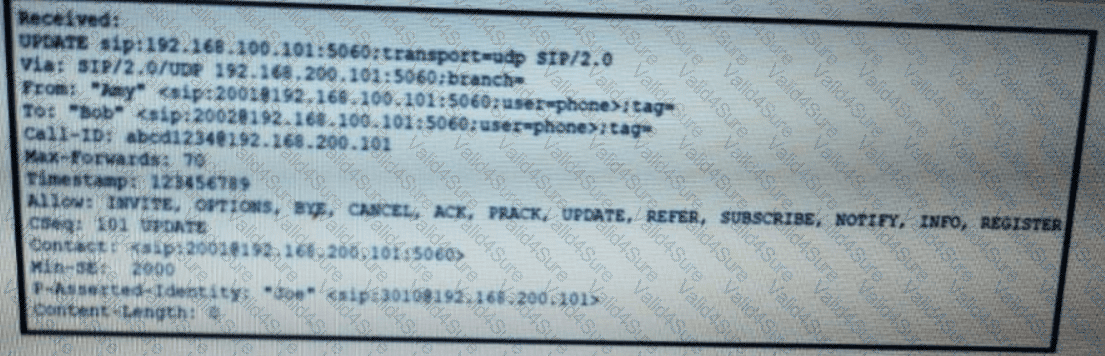

Refer to the exhibit. An engineer is troubleshooting an issue where inbound Calls are failing after they transferred. The provider reports that update is not supported, and this is causing the calls to fail. Which command should resolve this issue?

The administrator of ABC company is troubleshooting a one-way audio issue for a call that uses H.323 protocol (slow-start mode). The administrator requests that you provide the IP and port information of the Real- Time Transport Protocol traffic that had the one-way audio call.

You gather the H.225 and H.245 messages for one of the one-way audio calls. Where can you find the RTP IP and port information for both sides? (Note: This call flow has not invoked any media resources like MTP or transcoders).
