LTE is the most appropriate backup WAN option for remote sites that already rely on microwave links. A backup transport should use a different failure domain from the primary service; LTE provides carrier wireless connectivity that is operationally separate from the customer’s microwave infrastructure. It is widely available, fast to deploy, and suitable as an out-of-band or secondary WAN path for branch continuity. WiMAX is an older metropolitan wireless technology and is not the preferred current enterprise backup choice. A laser link is another line-of-sight technology and can suffer from similar environmental and alignment constraints as microwave, so it is a weaker diversity option. Bluetooth is a short-range personal-area technology and is not a viable WAN backup for enterprise branches. LTE also integrates well with SD-WAN, IPsec VPN, and routing-based failover designs. In a resilient WAN architecture, the architect should validate signal quality, carrier coverage, data plan, antenna placement, NAT behavior, and whether the backup link must support dynamic routing, VPN encryption, and QoS for critical traffic during failover.

Easy Virtual Network is the best fit when a campus needs many Layer 3 virtual networks with separate addressing and routing tables but wants lower operational overhead than manually configuring VRF-Lite everywhere. EVN builds on VRF concepts and simplifies virtualization across a hop-by-hop campus design by reducing repetitive configuration and enabling consistent virtual network transport across participating devices. Each virtual network maintains its own routing context, which supports overlapping addressing and segmentation. Hop-by-hop VRF-Lite can provide similar forwarding separation, but it becomes operationally heavy as the number of VRFs grows because each trunk, routing process, and interface association must be configured and maintained manually. Multihop MPLS can scale, but it introduces provider-style complexity and may require features or skills beyond a typical campus requirement. Multihop IPsec tunneling is not an efficient campus segmentation solution for hundreds of virtual networks. Therefore, EVN is the recommended design for scalable Layer 3 virtualization with simpler configuration and management. Reference topics: campus virtualization, Easy Virtual Network, VRF separation, scalable virtual networks, route isolation.

PIM Source-Specific Multicast is the correct multicast protocol when receivers can subscribe to traffic from known sources and the design must avoid rendezvous points. SSM uses the (S,G) model, where receivers explicitly join a multicast group from a specific source. Because the source is known at join time, the network does not need a shared tree or RP discovery process. This makes SSM attractive for broadcast-style streaming applications, such as video channels, where each stream source is known and receivers subscribe to specific channels. PIM Sparse Mode and Any-Source Multicast use an RP to allow receivers to discover active sources, so they do not meet the requirement of no rendezvous point. BIDIR-PIM also relies on an RP-rooted shared tree and is optimized for many-to-many applications rather than source-specific broadcast channels. For a large cable TV provider streaming multiple video channels from defined sources, SSM simplifies the multicast control plane, eliminates RP dependency, and scales efficiently by creating only the source-specific state required by active receivers.

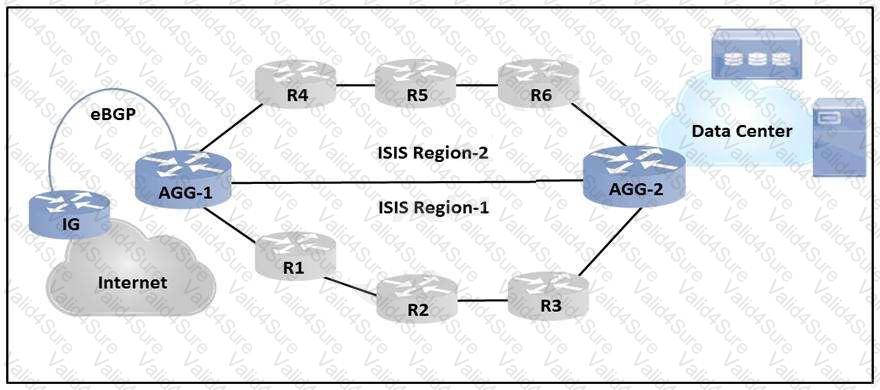

The correct IS-IS design combines tuned SPF/PRC behavior with a proper Level 1 and Level 2 hierarchy. Reducing SPF and PRC intervals, within platform and stability limits, helps routers react more quickly to topology changes after a link failure. However, fast timers alone are not enough; the hierarchy must contain instability so physical link flaps in the access layer have limited impact on the rest of the network. Access routers should form Level 1 adjacencies inside their local area, while aggregation routers should operate as Level 1/Level 2 routers to connect the access area to the Level 2 backbone. This design gives access routers a simple local view and uses aggregation as the interarea boundary. Running all access and aggregation routers as L1/L2 across the network increases the size of the backbone and exposes more routers to wider flooding, which is the opposite of the requirement. Redistributing Internet routes into Level 1 is also poor design because it bloats the access area. Therefore, the right choices are C and E. Reference topics: IS-IS hierarchy, L1/L2 design, SPF and PRC tuning, access-layer convergence, fault containment.

AES Galois/Counter Mode is the appropriate AES mode for Cisco SD-WAN environments that include multicast applications. In SD-WAN data-plane security, encryption must protect traffic efficiently while supporting high-throughput forwarding and modern integrity protection. AES-GCM is an authenticated encryption mode, which means it provides confidentiality and integrity in a single efficient operation. It is well suited to modern IPsec designs and avoids the older requirement to combine a confidentiality mode with a separate authentication algorithm. Cipher Block Chaining and Cipher Feedback are older modes and are not preferred for this design requirement. Electronic Code Book is unsuitable because it exposes patterns in plaintext and is not considered secure for network transport encryption. Multicast support also requires a data-plane security model that can scale without per-flow negotiation overhead. AES-GCM is therefore the correct selection for a secure, efficient Cisco SD-WAN deployment that must carry multicast traffic. Reference topics: Cisco SD-WAN encryption, AES-GCM, IPsec data-plane security, multicast transport, authenticated encryption.

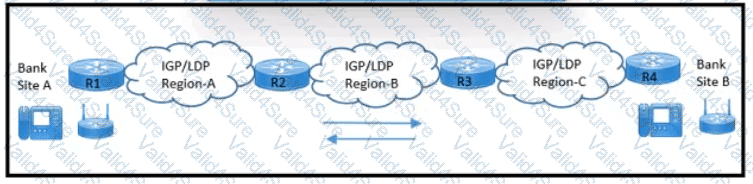

The scalable BGP design should use VPNv4 on the PE routers for L3VPN site routes and BGP IPv4 unicast on ABRs to connect multiple IGP/LDP domains. VPNv4 is the correct MP-BGP address family for carrying customer VPN routes across a provider MPLS Layer 3 VPN core because it combines route distinguishers and VPN labels with customer prefixes. This lets the provider scale many customer routes while maintaining separation between VPNs. When the provider network spans multiple IGP or LDP domains, BGP IPv4 unicast can be used at ABRs to carry infrastructure reachability and avoid trying to flood a single IGP domain across the entire provider backbone. Full-mesh iBGP among all routers in different IGP domains is not scalable and conflicts with the requirement that thousands of routes will be added. Redistributing all IGP routes into a single BGP IPv4 instance without VPNv4 does not preserve customer VPN separation. Filtering loopbacks everywhere is not the core scaling solution. Reference topics: MP-BGP VPNv4, MPLS L3VPN, ABR design, interdomain provider routing, route scale.

Cisco SD-WAN uses the Overlay Management Protocol to exchange control-plane information between WAN Edge routers and vSmart controllers. OMP advertises three major categories of routing information: OMP routes, TLOC routes, and service routes. OMP routes represent reachability to prefixes in service VPNs, such as connected, static, OSPF, EIGRP, BGP, or other routes learned at the local site. TLOC routes describe transport locations, which bind a system IP, color, and encapsulation to a WAN transport attachment. Service routes indicate service insertion capabilities, such as firewalls or other network services that can be reached through a particular site. This separation allows Cisco SD-WAN to build a secure overlay over any public or private transport while keeping transport reachability, service-side prefixes, and inserted services distinct. The other answer choices use generic terms such as underlay, MPLS, Internet, backup, or primary routes, but those are not the formal OMP advertisement categories. Therefore, the correct answer is prefix, TLOC, and service.

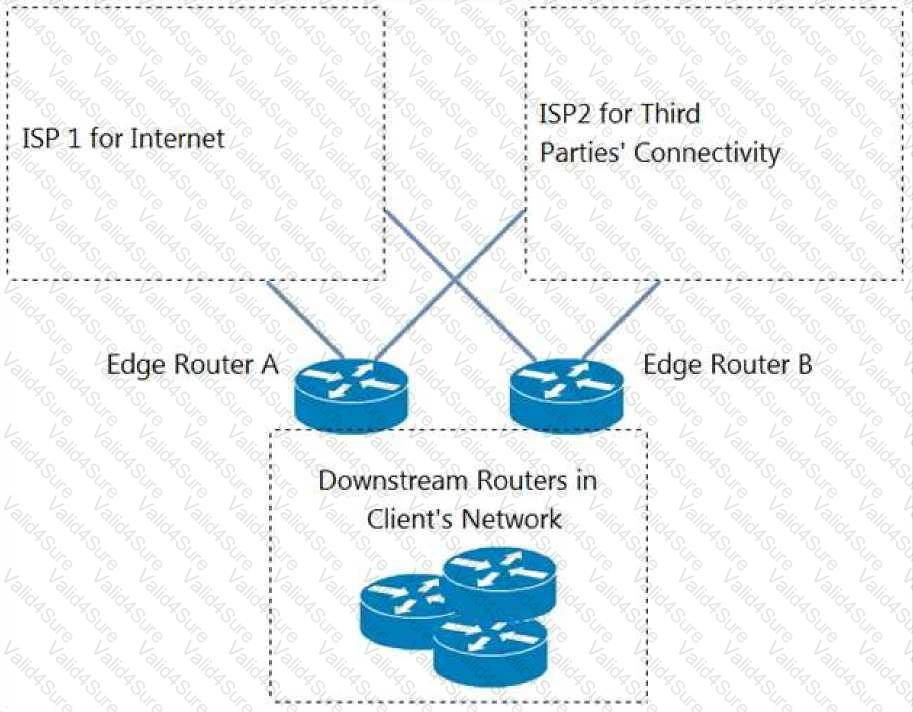

The client edge can reach the Internet through ISP1 only if downstream routers inside the client network have a usable route toward the Internet. Since ISP1 provides full Internet connectivity and ISP2 is used for direct exchange with selected third parties, the edge design should advertise a default route into the client network. This gives internal routers a simple, scalable route for all Internet destinations while preserving specific routing where necessary. Running separate VRFs for each ISP may be a valid segmentation technique, but it does not by itself tell downstream routers how to reach the Internet. AS-path prepending toward ISP2 influences inbound path preference from external networks; it does not solve internal default routing. Filtering outbound advertisements so the client advertises only its own originated routes is important to avoid becoming a transit AS, but it is not the mechanism that enables internal users to reach the Internet through ISP1. The clean design is to receive or originate a default route at the edge and advertise that default to the client routing domain. Reference topics: BGP Internet edge design, default route advertisement, transit prevention, ISP peering policy.
