The correct overlay considerations are that virtual networks provide data-plane isolation and that overlapping IP addresses should be avoided for operational simplicity. In Cisco SD-Access, virtual networks are used for macro segmentation and are commonly mapped to VRFs. This separates routing and forwarding tables between major groups such as corporate users, guests, IoT, and shared services. Security Group Tags provide finer policy control and microsegmentation, but they are not the primary mechanism for data-plane isolation between virtual networks. The phrase “virtual networks should be used for microsegmentation” is therefore inaccurate; microsegmentation is SGT and SGACL driven. Although overlapping IP addresses can technically exist in separate VRF-like contexts, Cisco design practice discourages unnecessary overlap because it complicates troubleshooting, service insertion, external connectivity, and inter-VN communication. A clean overlay address plan improves operations and reduces policy ambiguity. Reference topics: SD-Access overlay design, virtual networks, macro segmentation, SGTs, microsegmentation, overlapping IP avoidance. This also simplifies day-two operations.

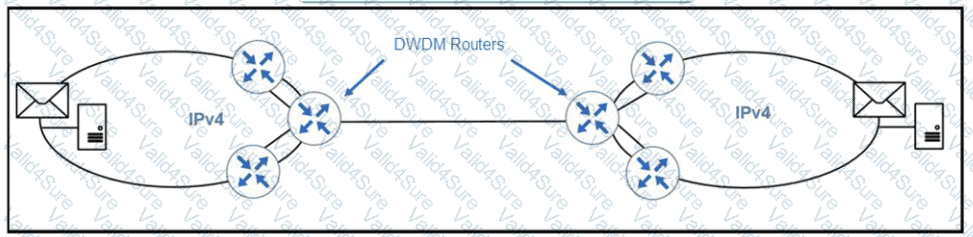

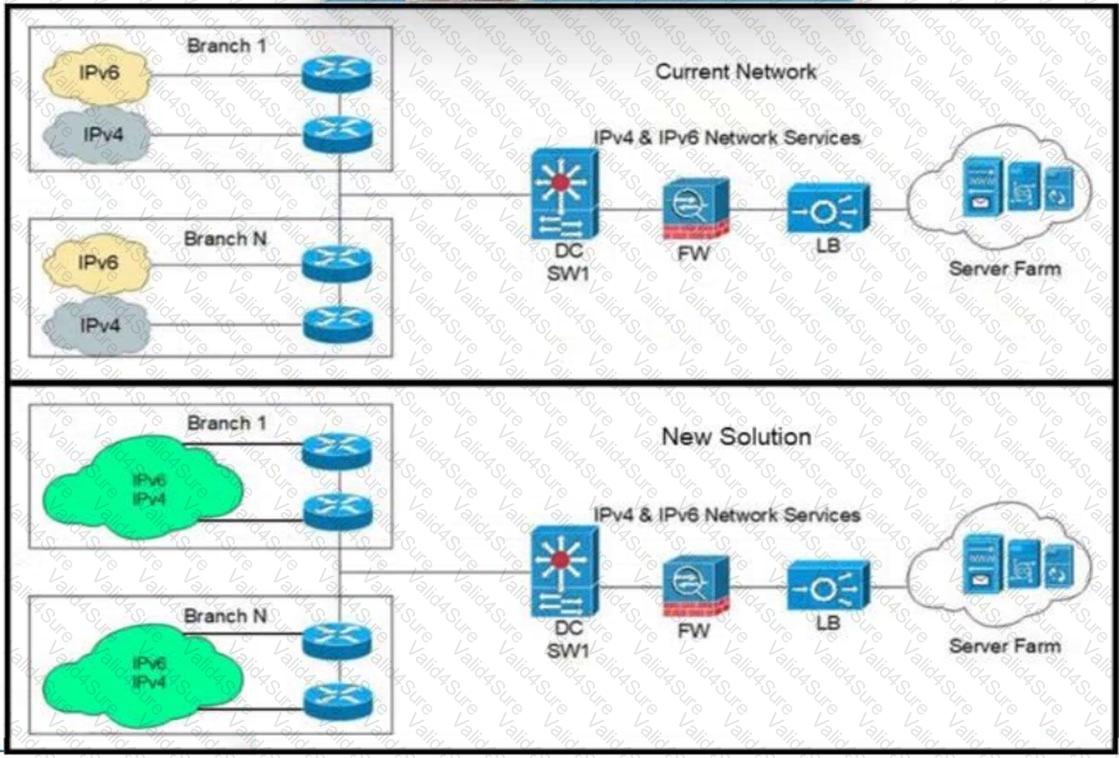

Dual-stack is the correct IPv6 migration technique because the DWDM devices provide Layer 2 transport between routers that already support both IPv4 and IPv6. Layer 2 transport is generally transparent to IPv6 because it forwards Ethernet frames rather than participating in Layer 3 routing. The routers at the ends of the DWDM circuit can peer directly over the Layer 2 service and run IPv6 in parallel with IPv4, while mail servers can also retain IPv4 reachability during the migration. Cisco dual-stack migration guidance uses simultaneous IPv4 and IPv6 operation to support phased application and host transition with minimal tunneling overhead. 6to4, ISATAP, and 6rd are tunneling or transition mechanisms used when IPv6 islands must cross IPv4-only routed infrastructure. In this case, the limiting devices are in the transport layer and do not need to route IPv6. Deploying dual-stack on the capable routers and servers is simpler, more transparent, and avoids unnecessary encapsulation. Reference topics: IPv6 dual-stack migration, Layer 2 transparency, IPv6 over Ethernet, tunneling avoidance, phased migration.

In Cisco SD-Access, an intermediate node is an underlay transit device. Its responsibility is to provide IP reachability between fabric edge nodes, border nodes, and other fabric infrastructure roles. Intermediate nodes forward routed underlay traffic and do not perform endpoint registration, endpoint lookup, or VXLAN encapsulation for user traffic. Endpoint-to-location mapping is handled through the fabric control plane, which is based on LISP map-server and map-resolver functions. Fabric edge nodes identify connected endpoints, apply policy, act as anycast gateways, and encapsulate user traffic into VXLAN. Border nodes connect the fabric to external networks and handle traffic entering or leaving the fabric. The intermediate node is therefore comparable to a routed distribution or core transport device in a traditional hierarchical campus, except it is participating in the SD-Access underlay. It must provide stable Layer 3 reachability and appropriate MTU for encapsulated traffic but does not maintain the host tracking database or add security group information to VXLAN headers. The correct function is transporting IP packets between edge and border nodes.

Wireless endpoints in Cisco SD-Access are registered through the fabric wireless integration process, and the fabric WLC is the component that updates endpoint information as clients join the wireless network. The Host Tracking Database stores endpoint identifier and location information used by the SD-Access control plane. For wired endpoints, the fabric edge detects the endpoint and registers the binding. For wireless endpoints, the fabric WLC is integrated with the fabric and has the client session context, so it provides the endpoint information needed for HTDB updates. Border nodes do not first register ordinary wireless endpoints; their role is to connect the fabric to external networks and other domains. Fabric APs also do not own the complete EID-to-RLOC registration function in the way the controller does. The design implication is that fabric wireless requires correct WLC integration with Cisco Catalyst Center, fabric site configuration, control-plane reachability, and policy integration through Cisco ISE. Client registration, mobility, and policy enforcement depend on this controller-to-fabric relationship being stable. Reference topics: SD-Access wireless, fabric WLC, Host Tracking Database, endpoint registration, LISP control plane.

The strict-priority queue should be limited to approximately 33 Mbps on a 100 Mbps Internet connection. Cisco QoS design guidance warns that strict priority traffic must be bounded, because excessive priority traffic can starve other queues and cause poor application performance for non-real-time traffic. For voice and interactive video, priority queuing is appropriate, but the priority class should normally be constrained to about one-third of the link capacity in a converged enterprise design. That makes 33 Mbps the best choice for a 100 Mbps link. A 75 Mbps strict-priority allocation is far too high and would leave inadequate bandwidth for routing, signaling, business data, and default traffic. A 50 Mbps allocation still gives real-time media excessive control of the interface. A 25 Mbps allocation may work in some environments but is not the standard upper-limit design answer for strict priority in this Cisco context. The architect should also classify TelePresence accurately, mark traffic consistently, and police the priority queue to protect the WAN. Reference topics: LLQ, CBWFQ, strict priority limits, TelePresence QoS, WAN congestion management.

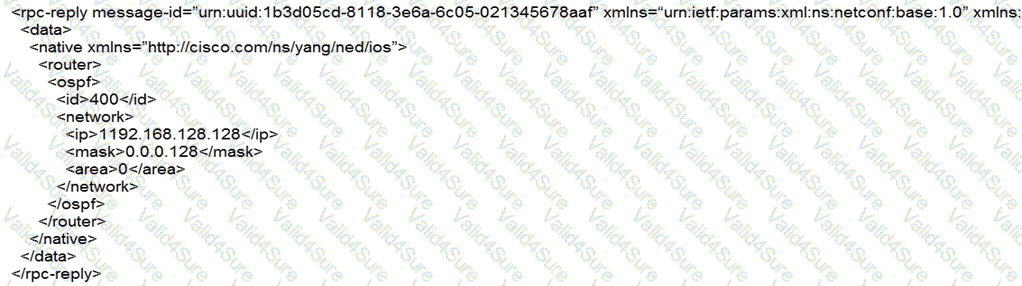

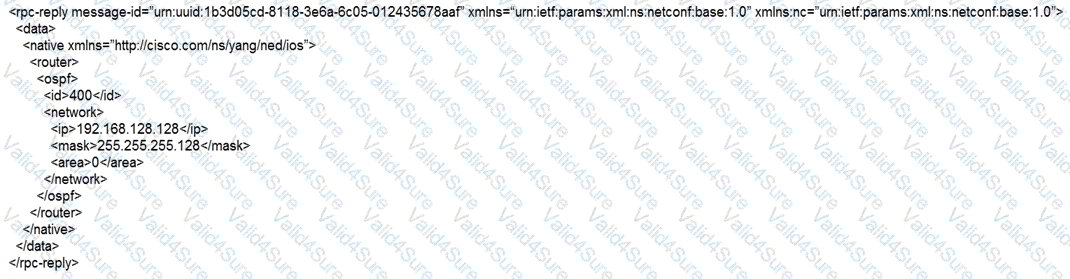

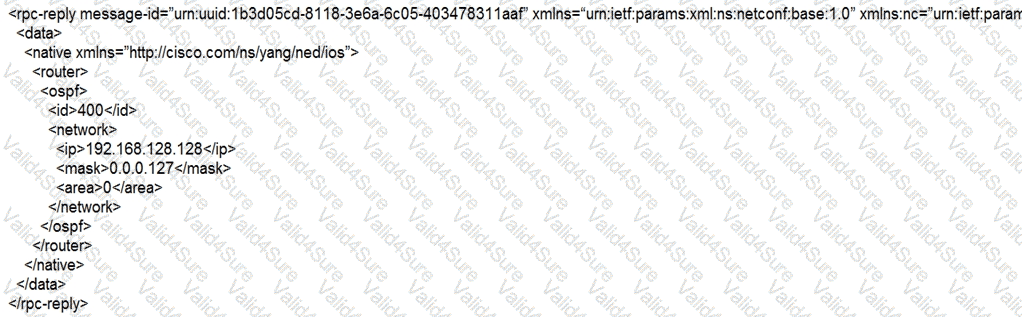

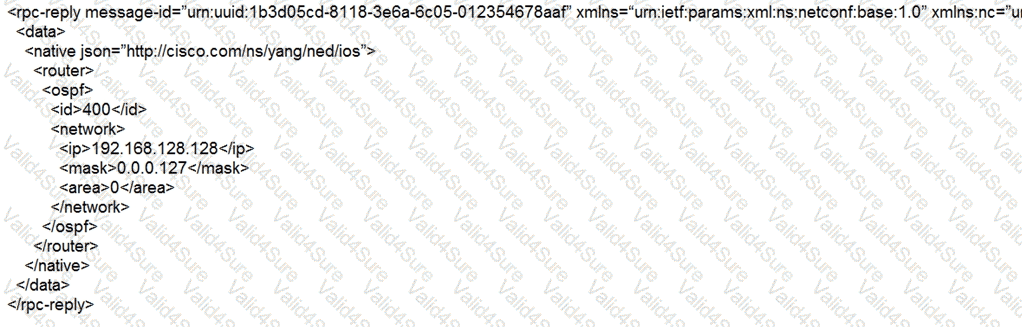

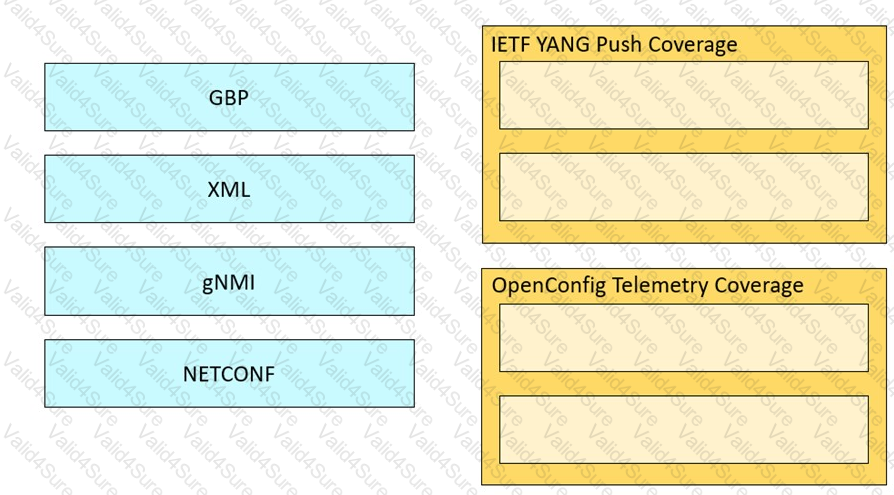

The valid get-config reply must show OSPF process ID 400 with network 192.168.128.128/25 enabled for Area 0. A /25 prefix has a block size of 128 addresses, so 192.168.128.128/25 is a valid network boundary and covers addresses from 192.168.128.128 through 192.168.128.255. Any reply that shows the wrong OSPF process, an incorrect network boundary, the wrong prefix length or wildcard equivalent, or a nonzero area does not verify the requested model set. In Cisco IOS XE model-driven configuration, the readback has to match the schema path and values used by the model, not simply produce an approximate CLI interpretation. Option B is the reply that confirms the intended OSPF object. This verification method is important because YANG automation can fail silently in operational workflows when the payload is syntactically valid but targets the wrong container or key. A get-config verification step confirms the running datastore contains the exact OSPF process and area membership required by the design. Reference topics: YANG OSPF configuration, NETCONF get-config, prefix validation, IOS XE native models.

For multimedia conferencing over MPLS, Cisco QoS design normally classifies the traffic into the multimedia conferencing class and marks it with AF4, commonly AF41. This class is intended for interactive video conferencing and similar applications that need assured bandwidth and controlled loss, but that are not usually placed in the same strict-priority class as voice bearer traffic. A bandwidth queue provides a minimum bandwidth guarantee during congestion, while DSCP-based WRED can selectively manage congestion within the class by using the drop precedence encoded in the AF marking. AF3 is generally associated with multimedia streaming, not interactive conferencing. A simple bandwidth queue without WRED does not fully use per-hop behavior characteristics for congestion handling. LLQ is typically reserved for voice and sometimes very tightly controlled real-time classes, because overusing strict priority can starve other traffic. Therefore, bandwidth queuing with DSCP WRED using AF4 is the appropriate per-hop behavior design. Reference topics: Cisco QoS baseline, DiffServ, AF41, multimedia conferencing, MPLS QoS, WRED.

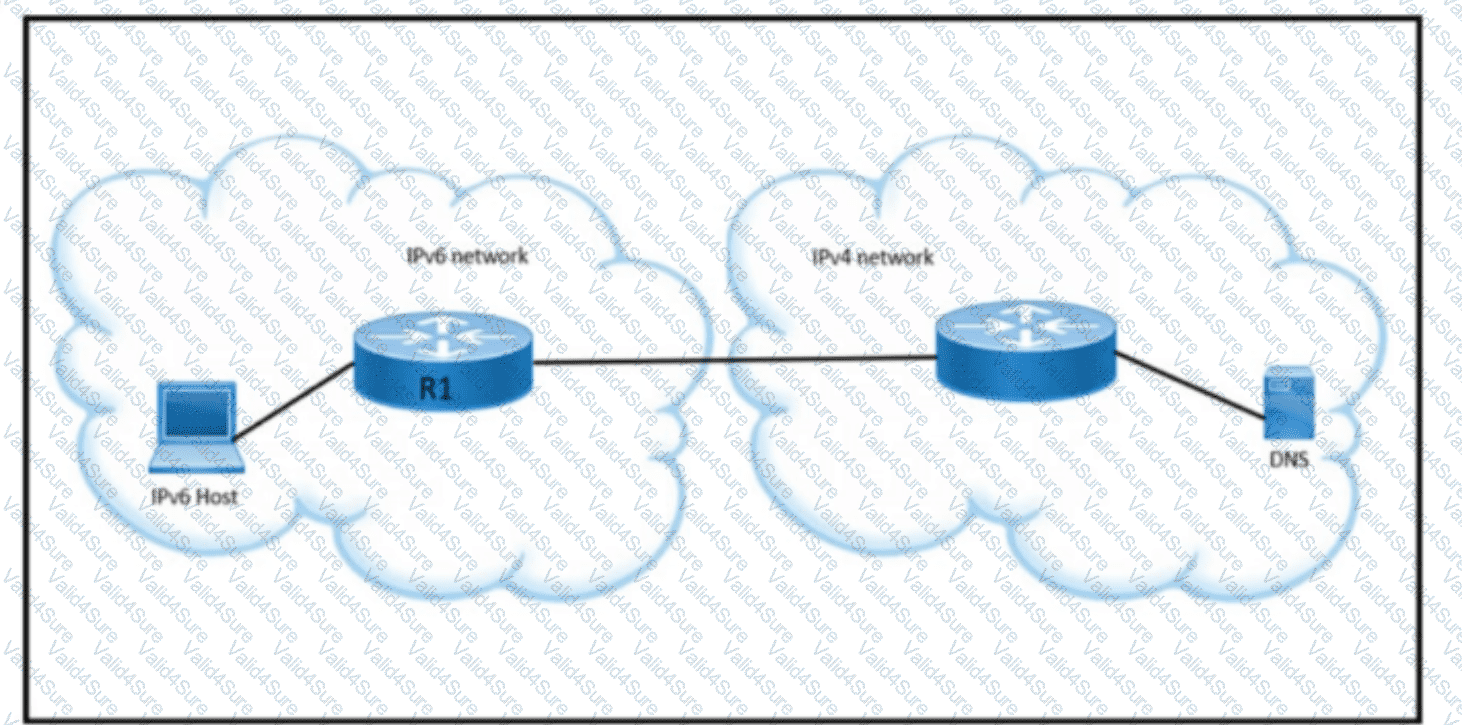

Dynamic NAT-PT is the correct selection when IPv6 hosts in an IPv6 island must access IPv4-only servers and services. NAT-PT translates between IPv6 and IPv4 packet headers and allows IPv6-only nodes to communicate with IPv4-only destinations by dynamically creating translation state. In this scenario, IPv6 hosts need access to file servers and DNS services in an IPv4 network, so a dynamic translation mechanism is required. Stateless NAT66 and stateful NAT66 are IPv6-to-IPv6 translation mechanisms and do not connect IPv6 hosts to IPv4-only resources. Static NAT-PT would be appropriate for fixed one-to-one mappings where specific hosts are permanently mapped, but the question describes general access from an IPv6 island to IPv4 services, making dynamic NAT-PT the better match. In modern designs, NAT64 and DNS64 are commonly preferred successors, but within the answer choices NAT-PT is the IPv6-to-IPv4 transition mechanism. Reference topics: IPv6 transition, NAT-PT, IPv6-to-IPv4 translation, DNS access, dual-protocol migration.
