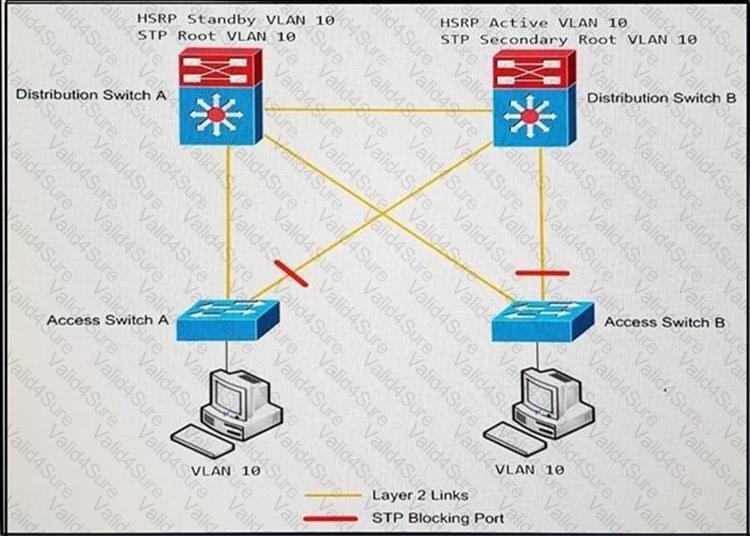

The most efficient campus design aligns the active first-hop gateway with the Layer 2 forwarding path. In a traditional access-distribution topology using STP and HSRP, traffic should not cross the distribution-to-distribution link simply because the HSRP active gateway is on the opposite distribution switch from the STP forwarding path. Cisco campus design guidance stresses aligning the STP root bridge with the active FHRP gateway so hosts forward northbound traffic directly to the distribution switch that owns the optimal Layer 2 path. Reconfiguring distribution switch A to become the HSRP active device fixes the asymmetric and inefficient traffic flow in the exhibit. Adding a link between access switches would extend the Layer 2 domain and increase loop-prevention complexity, not improve the northbound default-gateway path. Changing the distribution interconnect to a routed link may be valid in a routed-access redesign, but it is not the targeted correction for this Layer 2/FHRP misalignment. An EtherChannel between distribution switches only increases interswitch capacity; it does not remove the unnecessary hairpin path caused by the wrong active gateway.

The Cisco SD-Access edge node is equivalent to the access-layer switch in a traditional three-tier campus design. Edge nodes are the fabric devices to which wired endpoints, access points, and other user-facing connections attach. They provide the anycast Layer 3 gateway for connected subnets, classify endpoints into virtual networks, apply policy information, and register endpoint reachability with the SD-Access control-plane node. In traditional campus terminology, this is the role normally performed by access switches at the edge of the network. Border nodes connect the SD-Access fabric to external networks, such as the WAN, data center, internet edge, or shared services. Intermediate nodes provide underlay transport between fabric nodes but do not attach endpoints to the fabric overlay. Control-plane nodes maintain mapping information rather than serving as access-layer attachment points. Understanding the edge-node role is fundamental because SD-Access policy and host mobility begin where the endpoint enters the fabric. Reference topics: SD-Access edge node, access layer, anycast gateway, endpoint registration, fabric roles.

Cisco SD-Access uses virtual networks as macro-segmentation boundaries, and those VNs are represented as VRF instances in the fabric. By design, separate VNs do not communicate directly inside the overlay unless the design introduces controlled inter-VN routing. Cisco SD-Access designs commonly use an external fusion router, firewall, or shared-services device to map fabric VNs to external VRFs and selectively exchange routes between them. That is the correct design because it preserves segmentation while allowing policy-controlled access to shared resources or selected networks. GRE tunnels between fabric edges are not the normal SD-Access inter-VN communication method and would bypass the intended fabric policy model. Security Group Tags provide microsegmentation within or across policy domains, but SGTs do not by themselves leak routes between separate virtual networks. Route leaking on fabric border nodes is not the recommended standalone answer here because inter-VN communication is normally provided through a fusion device or firewall outside the fabric. Therefore, the correct solution is external fusion routing with controlled VRF route exchange.

The company must configure a summary route on R1. The branch routers must remain normal EIGRP routers, and auto-summary is not allowed, so the scalable design choice is manual summarization at the hub. Cisco EIGRP documentation states that manual summarization can be configured on an interface using the ip summary-address eigrp command and can summarize routes on almost any bit boundary. In a DMVPN hub-and-spoke topology, a hub summary reduces the number of individual routes advertised to branches, limits routing-table growth, and helps contain EIGRP queries. It also keeps branch configuration simple because the branches do not need to be converted to stub routers to meet this specific requirement. Disabling split horizon is a common DMVPN Phase 2 consideration when the hub must advertise spoke routes back out the same multipoint tunnel interface, but it does not summarize HQ routes. A multipoint interface is already implied by DMVPN, and disabling the SIA timer is not a design solution. Reference topics: EIGRP manual summarization, DMVPN hub design, no auto-summary, query containment.

The branch subnets must each support up to 200 hosts, so /120 is the correct IPv6 prefix length from the available options. A /120 provides 256 IPv6 addresses, which satisfies the 200-host requirement. A /121 provides only 128 addresses, which is not enough. The parent block is 2a01:0c30:0016:7009::3800/118. A /118 has 10 host bits, so it contains 1024 addresses and spans from ::3800 through ::3bff. The valid /120 boundaries inside that parent are ::3800/120, ::3900/120, ::3a00/120, and ::3b00/120. From the listed choices, 2a01:0c30:0016:7009::3a00/120 and 2a01:0c30:0016:7009::3b00/120 both fall inside the parent allocation and provide enough address capacity. The /121 options are too small, and ::3c00/120 is outside the /118 parent range. This is a straightforward IPv6 prefix-boundary and capacity calculation. Reference topics: IPv6 subnetting, prefix length, address block boundaries, branch address planning.

An open YANG model is the correct choice because the automation scope is multivendor and the workflow must be reusable across diverse routing and switching platforms. Native vendor models expose platform-specific details and are valuable when a feature is unique to one operating system, but they create code branching and operational inconsistency when many vendors and hardware families are in scope. The question also says the DR playbook will be adjusted in the future, which argues for a model that reduces redesign whenever a device vendor or platform changes. Open models, such as IETF or OpenConfig where supported, provide common schema structures for standard network functions and allow the microservice and controller integration to remain cleaner. A custom individualized model would increase development and maintenance burden, not reduce it, unless there is a very specific abstraction layer requirement. Using a single native vendor model cannot support the stated multivendor environment. The professional design is to use open models wherever coverage is sufficient, then fall back to native models only for unsupported platform-specific capabilities. Reference topics: YANG model selection, OpenConfig, IETF YANG, Cisco native YANG, multivendor automation.

The dial-out model-driven telemetry approach is initiated by the network device, not by the collector. Cisco IOS XE telemetry documentation describes configured subscriptions as dial-out because the publisher, meaning the router or switch, initiates the connection to the configured receiver. After the session is established, the device streams the subscribed YANG-modeled data at the configured cadence or when the configured on-change condition occurs. This model is useful when the telemetry collector is a fixed destination and the network operator wants the device to maintain the outbound session automatically. Option B describes dial-in telemetry, where the collector or subscriber connects to the device and requests the subscription. Option C is also dial-in oriented because the collector initiates the session. Option D is close in wording, but the key design point is that the session is based on an already configured subscription rather than a negotiation process. Reference topics: model-driven telemetry, configured subscriptions, dial-out telemetry, YANG-push, telemetry collectors.

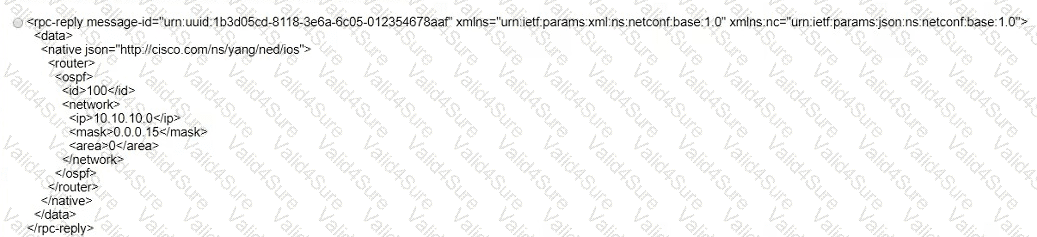

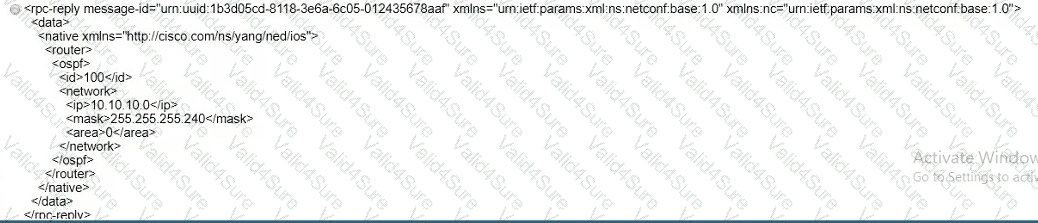

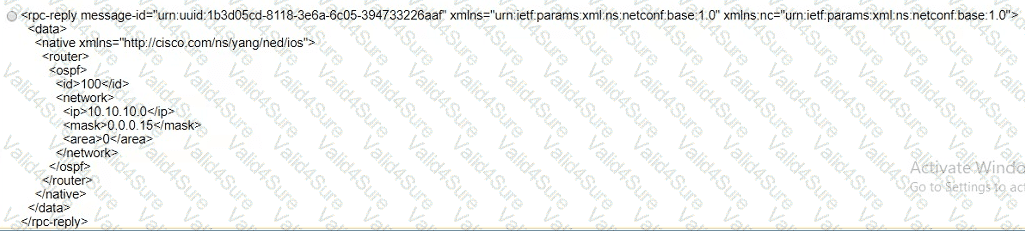

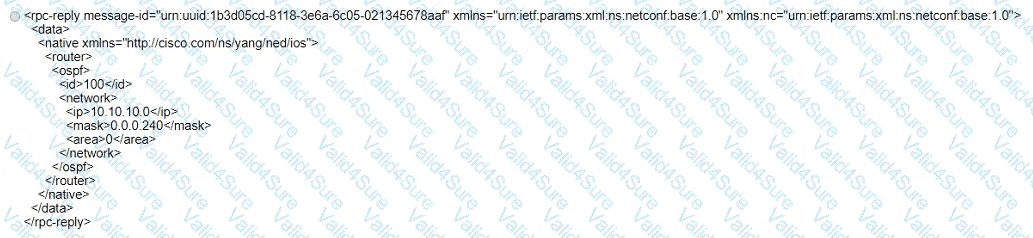

The verifying get-config reply must reflect the same YANG model hierarchy and configured values that were pushed by the Postman request. In model-driven automation, a successful transport response is not enough; the engineer must confirm that the intended datastore contains the exact interface, routing, or protocol objects described by the model. Option D is the selected reply because it matches the expected YANG structure for the configuration operation shown in the exhibit. The key principle is that get-config returns configuration data from a specified datastore, such as running or candidate, using the schema-defined XML hierarchy. If the returned XML uses the wrong container, wrong namespace, incorrect key value, or an unexpected leaf, the model set was not designed or addressed correctly. Cisco NETCONF/YANG workflows rely on strict namespace and path accuracy, so even a small mismatch can result in configuration being placed in the wrong subtree or not applied. A clean validation checks the model namespace, parent containers, list keys, leaf names, and actual configured value. Reference topics: NETCONF get-config, YANG XML encoding, datastore validation, Postman automation workflow.
