In the given UML package diagram fragment, various elements are listed with stereotypes indicating their nature («class», «interface»). Stereotypes are used in UML to extend the vocabulary of UML in order to create new kinds of building blocks. They are typically enclosed in guillemets (« »).

The last element, 'six', does not have a stereotype indicating whether it's a class, interface, or some other kind of element. This lack of a stereotype leads to ambiguity about the nature of 'six'. Therefore, the fragment is considered invalid due to this omission.

All the other options do not constitute an error in the UML fragment: A) A list of elements is allowed in a package body. B) Visibility is not required for every element, especially within package diagrams. C) Interfaces are allowed in packages. D) Private elements are allowed in a package. E) Protected elements are also allowed in a package.

Therefore, the correct answer is:

F. Element six is missing its stereotype.

• Represent the movement of data or objects between activities.
• Can support multicast, meaning sending a single token to multiple recipients.
• Can support transformation, where input tokens are altered or transformed into different output tokens.

Control Flows

• Represent the sequence of execution between activities.
• Generally carry control tokens to indicate when the next activity can begin.

Explanation for why Answer B is Correct

• Multicast and Transformation: Object flows are specifically designed to handle more complex scenarios with multiple inputs, outputs, and the ability to transform data. Control Flows are focused on the order of execution and don't directly support these capabilities.

Analysis of Other Options:

• A. Both object flows and control flows can pass... : While both can carry tokens, the specializations of multicast and transformation are unique to object flows.
• C. Only control flows provide additional support... : This is incorrect. As mentioned above, these features are associated with object flows, not control flows.
• D. Only object flows may reorder... : This is potentially true, but less central to the main difference between object flows and control flows, which is the ability of object flows to support multicast and transformation.

References

• UML 2.5.1 Specification (Superstructure): Sections on Activity Diagrams, Object Flow, and Control Flow https://www.omg.org/spec/UML/2.5.1/

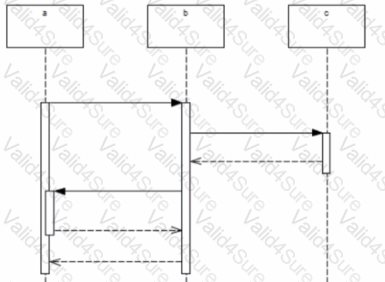

An execution occurrence specification in UML sequence diagrams is represented by a thin rectangle on a lifeline. It shows that an instance is performing an action over a period of time.

In the provided sequence diagram, we can see three such thin rectangles on lifeline 'b', which indicates that there are three execution occurrence specifications.

• One for the message that comes from 'a' to 'b'.
• Another one for the message that 'b' sends to 'c'.
• And the last one for the return message from 'c' to 'b'.

There are no execution occurrence specifications on lifelines 'a' and 'c'.

Therefore, the correct answer is:

D. 3

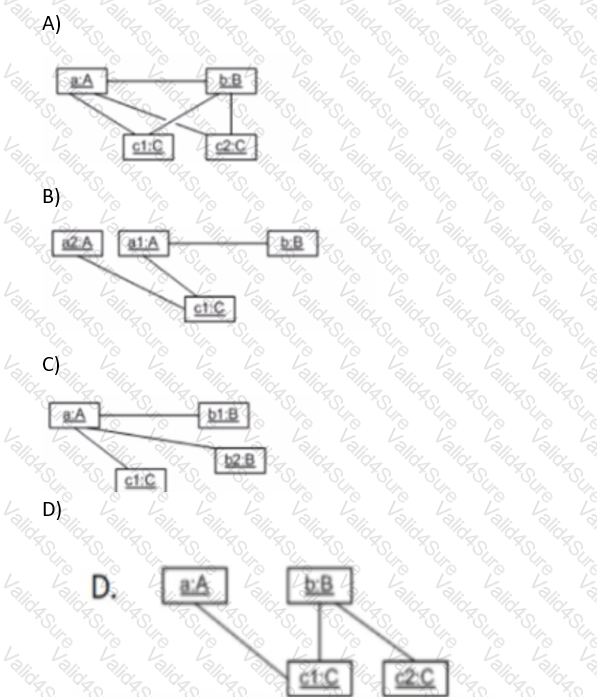

The question asks to identify which object diagram corresponds to the provided class diagram. In order to verify which object diagram is correct, we must look at the class diagram to understand the relationships and multiplicities between the classes, and then match these with the objects and links in the object diagrams.

The class diagram (not visible in your query but implied to be the reference for the object diagrams provided) must contain three classes, A, B, and C, with specific multiplicity relationships among them. Here’s how we deduce the correct object diagram:

• Multiplicity between A and C is "1..2", which means that for each instance of A there must be one or two links to instances of C.
• Multiplicity between B and C is "0..2", which means that for each instance of B there are zero, one, or two links to instances of C.
• Multiplicity between A and B is "0..1", which indicates that for each instance of A there can be zero or one link to an instance of B.

With these rules, we analyze the object diagrams:

• Option Ahas one instance of A linked to two instances of C, which is correct according to the "1..2" multiplicity. However, there are two instances of B (b1 and b2) each linked to a single instance of C (c1), which violates the "0..2" multiplicity rule because it implies there should be two links from c1 to the B instances (b1 and b2) but instead, there are two separate links to the same instance of C (c1), which is not allowed.
• Option Bhas similar issues where two instances of A (a2 and a1) are linked to a single instance of C, which violates the "1..2" multiplicity rule.
• Option Cshows each instance of A and B linked to their own separate instances of C. This violates the "1..2" multiplicity between A and C since there is only one link from A to C and does not show the possibility of two links which the multiplicity "1..2" would allow.
• Option Dshows a single instance of A linked to two instances of C (c1 and c2), which satisfies the "1..2" multiplicity. Additionally, there is a single instance of B linked to one of the instances of C (c1), satisfying the "0..2" multiplicity. The A instance has no direct link to the B instance, which is allowed because the "0..1" multiplicity permits zero links between instances of A and B.

Based on this analysis, the only object diagram that satisfies all the multiplicity constraints of the class diagram isOption D.

The verification of the answer can be cross-checked with the UML 2 Foundation documentation, specifically in the section dealing with object diagrams and their correlation with class diagrams, which will confirm that object diagrams represent instances of classes and must comply with the multiplicities defined in the class diagram they are derived from. Multiplicity notation and interpretation are fundamental concepts in UML and are well documented in the UML specification by the Object Management Group (OMG).

The correct answer is Option B. This diagram accurately depicts the scenario where activity Act1 is carried out first, followed by activity Act2, and then Act1 is performed again.

Here's why the other options are incorrect:

• Option A: This diagram shows Act1 followed by Act2, but Act1 is not repeated.
• Option C: Similar to Option A, this diagram depicts Act1 followed by Act2, without a repetition of Act1.
• Option D: This diagram has conditional branches, which is not part of the given scenario where the activities are carried out sequentially.

Following the logic from the prompt: Act1 -> Act2 -> Act1, Option B visually represents this sequence with arrows connecting the activities in the specified order.

The provided image depicts a state machine fragment containing an invalid transition. The state machine has a single state labeled "S1" with an incoming and outgoing transition labeled "e".

According to the UML 2 Foundation documents, a transition in a state machine cannot originate from and target the same state. This type of loopback transition within a single state is not permitted.

Here's a breakdown of why other options are incorrect:

• Option A (A transition requires a trigger or guard) is not necessarily true. Transitions can exist without explicit triggers or guards, although their presence is often recommended for clarity and modeling complex behavior.
• Option B (A guard condition is not allowed on the initial transition) is valid. Guard conditions are indeed not allowed on the initial transition of a state machine, but the issue in the diagram is the loopback, not the presence or absence of a guard.
• Option C (A trigger is not allowed on the transition to the final state) is not always true. Final states can have outgoing transitions with triggers under specific circumstances (e.g., for hierarchical state machines). However, the error here concerns the loopback nature of the transition.

References:

• UML Specification (Superstructure) Version 2.5.1, specifically sections covering state transitions (Section 14.2.3.7). You can find it on the OMG website: https://www.omg.org/spec/UML/2.5.1

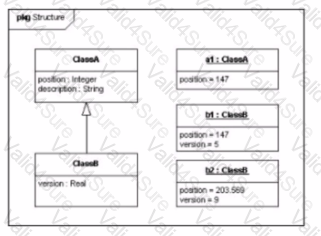

In the UML diagram given, we see two classes,ClassAandClassB, withClassBinheriting fromClassA.ClassAhas two attributes,positionof typeIntegeranddescriptionof typeString.ClassBintroduces an additional attribute,versionof typeReal.

Looking at the instance specifications (the right part of the diagram), we have three instances:a1of typeClassA,b1of typeClassB, andb2also of typeClassB.

In UML, an instance specification must comply with the structure of its classifier, which means an instance ofClassAmust show slots for bothpositionanddescription, whereas an instance ofClassBmust show slots forposition,description, andversion.

In the provided diagram, instancea1ofClassAonly shows a slot forposition. This is an error because it does not show a slot fordescription, which is a defined attribute ofClassA. To correct this error, we would need to add adescriptionslot toa1.

This means that the correct answer is:

B. Add a description slot to a1.

The other options do not correct the error in the model:

A) Specifying unique values forpositiondoes not address the missingdescriptionslot ina1. C) Changing the type ofClassB.versionfromRealtoIntegeris not required by any UML constraint in the context given. D) Changing the type ofClassA.positionfromIntegertoRealdoes not address the missingdescriptionslot ina1and is unrelated to the inheritance structure.

In UML, the «extend» relationship indicates that the behavior defined in the extending use case (the extension) can be inserted into the behavior defined in the extended use case (the base). The extension occurs only under certain conditions, which are specified by the extension points. This relationship allows for the addition of optional behavior to a use case, which can be activated under certain conditions.

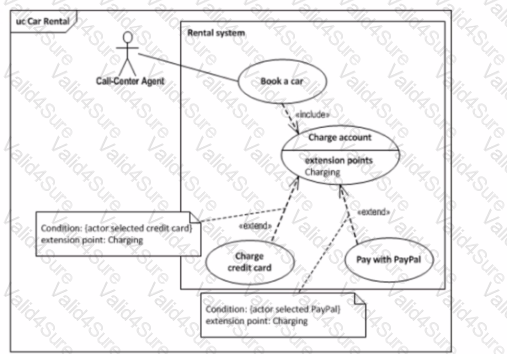

The diagram provided shows an extension relationship where "Charge credit card" and "Pay with PayPal" are extending "Charge account" use case at the "Charging" extension point.

The key benefit of using the «extend» relationship in this context is that it allows for the flexible addition of new behaviors (like new payment methods) without modifying themain use cases. It helps in evolving the system by adding optional behaviors that only occur under certain conditions, which is mentioned as an option:

C. This Use Case model could be updated with further payment methods without changing the main Use Cases "Book a car" and "Charge account".

This means that new payment methods could be incorporated as additional extending use cases in the future, just like "Charge credit card" and "Pay with PayPal".

The other options do not correctly describe the use of the «extend» relationship: A) «extend» relationships do not replace the need for behavior descriptions such as activities. B) It's not about functional decomposition; it's about adding optional or conditional behavior. D) «extend» is not a taxonomic relationship and does not extract general descriptions into a super Use Case; rather, it adds behavior under certain conditions.

Therefore, the correct answer is:

C. This Use Case model could be updated with further payment methods without changing the main Use Cases "Book a car" and "Charge account".
