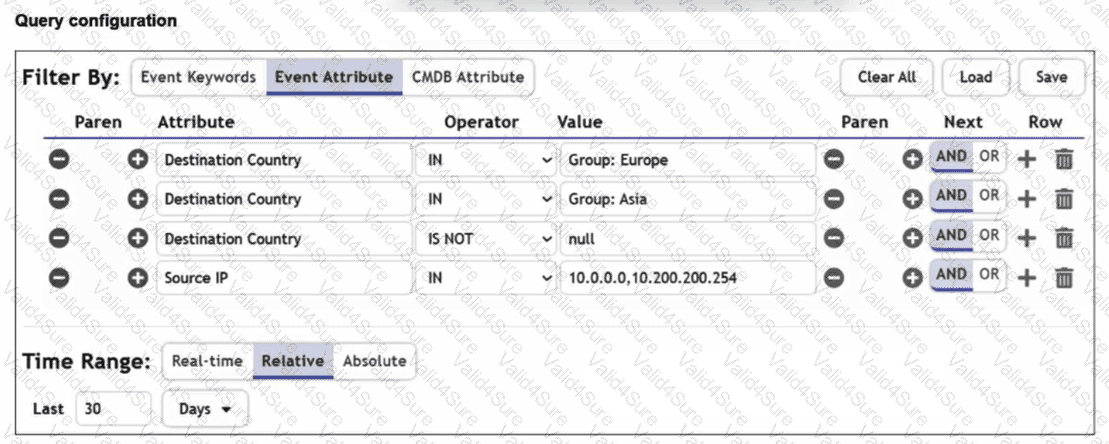

Analyzing the Query Configuration exhibit in the context of FortiSIEM 7.3 search logic reveals several syntax and logical errors that prevent the query from returning results:

Logical Operator Error (E): The user intends to find traffic to Europe OR Asia. In the exhibit, the first row (Group: Europe) is followed by a default AND operator. This forces the query to look for a single flow where the destination is simultaneously in Europe and Asia, which is logically impossible. It must be changed to OR .

Missing Parentheses (C): When combining OR and AND logic in FortiSIEM, parentheses are required to define the order of operations. Without them, the query might evaluate " Asia AND Destination Country IS NOT null AND Source IP IN... " first. To correctly find (Europe OR Asia) that also matches the LAN segment, parentheses must group the first two rows.

Incorrect Operator for IP Range (D): The exhibit uses the IN operator for the value 10.0.0.0, 10.200.200.254. In FortiSIEM, the IN operator is used for a comma-separated list of specific values or CMDB groups. To specify a continuous range of IP addresses (the " LAN segment " ), the BETWEEN operator must be used.

Why other options are incorrect:

IS NOT null (A): In FortiSIEM, " IS NOT null " is a valid operator/value combination used to ensure a specific attribute has been successfully parsed and populated in the event record.

Time Range (B): There is no requirement for a time range to be " Absolute " when using CMDB groups; " Relative " time ranges (like the " Last 30 Days " shown) are commonly used and fully supported for such queries.

SOC Concepts and Frameworks

Collector 2. Worker 3. Supervisor 4. Agent

The FortiSIEM 7.3 architecture is built upon a distributed multi-tenant model consisting of several distinct functional roles to ensure scalability and performance:

Supervisor: This is the primary management node in a FortiSIEM cluster. It hosts the Graphical User Interface (GUI), the Configuration Management Database (CMDB), and manages the overall system configurations, reporting, and dashboarding.

Worker: These nodes are responsible for the heavy lifting of data processing. They execute real-time event correlation against the rules engine, perform historical search queries, and handle the analytics workload to ensure the Supervisor node is not overwhelmed.

Collector: Collectors are typically deployed at remote sites or different network segments to offload log collection from the central cluster. They receive logs via Syslog, SNMP, or WMI, compress the data, and securely forward it to the Workers or Supervisor. They also perform performance monitoring of local devices.

Agent: These are lightweight software components installed directly on endpoints (Windows/Linux). Their primary role is to collect local endpoint logs, monitor file integrity (system changes), and track user activity that cannot be captured via traditional network-based logging.

Exact Extract: “The Pyramid of Pain illustrates why focusing on adversary TTPs is important: They are the most descriptive IOCs of a given adversary and the toughest for threat actors to change.” The guide ranks Domain Names as “Simple” and IP Addresses as “Easy,” while TTPs are “Tough.”

Exact Extract: “As you progress from the top of the pyramid to the bottom, the disruption of an element becomes easier for the adversary to recover from… once those IP addresses start to be widely recognized as malicious and potentially blocked, it is easy for the attacker to start using other IP addresses.”

The correct answers are C and D . Blocking IP addresses and domains is useful, but it targets low-level observable indicators, not the adversary’s deeper behavior. In the Pyramid of Pain, IP addresses and domain names sit near the bottom because attackers can replace them quickly by rotating infrastructure, registering new domains, using compromised hosts, or changing hosting providers. Therefore, this approach focuses on network indicators and creates only limited disruption.

Option A is too strong. IPs and domains may reveal infrastructure, but blocking them does not necessarily identify strategic weaknesses in the adversary’s operation. Option B is wrong because high operational cost is associated with forcing adversaries to change tools or TTPs, not merely rotating IPs and domains.

Technical Deep Dive: In a Fortinet SOC, blocking phishing IPs/domains can be automated through FortiSOAR playbooks using FortiGate address objects, DNS filtering, FortiMail blocklists, or FortiGuard threat intelligence enrichment. That is good hygiene, but it is reactive. Higher-value hunting looks for reusable phishing tradecraft: lure themes, sender infrastructure patterns, attachment behaviors, command-and-control sequence, credential collection workflow, and post-compromise TTPs. ASIC offloading is not the key issue here; the security value comes from intelligence quality and detection depth, not packet acceleration.
