Understanding Playbook Triggers :

Playbook triggers are the starting points for automated workflows within FortiAnalyzer or FortiSOAR.

These triggers determine how and when a playbook is executed and can pass relevant information (trigger variables) to subsequent tasks within the playbook.

Types of Playbook Triggers :

EVENT Trigger :

Initiates the playbook when a specific event occurs.

The event details can be used as variables in later tasks to customize the response.

Selected as it allows using event details as trigger variables.

INCIDENT Trigger :

Activates the playbook when an incident is created or updated.

The incident details are available as variables in subsequent tasks.

Selected as it enables the use of incident details as trigger variables.

ON SCHEDULE Trigger :

Executes the playbook at specified times or intervals.

Does not inherently use trigger events to pass variables to later tasks.

Not selected as it does not involve passing trigger event details.

ON DEMAND Trigger :

Runs the playbook manually or as required.

Does not automatically include trigger event details for use in later tasks.

Not selected as it does not use trigger events for variables.

Implementation Steps :

Step 1 : Define the conditions for the EVENT or INCIDENT trigger in the playbook configuration.

Step 2 : Use the details from the trigger event or incident in subsequent tasks to customize actions and responses.

Step 3 : Test the playbook to ensure that the trigger variables are correctly passed and utilized.

Conclusion :

EVENT and INCIDENT triggers are specifically designed to initiate playbooks based on specific occurrences, allowing the use of trigger details in subsequent tasks.

Exact Extract: “The subpattern… consists of three components: Filter… Aggregate… Group By… Aggregate: The aggregate function stipulates that five or more events within the 600-second time window must be matched. Group By: If multiple VPN login failure events have the same source IP address, reporting device, reporting IP address, and user, they are grouped together in one row, and the count column tracks the number of events for each row.”

Exact Extract: “FortiSIEM uses the analytics search filter conditions to create the rule subpattern Filter conditions and the search display conditions to create the rule Group by conditions. When creating rules from analytics searches, FortiSIEM always sets the Aggregate condition to COUNT(Matched Events) > = 1.”

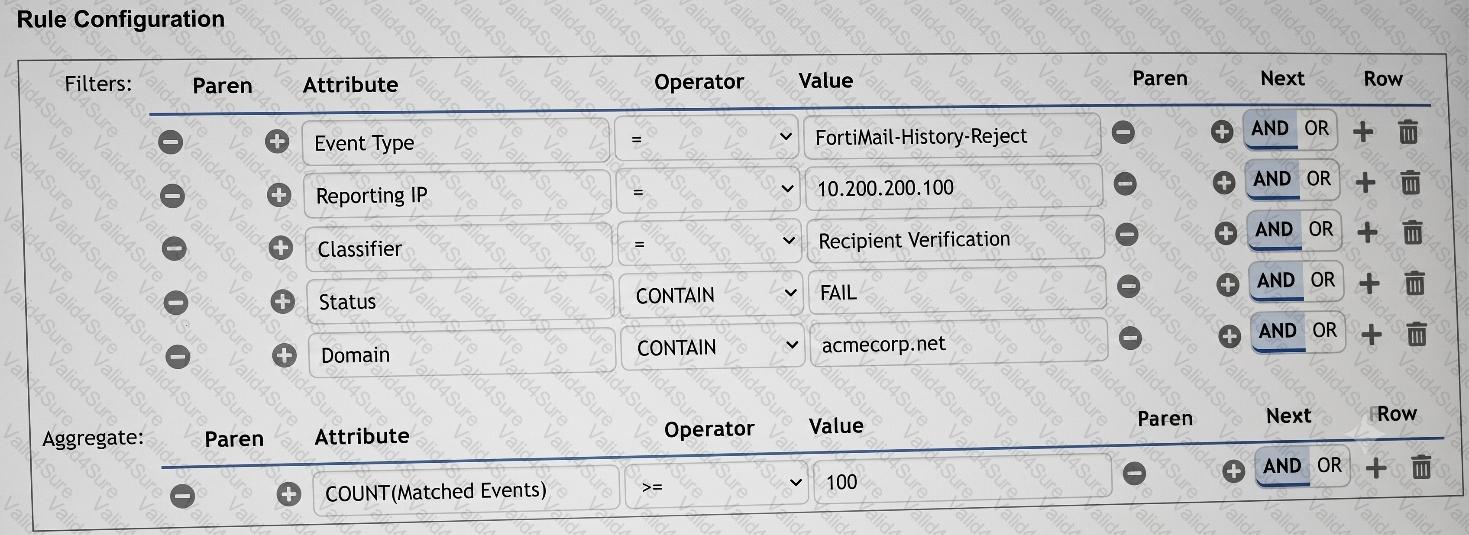

The correct answer is A because the requirement is not simply “100 failed events”; it is 100 failures for different email accounts . The existing aggregate COUNT(Matched Events) > = 100 only counts total matching FortiMail rejection events. That could trigger even if one recipient address failed 100 times. To detect failures across different recipients , the aggregate must count unique recipient values, so COUNT(Distinct Mail Receiver) > = 100 is the correct modification. Option B is invalid because Mail Receiver is a field containing an email recipient value, not a numeric counter. Option C incorrectly tries to push counting logic into the Status filter; Status should remain a filter such as CONTAIN FAIL . Option D may be useful only if the domain is not already filtered, but the exhibit already includes the domain condition for acmecorp.net , and it still would not solve the “different email accounts” requirement.

Technical Deep Dive: FortiSIEM correlation rules separate filtering from aggregation. Filters define which events qualify; aggregate functions define when the pattern becomes significant. Here, FortiMail supplies rejection events with fields such as event type, classifier, status, domain, and mail receiver. The right logic is: filter FortiMail recipient-verification failures for acmecorp.net, then aggregate on distinct Mail Receiver values. FortiGate NP/CP offloading is irrelevant here; this is SIEM-side event correlation, not packet forwarding or ASIC-accelerated inspection.

Understanding the Playbook and its Components:

The exhibit shows the status of a playbook named " DOS attack " and its associated tasks.

The playbook is designed to execute a series of tasks upon detecting a DoS attack event.

Analysis of Playbook Tasks:

Attach_Data_To_Incident: Task ID placeholder_8fab0102, status is " upstream_failed, " meaning it did not execute properly due to a previous task ' s failure.

Get Events: Task ID placeholder_fa2a573c, status is " success. "

Create SMTP Enumeration incident: Task ID placeholder_3db75c0a, status is " failed. "

Reviewing Raw Logs:

The error log shows a ValueError: invalid literal for int() with base 10: ' 10.200.200.100 ' .

This error indicates that the task attempted to convert a string (the IP address ' 10.200.200.100 ' ) to an integer, which is not possible.

Identifying the Source of the Error:

The error occurs in the file " incident_operator.py, " specifically in the execute method.

This suggests that the task " Create SMTP Enumeration incident " is the one causing the issue because it failed to process the data type correctly.

Conclusion:

The failure of the playbook is due to the " Create SMTP Enumeration incident " task receiving a string value (an IP address) when it expects an integer value. This mismatch in data types leads to the error.

Understanding the MITRE ATT & CK Matrix:

The MITRE ATT & CK framework is a knowledge base of adversary tactics and techniques based on real-world observations.

Each tactic in the matrix represents the " why " of an attack technique, while each technique represents " how " an adversary achieves a tactic.

Analyzing the Provided Exhibit:

The exhibit shows part of the MITRE ATT & CK Enterprise matrix as displayed on FortiAnalyzer.

The focus is on technique T1071 (Application Layer Protocol), which has subtechniques labeled T1071.001, T1071.002, T1071.003, and T1071.004.

Each subtechnique specifies a different type of application layer protocol used for Command and Control (C2):

T1071.001 Web Protocols

T1071.002 File Transfer Protocols

T1071.003 Mail Protocols

T1071.004 DNS

Identifying Key Points:

Subtechniques under T1071: There are four subtechniques listed under the primary technique T1071, confirming that statement B is true.

Event Handlers for T1071: FortiAnalyzer includes event handlers for monitoring various tactics and techniques. The presence of event handlers for tactic T1071 suggests active monitoring and alerting for these specific subtechniques, confirming that statement C is true.

Misconceptions Clarified:

Statement A (four techniques under tactic T1071) is incorrect because T1071 is a single technique with four subtechniques.

Statement D (15 events associated with the tactic) is misleading. The number 15 refers to the techniques under the Application Layer Protocol, not directly related to the number of events.

Conclusion:

The accurate interpretation of the exhibit confirms that there are four subtechniques under technique T1071 and that there are event handlers covering tactic T1071.

Slot 1: vars.artifacts

Slot 2: json_query

Slot 3: ( " data.results[?type== ' FileHash-MD5 ' ]

Slot 4: value

Exact Extract: “You can assign specific fields from your connector action output to their own variables and further manipulate the data using Jinja filters. This approach allows you to efficiently extract, clean, and prepare information for use in later steps of your automation.”

Exact Extract: The guide shows the same Jinja pattern:

{{ vars.steps.Advanced_Search_Query.data.events | json_query( ' [].attributes.srcIpAddr ' ) | unique }}

and explains that similar Jinja logic applies to extracting other variables from structured output.

The correct expression is {{ vars.artifacts | json_query( " data.results[?type== ' FileHash-MD5 ' ].value " ) }} because the JSON object stores artifact records under vars.artifacts.data.results. Each object in results has a type and a value. The filter condition [?type== ' FileHash-MD5 ' ] selects only records whose type is FileHash-MD5 , and .value returns only the MD5 hash strings, not the full objects.

tojson is unnecessary because the data is already structured and queryable. results, data, and value alone are incomplete because they do not filter by artifact type. The key operation is json_query , which uses a JMESPath-style expression to filter a list and project only the required field.

Technical Deep Dive: This is a classic FortiSOAR playbook parsing pattern. Use json_query when the object is already JSON-like and you know the path. The expression returns a list such as:

[ " 6aad63bcc3dd4e148f3724808955f912 " , " 9fd2b1c0e4a37658bca9d0f1e2c34567 " ]

This is automation-layer data extraction. FortiGate NP/CP offloading is irrelevant because no packet inspection or firewall data-plane forwarding is involved.

The built-in Jinja editor in FortiSOAR 7.6 is a powerful utility designed to help playbook developers write and test complex data manipulation logic without having to execute the entire playbook. Its primary capabilities include:

Renders output (A): The editor provides a " Preview " or " Evaluation " pane. By combining a Jinja expression with a sample JSON input (manually entered or loaded), the editor dynamically calculates and displays the resulting output. This allows for immediate verification of data transformation logic.

Checks validity (B): The editor includes built-in linting and syntax validation. It alerts the developer to errors such as unclosed brackets, incorrect filter usage, or invalid syntax, ensuring that only valid Jinja code is saved into the playbook step.

Loads environment JSON (D): One of the most significant features for troubleshooting is the ability to load the environment JSON from a recent execution. This populates the editor ' s variable context (vars) with the actual data from a specific playbook run, allowing the developer to test expressions against real-world data that recently passed through the system.

Why other options are incorrect:

Creates new records in bulk (C): While Jinja expressions are used to format the data that goes into a record, the actual creation of records is handled by the " Create Record " step or specific Connectors , not by the Jinja editor utility itself.

Defines conditions to trigger a playbook step (E): Jinja is the language used to write conditions within a " Decision " step or " Step Utilities, " but the Jinja Editor is a tool for evaluating and testing those expressions. The definition of the condition logic and the triggering behavior is a function of the Playbook Engine and Step configuration, not the editor ' s standalone capabilities.

The Pyramid of Pain (David Bianco) is a core concept taught in FortiSIEM 7.3 and FortiSOAR 7.6 curriculum to help SOC analysts prioritize threat intelligence and detection logic. The model ranks indicators based on the " pain " or effort they cause an adversary to change:

IP Addresses (Easy): These are classified as " Easy " to change. An attacker can simply rotate through a proxy service, use a different VPS, or utilize a new compromised host to continue their campaign. While more valuable than a file hash, they provide relatively low-long term value to the defender because they are so ephemeral.

TTPs (Tough/Hard): This is the apex of the pyramid. TTPs (Tactics, Techniques, and Procedures) represent the fundamental way an adversary operates. If a defender successfully detects and blocks a Tactic (e.g., a specific way an attacker performs privilege escalation), the adversary is forced to reinvent their entire operational process, which is time-consuming and difficult.

Why other options are incorrect:

Artifacts (C): According to the pyramid, Network/Host Artifacts are classified as " Annoying " , not " Easy " . While an attacker can change them, it requires modifying their code or script behavior, which causes more friction than simply switching an IP address.

Tools (D): Tools are classified as " Challenging " . While alternatives exist, an adversary usually invests significant time mastering a specific toolset; losing the ability to use that tool effectively disrupts their efficiency significantly.

Exact Extract: “INFO verbosity is recommended for well-established playbooks. It contains only the final playbook execution status and individual playbook step status.” The guide further states: “DEBUG verbosity is recommended for newer playbooks or for active troubleshooting. It contains detailed logging that includes execution information, such as step input, output, configuration, and other details.”

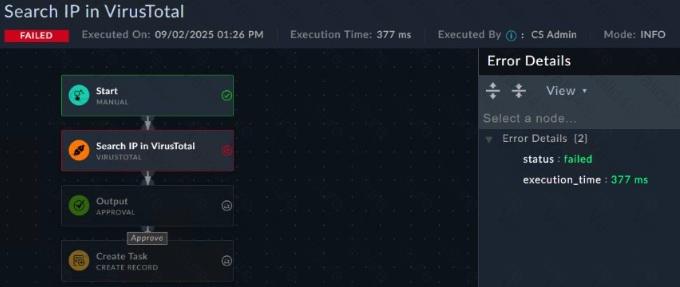

The correct answer is B . In the exhibit, the executed playbook shows Mode: INFO . INFO mode gives only high-level execution status and step status, which explains why the error panel shows only minimal details such as status: failed and execution time. To see connector input, output, configuration, and more useful troubleshooting details, the playbook logging verbosity must be changed to DEBUG .

A may cause a connector step to fail, but it does not explain why error details are missing. C is wrong because Ignore Error would allow the workflow to continue rather than fail normally. D could cause permission-related failure, but again it does not explain the lack of diagnostic detail. The visible clue is the logging mode.

Technical Deep Dive: For a newly built playbook, you should run tests in DEBUG mode until the workflow is stable. DEBUG logs expose step inputs, connector payloads, returned outputs, variable values, and configuration details. After validation, switch back to INFO in production to reduce log volume and storage usage. FortiGate NP/CP hardware offloading is irrelevant here because this is FortiSOAR workflow logging and connector execution diagnostics, not firewall data-plane traffic processing.
