FCSS_NST_SE-7.6 Exam Dumps - Fortinet NSE 6 - Network Security 7.6 Support Engineer

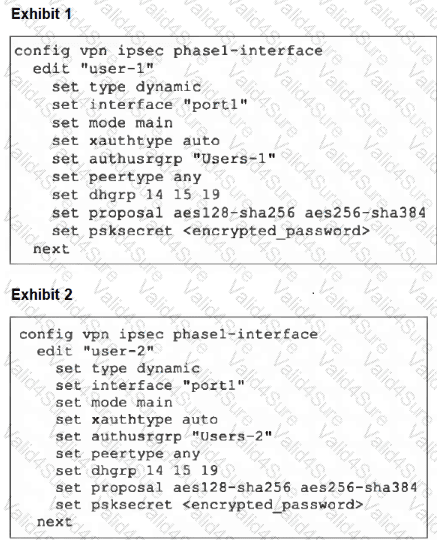

The key point is that the two VPNs are dynamic dialup IPsec tunnels on the same interface and both are using IKEv1 main mode . In this design, FortiGate cannot reliably distinguish which dialup phase1 to match before phase 1 completes.

The uploaded Network Security Support Engineer 7.6 Study Guide shows that XAuth happens only after phase 1 is already established:

“The IKE real-time debug shows, after phase 1, the exchange of extended authentication (XAuth) packets… You can also see the CFG_REPLY, showing the XAuth user and group name.”

That means the user group is learned too late to be used for selecting the correct phase1 definition. So the fix must be applied to the phase1 matching method itself , not to XAuth.

The FortiOS administration guide gives the exact rule for this scenario:

“When the remote VPN peer has a dynamic IP address and is authenticated by a pre-shared key you must select Aggressive mode if there is more than one dialup phase 1 configuration for the interface IP address.”

The correct answer is B. Assertion dump .

The study guide states: “SAML attributes are pieces of information about a user that are exchanged between IdPs and SPs during the SAML authentication process. These attributes are included in the SAML assertion, which is built by the IdP as part of the authentication process.”

The same study guide page for real-time SAML troubleshooting shows the section labeled **** Assertion Dump **** , and inside that assertion it displays the actual user attributes, such as:

< saml:Attribute Name= " username " >

< saml:Attribute Name= " groups " >

It also explicitly marks this part as “Attributes sent by IdP”

Why the other options are wrong:

A. Bindings HTTP post is incorrect because bindings define how SAML messages are transported , not the section that contains the attributes. The study guide says: “Bindings: Define how SAML protocol messages are transmitted over different communication channels.”

C. Authentication request is incorrect because that is built by the SP and sent toward the IdP, not where the IdP’s user attributes are shown. The study guide’s flow says the SP “Builds auth request” and the IdP later “Builds auth response.”

D. Authentication response is broader than the exact section being asked. The exact section in the study guide where the IdP-provided attributes are shown is the Assertion dump .

So the verified answer is: B .

The diagnose debug authd fsso server command is the primary tool for troubleshooting communication between the FortiGate and the FSSO Collector Agent. This debug output reveals the status of the connection and the reasons for failure. The three most common connectivity issues identified by this debug are:

FortiGate cannot reach the IP address of the collector agent (Option C): The debug will show connection timeouts or " host unreachable " errors if the Layer 3 connectivity is missing.

The connection was refused / Port mismatch (Option B): If the FortiGate can reach the IP but the Collector Agent is not listening on the specified port (default 8000), the debug will display " Connection refused. " This often happens if the port configured on the FortiGate does not match the listening port on the agent.

The pre-shared key does not match (Option D): If the IP and Port are correct, the next step is authentication. If the password configured on the FortiGate does not match the one on the Collector Agent, the debug will explicitly show an " Authentication failed " or " password mismatch " error during the handshake.

Note on other options: Option A (SSL) is less common than basic connectivity/auth mismatches. Option E (Group filters) relates to user processing logic, which occurs after connectivity is established.

The correct answer is A .

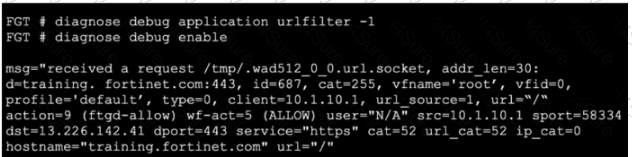

The debug output is for an HTTPS request and shows a hostname value. The study guide explains that with SSL certificate inspection, FortiGate extracts the FQDN from either:

“TLS extension server name indication (SNI)”

“SSL certificate common name (CN)”

So the hostname shown in the real-time web-filter debug can be derived from the SNI in the client request or, if needed, from the CN in the server certificate. That makes A correct.

Why the other options are wrong:

B is wrong because the study-guide example for web-filter real-time debug explicitly says: “This slide shows an example of real-time debug output when the URL to categorize isn ' t in the FortiGuard cache.” In these debugs, cat=255 appears before the final lookup result, so this does not indicate a local-cache hit.

C is wrong because ftgd-allow is the action , not the profile name. The debug line shows the action as action=9 (ftgd-allow) while the profile shown is profile= ' default ' . FortiOS web-filter logs also use the profile field separately from the action field

D is wrong because the final category shown is url_cat=52 , not 255. The study guide’s example shows the same pattern: an initial cat=255 in the request line, followed by the resolved result cat=52 url_cat=52

So the verified answer is: A .

The correct answer is D. Assertion dump .

The study guide states that: “SAML attributes are pieces of information about a user that are exchanged between IdPs and SPs during the SAML authentication process. These attributes are included in the SAML assertion, which is built by the IdP as part of the authentication process.”

It also shows the real-time SAML debug output under “ ** Assertion Dump ****”**, where the SAML attributes appear inside the assertion, such as:

< saml:Attribute Name= " username " >

< saml:Attribute Name= " groups " >

The same study-guide page explicitly labels this area as “Attributes sent by IdP”

So, although the IdP sends an authentication response overall, the actual section that contains the SAML attributes is the Assertion dump
