In the F5 BIG-IP ecosystem, a standard ICMP health monitor functions by sending an ICMP echo request to a target node and expecting an ICMP echo reply within a specified timeout period. When a node is marked " DOWN " despite the backend server being configured to respond to ICMP, the issue typically lies in the network path or the specific packet exchange between the BIG-IP ' s self IP and the node ' s IP. Running a tcpdump is the most effective next step because it provides a real-time packet capture of the actual monitor traffic leaving the BIG-IP and any return traffic coming back from the server. This allows the administrator to verify if the BIG-IP is actually sending the echo request, if the request is reaching the server, and if the server is indeed replying or if the reply is being dropped by an intermediate firewall or a security policy.

While other tools have their place, they are inappropriate for this specific layer 3/4 connectivity issue. A qkview is a comprehensive diagnostic file used primarily for F5 Support to analyze the entire system ' s state but is overkill for initial connectivity troubleshooting. An ssldump is used for inspecting SSL/TLS handshakes and encrypted payloads, which is irrelevant for a non-encrypted ICMP monitor. A curl command is a tool for testing HTTP/HTTPS application-level responses; it cannot be used to troubleshoot ICMP (ping) connectivity directly. By using tcpdump -ni < vlan_name > host < node_ip > , the administrator can see the ICMP " type 8 " (request) and " type 0 " (reply) packets, immediately identifying if the monitor failure is due to a " Destination Unreachable " message or a simple lack of response, thereby pinpointing the root cause in the data plane.

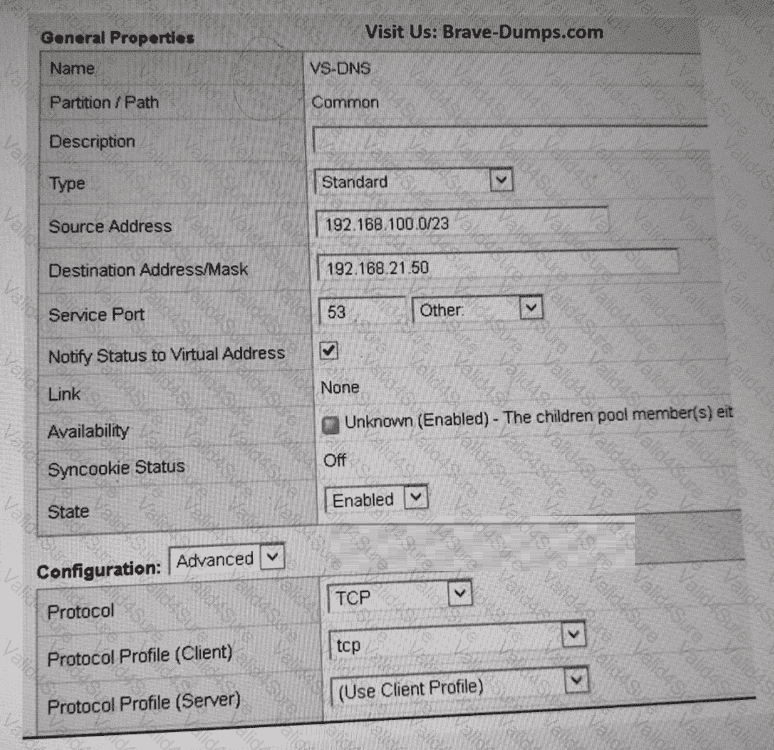

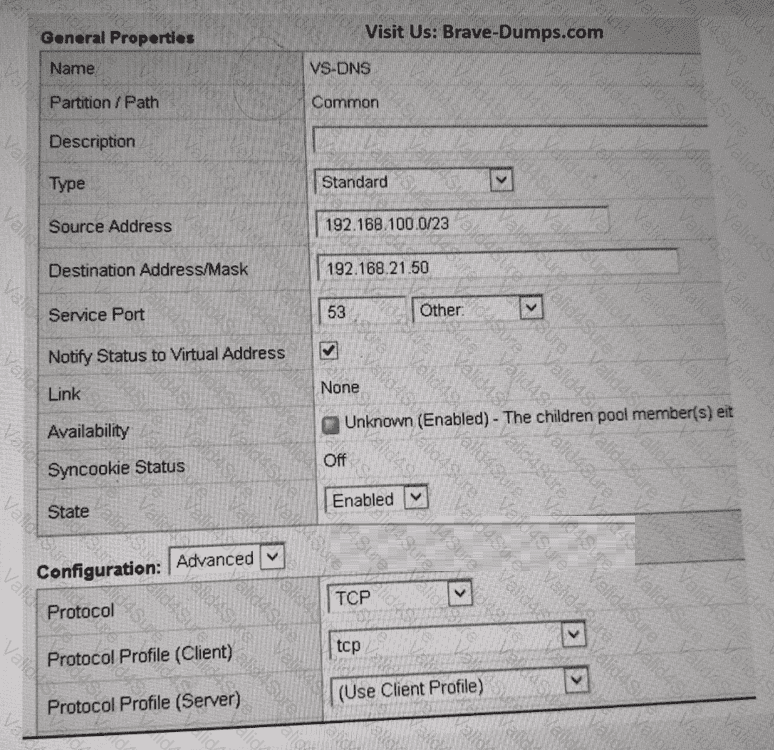

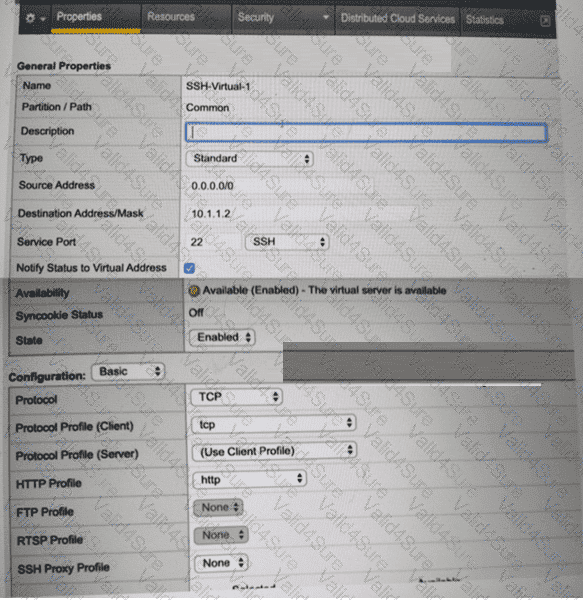

DNS traffic is primarily transported using UDP port 53. In the exhibit, the Virtual Server is configured with the Protocol set to TCP, which prevents standard DNS queries from being processed correctly. BIG-IP Virtual Servers must be configured with the correct Layer 4 protocol to match the application traffic they are handling.

According to the BIG-IP Administration: Data Plane Configuration documentation:

The Protocol setting on a Virtual Server defines whether traffic is processed as TCP, UDP, or another supported transport protocol.

Standard DNS queries and responses use UDP, while TCP is only required for DNS zone transfers (AXFR) or exceptionally large responses.

When a DNS Virtual Server is incorrectly configured with TCP, UDP-based DNS queries are dropped, causing all requests to fail.

Why the other options are incorrect:

A. Protocol profile (Client) to DNS_OPTIMIZEDA DNS profile enhances DNS functionality but does not correct an incorrect transport protocol configuration.

B. Type to Performance (HTTP)Performance (HTTP) Virtual Servers are designed for HTTP traffic and are not suitable for DNS services.

C. Source Address to 192.168.10.0/24The existing source IPs already fall within the allowed range, so this setting does not address the failure.

Correct Resolution:

Changing the Protocol to UDP aligns the Virtual Server with standard DNS transport requirements, allowing DNS queries to be successfully processed and load-balanced.

To fulfill the requirement of " SSL Offload " limited to " TLSv1.2 only, " the administrator must focus on the client-side of the connection. SSL Offload means the BIG-IP terminates the encrypted connection from the user, processes the traffic (often as plain text internally), and optionally sends it to the backend. The profile responsible for this termination and the initial negotiation with the client ' s browser is the Client SSL Profile.

A custom Client SSL Profile must be created because the default clientssl profile typically allows a broad range of protocols for compatibility (including TLS 1.0, 1.1, and 1.2). To restrict communication specifically to TLS 1.2, the administrator modifies the Ciphers string within the profile. Using a string such as DEFAULT:!SSLv3:!TLSv1:!TLSv1.1 or specifically defining TLSv1.2-only suites ensures that the BIG-IP will reject any handshake attempts from older, less secure protocols.

Server SSL Profiles (Options B and C) are used for the encryption between the BIG-IP and the backend nodes, which is not what is requested here. Simply selecting " no TLSv1 " in an options list (Option D) is insufficient and often refers to older versions of the software; the modern and standard way to control protocol negotiation on a BIG-IP is through the precise application of Cipher Strings within the Client SSL profile. This ensures compliance with security standards like PCI-DSS while providing the offloading benefits to the backend infrastructure.

F5 provides several pre-configured (built-in) TCP profiles designed to optimize traffic for different network conditions. When an administrator is looking to improve general performance but does not have a specific, narrow use case (like strictly mobile or strictly long-haul WAN), the f5-tcp-progressive profile is the recommended starting point.

The f5-tcp-progressive profile is designed as a modern, high-performance replacement for the older default TCP settings. It incorporates several advanced congestion control algorithms and buffer management techniques that allow it to adapt dynamically to varying network latencies and packet loss scenarios. Unlike f5-tcp-legacy (Option A), which uses older, less efficient stacks, the progressive profile leverages modern TMM (Traffic Management Microkernel) optimizations.

While f5-tcp-mobile (Option B) is highly effective for high-loss cellular networks and f5-tcp-wan (Option D) is optimized for high-latency long-distance links, they can sometimes be too aggressive or poorly suited for standard campus or data center environments. The f5-tcp-progressive profile acts as a " best-of-all-worlds " template that typically provides an immediate performance boost for most web applications by improving window scaling and fast-retransmit behavior. Therefore, it is the procedural " first step " in TCP performance tuning before moving to more specialized, niche profiles.

When multiple users share one source IP, source-address persistence fails. Cookie persistence uniquely identifies users at Layer 7 and ensures correct session handling.
