Source Address Affinity (Persistence) works by tracking the source IP address of incoming packets to ensure a client stays connected to the same backend server. The "netmask" setting within the persistence profile determines the "granularity" of this tracking. A netmask tells the BIG-IP how many bits of the source IP address to ignore when creating the persistence record. For example, the current setting of 255.0.0.0 (a /8 mask) means the BIG-IP only looks at the first octet of the IP; this results in all users from the same large Class A network (e.g., everyone from 10.0.0.0 to 10.255.255.255) being persisted to the exact same server, which can lead to severe load imbalance.

To ensure that each unique IP address creates its own individual persistence record, the administrator must set the netmask to 255.255.255.255 (for IPv4). This is a "host mask" or /32, which instructs the BIG-IP to evaluate all 32 bits of the client's source IP address. With this setting, 10.1.1.1 and 10.1.1.2 will be treated as distinct entities and can be load balanced to different servers, each maintaining their own "stickiness". While Option A (255.255.255.0) would group users by their local subnet, only the full 255.255.255.255 mask satisfies the requirement for true unique-IP persistence. This configuration is standard for internet-facing applications where users arrive from diverse locations and the administrator wants to maintain the most granular and balanced distribution of traffic possible.

WAN TCP profiles are optimized for high latency and packet loss typical of Internet clients, while LAN profiles are ideal for backend servers.

A red diamond indicates that the Virtual Server is enabled but unavailable, typically due to all pool members being down.

WAN-optimized TCP profiles improve performance for high-latency Internet clients, while LAN profiles are optimal for backend servers.

When multiple hostnames resolve to the same IP address and encrypted communication is required, the BIG-IP must be able to present the correct SSL certificate based on the hostname requested by the client. This is accomplished using Server Name Indication (SNI).

According to BIG-IP Administration: Data Plane Configuration documentation:

SNI is a client-side TLS extension, where the client includes the requested hostname during the SSL handshake.

BIG-IP evaluates this hostname using the Client SSL profile, not the Server SSL profile.

The “Server Name” setting in the Client SSL profile enables BIG-IP to select the appropriate SSL certificate for the requested hostname.

Why option C is correct:

Client SSL profile handles inbound (client-side) encryption.

Server Name enables SNI-based certificate selection when multiple DNS names share the same virtual server IP.

Why the other options are incorrect:

A. Client SSL, Client NameThere is no Client SSL setting called Client Name for SNI certificate selection.

B. Server SSL, Server NameServer SSL is used for encryption between BIG-IP and backend servers, not for client-side hostname identification.

D. Server SSL, Client NameServer SSL does not process client-requested hostnames during TLS negotiation.

Correct Resolution:

Configure a Client SSL profile and enable the Server Name (SNI) setting to support multiple encrypted hostnames on the same virtual server IP.

With manual resume enabled, BIG-IP does not automatically return a pool member to service after recovery. The member remains offline until manually re-enabled.

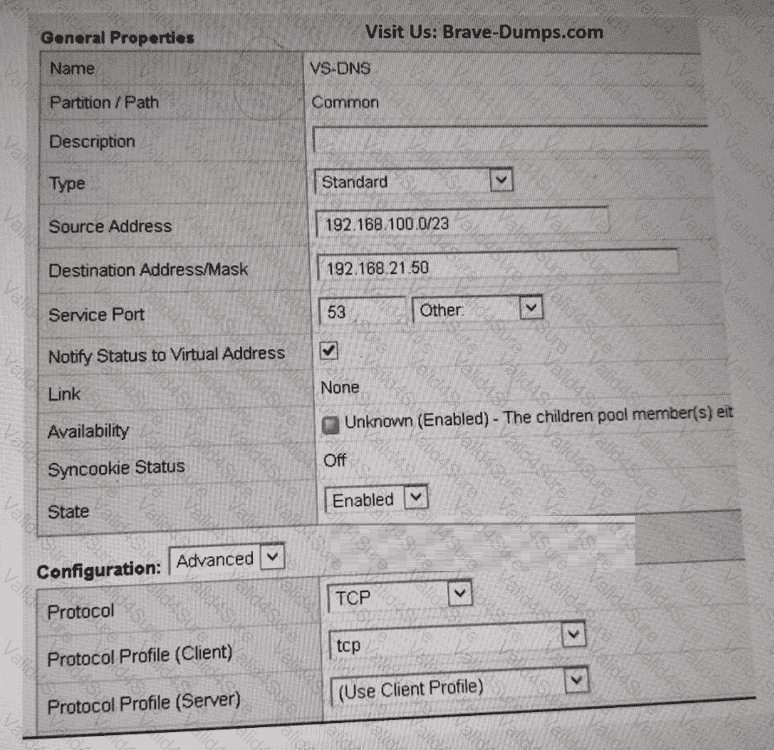

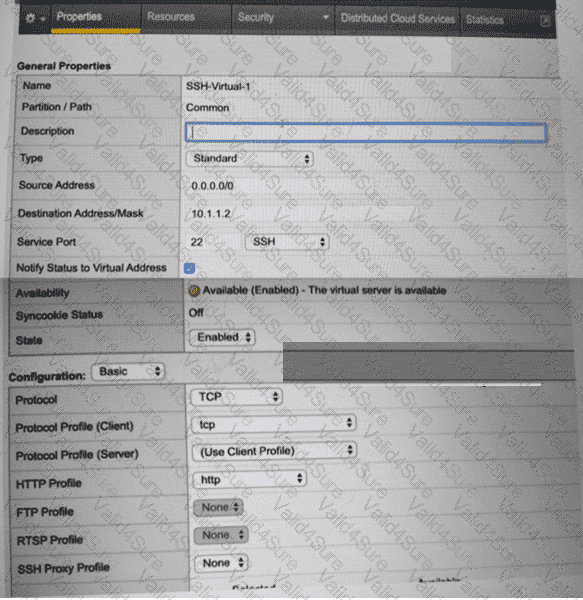

DNS traffic is primarily transported using UDP port 53. In the exhibit, the Virtual Server is configured with the Protocol set to TCP, which prevents standard DNS queries from being processed correctly. BIG-IP Virtual Servers must be configured with the correct Layer 4 protocol to match the application traffic they are handling.

According to the BIG-IP Administration: Data Plane Configuration documentation:

The Protocol setting on a Virtual Server defines whether traffic is processed as TCP, UDP, or another supported transport protocol.

Standard DNS queries and responses use UDP, while TCP is only required for DNS zone transfers (AXFR) or exceptionally large responses.

When a DNS Virtual Server is incorrectly configured with TCP, UDP-based DNS queries are dropped, causing all requests to fail.

Why the other options are incorrect:

A. Protocol profile (Client) to DNS_OPTIMIZEDA DNS profile enhances DNS functionality but does not correct an incorrect transport protocol configuration.

B. Type to Performance (HTTP)Performance (HTTP) Virtual Servers are designed for HTTP traffic and are not suitable for DNS services.

C. Source Address to 192.168.10.0/24The existing source IPs already fall within the allowed range, so this setting does not address the failure.

Correct Resolution:

Changing the Protocol to UDP aligns the Virtual Server with standard DNS transport requirements, allowing DNS queries to be successfully processed and load-balanced.

The issue described is a classic symptom of asymmetric routing, which frequently occurs when the BIG-IP system and the back-end servers reside on the same subnet (often referred to as a "one-arm" deployment).

The Routing Problem: By default, the BIG-IP system preserves the original client source IP address when forwarding traffic to a pool member. If the server is in the same subnet as the client or if the server's default gateway is not the BIG-IP, the server will attempt to send its response directly back to the client’s IP address, bypassing the BIG-IP.

Stateful Failure: Since the BIG-IP is a Full Proxy, it maintains a state table. Because the response packet never returns through the BIG-IP, the system cannot complete the three-way handshake or manage the application session, resulting in a connection failure for the user.

The Solution (SNAT): Enabling Source Network Address Translation (SNAT) solves this by changing the source IP address of the request to an IP address owned by the BIG-IP (typically a self-IP).

Requirement for Subnet Alignment: To ensure the server sends the response back to the BIG-IP, the translation address must be reachable. By using a self-IP configured in the same subnet as the servers, the BIG-IP ensures that the server sees the request coming from a local "neighbor." The server will then naturally send the response back to that self-IP, allowing the BIG-IP to translate the packet back and forward it to the client.

Why other options are incorrect:

A: Disabling address translation would ensure the server-side traffic uses the client IP, making asymmetric routing inevitable in this scenario.

B: This is technically contradictory; "Auto Map" specifically uses existing self-IPs and does not require or use a "SNAT pool" configuration.

C: While using a specific translation address can work, it does not inherently guarantee the Layer 2/Layer 3 reachability mentioned in the scenario as effectively as ensuring the self-IP is correctly placed in the server's subnet.
