AE-Adult-Echocardiography Exam Dumps - AE Adult Echocardiography Examination

The Valsalva maneuver transiently reduces preload, which can unmask or exaggerate diastolic dysfunction during mitral inflow Doppler assessment. During Valsalva, changes in mitral E and A wave velocities can differentiate between normal and pseudonormal filling patterns by observing alterations in filling pressures.

Hand grip, leg air cycling, and squatting affect afterload and preload differently but are less specific for assessing diastolic dysfunction via mitral Doppler.

This technique is outlined in the "Textbook of Clinical Echocardiography, 6e", Chapter on Diastolic Function Assessment and Maneuvers【20:210-215†Textbook of Clinical Echocardiography】.

In interrupted aortic arch, the normal continuity between the ascending and descending aorta is disrupted. The patent ductus arteriosus (PDA) provides a vital conduit for blood to flow from the pulmonary artery to the descending aorta, maintaining systemic circulation distal to the interruption.

Persistent left superior vena cava and left carotid artery do not provide this flow. The foramen ovale is an atrial-level shunt and does not compensate for interrupted aortic arch.

This clinical anatomy is described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Congenital Aortic Arch Anomalies【20:135-140†Textbook of Clinical Echocardiography】.

Comprehensive and Detailed Explanation From Exact Extract:

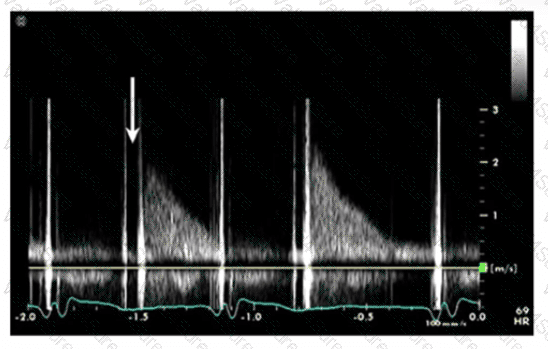

The Doppler waveform shows a typical left ventricular outflow tract or aortic valve velocity pattern. The arrow points to the steep rise and peak velocity of the jet, which corresponds to systolic ejection — the phase of the cardiac cycle when blood is rapidly ejected from the left ventricle into the aorta.

Isovolumic contraction precedes ejection and is represented by a flat baseline with no flow as ventricles build pressure. Isovolumic relaxation occurs after ejection before the mitral valve opens. Early diastole corresponds to mitral inflow, not aortic outflow.

This timing and flow pattern are standard in echocardiographic Doppler interpretation as described in the "Textbook of Clinical Echocardiography" and ASE Doppler imaging guidelines【16:Textbook of Clinical Echocardiography, 6e†p.100-105】【12:ASE Doppler Guidelines†p.50-55】.

Comprehensive and Detailed Explanation From Exact Extract:

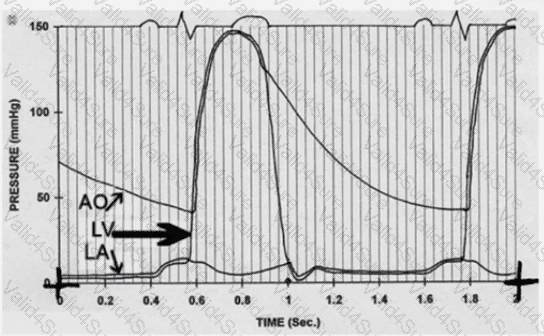

The pressure tracing shows left atrial (LA), left ventricular (LV), and aortic (AO) pressures over time. The key feature is the large pressure gradient between the LA and LV during diastole (arrow pointing at early diastolic phase), where the LA pressure is elevated and there is a delayed, gradual rise in LV pressure during diastolic filling. This finding is typical of mitral stenosis, where obstruction at the mitral valve causes increased LA pressure and a pressure gradient between LA and LV during diastole.

In aortic stenosis, the pressure gradient is primarily between LV and AO during systole. Mitral regurgitation shows elevated LA pressure but not a diastolic gradient. Aortic regurgitation shows elevated LV diastolic pressure with aortic diastolic pressure falling.

These characteristic hemodynamic patterns are described in clinical cardiology and echocardiography literature and hemodynamic references such as the "Textbook of Clinical Echocardiography" and cardiac catheterization textbooks【16:Textbook of Clinical Echocardiography, 6e†p.360-365】【12:Hemodynamic Texts†p.50-60】.

Comprehensive and Detailed Explanation From Exact Extract:

A continuous murmur is a heart murmur that occurs throughout both systole and diastole. Among the options, a ruptured sinus of Valsalva aneurysm produces a continuous murmur due to persistent flow between the aorta and a cardiac chamber (usually the right atrium or ventricle) during both systole and diastole.

Aortic regurgitation causes a diastolic murmur, mitral stenosis causes a diastolic murmur, and a muscular ventricular septal defect typically causes a holosystolic murmur but not continuous.

Ruptured sinus of Valsalva aneurysm causes a continuous shunting of blood, resulting in the characteristic continuous murmur, often described as “machinery-like.”

This clinical correlation is covered in the "Textbook of Clinical Echocardiography, 6e", Chapter on Aortic Root and Sinus of Valsalva Pathology【20:420-425†Textbook of Clinical Echocardiography】.

Comprehensive and Detailed Explanation From Exact Extract:

The apical two-chamber echocardiographic view displays the inferolateral wall (also called posterior lateral). The arrow points to this inferolateral segment, which is located inferiorly and laterally in the left ventricle.

Anteroseptum and inferoseptum relate to the interventricular septum, while anterolateral is the anterior lateral wall, opposite the inferolateral wall. Correct regional wall motion assessment is essential for ischemic disease evaluation.

This identification and terminology are described in ASE stress echocardiography and chamber quantification guidelines【12:ASE Stress Echocardiography Guidelines†p.310-315】【16:Textbook of Clinical Echocardiography, 6e†p.380-385】.

The peak Doppler velocity of mitral regurgitation (MR) reflects the instantaneous pressure gradient between the left ventricle (LV) and left atrium (LA) during systole. The higher the velocity, the greater the pressure difference.

However, the velocity itself does not quantify severity directly; severity depends on the size and volume of the regurgitant jet. The mechanism is determined by valve morphology and motion, not velocity. The LV to aorta gradient relates to aortic valve pathology.

This principle is discussed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Mitral Regurgitation and Doppler Evaluation【20:390-395†Textbook of Clinical Echocardiography】.

Comprehensive and Detailed Explanation From Exact Extract:

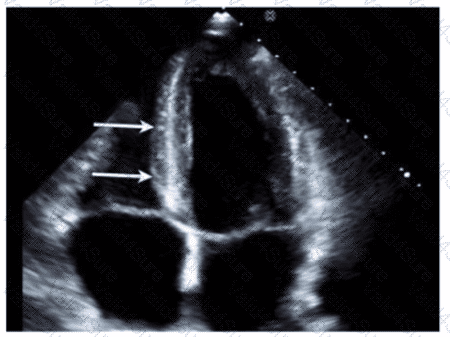

The echocardiographic image shows an apical four-chamber view of the left ventricle. The arrows point to the lateral wall of the left ventricle, which in this view corresponds to the anterolateral wall. The anterolateral wall is located opposite the septum and posterior to the left atrium.

Anteroseptum and inferoseptum refer to different segments of the interventricular septum. The inferior wall is visualized better in other views.

This segmental wall nomenclature and identification are described in ASE chamber quantification and stress echocardiography guidelines【12:ASE Chamber Quantification Guidelines†p.90-95】【16:Textbook of Clinical Echocardiography, 6e†p.140-145】.
