4A0-D03 Exam Dumps - Nokia SR Linux EVPN and Data Center Interconnect

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

In asymmetric L3 EVPN routing, the ingress PE performs the routing decision and then sends traffic across the overlay in the context of the destination MAC-VRF. The egress PE performs Layer 2 MAC forwarding only toward the destination host. This is why options A and B correctly describe asymmetric data-plane behavior. Asymmetric routing relies heavily on EVPN route type 2 MAC/IP Advertisement routes because the ingress PE must know the destination host's MAC/IP binding and the destination bridge domain information. EVPN route type 5, which advertises IP prefixes, is a symmetric L3 EVPN mechanism and is not mandatory for asymmetric routing. Therefore, option C is false. Option D is treated as correct in this asymmetric-routing model because each PE participating in inter-subnet forwarding needs the destination MAC-VRF context to encapsulate traffic toward the correct L2 VNI. This requirement is one reason asymmetric routing scales less efficiently than symmetric routing: MAC-VRF presence and host reachability information must be broadly available. Symmetric routing improves scale by using an IP-VRF routed VXLAN interface and RT-5 prefix routes instead. Reference: asymmetric L3 EVPN routing, ingress IP/MAC forwarding, egress MAC forwarding, RT-2 versus RT-5 usage.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

An anycast-gateway IRB allows multiple PEs to present the same default-gateway IP address to hosts in the same subnet. This is the mechanism that enables distributed gateway behavior in EVPN fabrics. The same anycast gateway IP may be configured on equivalent IRB subinterfaces across remote PEs participating in the same IP-VRF, allowing hosts to use the nearest leaf as their default gateway without changing their gateway address. SR Linux also associates gateway MAC information with the IRB, including virtual gateway MAC behavior used inside the MAC-VRF forwarding table. Option C is false because the anycast gateway IP is not treated as a normal unique host route that appears in the IP-VRF route table alongside the subnet prefix. The subnet route is installed for the connected network, but the shared anycast gateway address is a gateway function, not a separately advertised host endpoint that should appear as ordinary routed host reachability. Treating the anycast IP as a regular host route would undermine the distributed gateway model and create ambiguous ownership across PEs. Reference: IRB anycast gateway, MAC-VRF/IP-VRF interconnection, distributed default-gateway operation.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

This scenario describes all-active Layer 2 EVPN multi-homing with a host connected through a LAG to Leaf1 and Leaf2. The LAG subinterface is associated with the MAC-VRF on both participating leaves, and the Ethernet Segment ES-1 is configured for all-active multi-homing. In all-active operation, both leaf routers can be active attachment points for host-originated traffic, and remote traffic can use EVPN multi-homing mechanisms to reach the segment. Option D is false because the host does not know or use the EVPN Designated Forwarder state when sending BUM traffic. The host forwards over its LAG based on its local LAG hashing and LACP behavior. DF election is an EVPN PE-side mechanism used mainly to control which PE forwards BUM traffic from the EVPN overlay toward the Ethernet Segment, preventing duplicate delivery to the multihomed access network. The host itself does not selectively forward all BUM traffic toward the DF. That distinction is critical: DF controls overlay-to-segment replication, while the host's LAG controls host-to-leaf link selection. Reference: all-active L2 EVPN multi-homing, host LAG behavior, DF election scope, BUM forwarding.

================

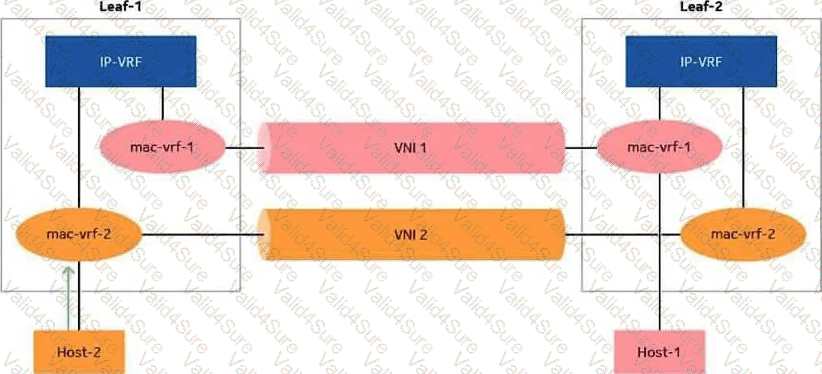

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

In asymmetric EVPN IRB, the ingress PE performs routing from the source subnet into the destination subnet, then forwards the packet across the VXLAN overlay using the destination MAC-VRF/VNI. The egress PE does not perform another IP-VRF lookup for that packet; it performs Layer 2 forwarding in the destination MAC-VRF. In this scenario, Host-2 sends traffic toward Host-1. After the ingress routing decision, the traffic arrives at Leaf-2 in the context of the destination MAC-VRF, mac-vrf-1. Leaf-2 then performs a MAC lookup in mac-vrf-1 and forwards the frame to Host-1. Option D is therefore correct. Option A reverses the forwarding direction and misidentifies the leaf action. Option B incorrectly sends mac-vrf-2 traffic toward the IP-VRF on Leaf-2, even though Leaf-2 is acting as the egress PE for Host-1. Option C is also incorrect because the egress forwarding action is based on the MAC table in the destination MAC-VRF, not an IP-VRF ARP lookup at that stage. Reference: asymmetric L3 EVPN IRB data-plane operation, ingress routing and egress MAC forwarding.

================

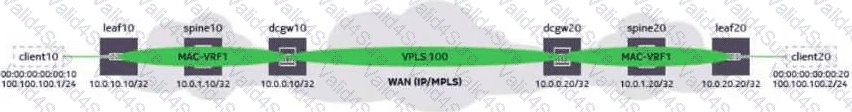

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

In a gateway-less DCI design, there is no dedicated gateway device performing EVPN-to-WAN service interworking. Instead, the data center EVPN overlay is extended across the WAN more directly. Because leaf routers must establish overlay reachability across sites, the IP addresses of the leaf VTEPs need to be reachable through the WAN, commonly by redistributing or otherwise carrying the necessary loopback reachability. The WAN transparently carries the EVPN/VXLAN overlay, and leaf routers can establish VXLAN tunnels across the WAN to remote leaves. Option D is false because it introduces “data center gateway routers” maintaining MP-BGP EVPN peering with the data center route reflector. That is not the gateway-less model; it describes a gateway-based role that does not exist as a separate function in this architecture. In gateway-less DCI, the EVPN control-plane and VXLAN data-plane extension are handled by the fabric endpoints themselves, so the design trades demarcation and interworking control for a more direct overlay extension model. Reference: gateway-less DCI, WAN reachability for leaf VTEPs, transparent EVPN overlay carriage, VXLAN tunnel extension.

================
