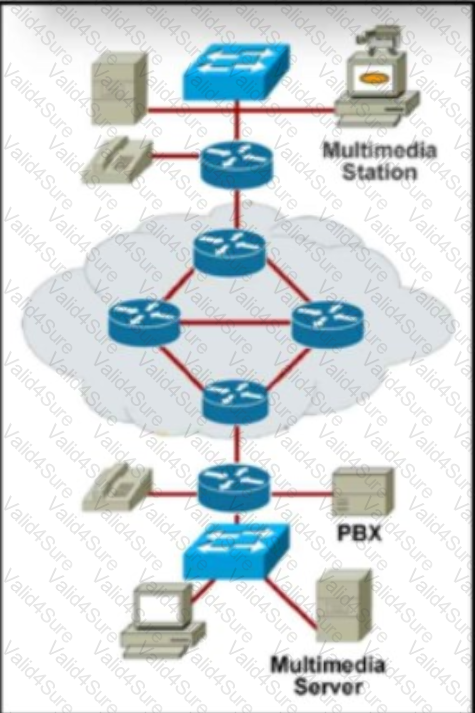

Bidirectional PIM is the correct multicast protocol for this many-to-many financial application. The question states that most multicast sources also receive multicast traffic and that the design must not use source trees. Cisco describes BIDIR-PIM as a multicast mode built for many-to-many applications that use a shared tree rooted at the rendezvous point and avoid per-source shortest-path trees. This reduces multicast state because routers do not maintain separate source/group state for every active sender. PIM Sparse Mode can start with a shared tree, but it can switch to source trees, which violates the stated requirement. PIM-SSM is explicitly source-specific and requires receiver knowledge of the source, so it is not appropriate for a many-to-many model where source trees are disallowed. MSDP is not a multicast forwarding mode; it is used for source discovery between PIM-SM domains. The option text contains a spelling error, but the intended answer is BIDIR-PIM. The architect should verify RP placement, Designated Forwarder behavior, group ranges, and whether the application can tolerate shared-tree forwarding rather than shortest-path source trees. Reference topics: BIDIR-PIM, many-to-many multicast, shared tree, source-tree avoidance, multicast scaling.

Interdomain multicast designs commonly use MP-BGP and MSDP together. MP-BGP carries multicast routing information between domains so routers can perform RPF checks based on the correct multicast topology rather than relying only on unicast routing. MSDP is used between rendezvous points in different PIM sparse-mode domains to exchange information about active sources. Cisco multicast documentation describes MSDP as a mechanism that connects multiple PIM-SM domains and allows RPs to discover multicast sources in other domains. Together, MP-BGP provides the reachability information and MSDP provides source discovery between RPs. IGMPv2 is a host-to-router group membership protocol inside a local subnet, not an interdomain multicast routing protocol. MLD provides the IPv6 equivalent of host group membership signaling. BIDIR-PIM is a multicast forwarding mode optimized for many-to-many traffic inside a domain, but it is not the pair of protocols used for interdomain source and receiver communication in this question. Therefore, the correct protocols are MP-BGP and MSDP.

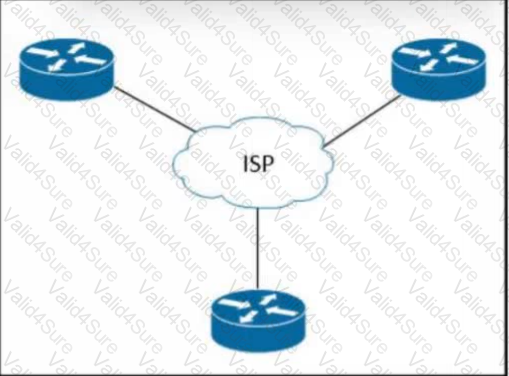

GET VPN is the correct private WAN encryption technology when traffic must always be encrypted, multicast must be supported, forwarding overhead must be reduced, and security management must be centralized. Cisco Group Encrypted Transport VPN protects traffic over a private WAN without building traditional point-to-point or multipoint tunnel overlays. Because it preserves the original IP header, the provider or enterprise routing core can still make normal forwarding decisions, and multicast, QoS, and routing behavior are easier to preserve than with heavy tunnel overlays. GET VPN uses a key server model to centralize group policy and distribute encryption keys to group members. This reduces the operational burden of maintaining many permanent tunnels. DMVPN supports multicast through GRE and provides dynamic tunnels, but it adds tunnel encapsulation overhead and does not meet the reduced-overhead private WAN requirement as cleanly. Plain mGRE lacks the full centralized group encryption model. Reference topics: GET VPN, group encryption, private WAN security, multicast support, key server, tunnel-less IPsec.

Service routes in OMP updates identify services that are available for centralized service insertion. In Cisco Catalyst SD-WAN, OMP does more than advertise ordinary VPN prefixes. It also carries TLOC routes, which describe transport locators, and service routes, which allow the fabric to steer traffic toward network services such as firewalls, intrusion prevention systems, or other centralized service nodes. This is how the SD-WAN control plane distributes enough information for WAN Edge routers to make policy-driven forwarding decisions without requiring each device to learn service attachment through a separate routing protocol. A service route is not used to describe the underlay transport itself, because that function is handled by TLOC information. It is also not a route to the orchestration plane or a remote management definition. The design value is that service insertion can be centrally advertised and controlled through OMP, then applied consistently through SD-WAN policy. Reference topics: Cisco SD-WAN OMP, service routes, TLOC routes, service insertion, centralized data policy.

A practical advantage of model-driven telemetry is that it sends structured data in machine-readable encodings, including JSON in supported implementations, making the data easier to consume with modern collectors and automation tools. Model-driven telemetry uses data models, commonly YANG, to define exactly which operational or configuration data is streamed. This is a major improvement over legacy monitoring approaches that repeatedly poll devices or parse human-oriented CLI output. The question option that points to structured JSON compatibility is the best available answer. Telemetry is not based on interrupt-driven polling; it is normally subscription based, either periodic or on-change. It also does not rely on MIB models as its primary structure in the way SNMP does. Parsing show command output is the older, brittle method that model-driven telemetry is intended to replace. The design benefit is cleaner, more predictable, and more programmable network state collection. Reference topics: model-driven telemetry, YANG data models, JSON encoding, subscription-based monitoring, network programmability.

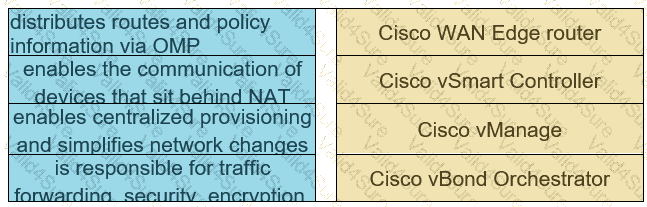

WAN Edge: traffic forwarding, security, encryption, QoS, and routing protocols; vSmart: distributes routes and policy information via OMP; vManage: centralized provisioning and simplified network changes; vBond: communication for devices behind NAT.

The Cisco SD-WAN component mapping follows the normal separation of management, control, orchestration, and data-plane roles. WAN Edge routers are the data-plane devices at branches, data centers, campuses, or cloud edges. They forward user traffic and apply routing, QoS, encryption, segmentation, and security services. vSmart controllers provide the centralized control plane and distribute reachability and policy information with OMP, including prefixes, TLOCs, and service routes. vManage is the management-plane system; it supplies centralized provisioning, device templates, policy configuration, software lifecycle functions, monitoring, and operational visibility. vBond operates as the orchestration-plane component, authenticating devices during onboarding and helping devices behind NAT discover and establish the correct secure control connections. This separation is critical in enterprise design because each component has different redundancy, reachability, and scale requirements. The architect should not blur vManage and vSmart roles: vManage configures and monitors, while vSmart computes and distributes control policy. Reference topics: Cisco Catalyst SD-WAN architecture, WAN Edge data plane, vSmart OMP, vManage management plane, vBond orchestration.

is responsible for traffic forwarding, security, encryption, QoS,and routing protocols

distributes routes and policy information via OMP

enables centralized provisioning and simplifies network changes

enables the communication of devices that sit behind NAT

Scalable groups provide intra-VN traffic filtering and control in Cisco SD-Access. Within a virtual network, macro segmentation separates routing tables, but endpoints inside the same VN may still need policy control based on identity, role, or security posture. Cisco SD-Access uses scalable group tags and scalable group ACLs to implement group-based policy. This allows policy to be expressed as user or device group relationships instead of only subnet-based ACL entries. The result is microsegmentation inside the virtual network, where traffic between groups can be permitted or denied consistently across the fabric. MAC ACLs are limited Layer 2 filters and do not provide the identity-based policy model required for SD-Access. Prefix lists are route-filtering tools, not intra-VN access-control mechanisms. Service policies are used for QoS or traffic treatment and do not define group-based segmentation. Scalable groups are therefore the correct policy construct for intra-VN filtering in the fabric. Reference topics: Cisco SD-Access policy, scalable groups, SGT, SGACL, microsegmentation, intra-VN control.

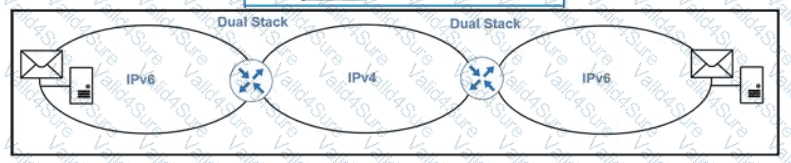

The IPv4-compatible method is the closest match when the exhibit requires IPv6 connectivity between servers across an IPv4 portion of the network without using 6to4, 6rd, or ISATAP. IPv4-compatible IPv6 addressing represents an IPv4 address inside an IPv6 address format and was historically used for automatic IPv6-over-IPv4 tunneling between dual-stack nodes. Although this technique is now considered legacy and is not preferred for new designs, it matches the answer choice that directly embeds IPv4 reachability for host-to-host connectivity. ISATAP is normally used inside an enterprise IPv4 network to connect IPv6 hosts over an IPv4 intranet. 6to4 and 6rd are provider or site transition mechanisms that use specific IPv6 prefix behavior and are not simply a direct method between the depicted mail servers. For modern Cisco design, dual-stack or manually engineered tunnels would normally be preferred, but given these choices, IPv4-compatible addressing is the method aligned to the exhibit requirement. Reference topics: IPv6 transition mechanisms, IPv4-compatible addressing, tunneling, dual-stack migration, host connectivity.
