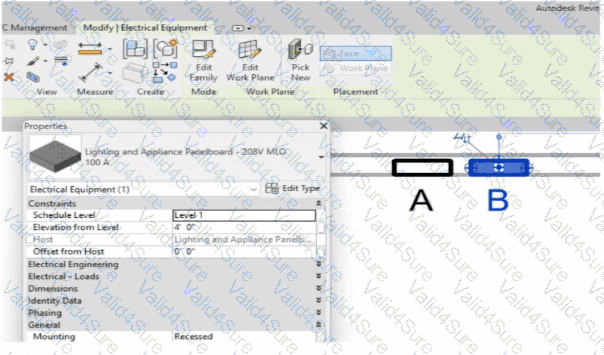

In Autodesk Revit’s Electrical discipline, when electrical components such as panelboards are hosted incorrectly (for example, Panel B hosted to Panel A instead of a wall or level), the hosting relationship must be corrected by reassigning the work plane or host. This is essential because hosted electrical elements depend on the geometry or level of their host for placement, alignment, and coordination.

According to the Revit MEP User’s Guide (Chapter 45 “Work Planes and Element Hosting”):

“If a hosted element is placed incorrectly or the host has changed, use the Edit Work Plane or Pick New commands to redefine its host or work plane.”

Here’s how these two tools apply:

1️⃣ Pick New (Option A)

Located under the Work Plane panel on the Modify tab, this command allows you to select a new face or host (e.g., a wall, ceiling, or floor) for the existing component. It effectively reassigns the element’s host without deleting or recreating the element.

“Use Pick New to specify a different face or surface as the host for a component that was incorrectly placed.”

2️⃣ Edit Work Plane (Option E)

This command lets the designer redefine the reference level or named work plane to which an element is associated. For hosted electrical equipment (like lighting or panels), this ensures the object references the correct structural or architectural surface.

“To correct hosting errors, open Edit Work Plane from the Modify tab, and assign a new named plane, level, or face.”

Incorrect Options Explanation:

B. Edit Mounting value – changes only how the panel is mounted (e.g., recessed or surface), not the host itself.

C. Move command – repositions the element but does not change the hosting relationship.

D. Edit Host value – the “Host” parameter is read-only; it cannot be edited directly.

Thus, the correct methods to rehost Panel B from Panel A to the correct wall or work plane are through Pick New and Edit Work Plane, ensuring proper association and maintaining system connectivity.

To allow conduit to be modeled from any point on a specific side of the electrical equipment, the most accurate method is to use the "Surface Connector". This method enables the designer to place a surface-based conduit connector on a specific face of the equipment family. Here's how the process is explained:

"To place a conduit connector on the surface of a family component so that the conduit can start from anywhere on that surface, use the Surface Connector option. This connector attaches to the selected face of the equipment, allowing conduit to be drawn directly from any point on the selected face in the project environment."

"Click Conduit Connector, then choose Surface Connector, and select the face where the conduit should connect. This gives flexibility in modeling, especially for equipment requiring multiple connection points across a single face or allowing freedom of routing."

This process is especially beneficial in custom electrical equipment families where conduits must originate from arbitrary points along a flat side—ensuring both parametric flexibility and coordination ease within the project environment.

In contrast:

Option A refers to editing connector dimensions, which does not affect the connector's ability to accept connections from any surface point.

Option B uses Individual Connector which limits the connection to a specific point, not the whole face.

Option D refers to changing connector type in the Properties palette, which doesn't impact connector location or coverage on a face.

According to the Autodesk Revit MEP User’s Guide (Chapter 17 – Electrical Systems), when creating power and lighting circuits, Revit enforces specific compatibility rules to ensure the accuracy and integrity of electrical systems. The document explicitly states:

“Circuits connect similar electrical components to form an electrical system. Once created, you can edit circuits to add or remove components, connect a circuit to a panel, add wiring runs, and view circuit and panel properties… A component can be connected in a circuit if it is compatible with the other components in the circuit and if it has an available connector.”

Furthermore, it continues:

“When circuits are created for a power system, only compatible devices can be connected. All devices in a circuit must specify the same distribution system (voltage and number of poles). The distribution system can be specified by type parameters or instance parameters. When you create a circuit where all the devices have the distribution system specified as instance parameters, Revit MEP displays a Specify Circuit Information dialog where you can specify values for the number of poles and voltage prior to creating the circuit.”

Additionally, the documentation clarifies that circuits must exist within the same project model to maintain system logic and consistency. It explains that “circuits connect similar electrical components within a particular system,” which implicitly enforces that items must reside in the same model file. Revit’s data structure does not allow cross-model circuit connections, since circuit logic, load calculations, and panel assignments depend on shared model parameters and hosted relationships between electrical families.

Therefore, the two rules enforced by Revit when creating a power circuit are:

A. Items on the circuit must be in the same model.This ensures data integrity and consistency across electrical systems, as circuits cannot span multiple linked models.

C. Items on the circuit must be assigned the same voltage definition.This guarantees that only devices with matching voltage and pole configurations can be logically and electrically connected to the same circuit.

Other options, such as requiring apparent load values or association with transformers, are not mandatory for circuit creation—they are design considerations applied after circuits are established. Worksets (option D) manage collaboration, not circuit validity.

Verified Reference:

Autodesk Revit MEP 2011 User’s Guide, Chapter 17 “Electrical Systems,” Sections Creating Circuits and Creating Power and Lighting Circuits, pp. 461–463.

The Placement panel shown in the exhibit — with options such as Place on Vertical Face, Place on Face, and Place on Work Plane — is displayed only when the family being placed was created using a wall-hosted (face-based or vertical face-based) template. This indicates that the family is designed to be hosted on a vertical surface, such as a wall, rather than a floor or level.

According to the Autodesk Revit MEP User’s Guide (Chapter 44 “Creating and Modifying Families”):

“When placing a hosted family, the placement options depend on the family’s host type.

Wall-based families display the Place on Vertical Face option.

Ceiling-based families display Place on Face or Place on Work Plane.

Floor-based families display Place on Work Plane only.”

The “Place on Vertical Face” option specifically appears for wall-hosted or face-based components because it allows the user to select a vertical plane, typically representing a wall surface. This confirms that the family template used during creation was Wall-based (commonly “Electrical Equipment - Wall Based.rft” or “Generic Model - Wall Based.rft”).

In electrical design, examples of such components include:

Wall-mounted panelboards, switchboards, or transformers.

Receptacles or lighting control devices hosted on walls.

The Smithsonian Facilities Revit Template Guide reinforces this explanation:

“Wall-based components, such as surface-mounted panels, display the Place on Vertical Face option. This confirms the family is wall-hosted and cannot be placed freely on floors or reference planes.”

Why the Other Options Are Incorrect:

A. Face-based template: Would show “Place on Face” (not necessarily limited to vertical).

C. Floor-based template: Displays “Place on Work Plane” only.

D. Always Vertical option: Controls orientation (rotation relative to surface), not placement host type.

Therefore, the Placement panel confirms the component was created using a wall-based family template, allowing it to be attached only to vertical surfaces.

In Autodesk Revit, Project Parameters are used to add custom fields that apply to multiple elements within a specific project file — such as views, sheets, or schedules. These parameters allow project teams to categorize, group, and sort information within the Project Browser or within schedules without editing families or external files.

As defined in the Revit MEP User’s Guide and Revit Structure Parameters Chapter:

“Project parameters are specific to a single project file. Information stored in project parameters cannot be shared with other projects. A project parameter can be used, for example, to categorize views within a project.”

This statement directly confirms that project parameters are the correct tool for sorting or grouping views in the Project Browser.

To organize elements (like views or sheets) by building, the designer can create a custom project parameter named “Building” and assign it to the View category. Once assigned, the parameter values (e.g., “Building A” or “Building B”) can be filled in for each view.

The Smithsonian Facilities Revit Template Guide further supports this:

“View purpose is a Revit project parameter, providing a means for users to organize the many views that may exist in a BIM.”

Thus, using a project parameter allows users to add a “Building” field to each view, enabling customized browser organization (e.g., group views by Building A, Building B, etc.) without requiring shared parameters or family editing.
