Based on the Fortinet NSE 7 - Public Cloud Security 7.4/7.6 curriculum and Azure Resource Manager (ARM) deployment logic, the what-if tool provides a predictive analysis of infrastructure changes.

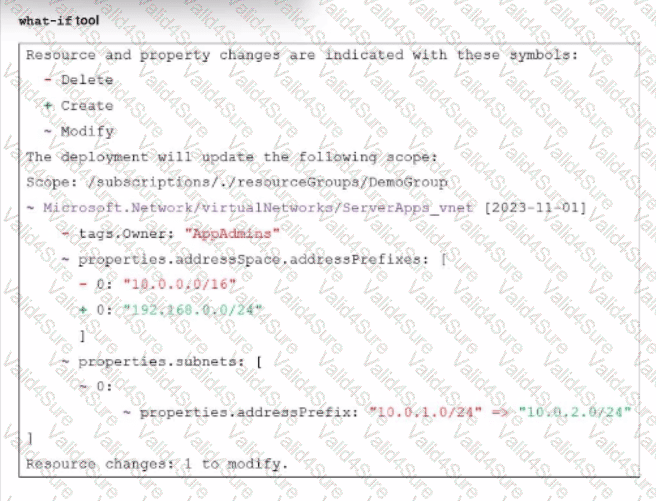

Analyzing the Modification Symbols (Option B): The exhibit shows several critical changes being attempted simultaneously on the ServerApps_vnet.

VNet Address Space Change: The symbol - (Delete) is next to the address space 10.0.0.0/16, and + (Create) is next to 192.168.0.0/24.

Subnet Modification: Further down, the symbol ~ (Modify) indicates an attempt to change the prefix of an existing subnet from 10.0.1.0/24 to 10.0.2.0/24.

Azure Deployment Constraints: According to the FortiOS 7.6 Azure Administration Guide , Azure networking has strict dependencies. You cannot delete or modify an address space that contains active subnets or resources.

Why the deployment fails: The what-if output shows the administrator is trying to remove the 10.0.0.0/16 address range. However, the existing subnet 10.0.1.0/24 is still " resident " within that range during the transaction. Because the subnet is currently attached to the address space being deleted, Azure Resource Manager will reject the deployment as an invalid operation. The attempt to add a new 192.168.0.0/24 range does not resolve the conflict of removing the active range.

Why other options are incorrect:

Option A: The tool shows that 10.0.1.0/24 is being changed to 10.0.2.0/24, not that one is replacing the other as a new entity.

Option C: The symbols show a modification (~) of an existing subnet (index 0:), not the creation (+) of an entirely new subnet.

Option D: The VNet name ServerApps_vnet is not being changed; only its internal properties (tags, address space, and subnets) are being modified.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

Based on the FortiOS 7.6 Azure Administration Guide and standard Azure Resource Manager (ARM) deployment practices, the what-if operation allows administrators to preview how a deployment will affect the current state of resources.

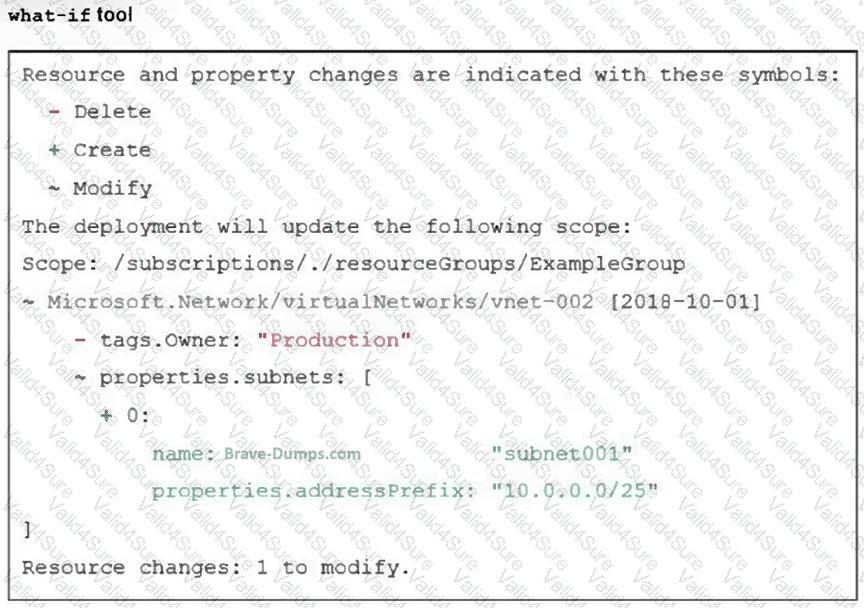

Interpreting the What-If Output (Option A): The exhibit shows the results of a change preview for a Virtual Network (vnet-002).

The symbol ~ (Modify) next to the VNet indicates that an existing resource is being updated rather than created or deleted.

The symbol - (Delete) next to tags.Owner: " Production " indicates that this specific tag will be removed from the VNet.

Crucially, the symbol + (Create) appearing inside the properties.subnets array next to index 0: indicates the addition of a new element. This confirms that a new subnet named subnet001 with the address prefix 10.0.0.0/25 will be added to the existing Virtual Network vnet-002.

Why other options are incorrect:

Option B: The text shows that the tag " Production " is being deleted (-), not that the VNet is being renamed to " Production. "

Option C: The what-if tool only displays the changes . While one subnet is being added (+), the tool does not show the deletion of other existing subnets. Therefore, we cannot conclude the resulting VNet will have only a single subnet; it will have its existing subnets plus the new one.

Option D: There is no mention of addressSpace or addressPrefixes for the VNet itself being modified (~) or added (+) in the exhibit; only a subnet-level address prefix is shown.
