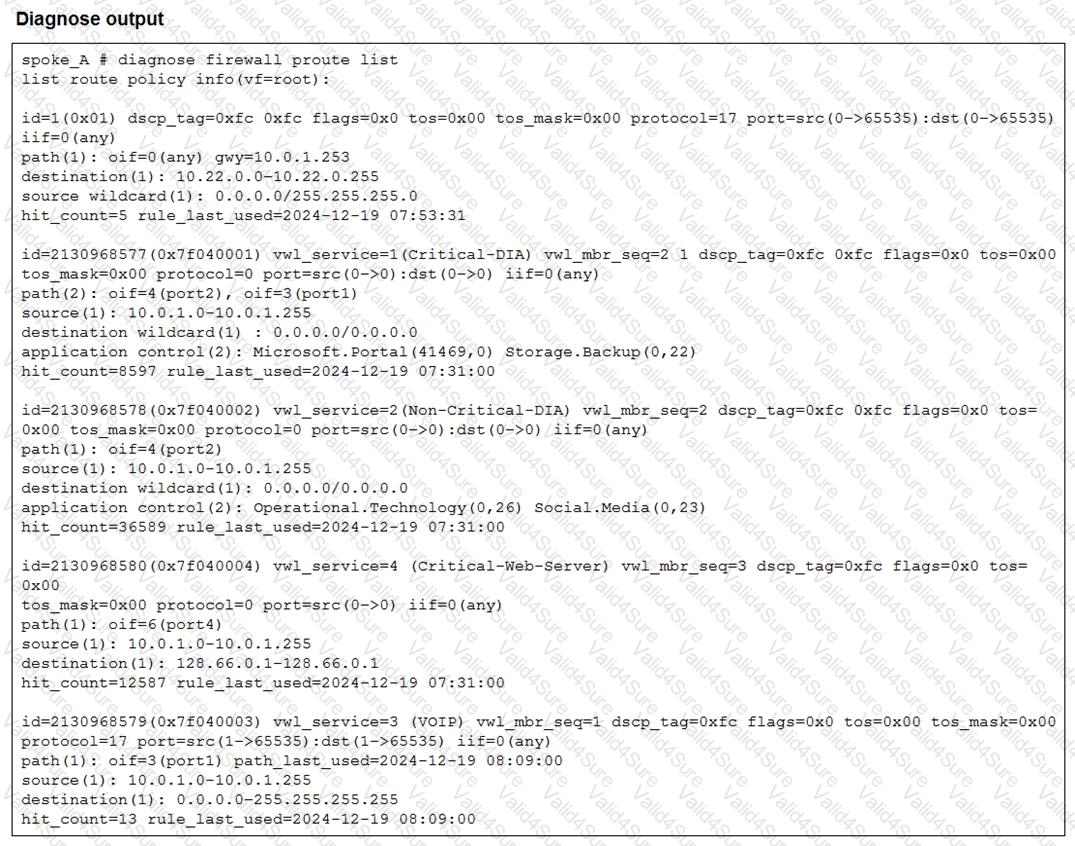

One SD-WAN rule is defined with application categories as the destination → The diagnose output shows application control matches such as Microsoft.Portal, Operational.Technology, and Social.Media, confirming that SD-WAN rules are using application categories as destinations.

UDP traffic destined to the subnet 10.22.0.0/24 matches a policy route → The first entry (id=1) shows protocol=17 (UDP) with destination 10.22.0.0/24, confirming this traffic is handled by a policy route instead of an SD-WAN rule.

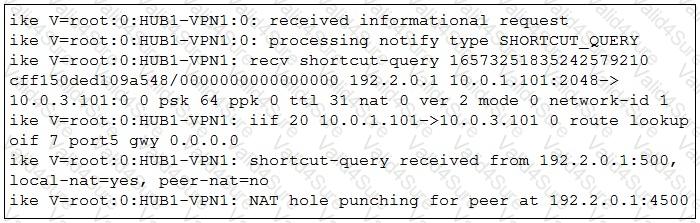

The log shows messages on HUB1-VPN1 where the device processes a SHORTCUT_QUERY and performs NAT hole punching (peer at 192.2.0.1:4500). This indicates that the device is acting as a hub, helping two spokes (192.2.0.1 and 10.0.3.101) establish a direct ADVPN shortcut tunnel between each other, instead of routing their traffic through the hub.

For FortiGate to steer traffic using SD-WAN rules, two foundational elements must be in place: available WAN paths (underlay links) and firewall policies that allow traffic to reach the SD-WAN interface.

Underlay links (Option B) are mandatory because SD-WAN operates by selecting among multiple WAN transports (for example, broadband, MPLS, LTE, or IPsec tunnels). These links are configured as SD-WAN members and form the physical or logical paths over which traffic can be steered. Without underlay links, SD-WAN has no paths to evaluate or select.

Firewall policies (Option E) are also mandatory because FortiGate only processes and forwards traffic that is explicitly permitted by a firewall policy. When SD-WAN is enabled, firewall policies must reference the SD-WAN interface or SD-WAN zone as the outgoing interface. If no such policy exists, traffic will not be forwarded and SD-WAN rules will never be evaluated.

Why the other options are incorrect:

Security profiles (Option A) are optional and relate to inspection, not SD-WAN steering.

Overlay links (Option C) are used in specific designs such as ADVPN or hub-and-spoke overlays, but SD-WAN can steer traffic without overlays (for example, DIA-only designs).

Traffic shaping (Option D) is not required for SD-WAN decision-making; it is an optional optimization feature.

Therefore, the two required features that must be configured before FortiGate can steer traffic according to SD-WAN rules are underlay links and firewall policies, which correspond to B and E.
