VLAN assignments on FortiSwitch ports must follow certain rules and guidelines to ensure network integrity and proper traffic segregation:

Only Assign One Native VLAN on a Port (C):

Native VLAN Configuration:Each switch port can have only one native VLAN. The native VLAN carries untagged traffic for that port. If the port receives untagged frames, they are assumed to belong to the native VLAN.

Importance of Singular Native VLAN:This is crucial for preventing VLAN hopping attacks and ensures clear and secure VLAN demarcation on each port.

Assign Untagged VLANs Using FortiGate CLI (D):

CLI Configuration:Untagged VLANs, often equivalent to the native VLAN, can be assigned through the FortiGate CLI when managing a FortiSwitch via FortiLink. This allows for central management and configuration of VLANs across connected switches.

Operational Efficiency:Using the CLI ensures that VLAN settings are applied uniformly, reducing the likelihood of misconfigurations that might occur when managing VLANs individually on each switch.

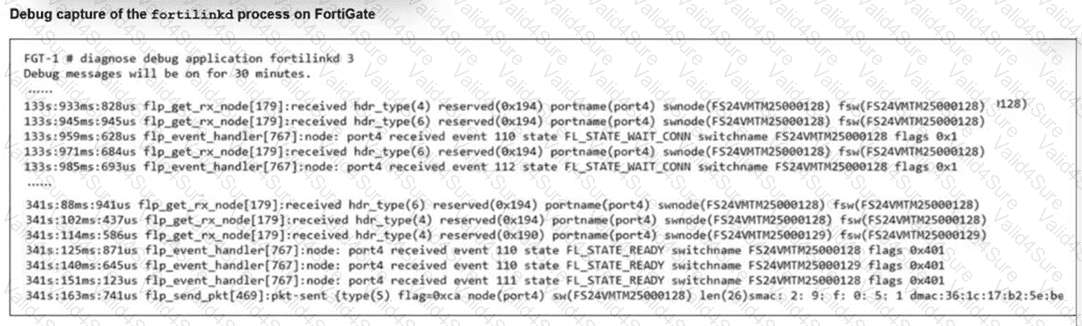

According to theFortiOS 7.6 Study Guideand theFortiSwitch 7.6 FortiLink Guide, the health of the Control and Provisioning of Wireless Access Points (CAPWAP) based management tunnel between a FortiGate and a FortiSwitch is maintained through a continuous keepalive mechanism. The provided exhibit captures the fortilinkd process logs, which are essential for verifying the operational status of the FortiLink control plane.

The debug output reveals two critical indicators of a successful connection:

State Transitions:The lines at timestamp 341s show the managed switch (FS24VMTM25000128) has reached theFL_STATE_READYstate. This state indicates that the discovery, authorization, and configuration synchronization phases are complete, and the switch is now fully operational under the FortiGate ' s management.

Heartbeat Mechanism:The entry flp_send_pkt[469]:pkt-sent {type(5)} represents the transmission of aFortiLink heartbeat. TheseType 5 packetsare sent every few seconds to verify that the peer device is still reachable and responsive. In a healthy environment, the FortiGate sends these heartbeats, and the FortiSwitch responds (or vice versa depending on the specific sub-protocol phase), ensuring the management tunnel remains active.

The regular exchange of these messages as shown in the exhibit confirms that the FortiLink connection ishealthy and active. If the switch were unauthorized or stuck in a negotiation phase, the state would be shown as FL_STATE_WAIT_AUTH or FL_STATE_DISCOVERY, and the periodic type(5) heartbeats would either be absent or not acknowledged.

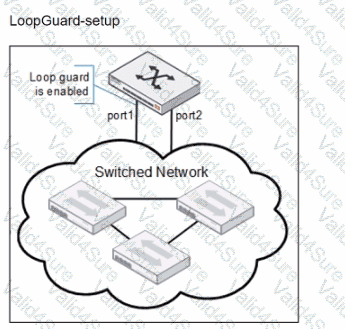

When loop guard is enabled on port1 and port2 configured with the same native VLAN (VLAN 10), there are specific scenarios under which port1 can be shut down due to loop guard operation:

A.port1 was shut down by loop guard protection.Loop guard is a specific feature used in network environments to prevent alternative or redundant loops. When loop guard is active, it can shut down a port if it stops receiving BPDU (Bridge Protocol Data Units) on a port that is expected to receive them, assuming a loop or link failure and putting the port into an inconsistent state to prevent potential loops.

B.STP triggered a loop and applied loop guard protection on port1.If the Spanning Tree Protocol (STP) detects a loop or loss of BPDU transmissions while loop guard is enabled, it will proactively shut down the port to prevent network instability or a broadcast storm. This is an essential function of loop guard within the context of STP, providing additional protection against topology changes that could introduce loops.

Fortinet FortiLink Protocol:The FortiLink protocol is Fortinet ' s proprietary mechanism for managing FortiSwitch units from a FortiGate firewall. It simplifies configuration and security policy enforcement across the connected network devices.

Auto-Discovery:FortiLink ' s auto-discovery feature means that by default, all ports on a FortiSwitch will actively send out discovery frames. This allows them to locate a FortiGate device that has a FortiLink interface enabled, streamlining the device management process.

No Configuration Needed:You don ' t have to manually configure individual ports for FortiLink discovery on FortiSwitch devices.

References

FortiSwitchOS FortiLink Guide (FortiSwitch Devices Managed by FortiOS 7.6):Refer to pages 13 and 14 for details on zero-touch management and FortiLink configuration. [https://fortinetweb.s3.amazonaws.com/docs.fortinet.com/v2/attachments/27f63c72-b083-11ec-9fd1-fa163e15d75b/FortiSwitchOS-7.6.0-FortiLink_Guide%E2%80%94FortiSwitch_Devices_Managed_by_FortiOS_7.6.pdf]

According to theFortiSwitchOS 7.6 Administration Guideand theNSE 5 FortiSwitch 7.6 Administrator Study Guide, FortiSwitch supports a multi-stage ACL pipeline that allows for granular traffic control at different points in a packet ' s journey through the switch.1The documentation identifies three primary stages for ACL application:Prelookup,Ingress, andEgress.

Prelookup (Option D):This is the earliest stage in the switching pipeline. The documentation explicitly states thatPrelookup ACLsare processedbefore any Layer 2 or Layer 3 lookupsare performed by the switch hardware. This stage is highly recommended for high-performance security actions, such as dropping unwanted traffic immediately upon arrival, because it prevents the switch from wasting internal resources (CPU and ASIC lookup cycles) on frames that are destined to be discarded anyway.

Ingress (Option A):This stage occursafterthe switch has completed its Layer 2 (MAC table) and Layer 3 (routing table) lookups butbeforethe packet is queued for the egress port. While powerful, actions here occur after initial processing has already taken place.

Egress (Option C):This stage is processed just before the frame leaves the switch through the destination port. It is typically used for final modifications or filtering based on the outgoing interface context.

Therefore, to achieve the goal of applying actionsbeforeany Layer 2 or Layer 3 processing occurs, thePrelookupstage is the technically correct and recommended choice in FortiSwitchOS 7.6.Forwarding (Option B)is a general functional stage of a switch but is not a specific ACL stage type in the FortiSwitch configuration hierarchy.
