The FortiLink authorization process is an integral part of setting up FortiSwitch to be managed by FortiGate. The correct statements regarding the FortiLink authorization process are:

C.A FortiLink frame is sent by FortiGate to FortiSwitch to complete the authorization.This is a part of the FortiLink protocol, where FortiGate communicates with the connected FortiSwitch to establish management and control. This frame initiates the configuration and management process, allowing FortiGate to effectively control the switch.

D.FortiLink authorization sets the FortiSwitch management mode to FortiLink.Once authorized, the management mode of FortiSwitch is set to FortiLink, indicating that it is being managed via a FortiLink connection from a FortiGate appliance. This changes the operational mode of the switch to be under the control of the FortiGate for centralized management and policy application.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the interaction between a managed switch and a connected endpoint depends on whether the endpoint can participate in the 802.1X authentication process. When a security policy is applied to a port, the switch sends EAP (Extensible Authentication Protocol) requests to the device to initiate the login.

The FortiSwitch handles two primary failure scenarios differently:

Non-supplicant (No 802.1X Support):If a device, such as a legacy PC or a basic printer, does not have an 802.1X supplicant, it will not respond to the switch ' s EAP requests. In this case, the switch waits for the duration specified in theGuest authentication delayfield (30 seconds in the exhibit). Once this timer expires without a response, the switch places the device into theGuest VLAN. As shown in the exhibit, the Guest VLAN is explicitly set to " onboarding.fortilink (onboarding) " .

Authentication Failure:If a devicedoessupport 802.1X but the user provides incorrect credentials, the RADIUS server returns an Access-Reject message. In this scenario, the device is moved to theAuthentication fail VLAN, which the exhibit identifies as " quarantine.fortilink (quarantine) " .

Note:BecauseMAC authentication bypass (MAB)is disabled in the exhibit, the switch will not attempt to authenticate the device ' s MAC address against the RADIUS server before defaulting to the Guest VLAN. Therefore, for any device lacking an 802.1X supplicant, the result is placement into theonboardingVLAN.

In a multi-tenancy setup on FortiGate, you can assign a FortiSwitch port to a VDOM in two primary ways:

Switch the FortiLink Interface to the Target VDOM (A): This method involves configuring the FortiLink interface, which is the dedicated interface used to manage FortiSwitch units from FortiGate, to operate within a specific VDOM. This effectively assigns all ports on the FortiSwitch, managed through that FortiLink interface, to the designated VDOM.

Create a Virtual Port Pool on the FortiGate CLI (C): Virtual port pools are created on FortiGate and allow ports from FortiSwitch to be grouped and assigned to a VDOM. This method is more granular and flexible, as it allows specific ports on the FortiSwitch to be dedicated to different VDOMs without requiring the entire switch or FortiLink interface to be dedicated to a single VDOM.

QSFP+ transceiver (A): The QSFP+ (Quad Small Form-factor Pluggable Plus) transceiver is designed to handle 40G data rates and can be used to split a 40G port into multiple 10G connections. This type of transceiver supports such configurations, making it suitable for high-density applications where multiple 10G connections are derived from a single 40G port, thereby maximizing the utilization of the port and the fiber infrastructure.

The correct statement about using the Switch Port Analyzer (SPAN) packet capture method on FortiSwitch is that " Mirrored traffic can be sent across multiple switches (A). " This feature allows for extensive traffic analysis as it enables network administrators to configure SPAN sessions that span across different switches, thereby providing the capability to monitor traffic across a broad segment of the network infrastructure.

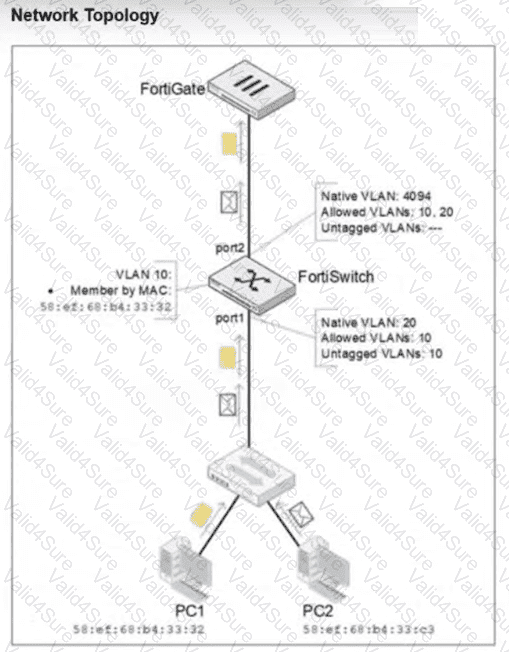

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the classification of untagged traffic entering a switch port is determined by the port ' s hierarchy of VLAN assignment rules.

For the traffic arriving atport1:

PC1 (MAC 58:ef:68:b4:33:32):The exhibit shows an explicitMAC-based VLAN assignmentrule for this specific MAC address, placing it intoVLAN 10. In FortiSwitchOS, dynamic assignments like MAC-based or protocol-based rules take precedence over the port ' s static native VLAN. Therefore, PC1 ' s traffic is internally associated with VLAN 10.

PC2 (MAC 58:ef:68:b4:33:c3):There is no MAC-based rule for this device. As a result, the switch falls back to the default behavior and assigns the traffic to the port ' sNative VLAN, which isVLAN 20.

For the traffic exiting port2:

The egress behavior depends on the VLAN tagging configuration of the outgoing interface. On port2, the Native VLAN is 4094, and VLANs 10 and 20 are listed as Allowed VLANs. According to Fortinet documentation, any traffic belonging to an allowed VLAN that does not match the native VLAN ID of the egress port must be sent as tagged 802.1Q frames. Since neither VLAN 10 nor VLAN 20 matches the native ID of 4094, the FortiSwitch will apply a VLAN 10 tag to PC1 ' s traffic and a VLAN 20 tag to PC2 ' s traffic as they are forwarded to the FortiGate.

To enable SNMP v2c on a managed FortiSwitch, the essential requirement involves configuring the SNMP agent and community strings:

Configure SNMP Agent and Communities (D):

SNMP Agent:Activating the SNMP agent on FortiSwitch allows it to respond to SNMP requests.

Community Strings:SNMP v2c uses community strings for authentication. These strings function as passwords to grant read-only or read-write access to the SNMP data.

Understanding Other Options:

Create an SNMP user (A)is necessary for SNMP v3, not v2c, as it involves user-based authentication and encryption.

Specify an SNMP host (B)is typically a part of SNMP configuration but not a requirement just to enable SNMP.

Enable SNMP v3 (C)is not related to enabling SNMP v2c.

In a hierarchical network model, the role of a device functioning simultaneously as both the distribution and core is most accurately described as " FortiGate managing FortiSwitch (B). " In this setup, FortiGate acts as the central unit managing multiple FortiSwitch units, thereby functioning both as a distribution layer—handling traffic between network segments—and as a core layer—managing traffic within the network on a broader scale. This setup is typical in medium-sized networks where a single device is capable enough to handle both roles effectively.
