Understanding Spanning Tree Protocol (STP):

STP is used to prevent network loops in Ethernet networks by creating a spanning tree that selectively blocks some redundant paths.

Default Priority Value:

Bridge Priority: STP uses bridge priority to determine which switch becomes the root bridge. The default bridge priority value for most switches is 32768.

Priority Range: The bridge priority can be set in increments of 4096, ranging from 0 to 61440.

Configuration and Verification:

When deploying a new switch, the network administrator can verify the bridge priority using commands such as show spanning-tree to ensure it is set to the default value of 32768.

Comparison with Other Values:

4096 and 8192: Lower than the default priority, indicating these would be manually configured for higher preference.

36684: A non-standard value, likely a result of specific configuration changes.

Understanding ACLs:

Access Control Lists (ACLs): A set of rules used to control network traffic and restrict access to network resources by filtering packets based on IP addresses, protocols, or ports.

Implementing Security Zones:

Defining Zones: ACLs can be used to create security zones by applying specific rules to different departments, ensuring that only authorized traffic is allowed between these zones.

Control Traffic: ACLs control inbound and outbound traffic at network boundaries, enforcing security policies and preventing unauthorized access.

Comparison with Other Options:

Port Security: Limits the number of devices that can connect to a switch port, preventing MAC address flooding attacks, but not used for defining security zones.

Content Filtering: Blocks or allows access to specific content based on predefined policies, typically used for web filtering rather than network segmentation.

NAC (Network Access Control): Controls access to the network based on the security posture of devices but does not define security zones.

Implementation Steps:

Define ACL rules based on the requirements of each department.

Apply these rules to the appropriate network interfaces or firewall policies to segment the network into security zones.

An IP Helper (IP Helper Address) allows DHCP requests to pass through routers and reach a DHCP server on another network.

DHCP broadcasts are not forwarded across routers by default, so an IP Helper Address is needed to relay the request.

This is crucial for large networks where a single DHCP server serves multiple subnets.

Option B (Reservation): Ensures a specific IP address is assigned to a MAC address but does not relay DHCP across networks.

Option C (Exclusion): Prevents specific IP addresses from being assigned, but does not help with DHCP relay.

Option D (Scope): Defines the range of IP addresses available for DHCP clients but does not assist in cross-network communication.

? Reference: CompTIA Network+ (N10-009) Official Study Guide – Section: DHCP and IP Addressing

EIGRP (Enhanced Interior Gateway Routing Protocol) is a Cisco proprietary advanced distance-vector routing protocol. While it operates within an Autonomous System (AS), it requires the AS number to be configured for routers to recognize each other as EIGRP neighbors.

OSPF (Open Shortest Path First) uses areas and routers must be in the same area to form adjacencies, but it doesn't require AS numbers in the same way.

FHRP (First Hop Redundancy Protocol) is not a routing protocol but a group of protocols (e.g., HSRP, VRRP) to ensure high availability at the default gateway level.

RIP (Routing Information Protocol) does not use autonomous system numbers.

📘 Reference:

CompTIA Network+ N10-009 Official Objectives: 3.1 – Compare and contrast various routing technologies.

===========

(Note: Ips will be change on each simulation task, so we have given example answer for the understanding)

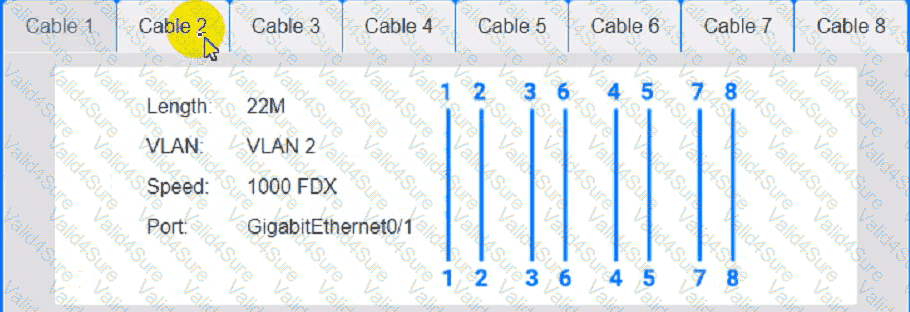

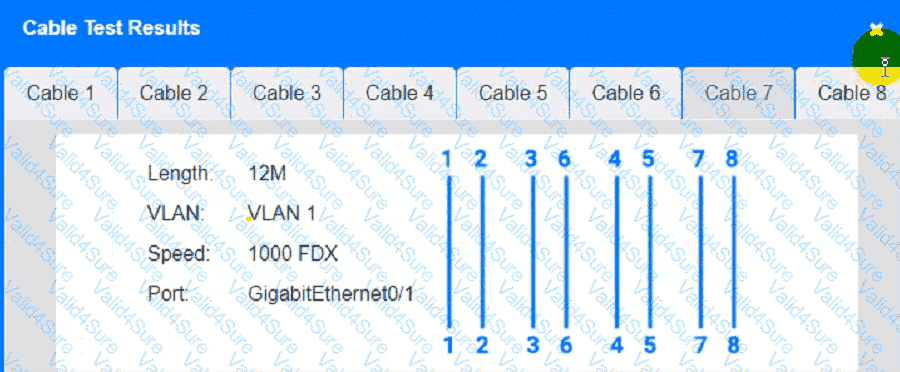

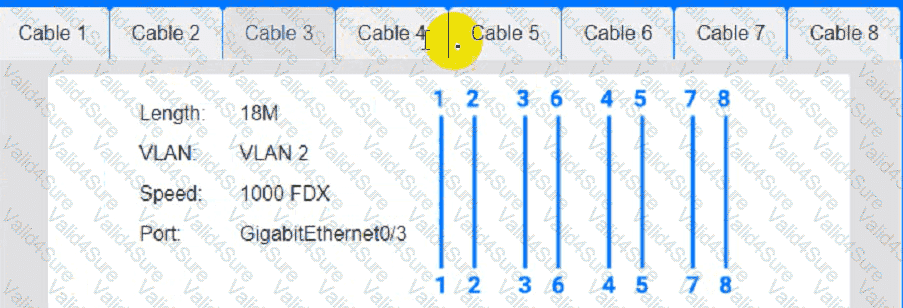

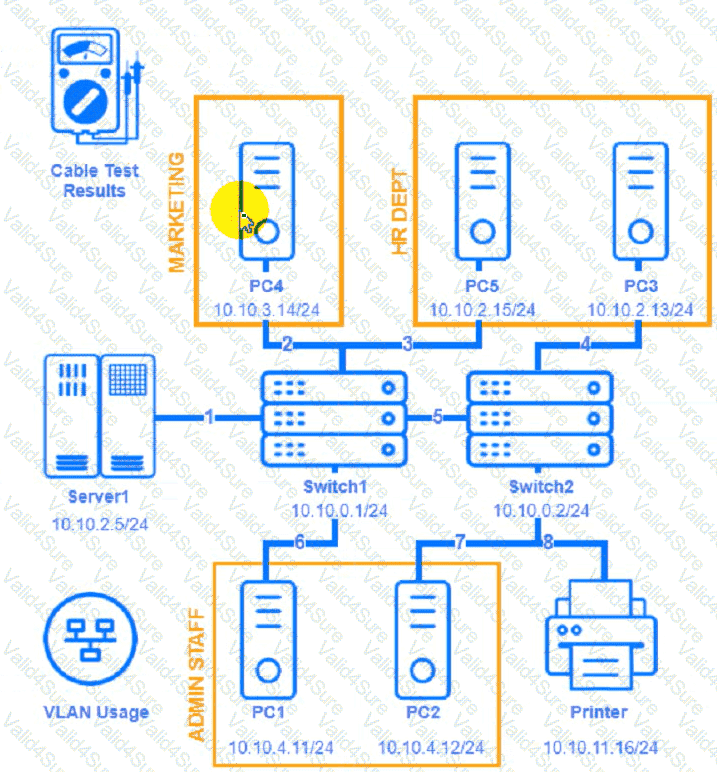

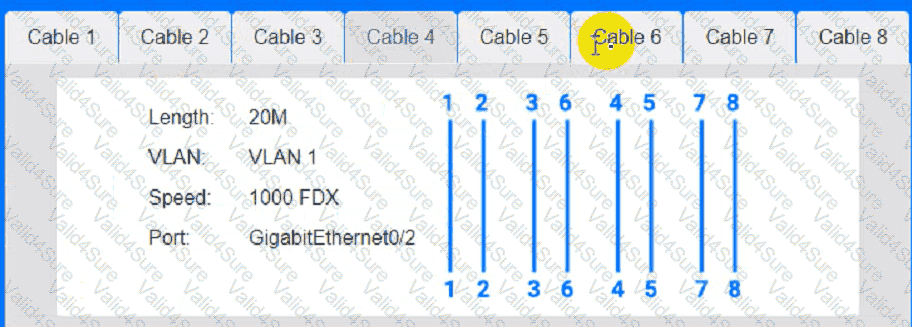

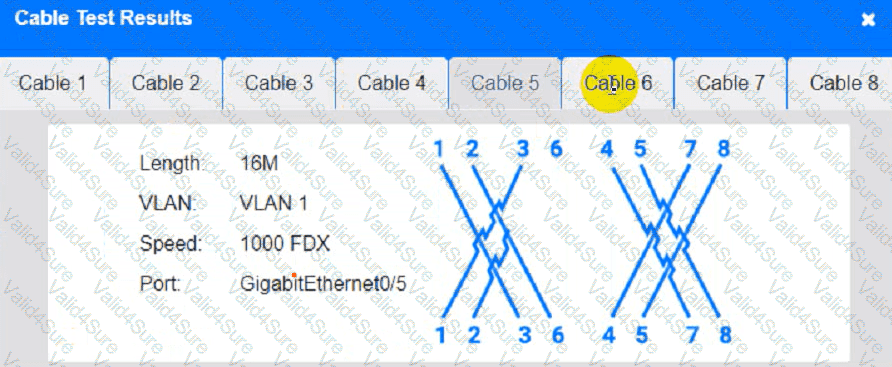

To troubleshoot all the network components and review the cable test results, you can use the following steps:

Click on each device and cable to open its information window.

Review the information and identify any problems or errors that may affect the network connectivity or performance.

Diagnose the appropriate component(s) by identifying any components with a problem and recommend a solution to correct each problem.

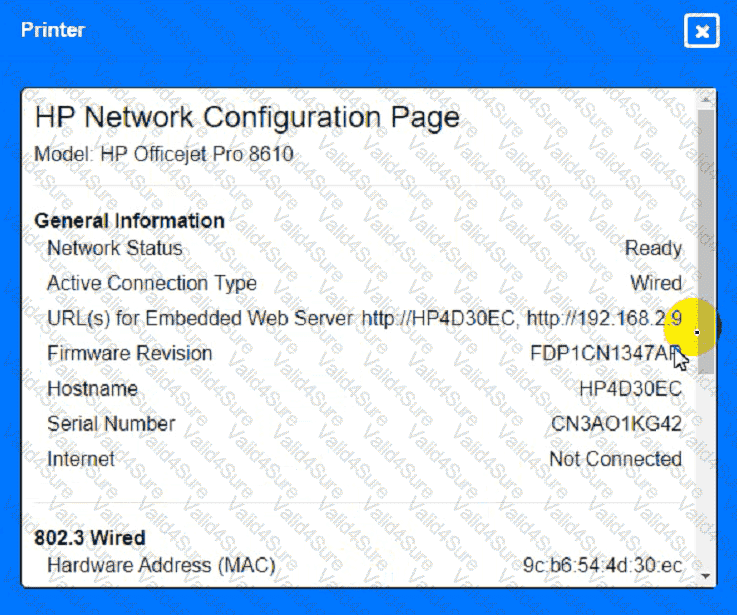

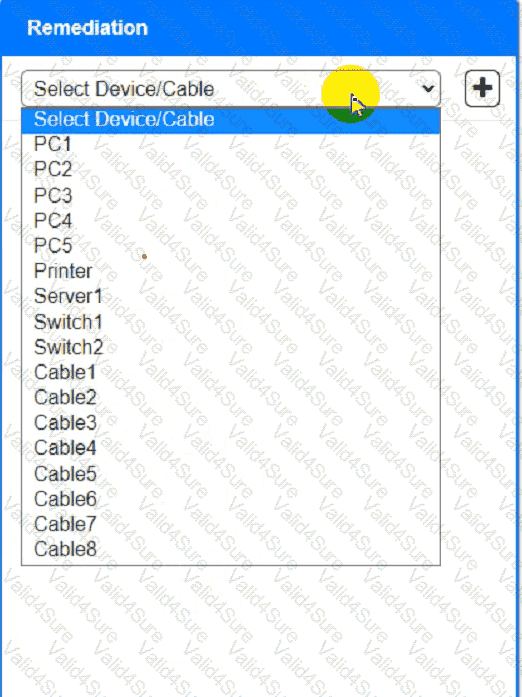

Fill in the remediation form using the drop-down menus provided.

Here is an example of how to fill in the remediation form for PC1:

The component with a problem is PC1.

The problem is Incorrect IP address.

The solution is Change the IP address to 192.168.1.10.

You can use the same steps to fill in the remediation form for other components.

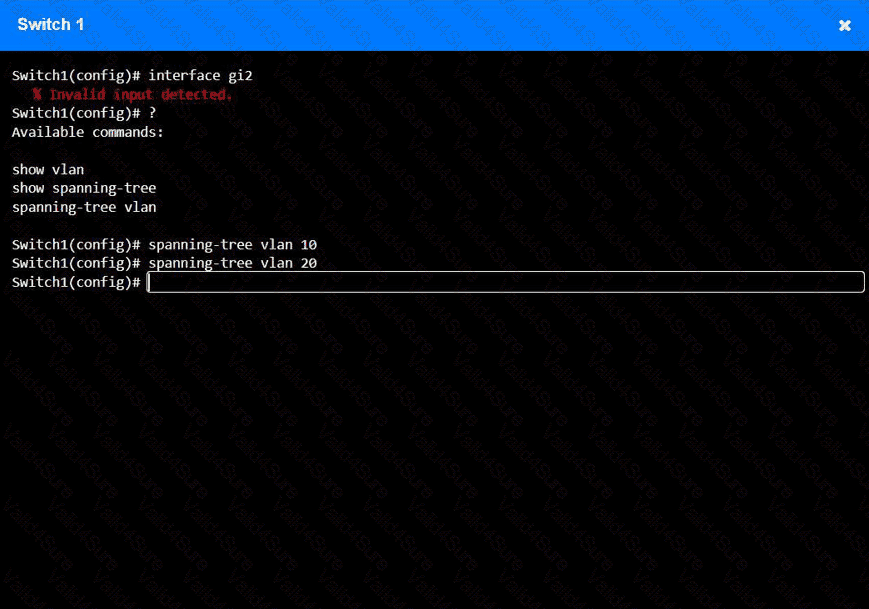

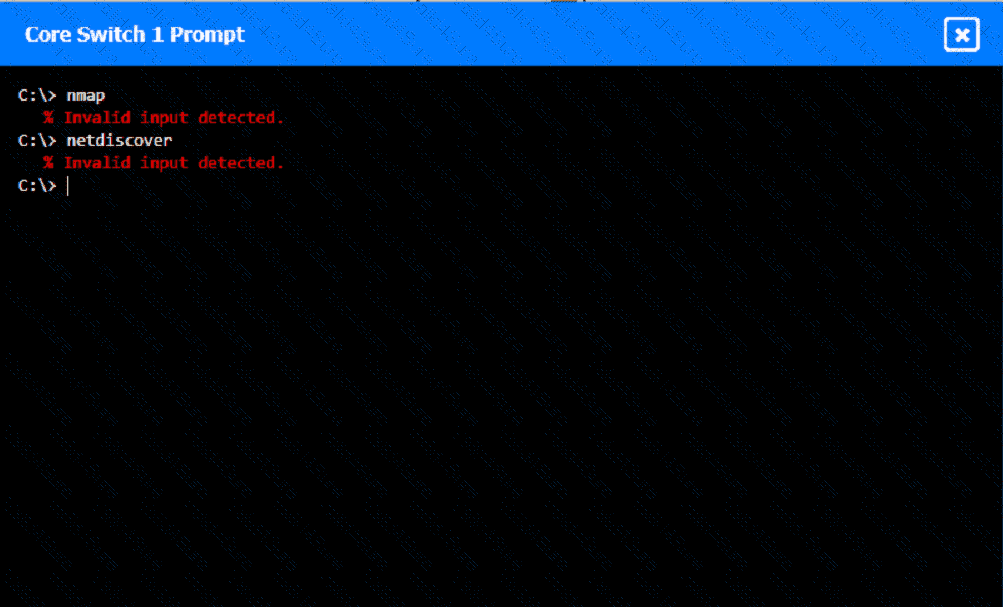

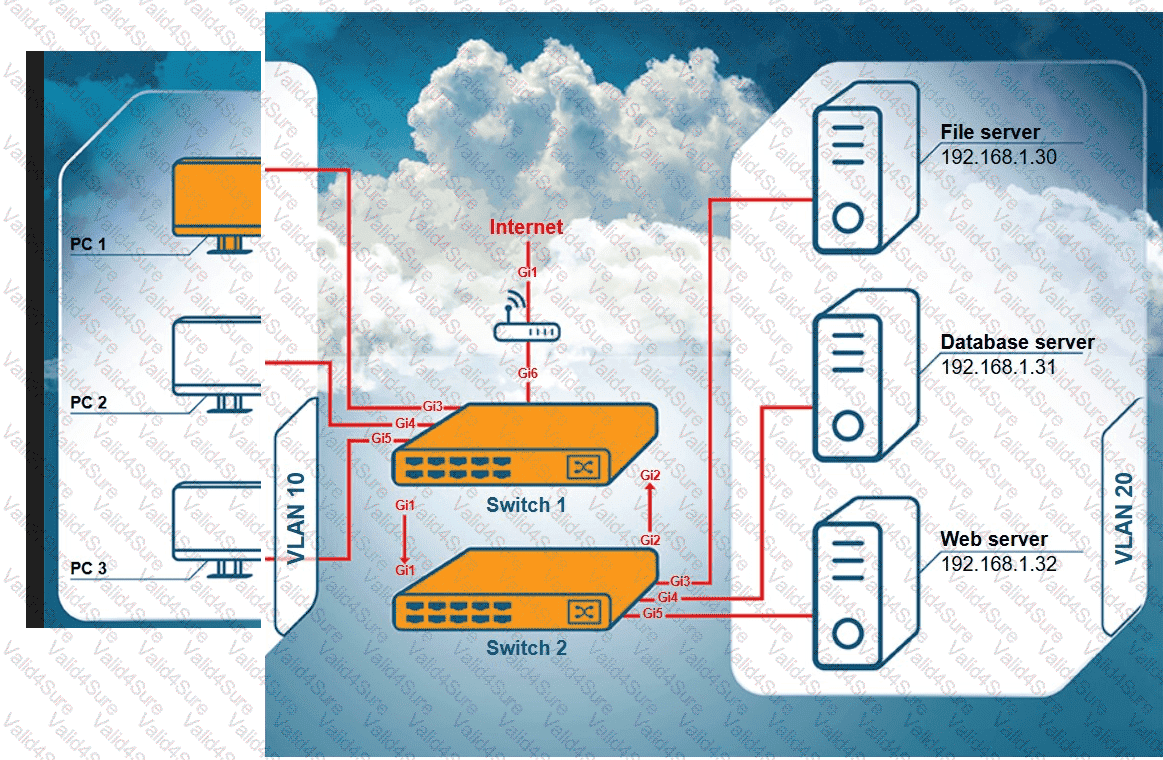

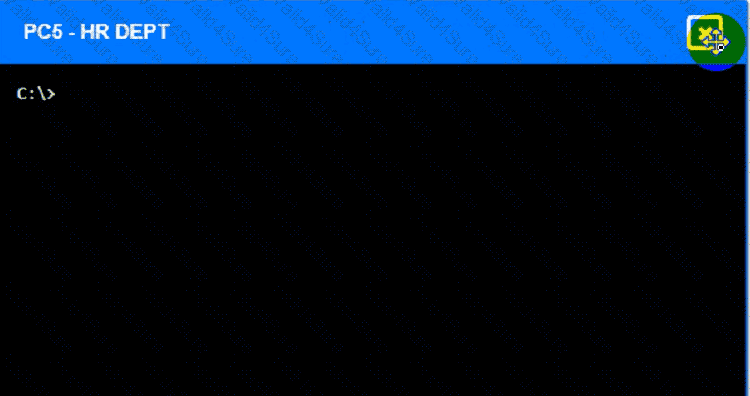

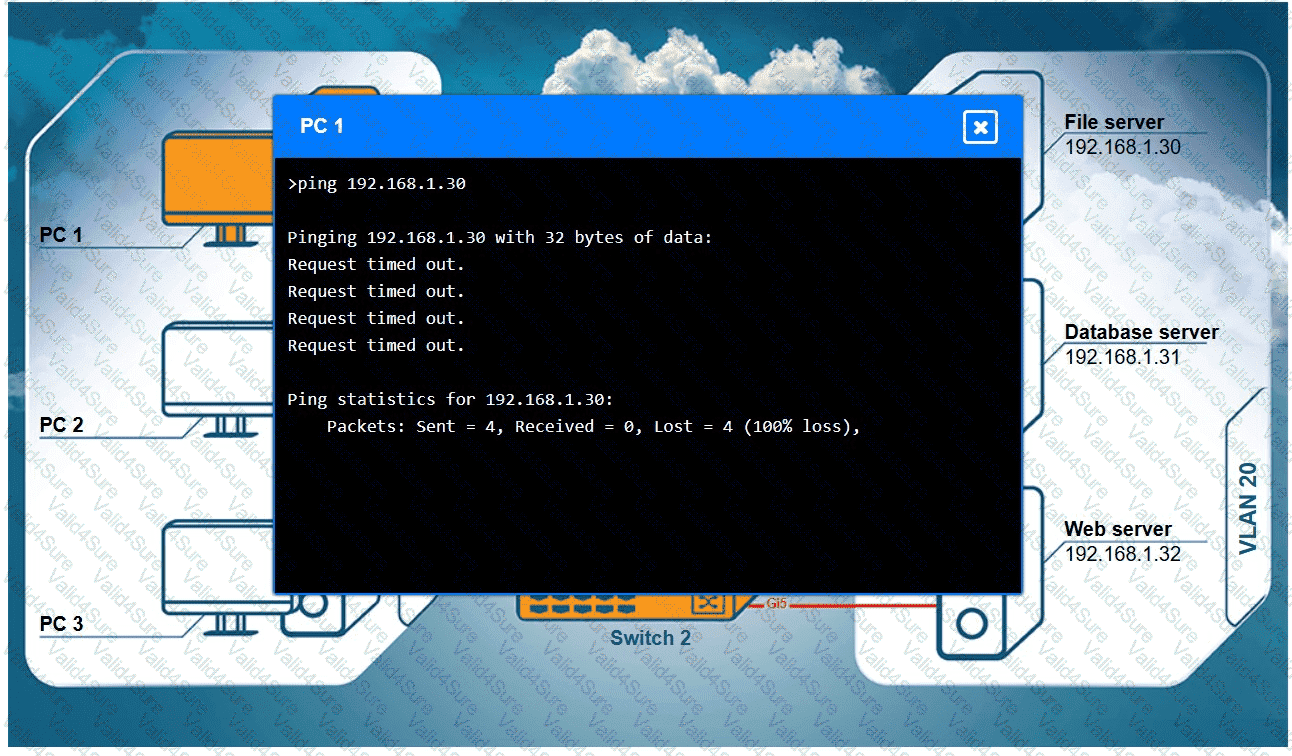

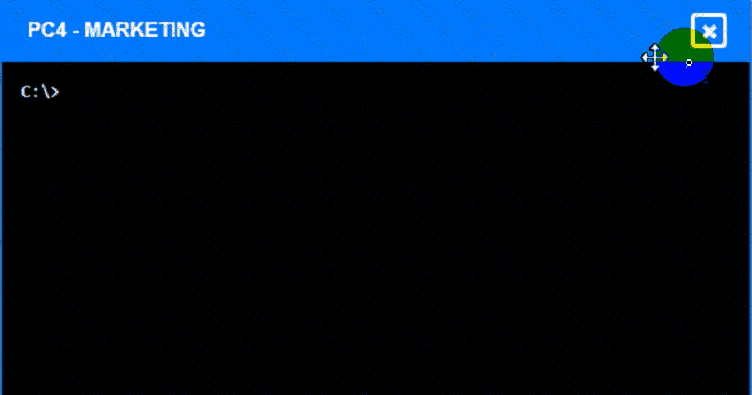

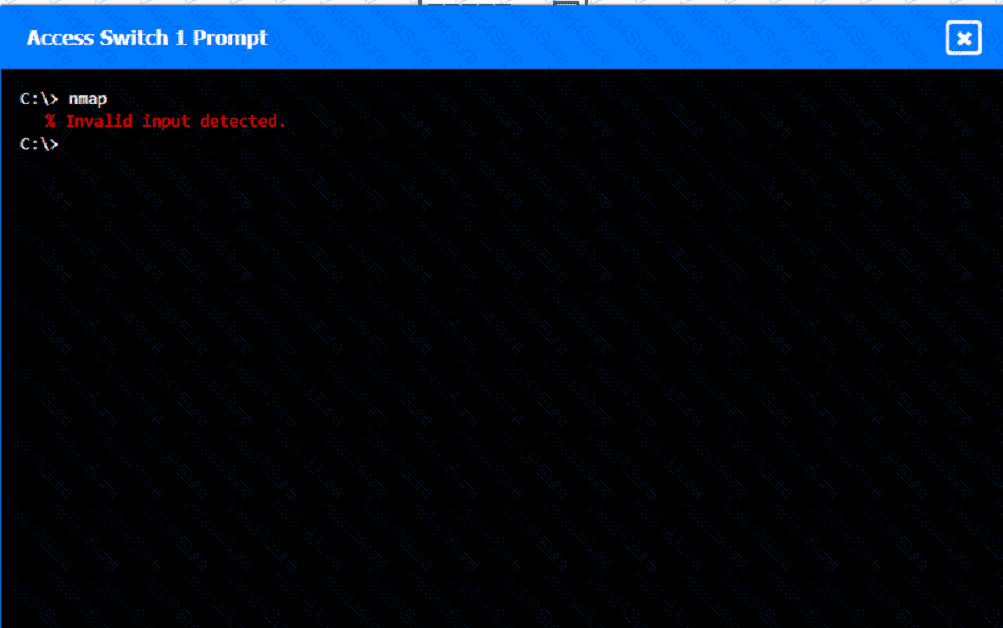

To enter commands in each device, you can use the following steps:

Click on the device to open its terminal window.

Enter the command ipconfig /all to display the IP configuration of the device, including its IP address, subnet mask, default gateway, and DNS servers.

Enter the command ping  to test the connectivity and reachability to another device on the network by sending and receiving echo packets. Replace with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.

Enter the command tracert  to trace the route and measure the latency of packets from the device to another device on the network by sending and receiving packets with increasing TTL values. Replace with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.

Here is an example of how to enter commands in PC1:

Click on PC1 to open its terminal window.

Enter the command ipconfig /all to display the IP configuration of PC1. You should see that PC1 has an incorrect IP address of 192.168.2.10, which belongs to VLAN 2 instead of VLAN 1.

Enter the command ping 192.168.1.1 to test the connectivity to Core Switch 1. You should see that PC1 is unable to ping Core Switch 1 because they are on different subnets.

Enter the command tracert 192.168.1.1 to trace the route to Core Switch 1. You should see that PC1 is unable to reach Core Switch 1 because there is no route between them.

You can use the same steps to enter commands in other devices, such as PC3, PC4, PC5, and Server 1.

Console Access:

Purpose: Console access to a switch allows administrators to configure and manage the device directly. This is typically done using a terminal emulator program on a computer.

RJ45 Connector:

Common Use: The RJ45 connector is widely used for Ethernet cables and also for console connections to network devices like switches and routers.

Console Cables: Console cables often have an RJ45 connector on one end (for the switch) and a DB9 serial connector on the other end (for the computer).

Comparison with Other Connectors:

ST (Straight Tip): A fiber optic connector used for networking, not for console access.

BNC (Bayonet Neill-Concelman): A connector used for coaxial cable, typically in older network setups and not for console access.

SFP (Small Form-factor Pluggable): A modular transceiver used for network interfaces, not for console access.

Practical Application:

Connection Process: Connect the RJ45 end of the console cable to the console port of the switch. Connect the DB9 end (or USB via adapter) to the computer. Use a terminal emulator (e.g., PuTTY, Tera Term) to access the switch’s command-line interface (CLI).

A jump box is a hardened, isolated system that provides secure access to critical infrastructure devices like routers and firewalls.

Packet loss occurs when network packets fail to reach their destination, leading to disruptions in connectivity and performance issues. In this scenario:

Users report connectivity issues and lag during video meetings.

The administrator detects increased retransmissions in tcpdump, which is a strong indicator of lost packets that must be resent.

Video meetings are particularly sensitive to packet loss, leading to buffering, frozen screens, and dropped calls.

Latency (Option A) refers to delayed data transmission but does not necessarily cause retransmissions.

Bottlenecking (Option C) happens when a network component (e.g., router, switch) cannot handle the traffic load, but packet retransmissions are more directly related to packet loss.

Jitter (Option D) affects the consistency of packet arrival times, but the symptoms described here are more aligned with packet loss rather than timing variations.

? Reference: CompTIA Network+ (N10-009) Official Study Guide – Section: Troubleshooting Connectivity Issues
