The correct solution is NTP (Network Time Protocol). Accurate timestamps across servers, firewalls, and network devices are critical for correlating logs during incident response. NTP synchronizes device clocks to a trusted time source, ensuring consistency across the network.

A. Syslog centralizes logs but does not synchronize time.

B. SMTP is email transfer, unrelated to time.

D. SNMP monitors devices but does not correct time discrepancies.

By implementing NTP, analysts can ensure that logs from different devices are time-aligned, which is essential for reconstructing attack timelines and detecting anomalies.

References (CompTIA Network+ N10-009):

Domain: Network Operations — Time synchronization, NTP, log correlation.

To ensure voice and data traffic are properly prioritized for an IP phone, the administrator should modify (configure) QoS. In Network+ (N10-009), QoS is the primary mechanism used to prioritize latency-sensitive traffic such as VoIP. By classifying and marking voice frames/packets (often using DSCP/CoS values) and applying priority queuing, the network ensures voice traffic experiences minimal delay and jitter even when links are congested. This is essential for call quality because voice is highly sensitive to variation in delivery time and packet loss.

802.1Q tagging is important for VLAN separation (and many IP phone deployments use a voice VLAN), but VLAN tagging alone does not guarantee prioritization; it separates traffic, while QoS provides preferential treatment. Full duplex can reduce collisions on Ethernet links, but it does not implement traffic prioritization policies. Changing the native VLAN is a trunking/security configuration detail and not the correct action to prioritize voice versus data. In practice, networks often use both a voice VLAN (802.1Q) and QoS, but for the explicit requirement of prioritization, QoS is the correct answer.

A toner and probe tool, also known as a tone generator and probe, is used to trace and identify individual cables within a bundle or to locate the termination points of cables in wiring closets and patch panels. It generates a tone that can be picked up by the probe, helping technicians quickly and accurately identify and label wall plates and wiring. This is the best tool for identifying proper wiring in the Intermediate Distribution Frame (IDF). References: CompTIA Network+ Exam Objectives and official study guides.

Definition of MAC Flooding:

MAC flooding is an attack where a malicious actor sends numerous fake MAC addresses to a switch, overwhelming its CAM table. The CAM table stores MAC addresses and their associated ports for efficient traffic forwarding.

Impact of MAC Flooding:

CAM Table Overflow: When the CAM table is full, the switch cannot learn new MAC addresses and is forced to broadcast traffic to all ports, leading to a degraded network performance and potential data interception.

Switch Behavior: The switch operates in a fail-open mode, treating the network as a hub, which can be exploited for eavesdropping on traffic.

Comparison with Other Attacks:

ARP Spoofing: Involves sending false ARP (Address Resolution Protocol) messages to associate the attacker ' s MAC address with the IP address of another device.

Evil Twin: Involves creating a rogue wireless access point that mimics a legitimate one to intercept data.

DNS Poisoning: Involves corrupting the DNS cache with false information to redirect traffic to malicious sites.

Preventive Measures:

Port Security: Configure port security on switches to limit the number of MAC addresses per port, preventing CAM table overflow.

Network Segmentation: Use VLANs to segment network traffic and limit the impact of such attacks.

To access the internet using static IPs, the firewall (or router) must be configured correctly:

B. Default gateway: This is essential because it tells the firewall where to send outbound traffic destined for outside the local network.

D. One static IP address: The firewall must be assigned one of the static IPs to communicate over the public internet.

The other options are not essential for basic internet connectivity in this context:

A. NTP server: Useful for time synchronization but not required for internet access.

C. The modem’s IP address: Irrelevant unless doing modem-level configuration.

E. DNS servers: Important for name resolution but not for basic layer 3 connectivity.

F. DHCP server: Not used when static IPs are assigned.

📘 Reference:

CompTIA Network+ N10-009 Official Objectives: 2.2 – Compare and contrast addressing technologies.

===========

Port 22 is used for Secure Shell (SSH), which enables encrypted remote login and command execution on network devices.

Port 23 = Telnet (unencrypted)

Port 80 = HTTP

Port 123 = NTP

From Andrew Ramdayal’s guide:

“SSH uses port 22 to provide secure command-line access to devices such as switches and routers. Unlike Telnet (port 23), SSH encrypts session traffic, making it the preferred method for remote administration.”

A Content Delivery Network (CDN) stores cached versions of content in edge locations to deliver data faster and more reliably to users based on geographical proximity.

From Andrew Ramdayal’s guide:

“CDNs distribute content to multiple, geographically dispersed servers. This enhances performance and reliability for end-users by reducing latency and load times.”

To validate routing between networks hosting Workstation A and File Server 2, follow these steps:

Review Routing Tables:

Check the routing tables of Router A, Router B, and Router C to identify any missing routes.

Identify Missing Routes:

Ensure that each router has routes to the networks on which Workstation A and File Server 2 are located.

Add Static Routes:

If a route is missing, add a static route to the relevant destination network via the correct interface.

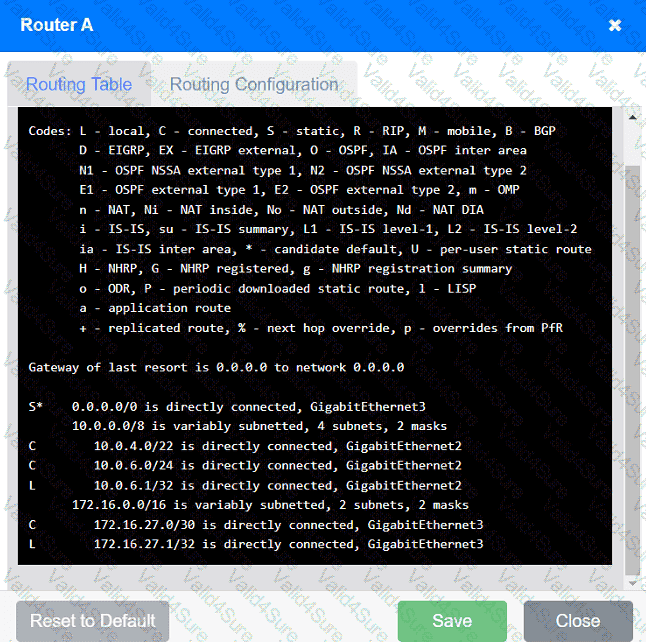

Routing Table:

Gateway of last resort is 0.0.0.0 to network 0.0.0.0

S* 0.0.0.0/0 is directly connected, GigabitEthernet3

10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks

C 10.0.4.0/22 is directly connected, GigabitEthernet2

C 10.0.6.0/24 is directly connected, GigabitEthernet2

L 10.0.6.1/32 is directly connected, GigabitEthernet2

172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks

C 172.16.27.0/30 is directly connected, GigabitEthernet3

L 172.16.27.1/32 is directly connected, GigabitEthernet3

Routing Table:

Gateway of last resort is 0.0.0.0 to network 0.0.0.0

S* 0.0.0.0/0 is directly connected, GigabitEthernet1

10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks

C 10.0.0.0/22 is directly connected, GigabitEthernet1

L 10.0.0.1/32 is directly connected, GigabitEthernet1

172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks

C 172.16.27.4/30 is directly connected, GigabitEthernet1

L 172.16.27.5/32 is directly connected, GigabitEthernet1

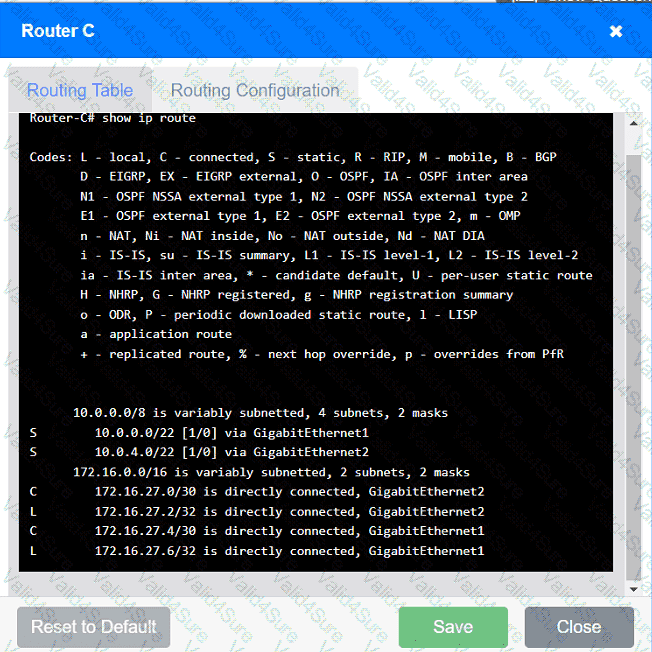

Routing Table:

10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks

S 10.0.0.0/22 [1/0] via GigabitEthernet1

S 10.0.4.0/22 [1/0] via GigabitEthernet2

172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks

C 172.16.27.0/30 is directly connected, GigabitEthernet2

L 172.16.27.2/32 is directly connected, GigabitEthernet2

C 172.16.27.4/30 is directly connected, GigabitEthernet1

L 172.16.27.6/32 is directly connected, GigabitEthernet1

Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router C ' s IP is 172.16.27.1):

Destination Prefix: 10.0.0.0

Destination Prefix Mask: 255.255.252.0

Interface: GigabitEthernet3

Install Static Route to 10.0.4.0/22 via 172.16.27.5 (assuming Router C ' s IP is 172.16.27.5):

Destination Prefix: 10.0.4.0

Destination Prefix Mask: 255.255.252.0

Interface: GigabitEthernet1

Install Static Route to 10.0.6.0/24 via 172.16.27.2 (assuming Router A ' s IP is 172.16.27.2):

Destination Prefix: 10.0.6.0

Destination Prefix Mask: 255.255.255.0

Interface: GigabitEthernet2

Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router B ' s IP is 172.16.27.1):

Destination Prefix: 10.0.0.0

Destination Prefix Mask: 255.255.252.0

Interface: GigabitEthernet1

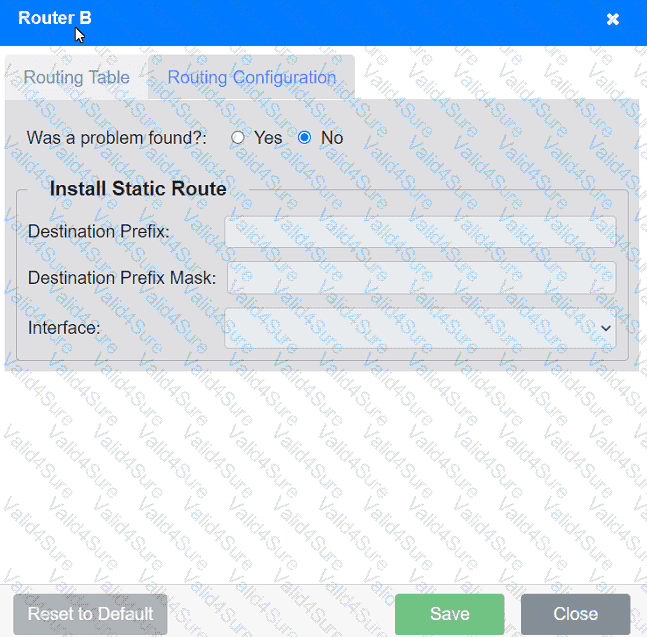

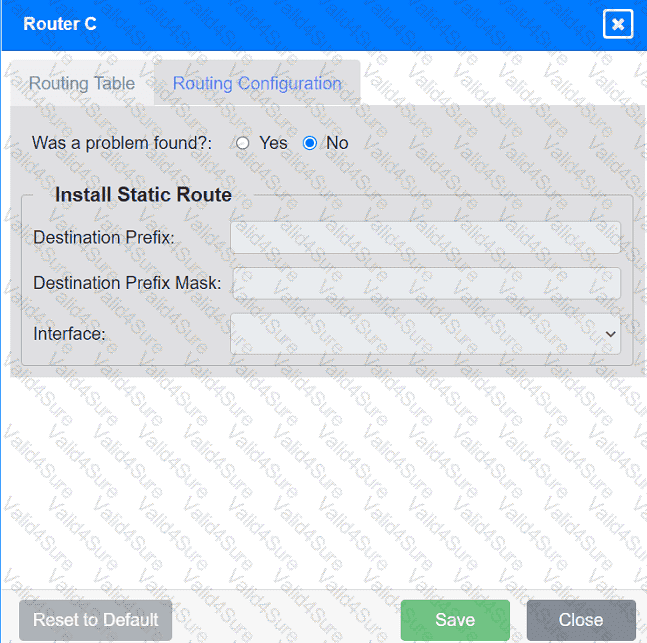

Summary of Static Routes:

Router A:

ip route 10.0.0.0 255.255.252.0 GigabitEthernet3

Router B:

ip route 10.0.4.0 255.255.252.0 GigabitEthernet1

Router C:

ip route 10.0.6.0 255.255.255.0 GigabitEthernet2

ip route 10.0.0.0 255.255.252.0 GigabitEthernet1

These configurations ensure that each router knows the correct paths to reach Workstation A and File Server 2, resolving the connectivity issue.
