An access port is a Layer 2 switch interface mode intended for an endpoint that belongs to a single VLAN. Traffic on an access port is associated with exactly one VLAN, and frames are typically transmitted and received untagged on the wire. The switch internally maps that untagged traffic into the configured access VLAN, placing the endpoint into the correct broadcast domain. This behavior is widely used for server access, management ports, out of band devices, and any endpoint that does not tag VLANs.

By contrast, trunk ports are designed to carry multiple VLANs simultaneously, usually with 802.1Q tagging, and are typically used between switches, to routers, to virtualization hosts, or to appliances that handle multiple VLANs. That is why assigning multiple VLANs to an access port is not the standard access mode behavior.

An access port does not have to connect to a router or a firewall. It can connect directly to any Ethernet endpoint. Routing between VLANs is provided by a Layer 3 interface such as an IRB interface on the switch or an external routed device, but that is independent of whether the endpoint connects on an access port.

Verification sources from Juniper documentation

https://www.juniper.net/documentation/us/en/software/junos/multicast-l2/topics/topic-map/bridging-and-vlans.html

https://www.juniper.net/documentation/us/en/software/junos/multicast-l2/topics/task/interfaces-configuring-ethernet-switching-access.html

EBGP is the BGP session type formed between different autonomous systems. In Juniper data center IP fabrics, EBGP is frequently used for the underlay because it can provide all required reachability without an additional interior gateway protocol. The fabric can advertise loopbacks and point-to-point link subnets directly in BGP, then use ECMP to install multiple equal-cost next hops. This is why EBGP sessions do not require an IGP as a fundamental dependency. Some designs still add an IGP for other reasons, but EBGP itself can carry the underlay routes needed for full fabric connectivity.

EBGP sessions are also typically established between directly connected peers. In a standard leaf-spine underlay, each leaf peers with each spine over the routed physical links between them, using the interface IP addresses on those point-to-point subnets. This matches EBGP default behavior, including a one-hop TTL expectation and straightforward operational troubleshooting.

Loopback peering is not required for EBGP. It is possible, but it usually needs additional configuration such as multihop and a routing method to ensure reachability to the remote loopback before the BGP session can form. EBGP also supports sessions with non-directly connected peers when multihop is configured, so it is incorrect to claim EBGP does not support that capability.

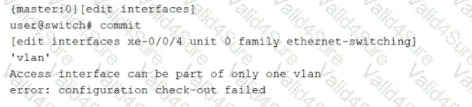

The commit error indicates that the interface is being treated as an access port while the configuration attempts to associate it with more than one VLAN. In Junos Ethernet switching, an access mode interface represents a single untagged VLAN membership. Because access ports accept and transmit frames without 802.1Q tags, the switch must map all ingress untagged traffic to exactly one VLAN. For that reason, Junos enforces the rule that an access interface can be part of only one VLAN, and it rejects configurations that try to add multiple VLAN members under access mode.

There are two valid ways to resolve this, depending on the intended design. First, if the port truly connects to a single endpoint that should live in only one broadcast domain, configure the interface as a member of only one VLAN. This aligns with access port semantics and eliminates the conflict that causes the commit to fail.

Second, if the endpoint or downstream device needs to carry multiple VLANs over the same physical link, change the interface to trunk mode. A trunk port is designed to transport multiple VLANs using 802.1Q tagging, so multiple VLAN members are valid and expected. In data center environments, trunking is common for server virtualization hosts, appliance uplinks, and switch-to-switch links.

Connecting the interface to the network does not affect configuration validation, and logical unit numbering is unrelated to VLAN membership rules for access ports.

In Junos-based data center switching, an IRB interface is the Layer 3 gateway that is logically associated with a Layer 2 VLAN or bridge domain. The VLAN provides Layer 2 bridging inside the broadcast domain, while the IRB interface provides the routed interface that enables hosts in that VLAN to reach destinations outside their local subnet. This is the standard mechanism used for inter-VLAN routing on Juniper switches and for providing default gateway services to servers connected to access ports or VLAN-tagged trunks.

Operationally, endpoints in a VLAN use the IRB interface IP address as their default gateway. Frames destined to a remote subnet are bridged at Layer 2 to the IRB gateway MAC address, and then the packet is routed at Layer 3 based on the routing table. This allows a single device to perform both bridging within the VLAN and routing between VLANs or to other routed interfaces, which is why the concept is called integrated routing and bridging.

IRB does not encrypt traffic and does not provide NAT by itself; those functions are typically associated with security services features and firewall platforms. IRB is also not the mechanism that performs pure bridging within the same VLAN, because bridging is handled by the VLAN or bridge domain and the Ethernet switching table.
