JN0-232 Exam Dumps - Security, Associate (JNCIA-SEC)

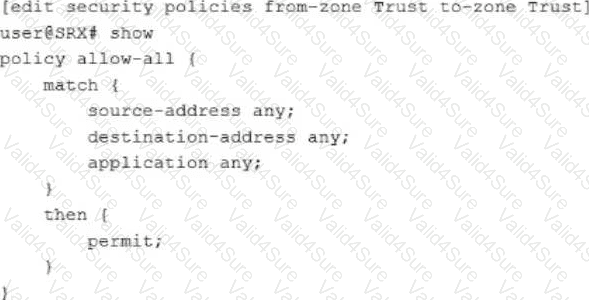

The exhibit shows a policy configured under from-zone Trust to-zone Trust. Because the source zone and destination zone are the same, this is an intra-zone security policy. An inter-zone policy would have different source and destination zones, such as Trust to Untrust. A global policy does not require the same specific from-zone and to-zone context in the same way as a zone-based policy. A default policy is the implicit final behavior used when no configured security policy matches. Junos security policies enforce rules for transit traffic using zone context, source address, destination address, application, and action. Since both zone references are Trust, the displayed policy is clearly an intra-zone policy.

The SRX Series devices support third-party antivirus scanning engines such as Avira . To use the Avira antivirus engine, administrators must explicitly enable the engine and ensure that the required components are properly loaded.

Enable in configuration mode:

The Avira antivirus engine must be enabled under UTM configuration mode. This step ensures the SRX device uses the Avira scanning engine for antivirus inspection.

Example:

set security utm feature-profile anti-virus avira-engine enable

Reboot the SRX device:

A system reboot is required after enabling the Avira engine to load the Avira antivirus components into memory.

Without a reboot, the Avira engine will not become active.

Why not the others?

Restarting the mgd process (Option A) only reloads the management daemon and does not load antivirus engines.

Enabling in operational mode (Option B) is not supported; the configuration must be applied in configuration mode.

Therefore, the correct actions to use Avira Antivirus are: Enable the Avira engine in configuration mode (Option D) and reboot the SRX device (Option C).

The management functional zone on SRX devices is a special predefined zone with unique characteristics:

It is automatically created (Option C) and cannot be deleted.

It is used specifically for management-related traffic (Option A), such as SSH, Telnet, web management (J-Web), SNMP, and other control-plane services.

It does not contain revenue (data) interfaces (Option B is incorrect). Interfaces must be explicitly configured into user-defined zones.

The management zone can be referenced in policies if inter-zone communication involving management traffic is needed (Option D is incorrect).

Correct Statements: A and C

Unified security policies use AppID to classify and control applications based on Layer 7 inspection, including applications nested within trusted services such as HTTP. Juniper documentation states that AppID identifies dynamic or real-time Layer 4 through Layer 7 applications and that dynamic applications can be added to unified security policy match criteria. To use AppID-based control, the SRX must have the required Application Identification feature license and application signature support. Dynamic application objects must then be referenced in the security policy so the firewall can match traffic by application identity rather than only by port or protocol. Unified policies do not have to be created only in the global zone, and disabling the default policy is not required.

The session output shows traffic entering the SRX from 192.0.2.212/49862 to the public destination 203.0.113.199/22. The paired flow shows the translated internal server address as 10.10.101.10/22. This confirms destination NAT because the original destination IP address 203.0.113.199 is translated to the internal destination IP address 10.10.101.10. Juniper’s destination NAT documentation shows the same interpretation of show security flow session: the incoming flow is destined to the public address, while the paired flow displays the translated private destination address. PAT is not being performed because the destination port remains 22 before and after translation. PAT would require port translation, but no port number changes are shown.

Content filtering on SRX devices inspects and controls specific file types transferred across certain application protocols:

SMTP (Option A): Supported. Content filtering can block specific file attachments in emails.

HTTP (Option D): Supported. Content filtering can block downloads of specific file types over web traffic.

SNMP (Option B): Not supported; SNMP is a management protocol, not a content delivery protocol.

TFTP (Option C): Not supported by content filtering.

Correct Protocols: SMTP and HTTP

NAT processing in Junos OS follows a strict sequence to ensure correct packet handling:

Static NAT – applied first because it provides a permanent one-to-one bidirectional mapping.

Destination NAT – applied second to translate inbound destination addresses, often used for servers in private networks.

Source NAT – applied last to translate outbound private source addresses to public ones.

This ensures deterministic behavior and avoids conflicts between translation types.

Options B, C, and D list incorrect sequences.

Correct Order: static NAT → destination NAT → source NAT

Unified security policies integrate traditional zone-based policies with application-based policies . Their characteristics include:

Zone-based or global (Option B): Unified policies can be applied as either zone-specific or global policies.

AppID engine (Option C): They leverage the AppID engine for application identification, enabling fine-grained control at the application layer.

Policy matching (Option A): Policies are evaluated sequentially like standard security policies; applications are not matched before policy processing.

Multiple matches (Option D): If multiple policies could match, the first match applies (sequential order), not the “most restrictive.”

Correct Statements: B and C
