The HPE Alletra MP B10000 (Block) utilizes a disaggregated shared-everything architecture where capacity is distributed across multiple NVMe drives and enclosures. To ensure 100% data availability, the system allows administrators to define the level of resilience required via the High Availability (HA) settings.

Architecturally, there is a direct trade-off between the level of hardware resilience and the achievable space efficiency (usable capacity).

Enclosure Level HA (Option D): This is the most resilient setting. It ensures the system can survive the total failure of an entire drive enclosure (JBOF) without losing data. To achieve this, the system must distribute parity and data stripes across different enclosures. This "vertical" redundancy requires a larger percentage of raw capacity to be reserved for parity, thereby reducing the net space efficiency.

Drive Level HA (Option A): This setting protects against individual drive failures (similar to traditional RAID 6 or RAID-TP) but assumes the enclosure itself remains operational. Because the stripes can be optimized more densely within fewer hardware boundaries, the system requires less "overhead" capacity to maintain the protection state.

By changing the High Availability option to Drive Level, the administrator instructs the Alletra MP software to prioritize usable capacity over enclosure-level fault tolerance. This is a common optimization for customers who have multi-enclosure systems but prefer to maximize their ROI on raw NVMe flash. It is important to note that changing this setting may require a re-striping of existing data and should be done in accordance with the customer’s risk profile and SLA requirements. The sparing algorithms (Options B and C) manage how much space is set aside for automatic rebuilds, but the primary driver of bulk space efficiency in a multi-enclosure MP cluster is the HA policy selection.

The integration of Veeam Backup & Replication with HPE StoreOnce via the StoreOnce Catalyst protocol offers specialized features that transform static backup data into active assets for testing and verification. To address the specific requirements of validating restores and creating testing environments, Veeam utilizes the SureBackup and DataLabs features.

Veeam SureBackup is the primary feature used to validate the recoverability of backups. It automates the process of testing a backup by booting the VM directly from the StoreOnce repository in an isolated environment (Virtual Lab). It performs heartbeats, network tests, and application-specific tests (such as checking if a SQL database responds) to ensure the data is not just present, but functional. Because HPE StoreOnce Gen4+ systems feature flash-accelerated metadata and improved random read performance, they are "Veeam Ready" to support the I/O requirements of starting VMs for these verification tasks.

Veeam DataLabs (formerly known as Virtual Lab or On-Demand Sandbox) is the broader orchestration framework that allows customers to leverage their backup data for "Labs." By creating a DataLab, an administrator can spin up an isolated copy of the production environment from the StoreOnce backups. This is used for "validation testing," such as testing security patches, verifying application upgrades, or performing "DevOps" tasks without impacting the production systems. Option C (Immutability) and Option E (Virtual Lock) are critical for ransomware protection but do not directly facilitate the "lab creation" or "validation testing" workflows described. Option A is a general data transfer mechanism. By selecting B and D, the storage architect ensures a solution that not only protects data but proactively proves its readiness for disaster recovery.

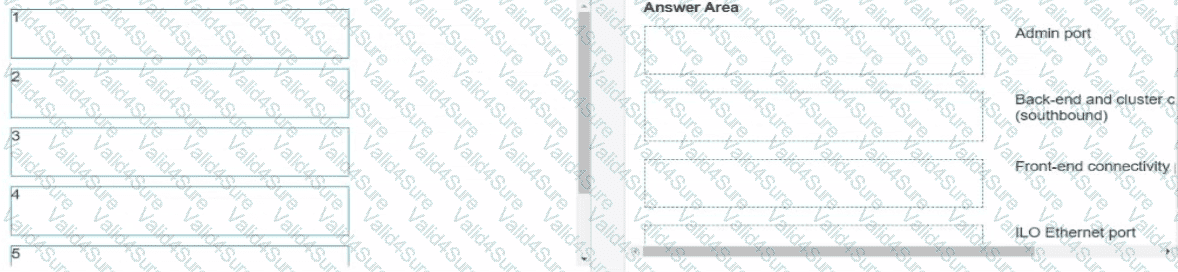

Admin port: 2

Back-end and cluster connectivity (southbound): 4

Front-end connectivity (northbound): 3

iLO Ethernet port: 1

The HPE Alletra MP B10000 architecture is defined by its disaggregated nature, separating the controller nodes from the physical storage capacity. Proper cabling of these nodes is fundamental to ensuring the performance and manageability of the cluster.

The ports on the rear of a controller node are categorized by their function within the disaggregated ecosystem:

iLO Ethernet port (1): This is the dedicated management port for the Integrated Lights-Out (iLO) processor. It provides out-of-band management, allowing administrators to access the hardware's health, power status, and remote console regardless of the operating system state.

Admin port (2): This RJ45 port is used for the management plane of the storage OS. It allows the array to communicate with the HPE GreenLake Data Services Cloud Console (DSCC) or local management software for configuration and provisioning tasks.

Front-end connectivity / Northbound (3): These ports (typically located in PCIe slots 1 and 2) provide the "Northbound" path to the host fabric. They are populated with high-speed Fibre Channel or iSCSI adapters to facilitate data access for servers and applications.

Back-end and cluster connectivity / Southbound (4): In a disaggregated shared-everything (DASE) architecture, "Southbound" connectivity is critical. These ports (often 100GbE RoCEv2) connect the controllers to the storage fabric and the disaggregated NVMe JBOFs. This allows every controller to see every drive in the cluster with ultra-low latency.

Understanding the distinction between Northbound (Host) and Southbound (Storage/Cluster) cabling is vital for a Master ASE. Incorrectly cabling the Southbound ports can lead to a "cluster split" or performance bottlenecks, as the disaggregated architecture relies on high-bandwidth, redundant paths to the underlying flash media to maintain its mission-critical performance profile. Number 5 in the diagram often represents the Serial console port, which is utilized primarily for initial setup or low-level troubleshooting by HPE Support and is typically not included in primary functional matching.

Meshed fabric: Has many-to-many connectivity and requires high performance.

Cascaded fabric: Data access is localized with servers and storage connected to the same switch.

Core-edge fabric: Data access is a mix of local and distributed.

Ring fabric: Accommodates diverse geographic conditions and location.

In the design of modern Storage Area Networks (SANs), selecting the right topology is critical for balancing performance, scalability, and cost. Each of these Brocade/HPE B-series architectures serves a specific workload profile:

Meshed Fabric: This design provides the highest level of redundancy and performance by connecting switches in an "any-to-any" pattern. Because every switch is connected to multiple other switches, it provides many-to-many connectivity and minimized "hop counts," making it ideal for high-performance environments where application traffic is unpredictable and widely distributed.

Cascaded Fabric: The simplest topology, where switches are connected in a serial or daisy-chain fashion. It is most effective in small environments where data access is localized—meaning the server and the storage it needs are physically connected to the same switch, minimizing Inter-Switch Link (ISL) traversal.

Core-Edge Fabric: The standard for enterprise data centers. Servers are connected to "Edge" switches, and storage is connected to a high-capacity "Core". This allows for a mix of local and distributed data access. Large enterprises use this to scale easily by adding edge switches without disrupting the core storage connectivity.

Ring Fabric: By connecting switches in a closed loop, this topology is designed to accommodate diverse geographic conditions. If a single link between two locations fails, traffic can be re-routed the other way around the ring. This provides a cost-effective way to link multiple sites or campus buildings while maintaining fabric integrity.

Standard SCSI write operations are inherently sensitive to distance because they require multiple round-trip handshakes before data is actually transmitted. A typical write involves: 1) the Command, 2) a Transfer Ready (XFER_RDY) response from the target, 3) the Data, and 4) the Status. In a long-distance SAN, each of these round trips adds significant "latency wait time," severely degrading performance as distance increases.

To solve this, Brocade (HPE B-series) utilizes a protocol optimization feature known as FastWrite. FastWrite works by creating a Proxy Target (PT) local to the initiator host and a Proxy Initiator (PI) local to the target storage device. When the host issues a SCSI write command, the local Brocade switch (acting as the Proxy Target) immediately sends the XFER_RDY back to the host without waiting for the signal to travel across the long-distance link. This allows the host to send the data segment immediately.

By eliminating the need for every handshake message to traverse the distance multiple times, FastWrite significantly reduces the aggregate latency felt by the application. Architecturally, this enables customers to extend their SAN fabrics over double the distance (and often much further) while maintaining performance comparable to a significantly shorter link. This is critical for asynchronous replication and remote copy applications that issue large I/O blocks. Option C (Write Acceleration) is a generic term often used by other vendors, while FastWrite is the specific, validated Brocade feature name used in HPE Master ASE documentation for this protocol optimization.
